Product Description

Overview
XZ230F Horizontal Directional Drilling Rig
XZ230F Horizontal Directional Drilling Rig
Product Description
XZ230F series horizontal directional drilling rig is a set of advanced technology, user experience, construction efficiency as one of the new products, pay more attention to construction needs, operation habits, system energy saving, suitable for power, communication, cable TV and other urban pipeline construction of small tonnage models.
Specification
Item Unit XZ450F XZ360F XZ230F
Rated power kW/r/min 177/2200 154/2200 118/2200
Max. push force kN 450 380 230
Max. push speed m/min 50 40 55
Torque N·m 20000 14000 7000
Max. speed r/min 140 140 190
Max. displacement L/min 450 400 250
Max. pressure MPa 8 8 8
Drill pipe mm*m φ83*3 φ73/76/83*3 φ60*3
Max. entry Angle ° 20 20 20
Mass t 12.5 10 8.5
Overall dimensions mm 6500*2250*2450 6200*2280*2450 6100*2230*2300
Detailed Images

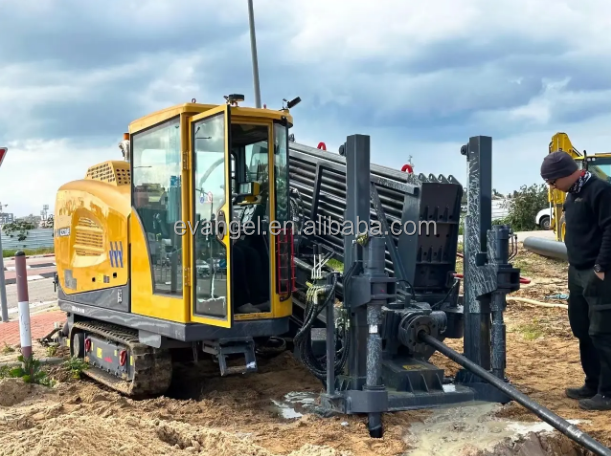

Drilling Rig Detail 1

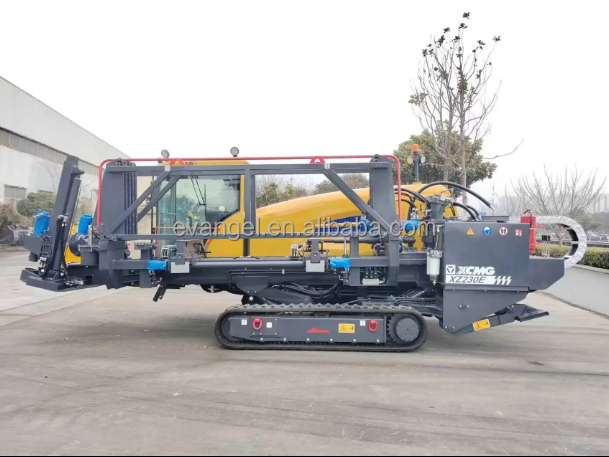

Drilling Rig Detail 2

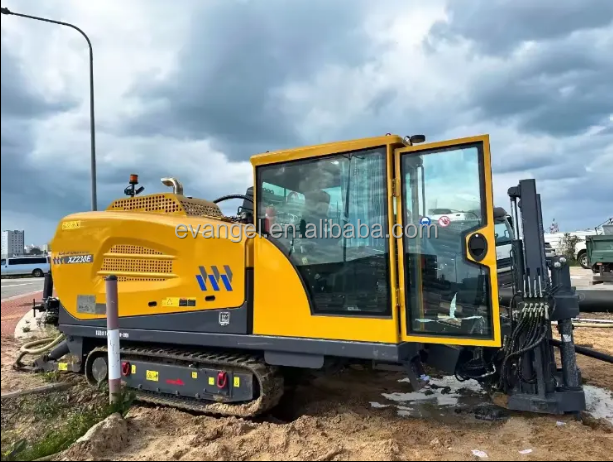

Drilling Rig Detail 3

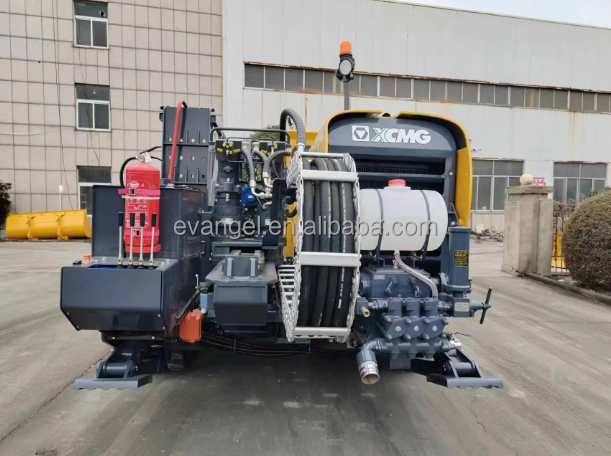

Drilling Rig Detail 4
Packing & Delivery
Packing 1
Packing 2
Project Gallery
Frequently Asked Questions
What are the primary applications for the XZ230F drilling rig?
The XZ230F is ideal for urban pipeline construction, including power cables, telecommunication lines, and cable TV installations.
What is the maximum push force of the XZ230F model?
The XZ230F horizontal directional drilling rig provides a maximum push force of 230 kN.
What type of drill pipe does the XZ230F use?
It uses a drill pipe with a diameter of φ60 mm and a length of 3 meters.
How fuel-efficient is the F-series drilling rig?
The series is designed with a focus on system energy saving and advanced technology to optimize fuel consumption during construction.
What are the transport dimensions of the XZ230F?
The overall dimensions are approximately 6100mm in length, 2230mm in width, and 2300mm in height, with a mass of 8.5 tons.
What is the maximum rotation speed for this model?
The XZ230F features a maximum rotation speed of 190 r/min, allowing for efficient drilling operations.
