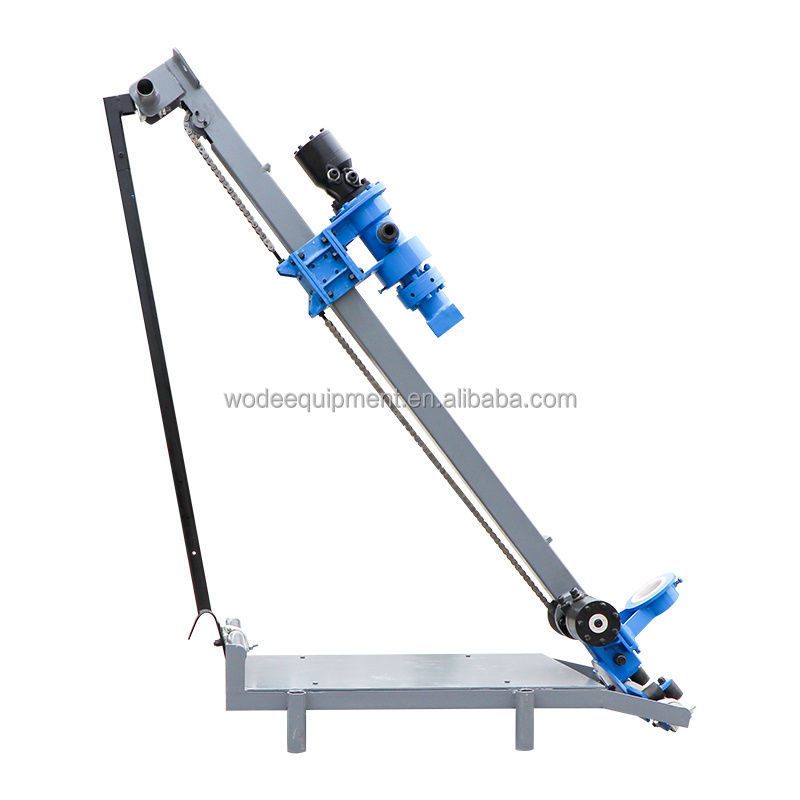

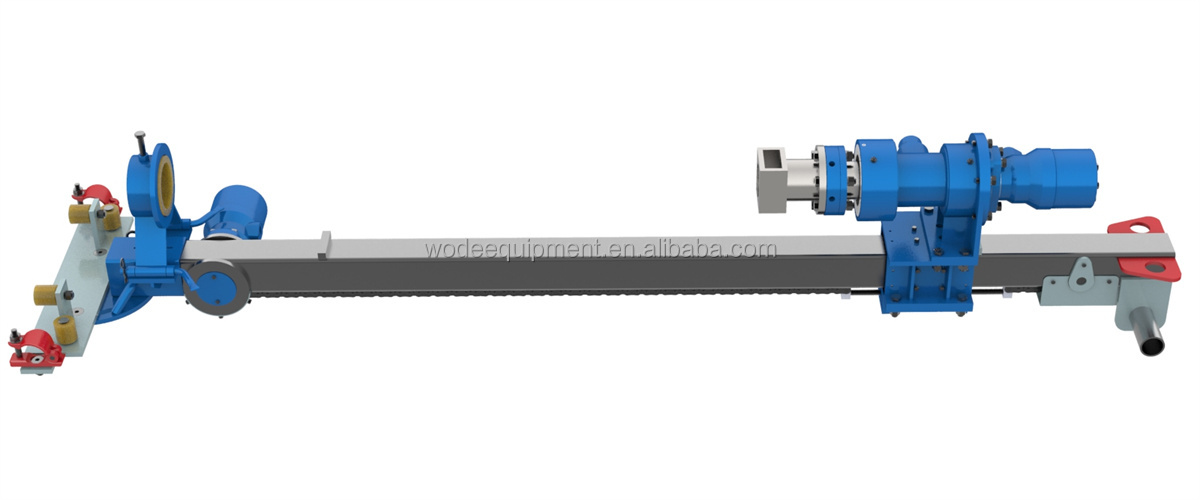

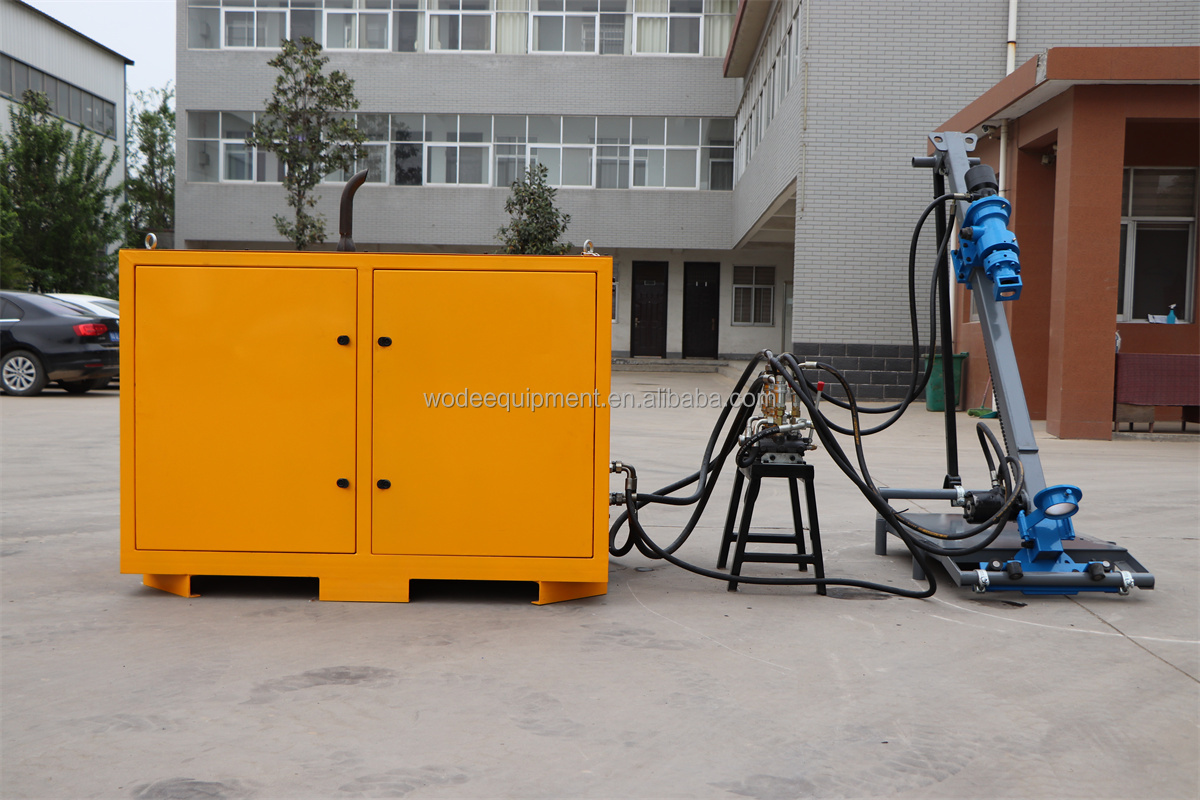

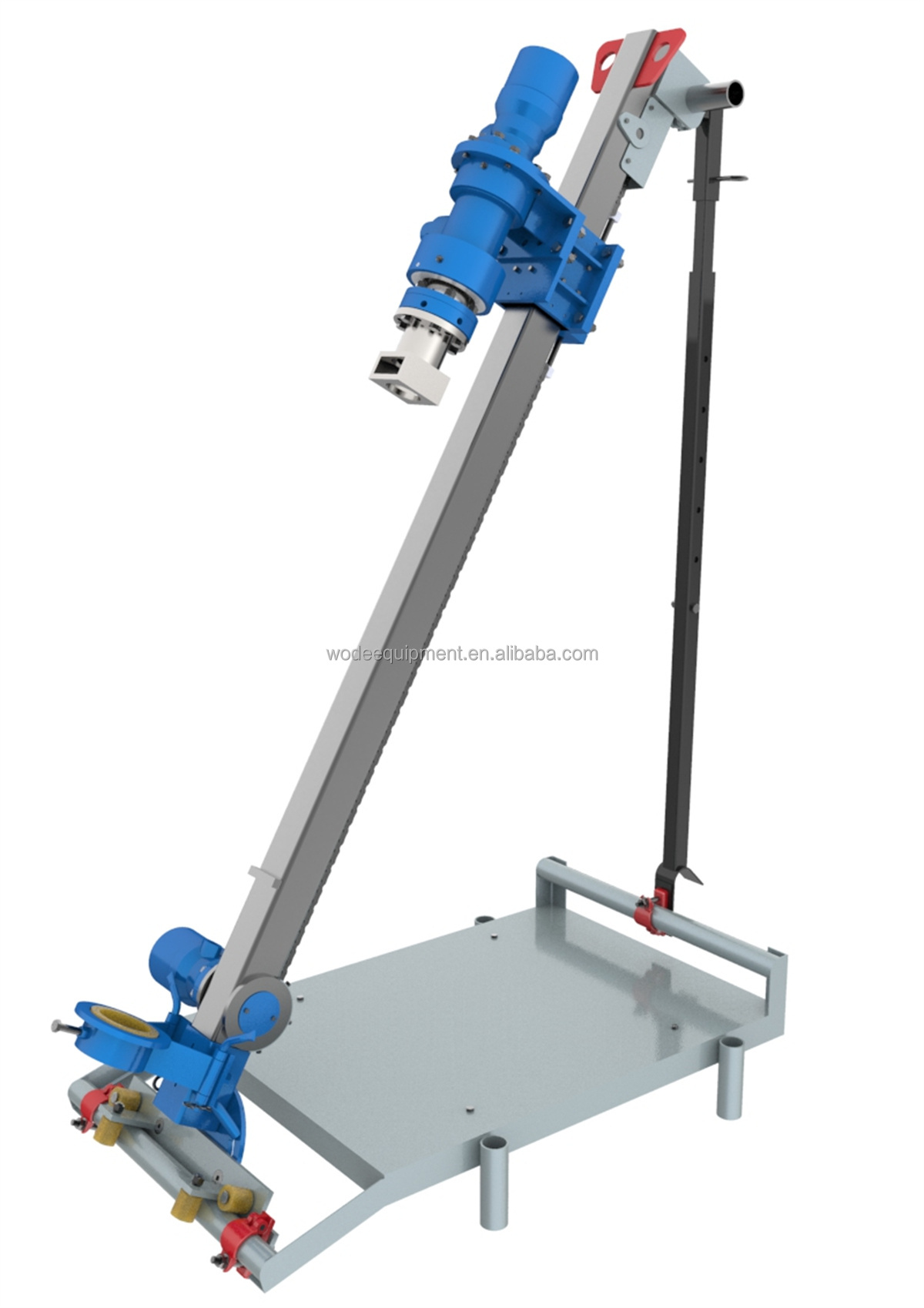

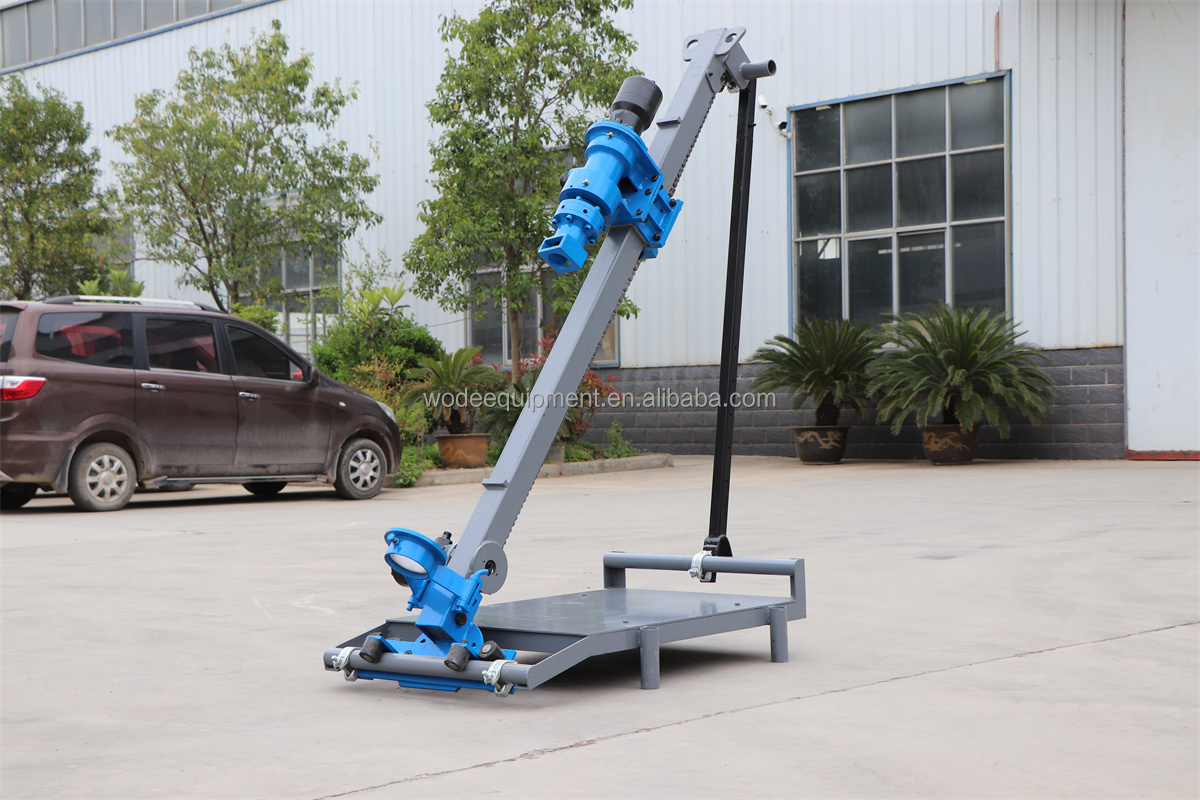

HWPD100H Portable Hydraulic Drive DTH Drilling Machine
⚙

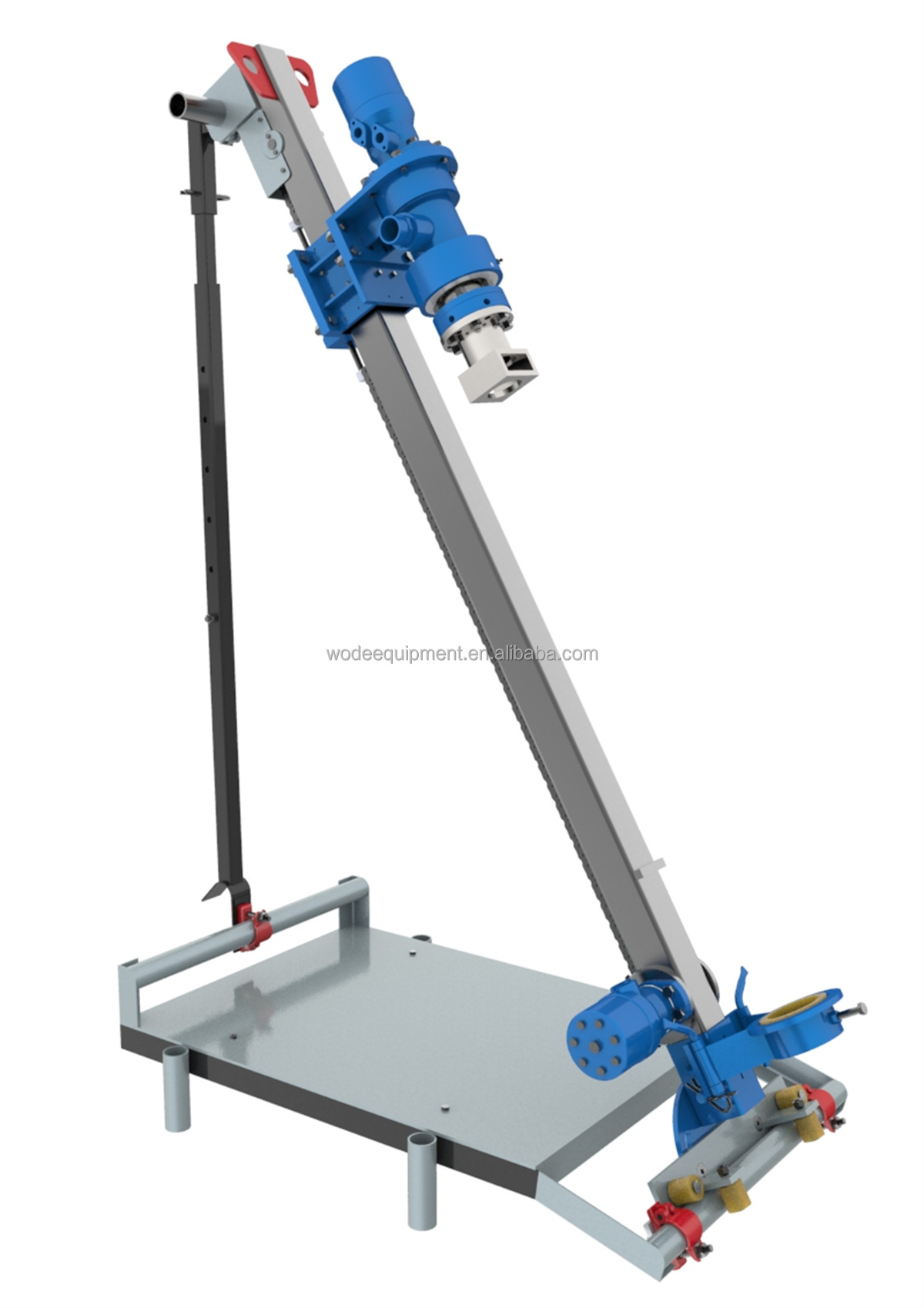

The HWPD100H is a portable hydraulic chain feed drilling machine, ideal for all handy drilling work. It can be used with down-the-hole hammer and drill hammer as well as for core drilling. Designed for easy mounting on any type of scaffolding and suitable for wall work. Very light and handy.

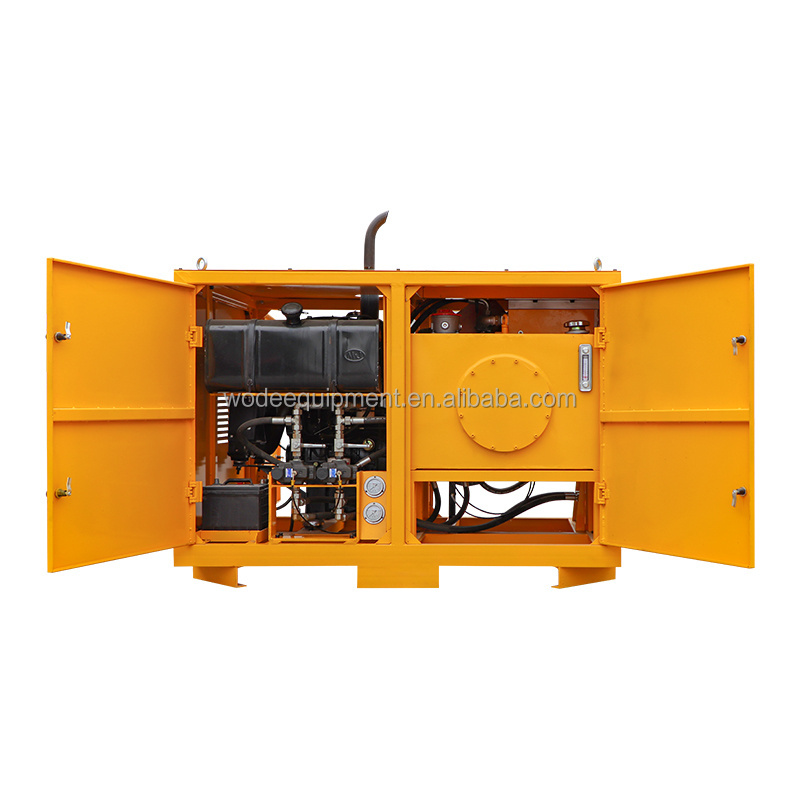

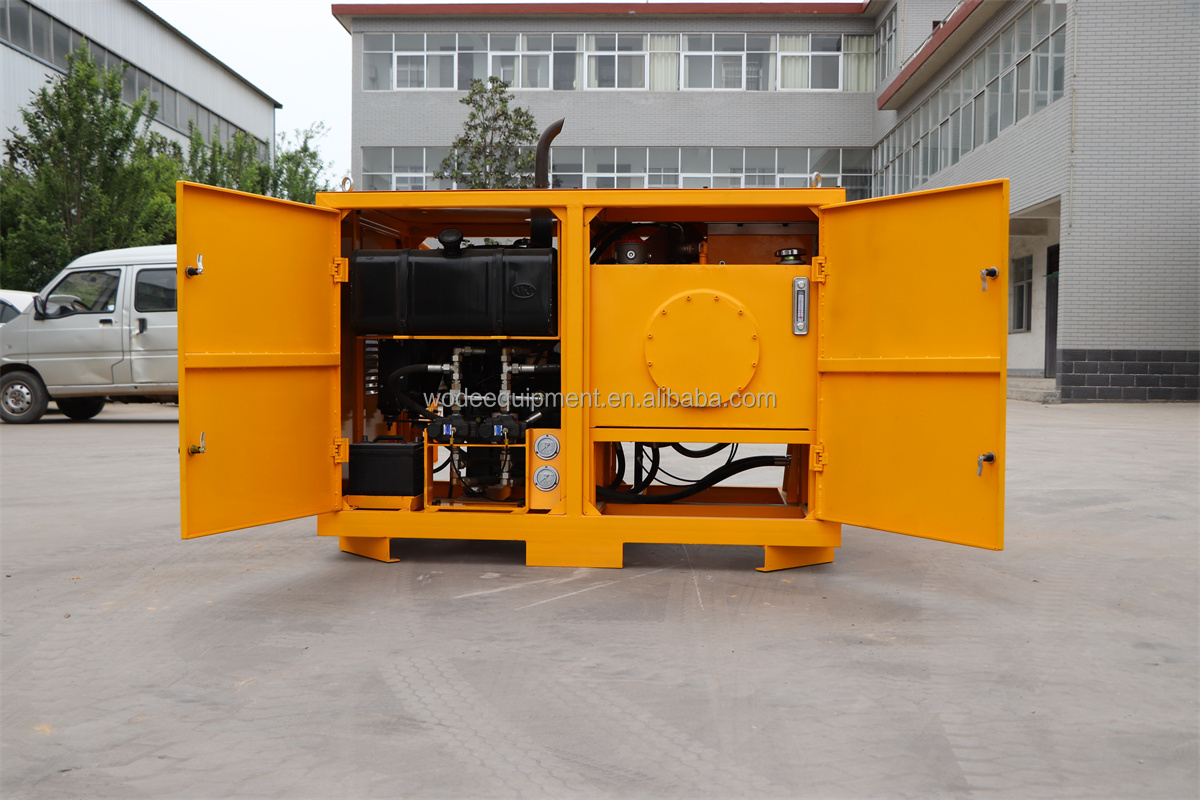

Diesel Drive Hydraulic Station
All hydraulic pumping station is driven by diesel engine. Equipped with cooling system, filtration system, pressure regulating system, pressure and temperature indication and valve control. The product is compact, easy to operate and does not take up space.
Product Parameters
| Model | HWPD100H |
| Hole Diameter | 80~120mm |
| Hole Depth | 30m |
| Feed Force | 12KN |
| Rotate Speed | 90~120rpm |
| Torque | 1000NM |
| Air Pressure | 0.5~0.7Mpa |
| Air consumption | 7~8m3/min |
| Single feeding distance | 1m |
| Drilling Direction | Any Angle |
| Weight | 86Kg (Only drill machine) |

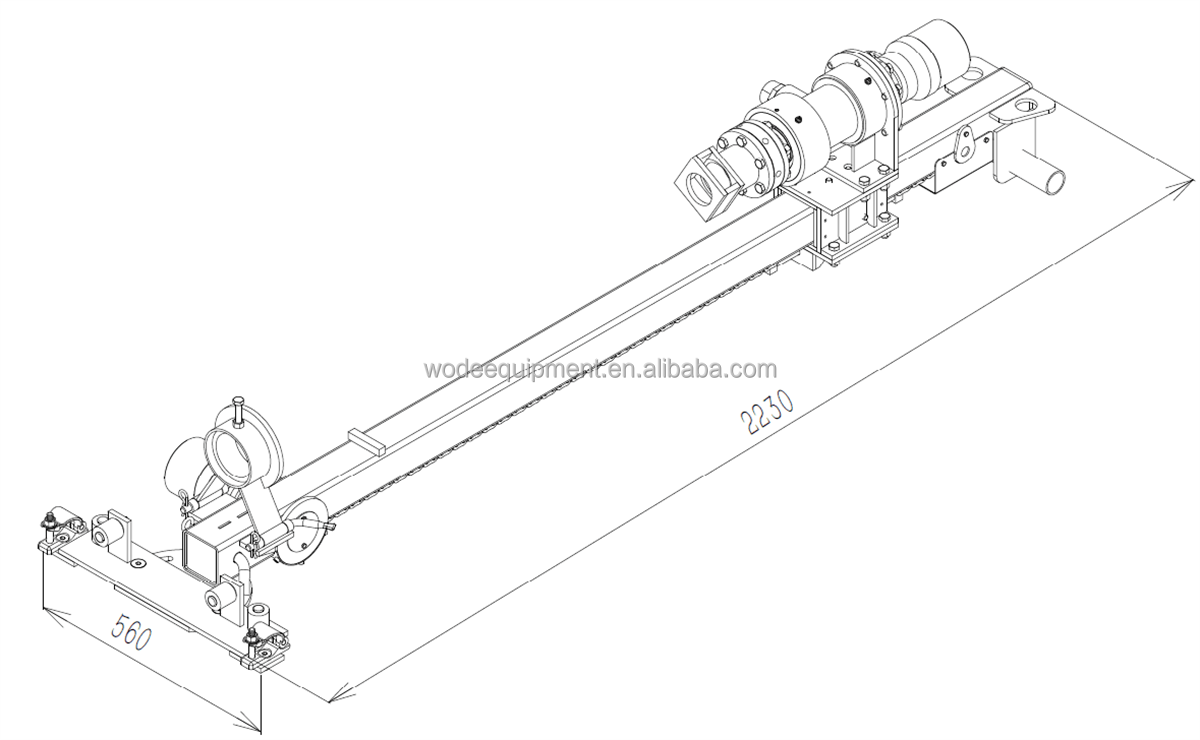

| Dimension | 2230x560x415mm |
Product Application
Hydraulic portable chain feed drilling machine is widely used for the following projects:
- Nailing
- Blast Holes
- Micropiles
- Core Drilling
- Exploratory Drilling
- Diamond Drilling
Related Products

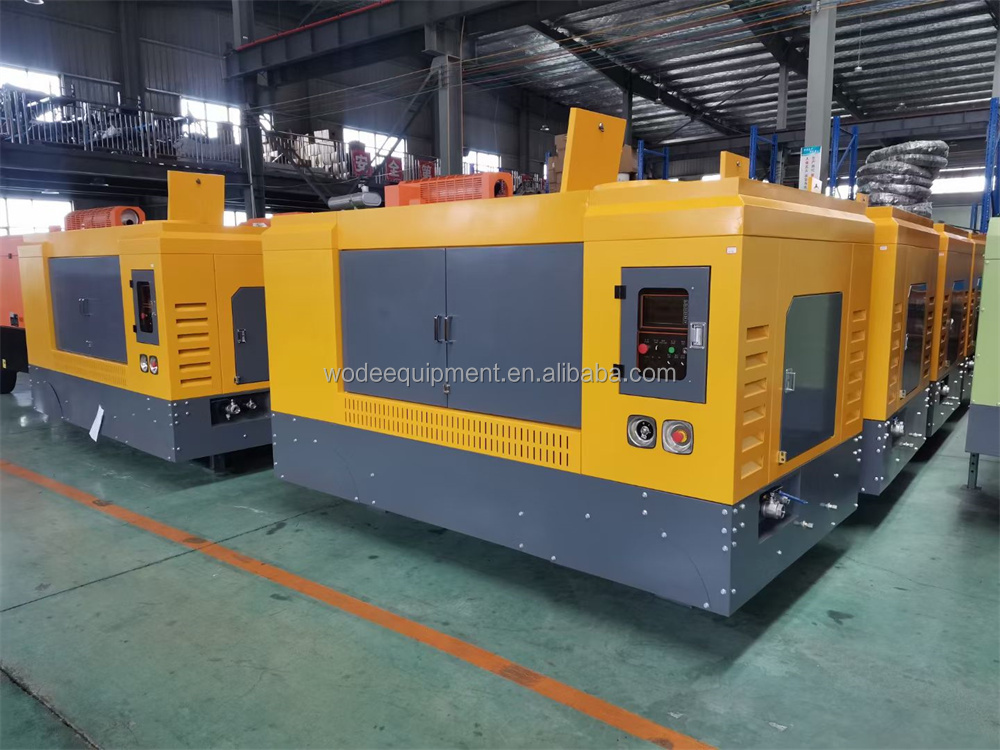

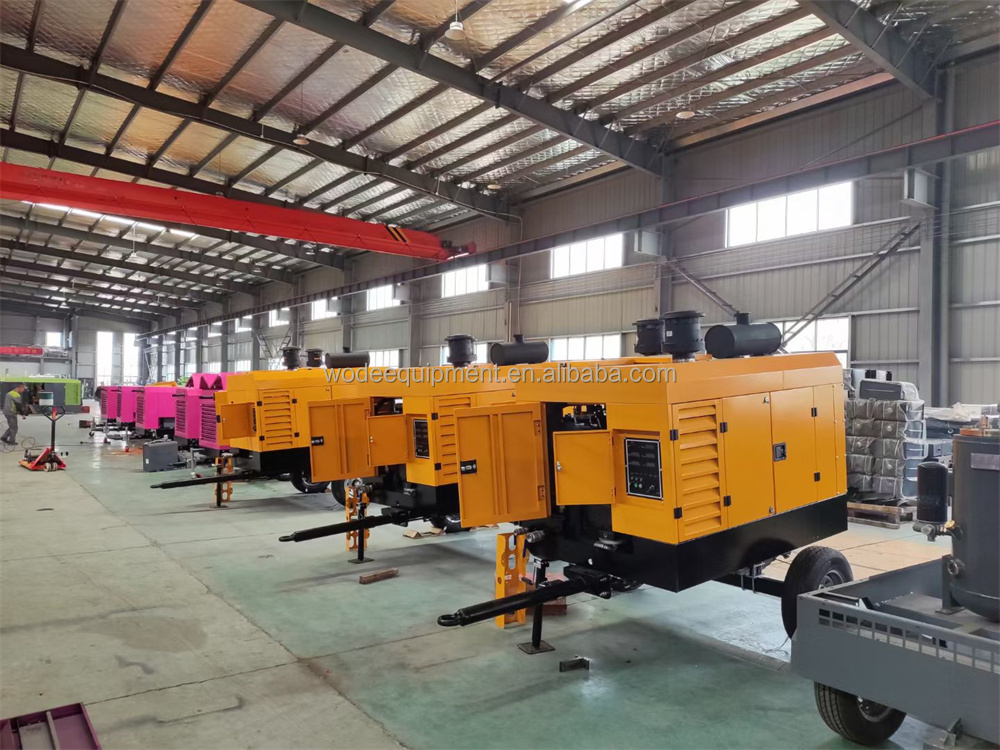

Air Compressor

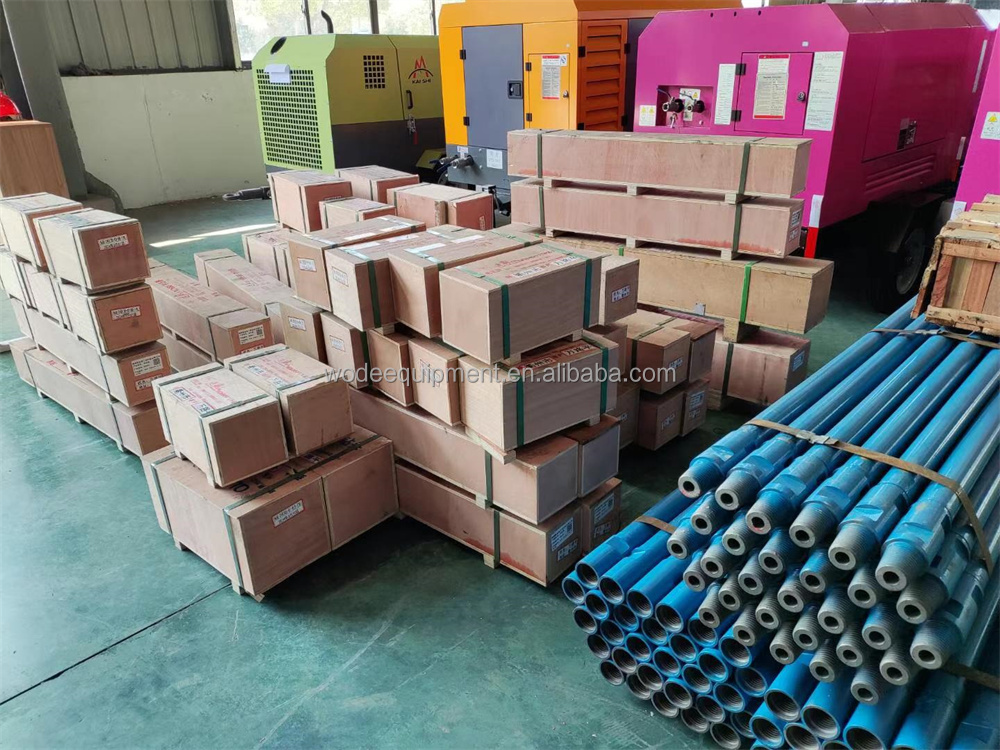

Drill Rod

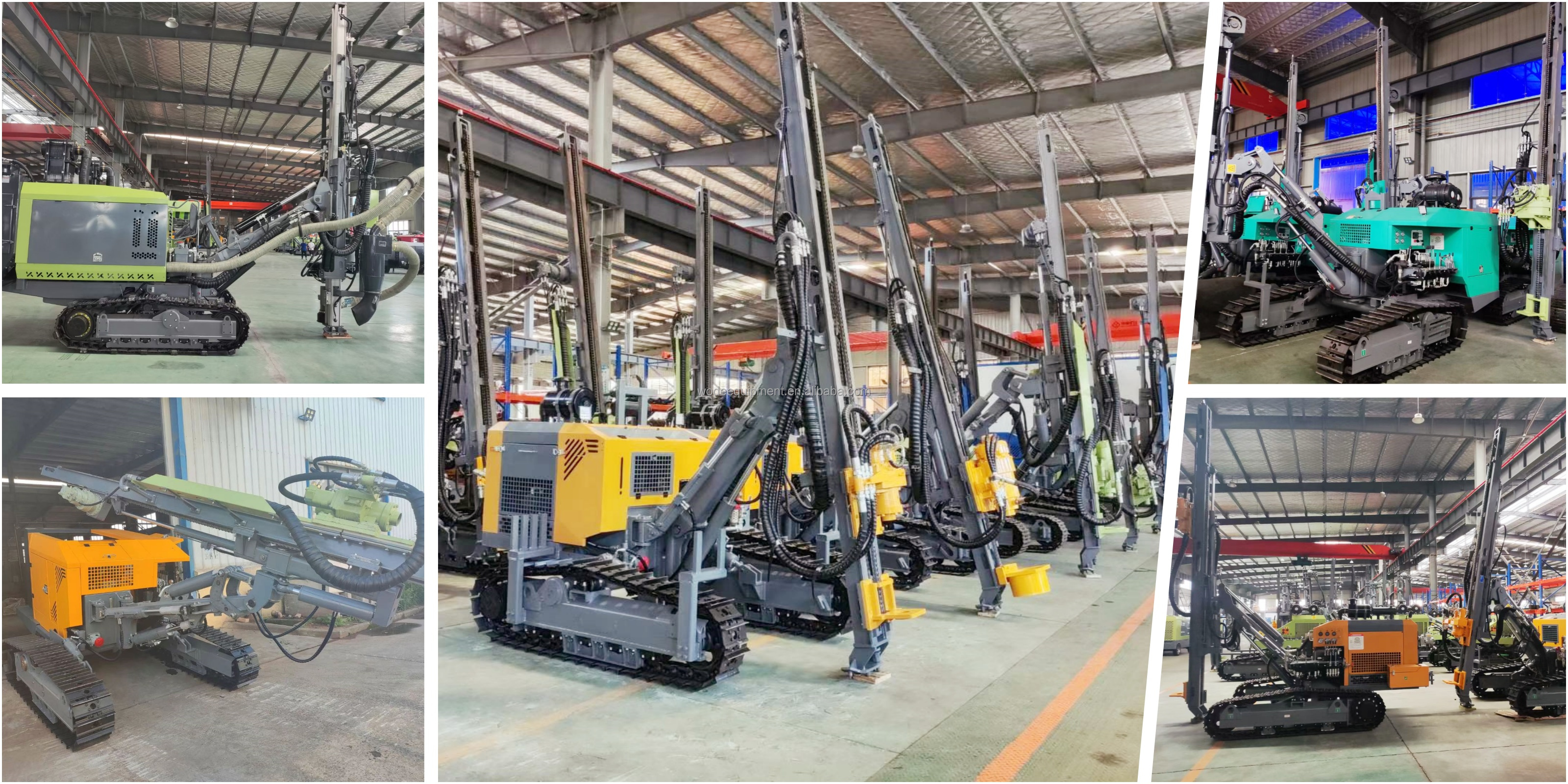

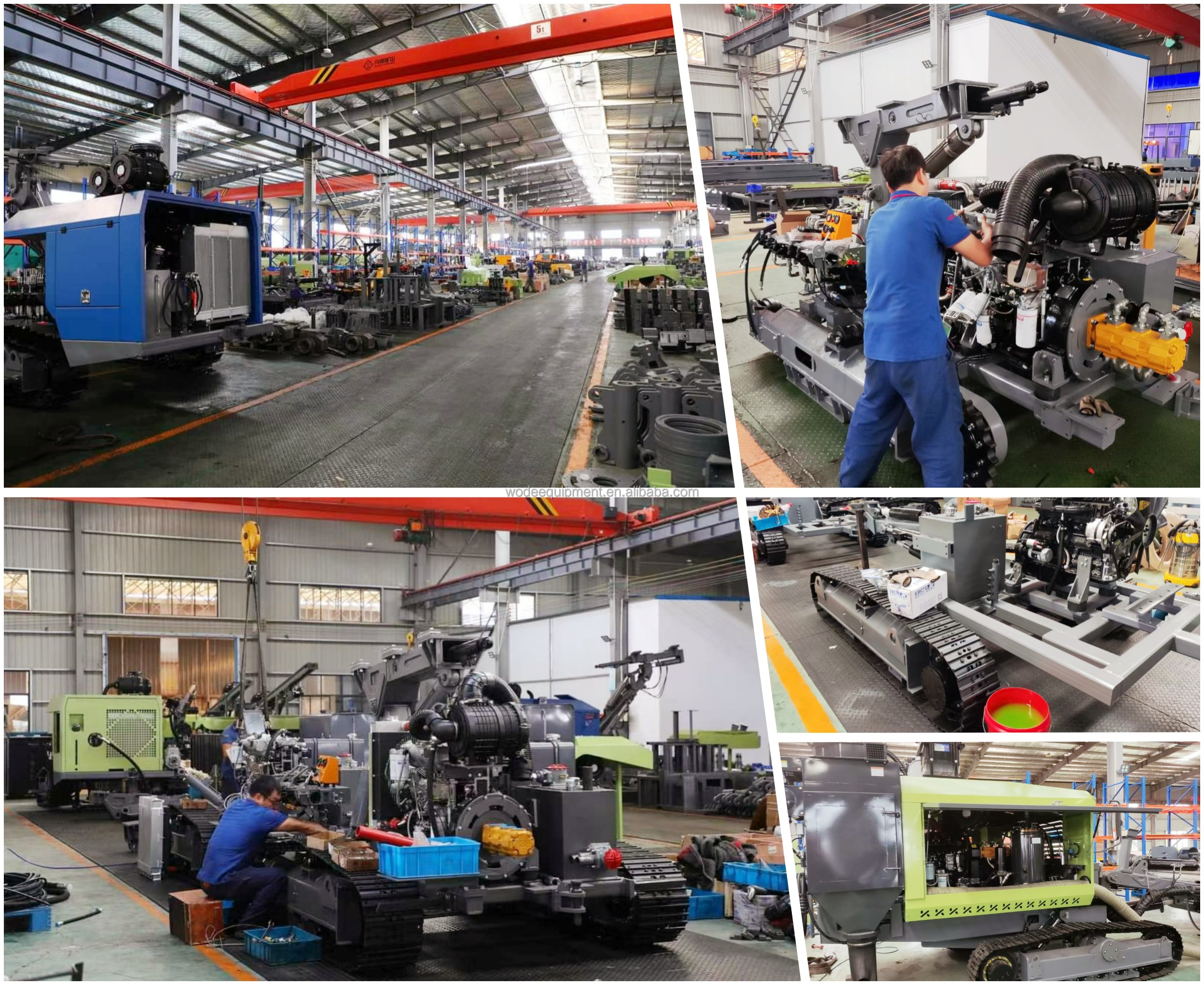

Equipment Manufacturing Overview
Specializing in the manufacturing of a wide range of drilling equipment, including surface DTH drilling rigs, underground drilling rig machines, and various other drilling rig series. We also produce drill rods, drilling tools, and high-, medium-, and low-pressure air compressors.
Our machinery is exported to regions worldwide, such as South America, Africa, Southeast Asia, Eastern Europe, the Middle East, North America, Oceania, Eastern Asia, Central America, South Asia, Australia, Western Europe, and Northern Europe.
Our products comply with the ISO 45001:2018 international quality management system certification, ensuring reliable performance and superior quality. We are committed to providing excellent after-sales service to our global clients. You are welcome to visit our factory and send your inquiries.
Frequently Asked Questions (FAQ)
1. What is the maximum hole depth of the HWPD100H?
The HWPD100H has a maximum hole depth capacity of 30 meters.
2. What type of drilling angles can this machine handle?
This drilling machine is highly versatile and can perform drilling at any angle.
3. Can it be mounted on scaffolding?
Yes, the machine is specifically designed for easy mounting on any type of scaffolding, making it perfect for wall work.
4. What is the weight of the drilling machine?
The drill machine itself weighs approximately 86kg, making it very light and portable for handy drilling tasks.
5. What powers the hydraulic pumping station?
The hydraulic pumping station is driven by a reliable diesel engine and includes a built-in cooling and filtration system.
6. What is the recommended air consumption for operation?
The recommended air consumption for optimal performance is between 7 and 8 cubic meters per minute.
