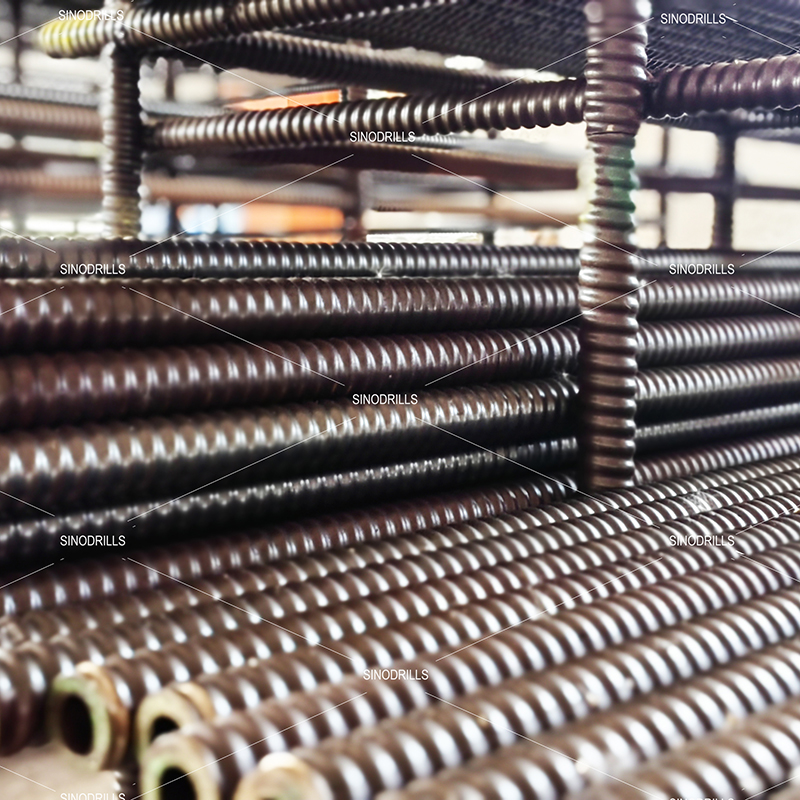

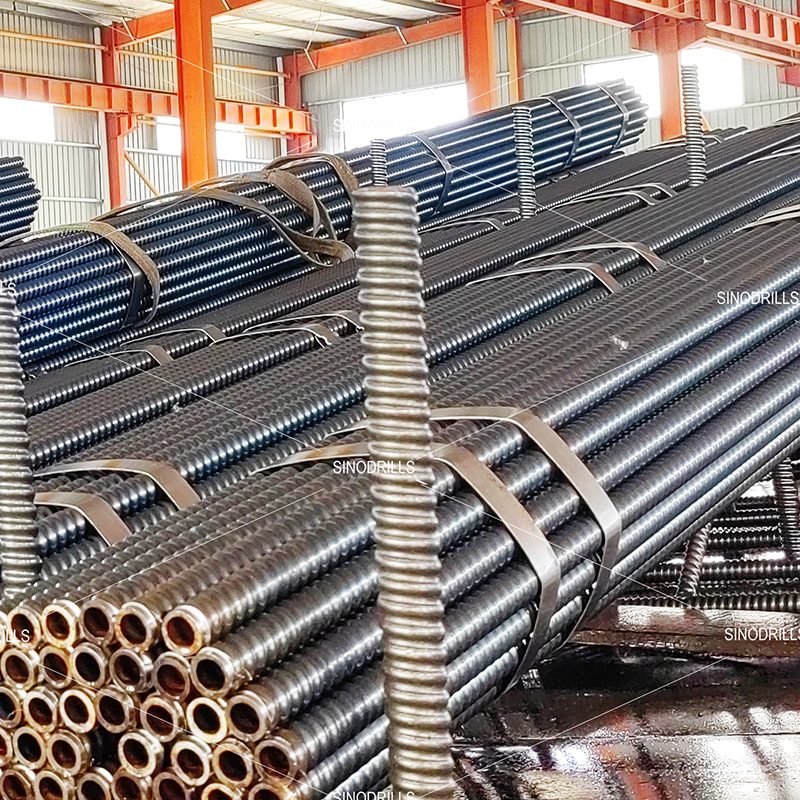

1. Anchor Bar Thread Details:
R Thread size: R25, R32, R38, R51, T76, T111
T Thread size: T30, T40, T52, T73, T76, T103, T127, T130
Thread standard: ISO10208, ISO1720
2. Corrosion Resistance Technology:
1) Hot-dip galvanized: ENSISO1461:2009
2) Epoxy coated

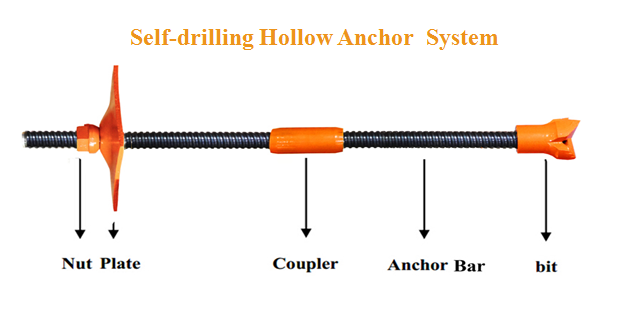

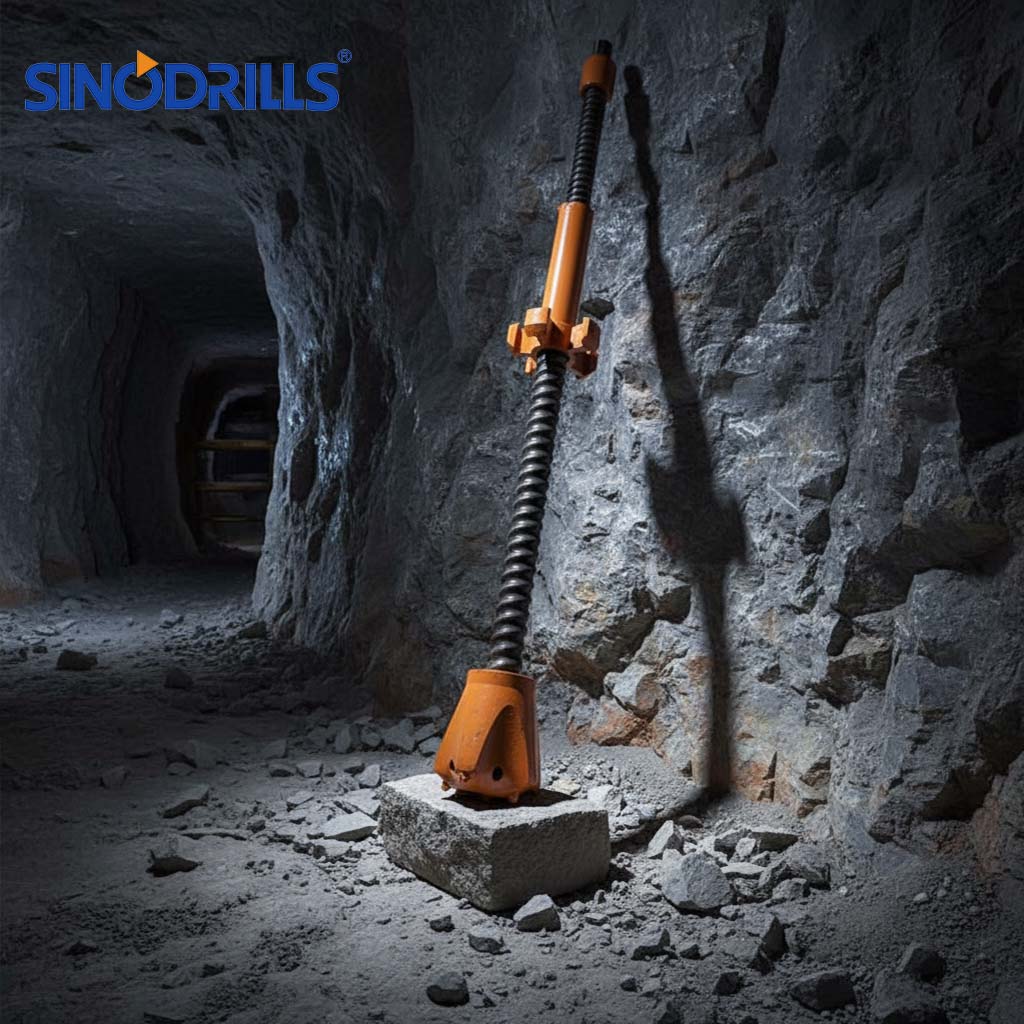

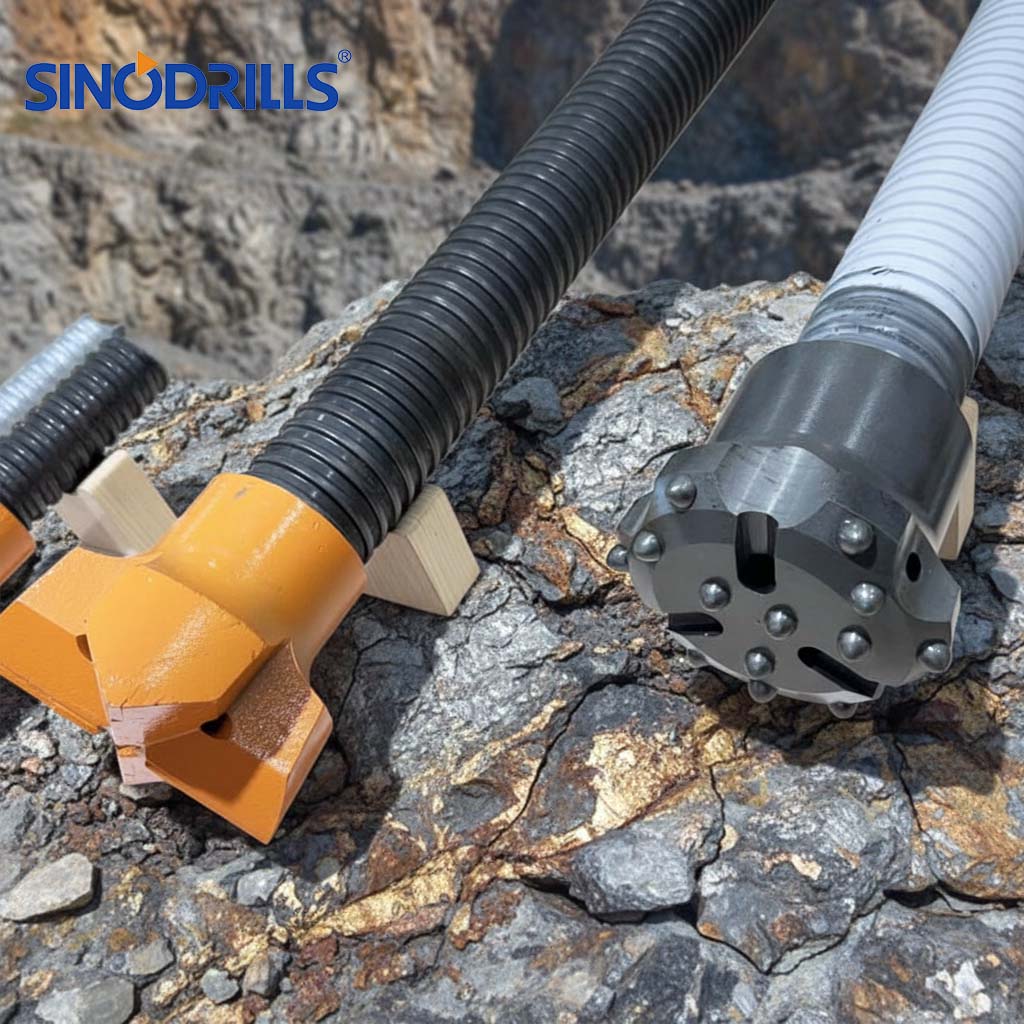

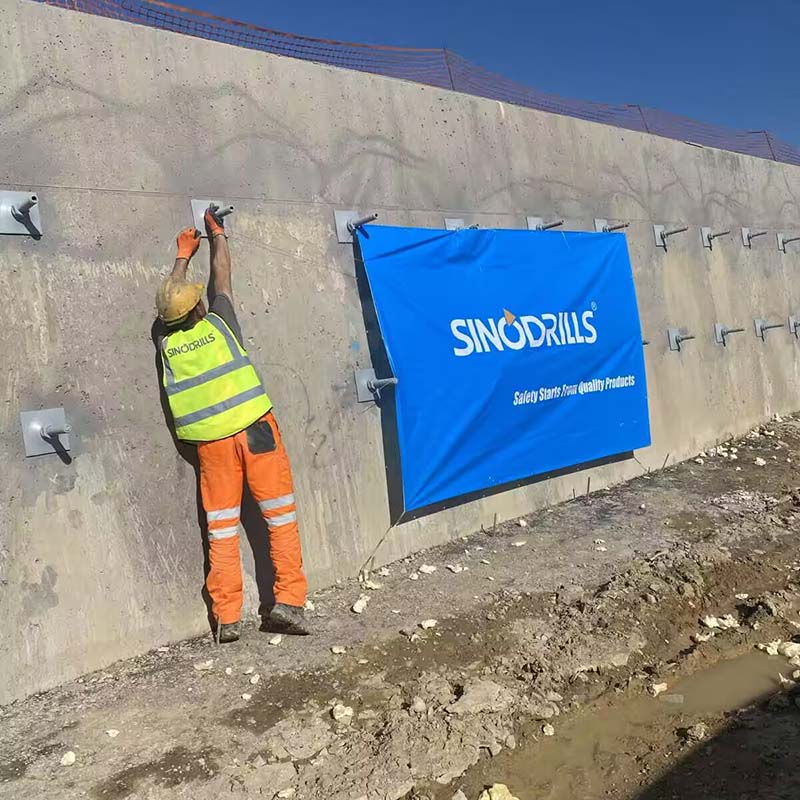

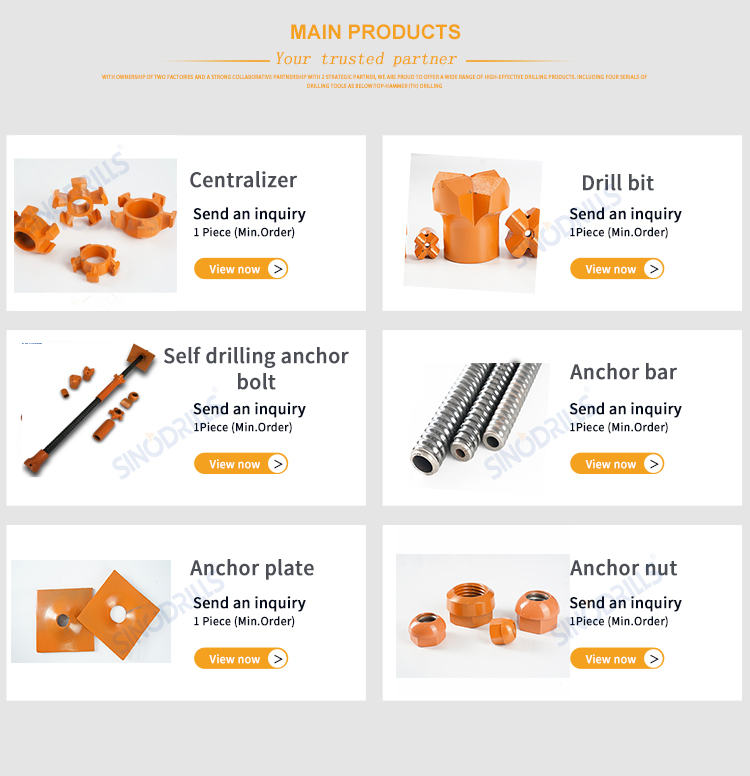

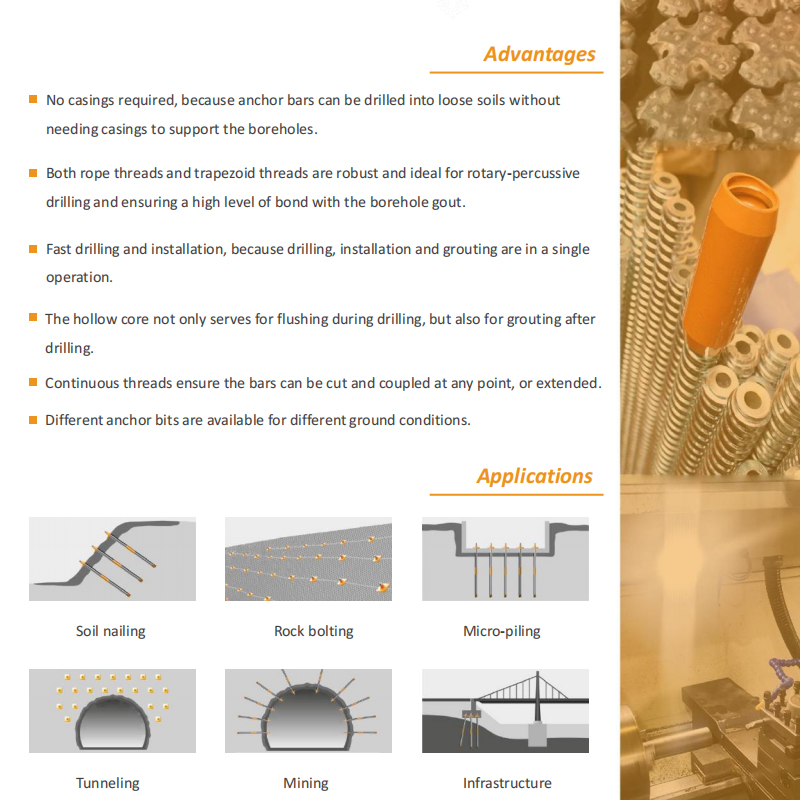

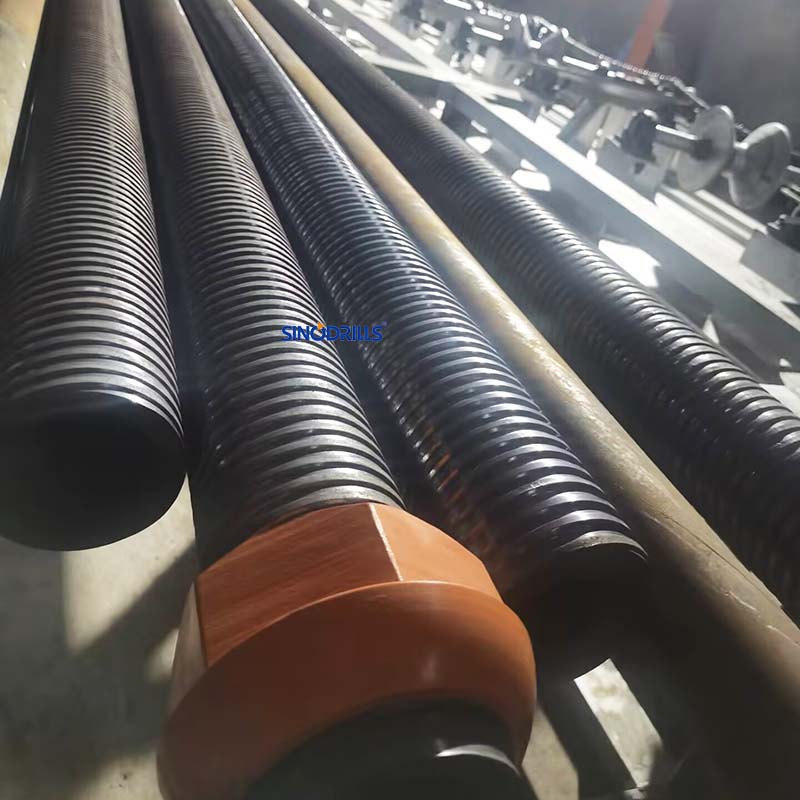

The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation. This system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles, and is widely applied in mining, railway, and metro construction projects.
Our self-drilling anchor bolts are a bolting solution for unstable ground conditions such as sand, gravel, silt, and clay, and in soft to medium fractured rock formations. For projects facing such ground conditions, self-drilling anchors should be considered as the main productivity solution.

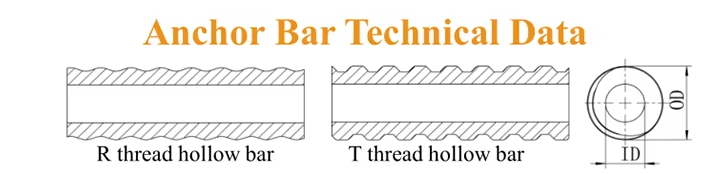

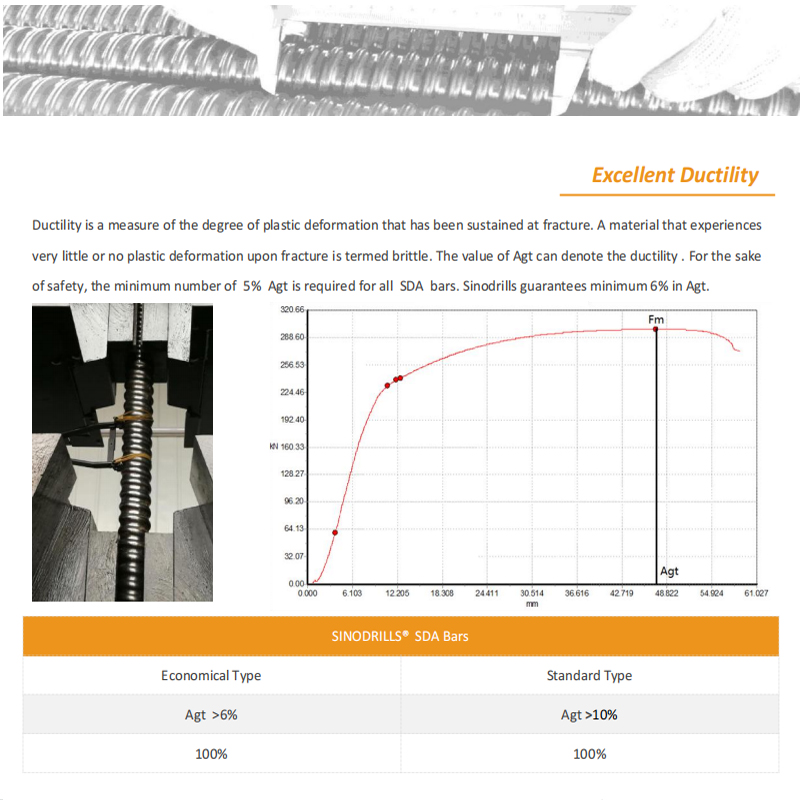

| Size | O.D (mm) | I.D (mm) | Ultimate Load (KN) | Yield Load (KN) | Weight (kg/m) |
|---|---|---|---|---|---|
| R25N-14 | 25.0 | 14.0 | 200 | 150 | 2.3 |
| R32L-22 | 32.0 | 22.0 | 210 | 160 | 2.8 |
| R32N-21 | 32.0 | 21.0 | 280 | 230 | 2.9 |
| R32S-17.5 | 32.0 | 17.5 | 360 | 280 | 3.5 |
| R38N-21 | 38.0 | 21.0 | 500 | 400 | 4.8 |
| R51L-38 | 51.0 | 38.0 | 550 | 450 | 6.0 |
| R51N-33 | 51.0 | 33.0 | 800 | 630 | 8.4 |
| T76N-49 | 76.0 | 49.0 | 1600 | 1200 | 16.5 |
| T30-11 | 30.0 | 11.0 | 320 | 260 | 3.3 |
| T40-20 | 40.0 | 20.0 | 540 | 425 | 5.6 |
| T103-51 | 103.0 | 51.0 | 3600 | 2670 | 44.0 |

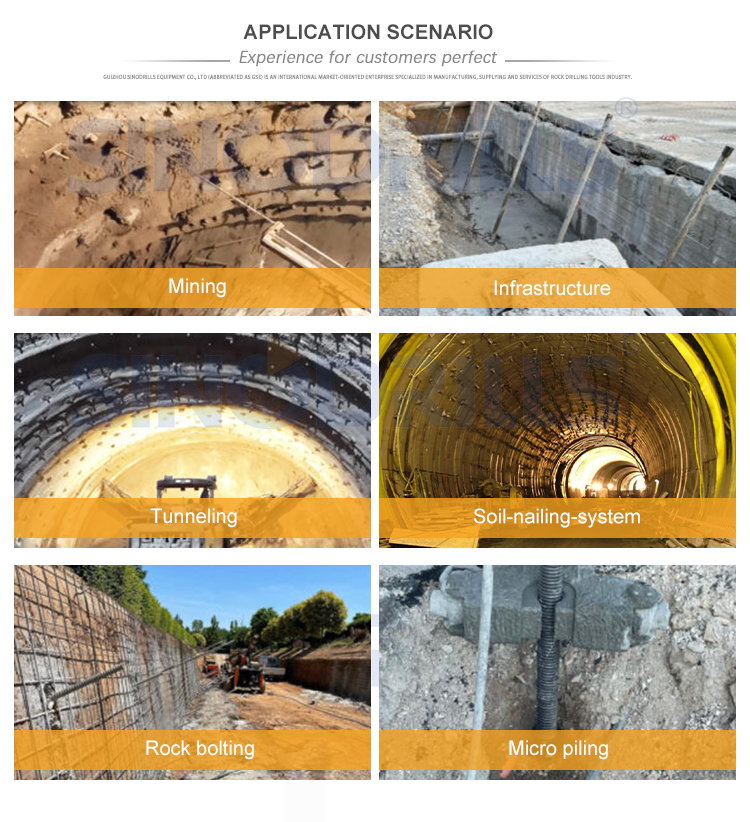

Self drilling anchor bolt systems are primarily utilized for tunnel and underground engineering, slope stabilization, and foundation engineering. They are effective for pre-construction support, enhancing the stability of soil and rock masses.

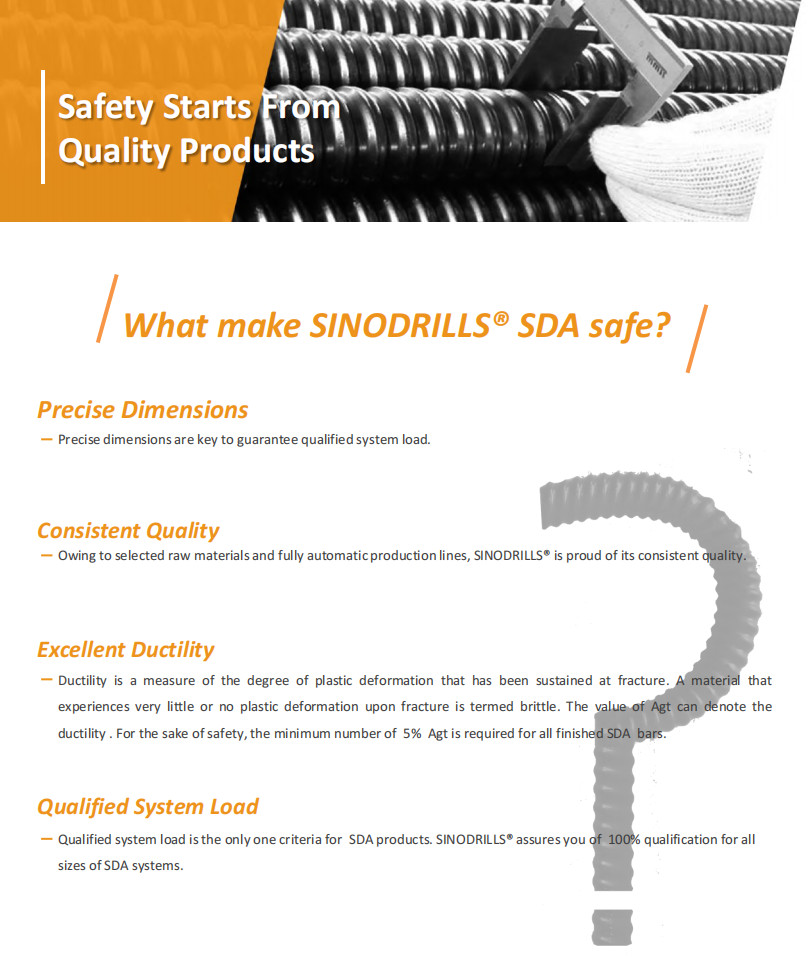

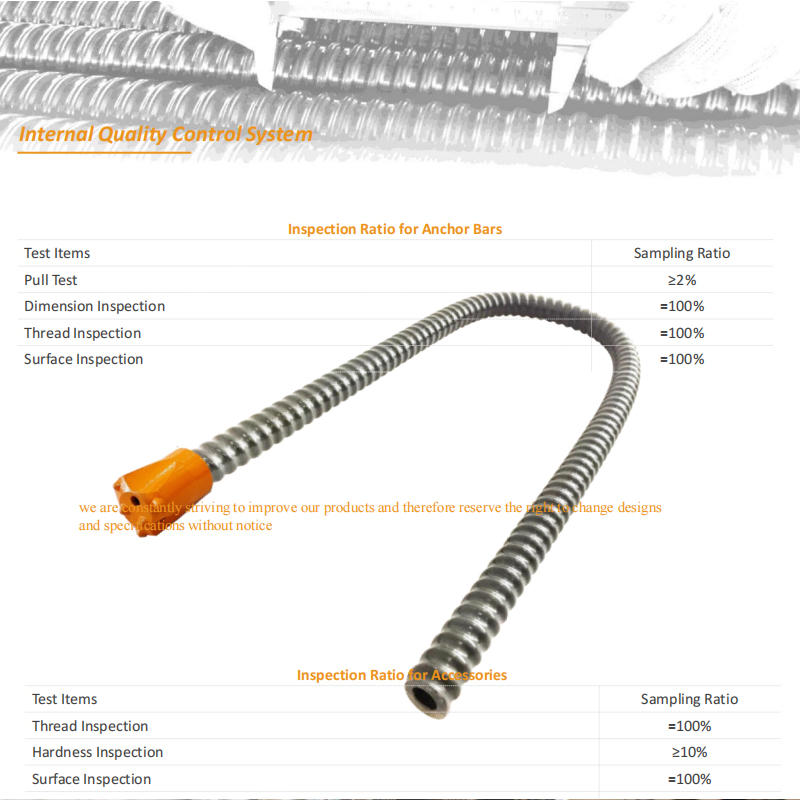

Our goal is to be a reliable partner, offering cost-effective products and fast solutions. As a modern corporation, we operate strictly in compliance with ISO9001 quality management systems, and our products have passed European CE certification.
Our Qualifications: ISO45001:2018 Health and Safety, ISO9001 Quality Management, SGS Certification for Self-drilling anchor bolts, and multiple Patent Certificates.
