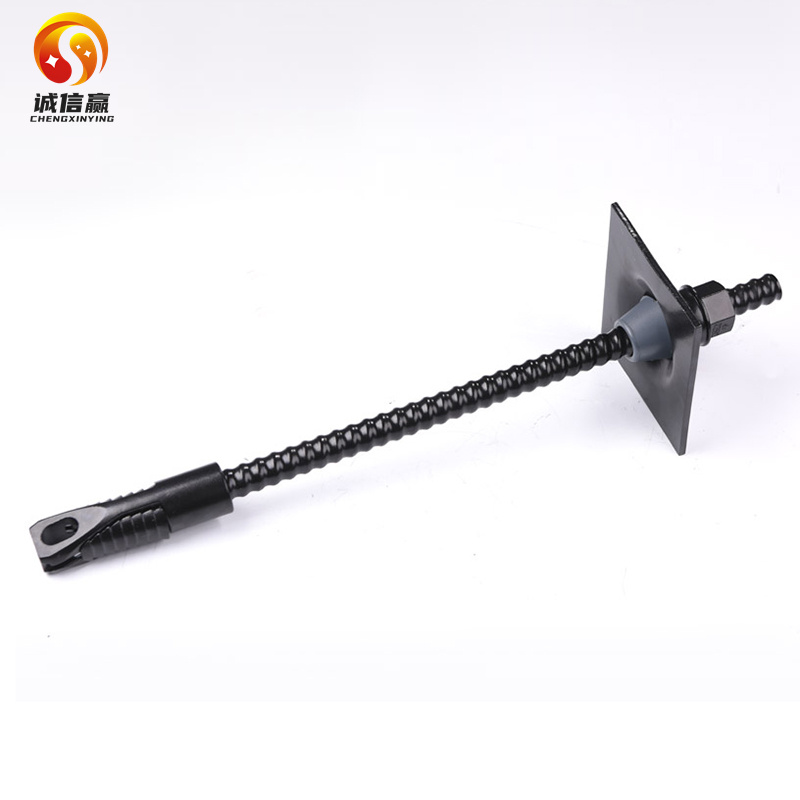

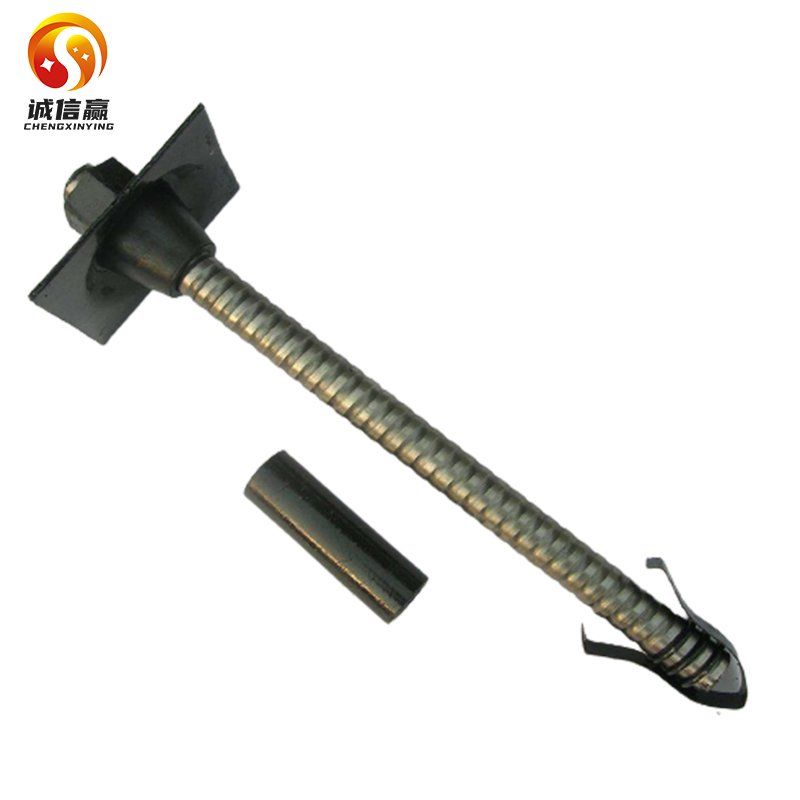

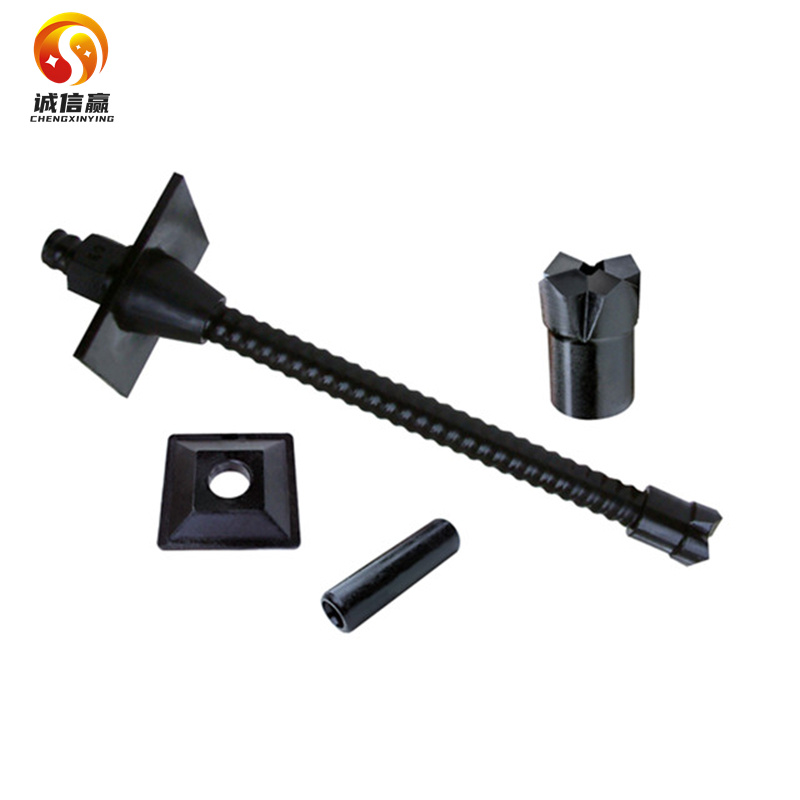

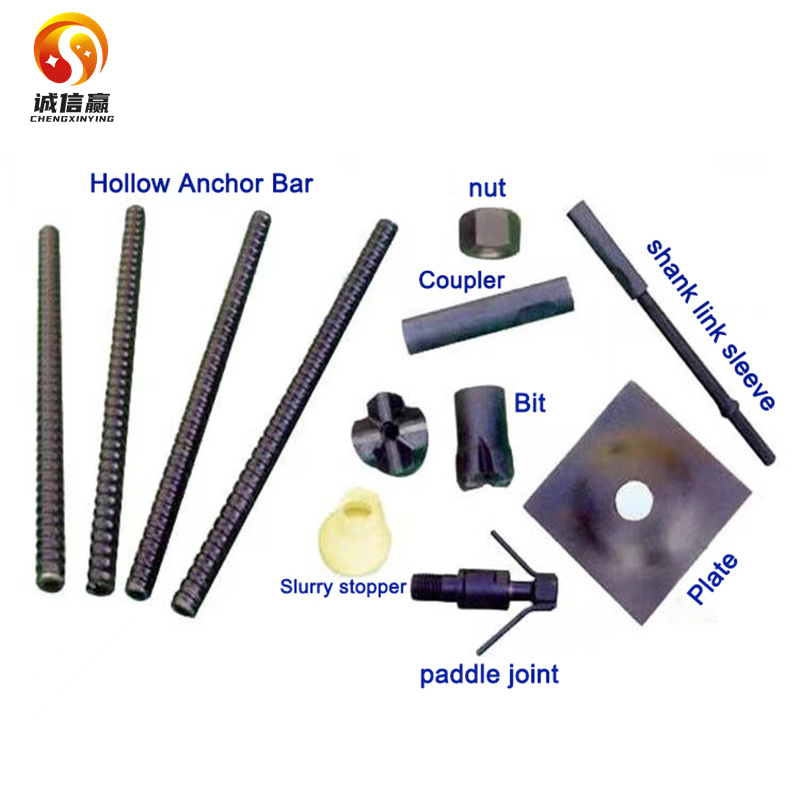

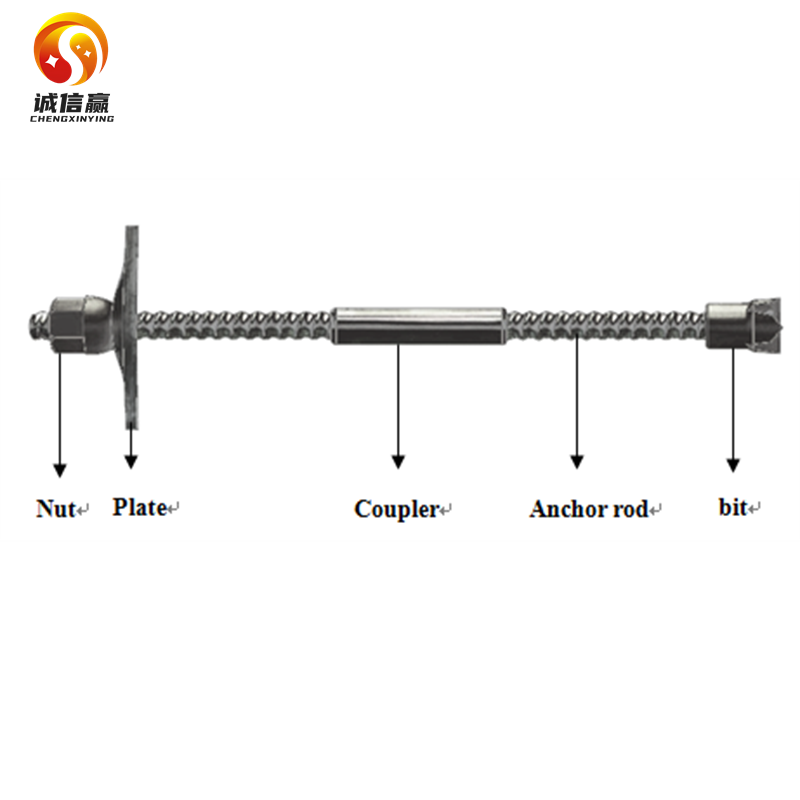

R32S Self Drilling Anchor System Carbon Steel Anchor Bolt for Tunneling Mining Roof Bolting

Product Description

📊 Specification
Size O.D(mm) I.D(mm) Ultimate Load(KN) Yield Load(KN) Weight(kg/meter)
R25N-1425.014.02001502.3
R32L-2232.022.02201802.8
R32N-2132.021.02802302.9
R32N-18.532.018.52802303.4
R32S-17.532.017.53602803.5
R32S-1532.0153602804.1
R38N-2138.021.05004004.8
R38N-1938.019.05004005.5
R51L-3851.038.05504506.0
R51L-3651.036.05504507.6
R51N-3651.036.08006307.6
R51N-3351.033.08006308.4
T76N-4976.049.01600120016.5
T76S-4576.045.01900150019
T30-1130.011.03202603.3
T30-1430.014.02752202.9
T40-1640.016.06605257.1
T40-2040.020.05404255.6
T52-2652.026.093073010
T73-5673.056.0103583010.8
T73-5373.053.0116097014
T73-4573.045.01600127017.5
T73-3573.035.01865143021.2
T103-51103.051.03660267044
Steel grade Acc. to EN10083-1 / EN10210-1
Thread direction Left hand / Right hand

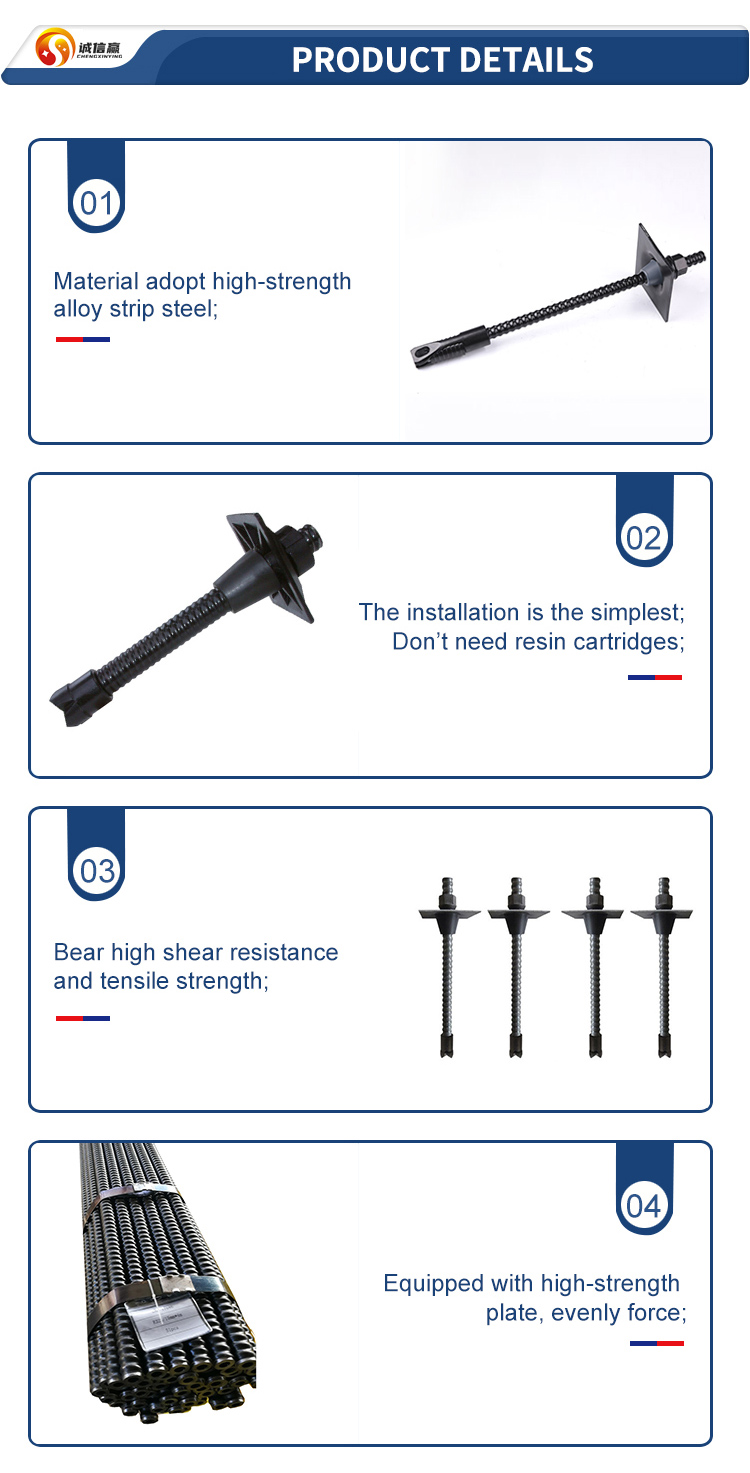

⚙️ Technical Characteristics
01
Material adopt high-strength alloy strip steel (Anchor rod)
02
The installation is the simplest (Anchor rod)
03
Don't need resin cartridges (Anchor rod)
04
The friction force between the friction bolt and the rock mass is large (Anchor rod)
05
Bear high shear resistance and tensile strength (Anchor rod)
06
Equipped with high-strength plate, evenly force (Anchor rod)

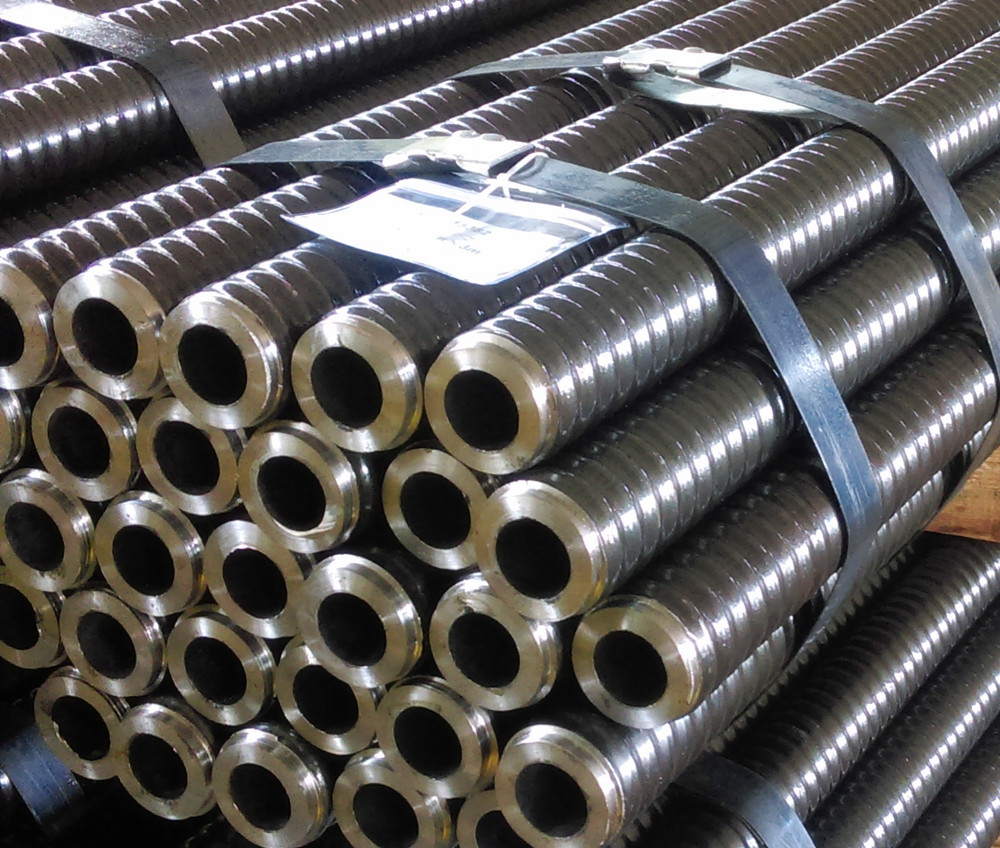

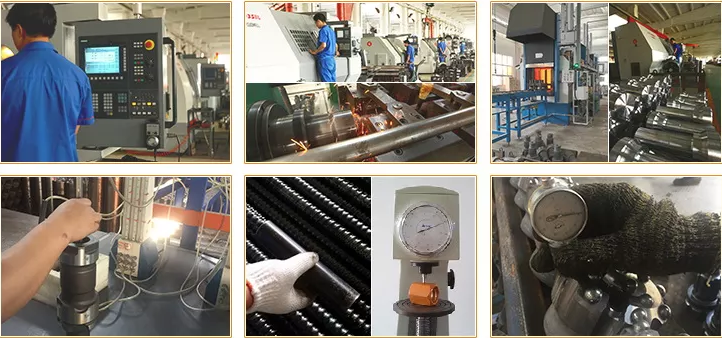

🔧 Process details
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have a leading position in producing and exporting various steel products, ensuring we meet all your specific requirements.
Can we visit your factory?
You are warmly welcome to visit. Once we have your schedule, we will arrange for you to be picked up and guided through our facilities.
Can you arrange the shipment?
Sure, we have permanent freight forwarders who can secure the best prices from most shipping companies and offer professional delivery services.
How long is your delivery time?
Generally, the delivery time is 10-35 days, depending on the order quantity and specific product requirements.
How can we get an offer?
Please provide the specifications of the product, such as material, size, and shape, so we can provide you with the best possible offer.
How do you maintain long-term business relationships?
We maintain high quality and competitive pricing to ensure our customers' benefit. We respect every customer as a friend and sincerely do business regardless of their origin.
