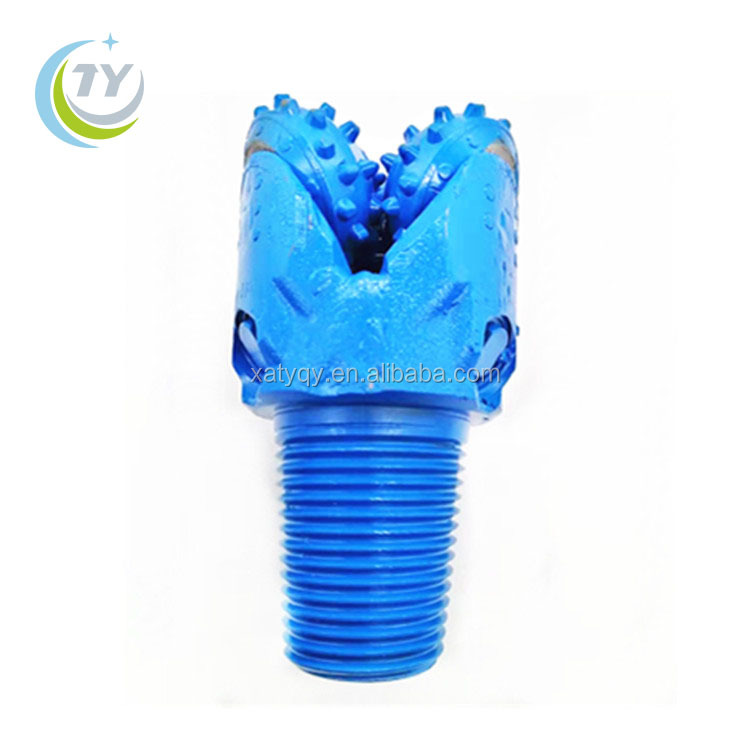

Product Description

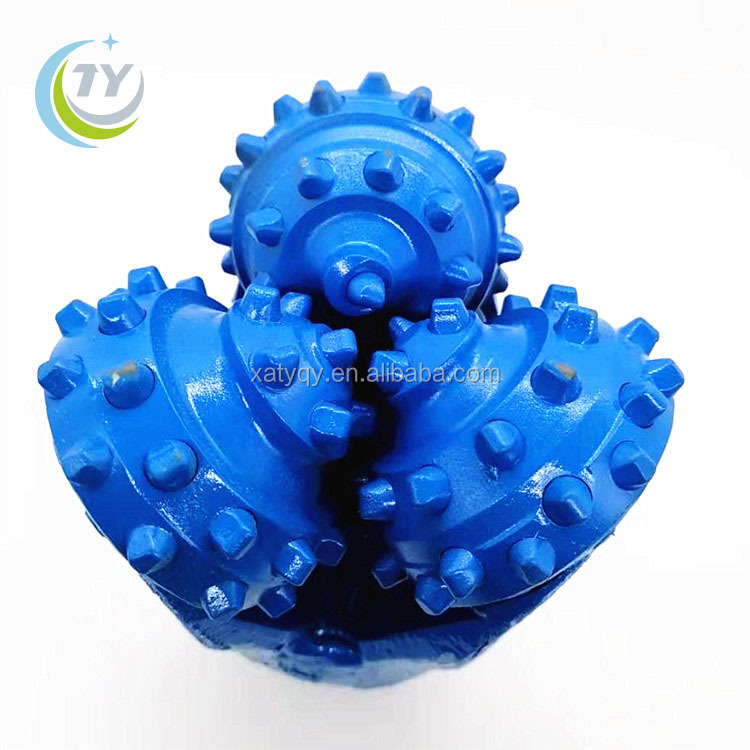

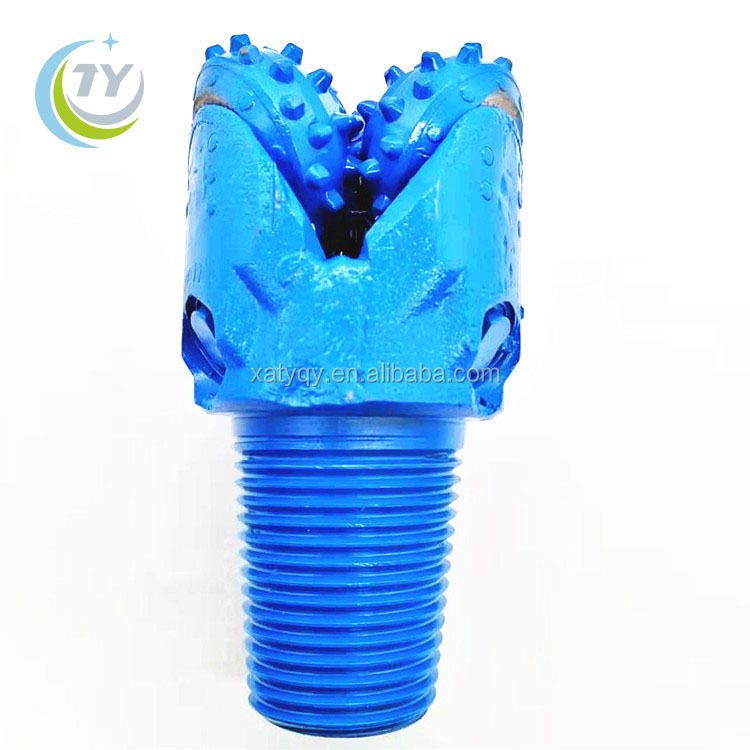

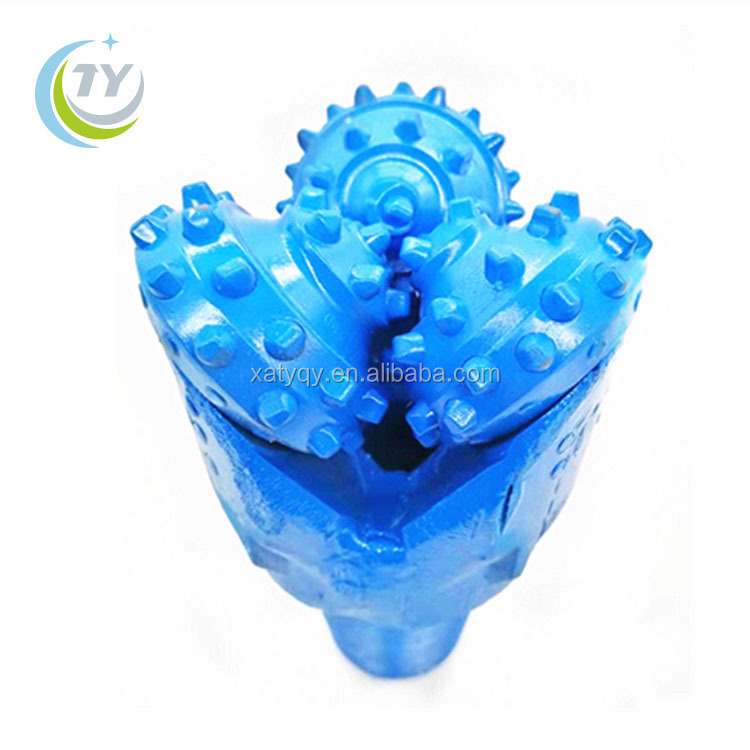

Quick details of used tricone bits
| Product name |
Used tricone bits |
| Material |
Tungsten carbide tips and steel |
| Size |
118mm |
| Seal type |
Seal bearing |
| Condition |
90% new |
| Unit weight |
7.5kg |
| MOQ |
1 piece |

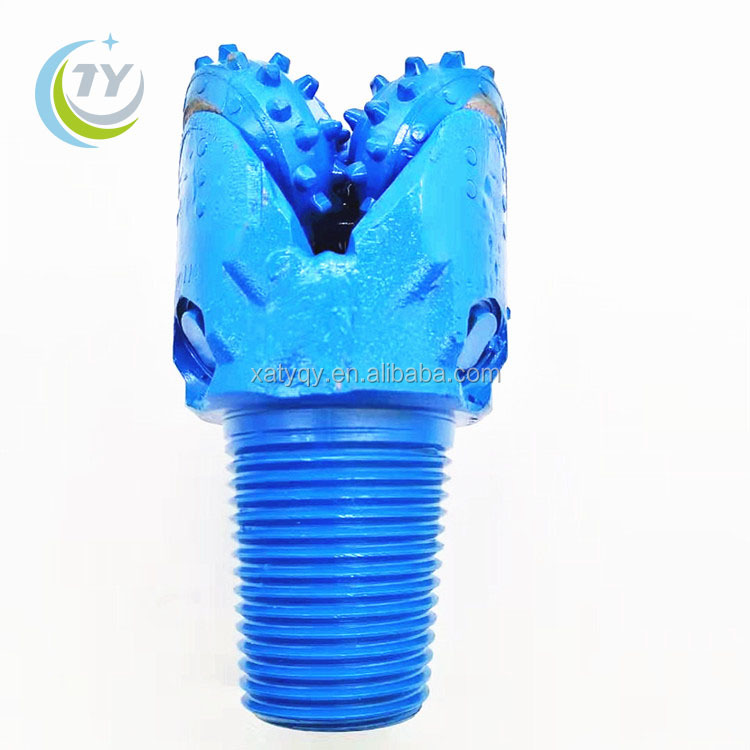

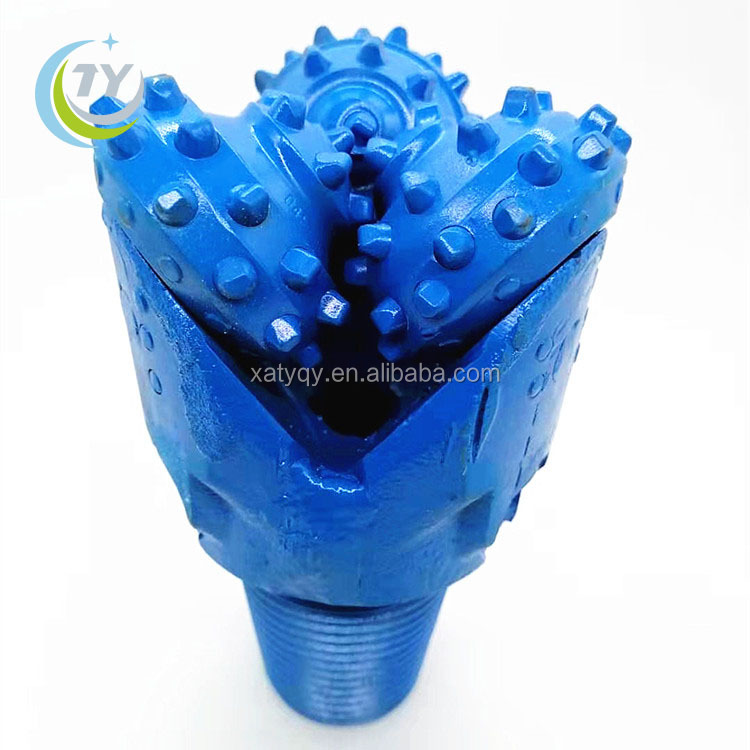

Key Features of Used Tricone Bits
1
Improved strength and wear resistance by using carbide inserts with high strength.
2
Surface of high precision bearing heat treated to improve load capacity and service life.
3
Extended bearing life by adopting harder and more wear-resistant material for thrust bearings.
4
Preventing reflux structure avoids air counterflow and dust entry, protecting the bearing during stops.
5
Sealed roller bearing structure with rollers arranged in recessed grooves for increased journal size.
6
Hardfaced thrust bearing surfaces treated with friction-reducing technology.
7
Journal bearing with silver-plated cone bearing inlaid with friction-reducing alloy for superior seizure resistance.
Product Superiority
✓
Recyclable: Typically only consumes one-third of its lifespan in initial oil exploration.
✓
Durability: Withstands high WOB (Weight on Bit) under conventional drilling rates.
Technical Parameters
| Size |
Type |
| In |
mm |
| 8 1/2 |
215.9 |
SVT437G SVT4 Drill bit size, type recommended parameter 47G SVT517G SVT527G SVT537G SVT547G SVT617G |
| 9 1/2 |
241.3 |
SVT437G SVT447G SVT517G SVT527G SVT537G SVT547G SVT617G |
| 12 1/2 |
311.1 |
SVT437G SVT447G SVT517G SVT527G SVT537G SVT547G SVT617G |
Rock formations vary greatly; from soft to hard strata, choosing the appropriate bit type ensures high mechanical drilling rates and footage.
| IADC |
Bit Pressure (KN/mm) |
Rotate Speed (r/mm) |
Apply to Formation |
| 437 447 |
0.35~0.9 |
240~70 |
Extremely soft stratum: clay, shale, gypsum, halite, soft limestone. |
| 517 527 |
0.35~1.0 |
220~60 |
Soft stratum: clay, shale, gypsum, soft limestone. |
| 537 547 |
0.45~1.0 |
220~50 |
Low compressive strength soft stratum: shale, gypsum, halite. |
| 617 |
0.45~1.0 |
200~50 |
Hard strata: abrasive shale, limestone, sandstone, dolomite. |
Product Gallery
In addition to Tungsten Carbide Inserts (TCI) tricone bits, we also supply Milled Teeth Tricone Bits.

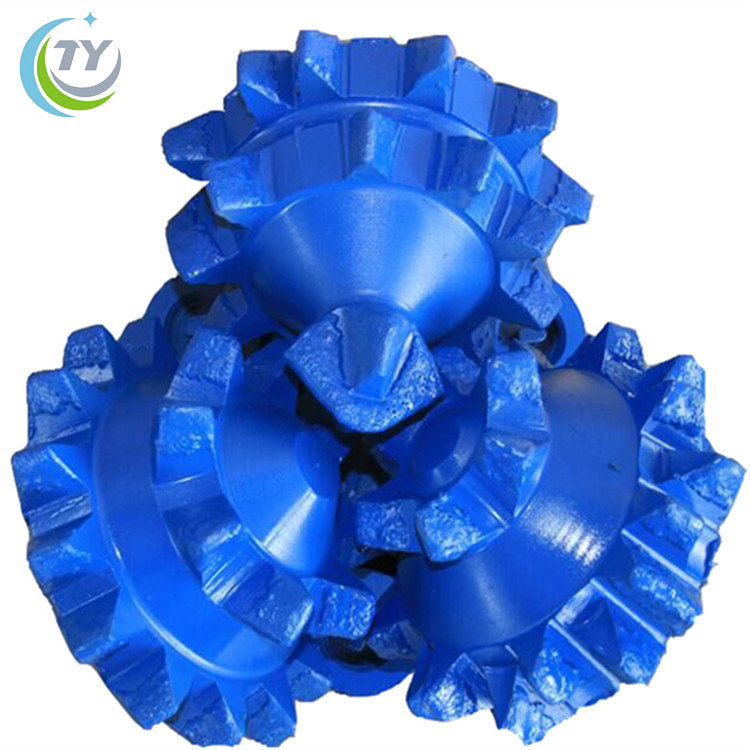

Milled Teeth Tricone Bit
Packaging & Shipping
Packaging for tungsten carbide button tooth used tricone bits is provided in sturdy wooden boxes for maximum protection.
- ✈ Samples shipped by express.
- 🚢 Batch products shipped by sea.
- ⏱ Delivery: 3-5 days for samples; batch orders based on quantity.
Our Advantages
★
Guaranteed product quality, delivery time, and secure payment.
★
9 years of manufacturing experience in drill bits.
★
Powerful technology support and mature manufacturing processes.
★
Strict quality control before every delivery.
★
24-hour online service for global clients.
★
Customized product provision for special project requirements.
About Us

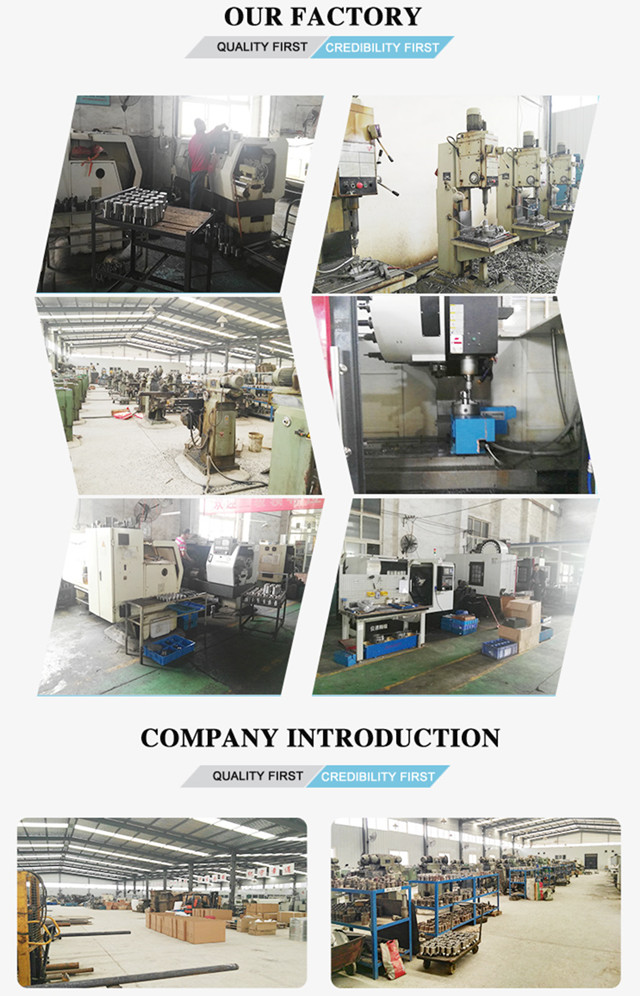

Founded in 2008, our facility specializes in mining machine spare parts and rock drilling tools. Our product range includes PDC drill bits, impregnated core bits, DTH hammer bits, carbide taper and thread button bits, and carbide bullet teeth for coal mining, foundation drilling, and road milling. We serve a global clientele with proven high-quality performance.
Explore More Products

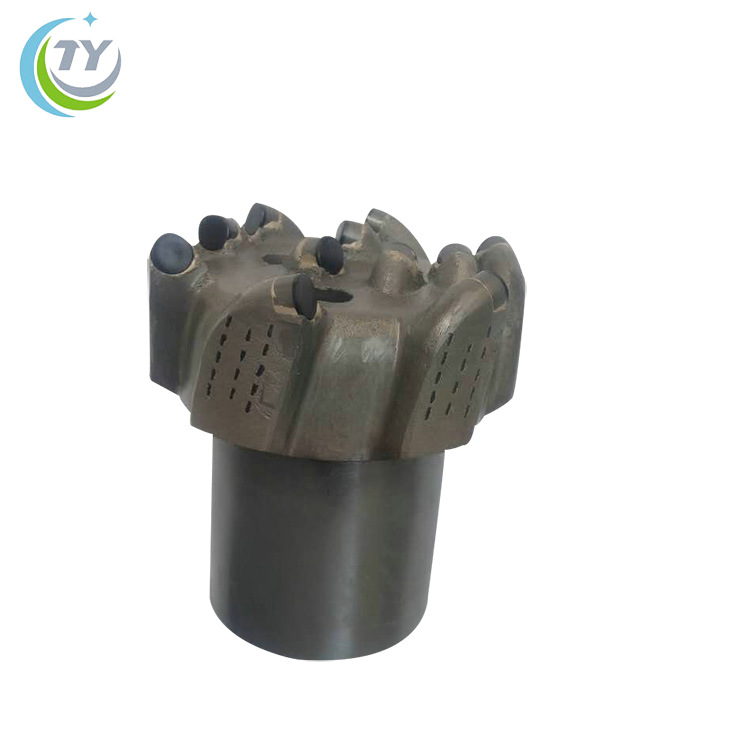

PDC Flat Sintered Bits

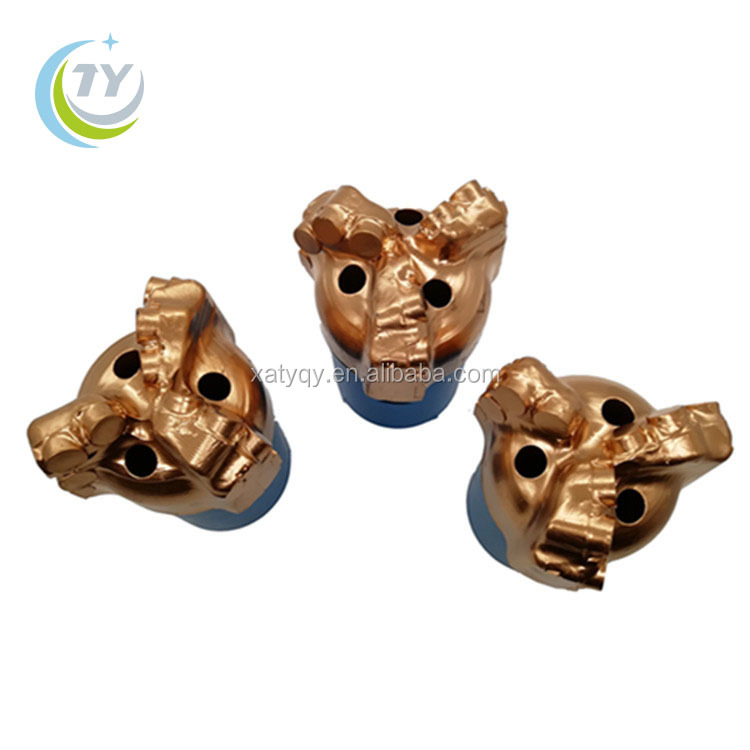

PDC Pillar Bits

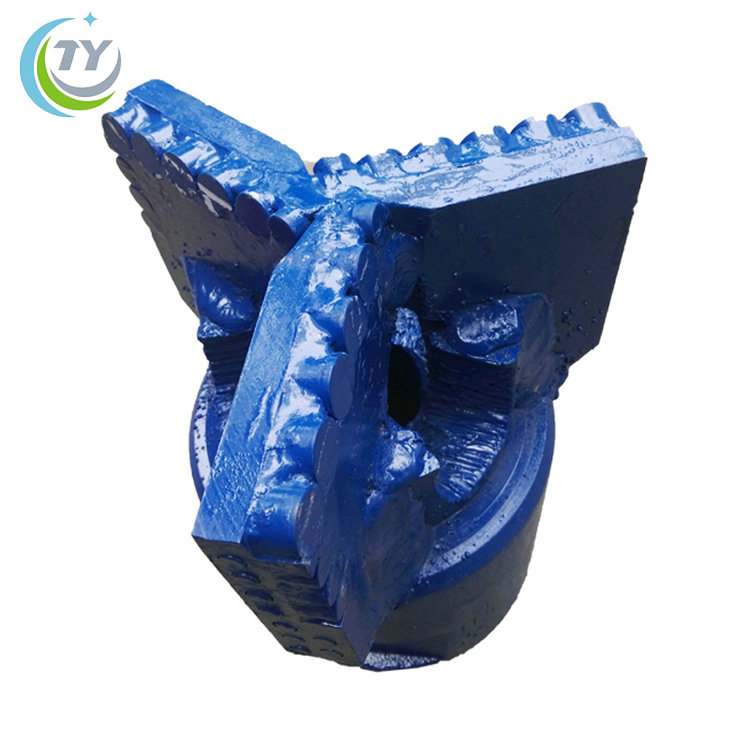

PDC Drag Bit

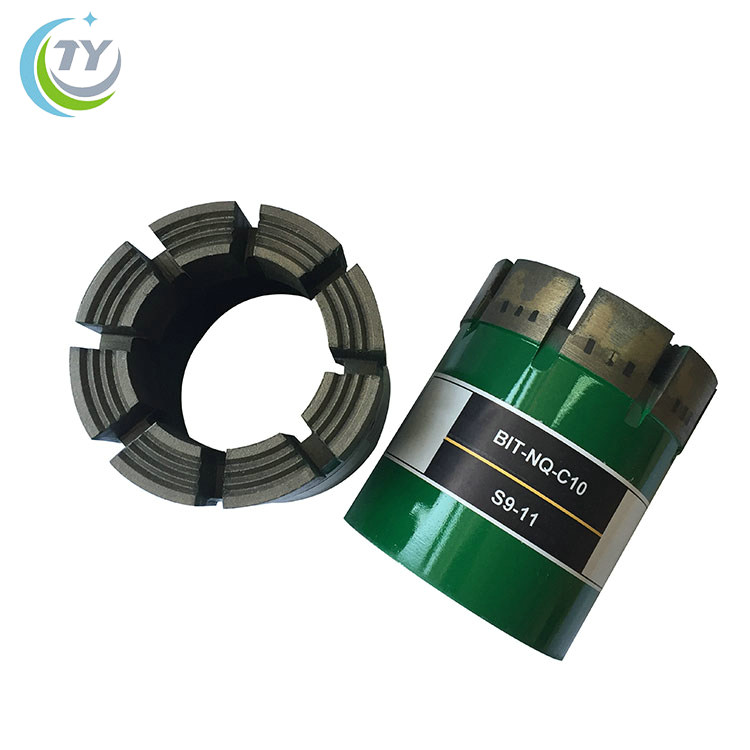

Impregnated Diamond Core Bits

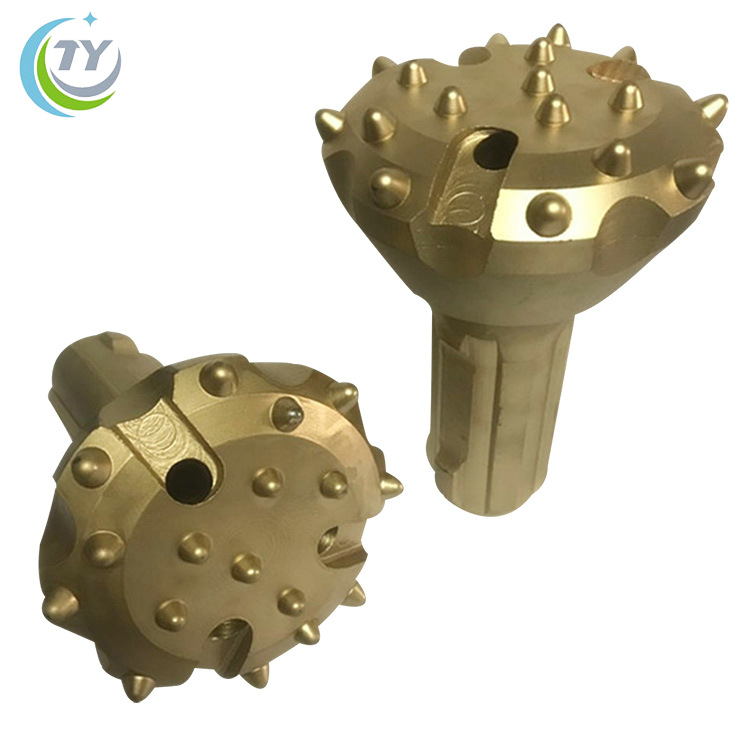

DTH Hammer Bits
Frequently Asked Questions
Q1: What are used tricone bits typically used for?
A1: These bits are primarily used for water well drilling, oil and gas exploration, and mining projects where cost-effective drilling solutions are required.
Q2: How is the quality of a "90% new" used tricone bit?
A2: A "90% new" bit means it has only consumed a small fraction of its operational life. The tungsten carbide teeth and bearings are in excellent condition, offering performance close to new bits at a lower cost.
Q3: Can these bits handle hard rock formations?
A3: Yes, specific IADC types like the 617 are designed specifically for hard strata with high compressive strength, such as limestone and sandstone.
Q4: What is the benefit of the sealed roller bearing structure?
A4: The sealed structure prevents drilling fluids and debris from entering the bearing assembly, significantly extending the service life of the bit.
Q5: How do I choose between TCI and milled tooth bits?
A5: TCI (Tungsten Carbide Insert) bits are better for harder, more abrasive formations, while milled tooth bits are generally more economical for softer rock layers.
Q6: What is the MOQ for ordering these bits?
A6: The minimum order quantity is just 1 piece, making it accessible for both small projects and large-scale operations.
