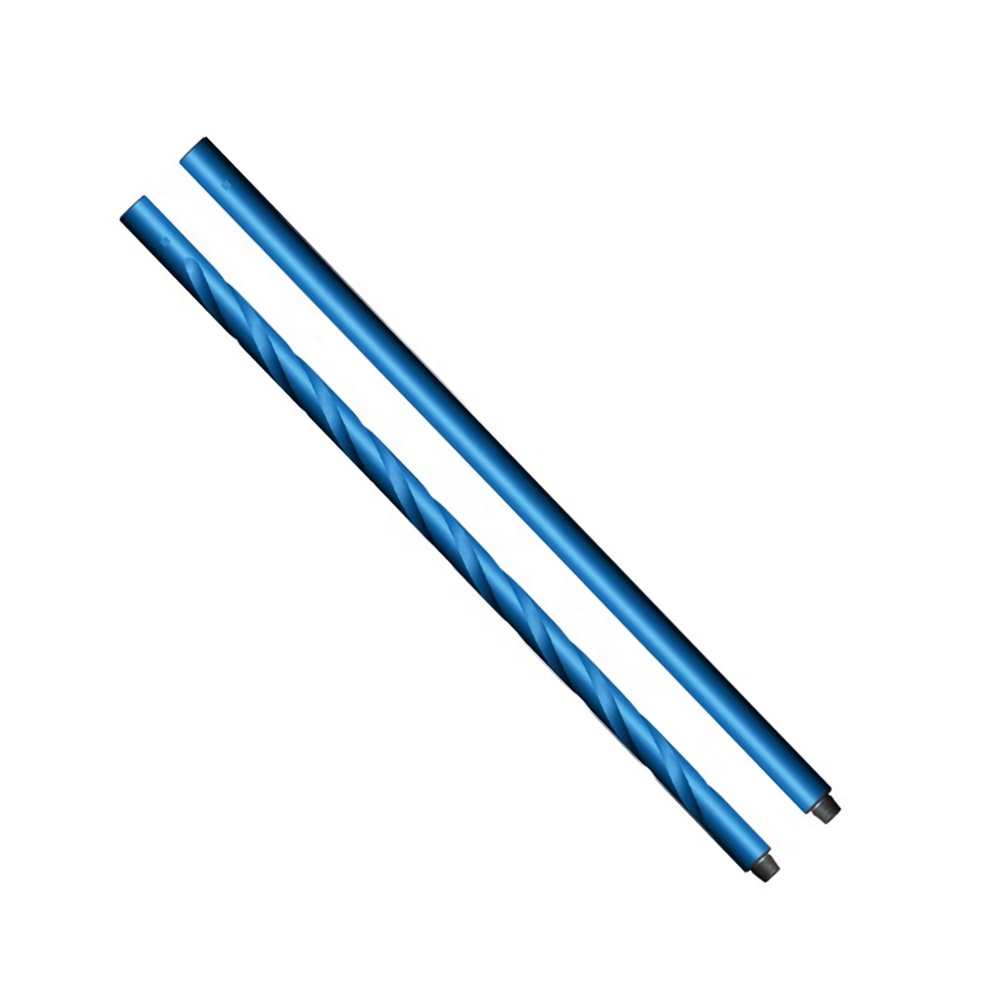

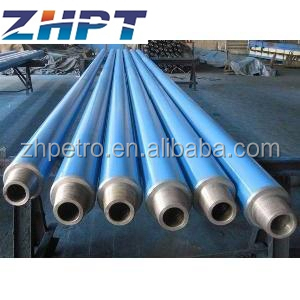

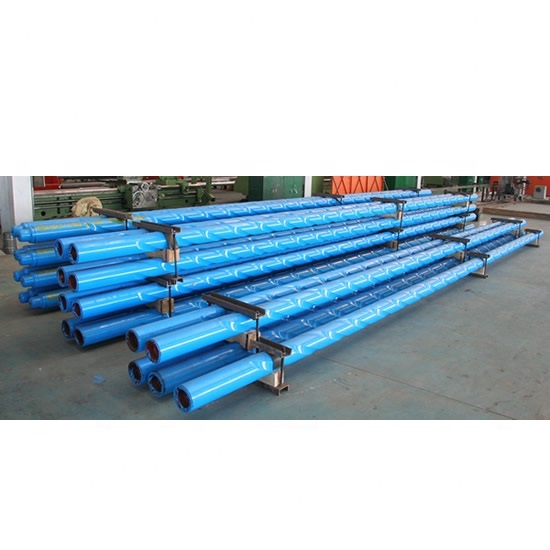

API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
1 / 4
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield
API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield

API Spec 7-1 Drill Collars / Non-magnetic Drill Collars for Oilfield

Send Inquiry

Product Description

📦 Product Description
💡 Applications:
It is the most important part of drill string to provide the bit with drilling pressure and improve the drill string rigidity.

Made of AISI4145H Cr-Mo steel, it can effectively control the content of trace elements. According to shape and materials, drill collars are divided into three forms:

🔹

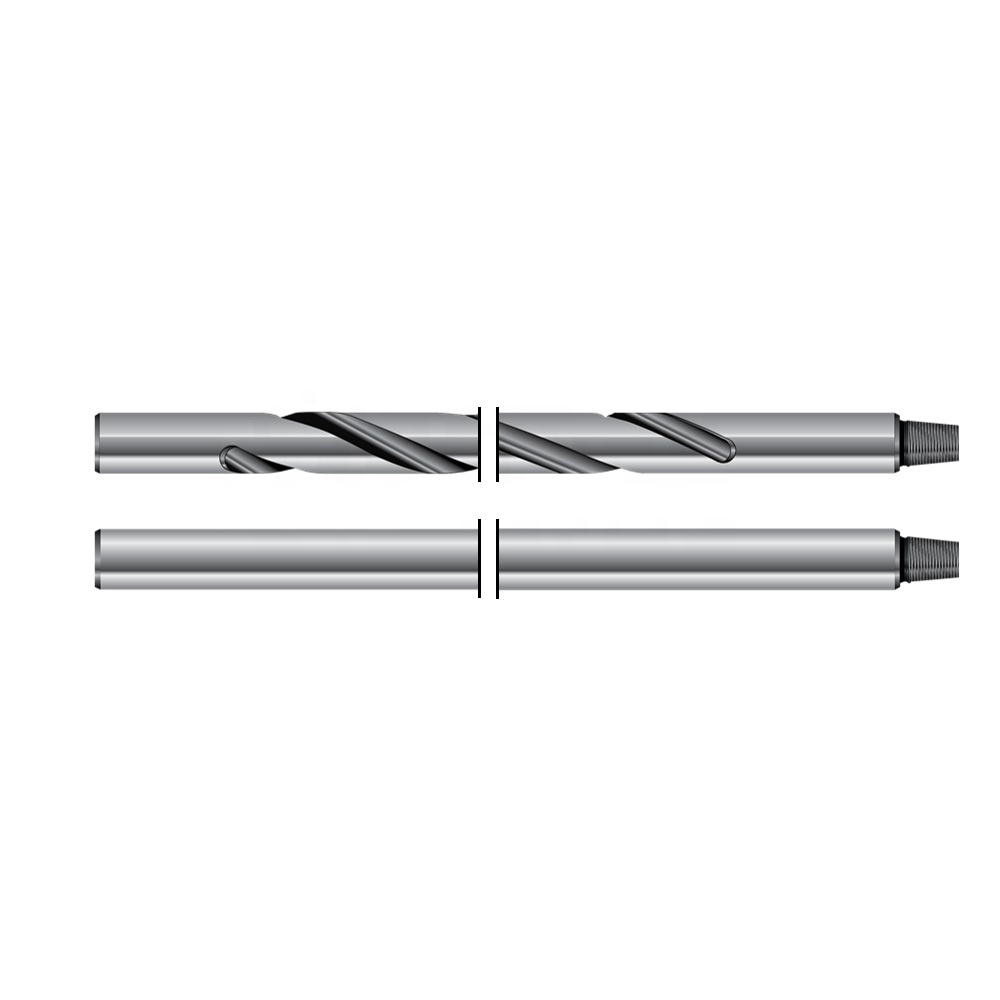

A-type (cylindrical): Made of ordinary alloy steel, circular inside and outside pipe cross sections.
🔹
B-type (screw type): Made of ordinary alloy steel, pipe outside surface with a spiral chute.
🔹
C-type (non-magnetic type): Made of stainless alloy steel with low magnetic permeability, circular inside and outside pipe cross sections.
📊 Specification Data
Drill Collar Thread Outside Diameter (D) Inside Diameter (d) Length (mm) Ledge (mm) Bending Strength Ratio
mm in mm in
NC31-41(2 7/8IF)104.84 1/850.829150100.42.43:1
NC35-47120.74 3/450.829150114.72.58:1
NC38-50(3 1/2IF)127557.22 1/491501212.38:1
NC44-60152.4657.22 1/49150/9450144.52.49:1
NC44-60152.4671.42 13/169150/9450144.52.84:1
NC44-62158.86 1/457.22 1/49150/9450149.22.91:1
NC46-62(4IF)158.86 1/471.42 13/169150/94501502.63:1
NC46-65(4IF)165.16 1/257.22 1/49150/9450154.82.76:1
NC46-65(4IF)165.16 1/271.42 13/169150/9450154.83.05:1
NC46-67(4IF)171.46 3/457.22 1/49150/9450159.53.18:1
NC50-67(4 1/2IF)171.46 3/471.42 13/169150/9450159.52.37:1
NC50-70(4 1/2IF)177.8757.22 1/49150/9450164.72.54:1
NC50-70(4 1/2IF)177.8771.42 13/169150/9450164.72.73:1
NC50-72(4 1/2IF)184.27 1/471.42 13/169150/9450169.53.12:1
NC56-77196.87 3/471.42 13/169150/9450185.32.70:1
NC56-80203.2871.42 13/169150/9450190.13.02:1
6 5/8 REG209.68 1/471.42 13/169150/9450195.72.93:1
NC61-90228.6971.42 13/169150/9450212.73.17:1

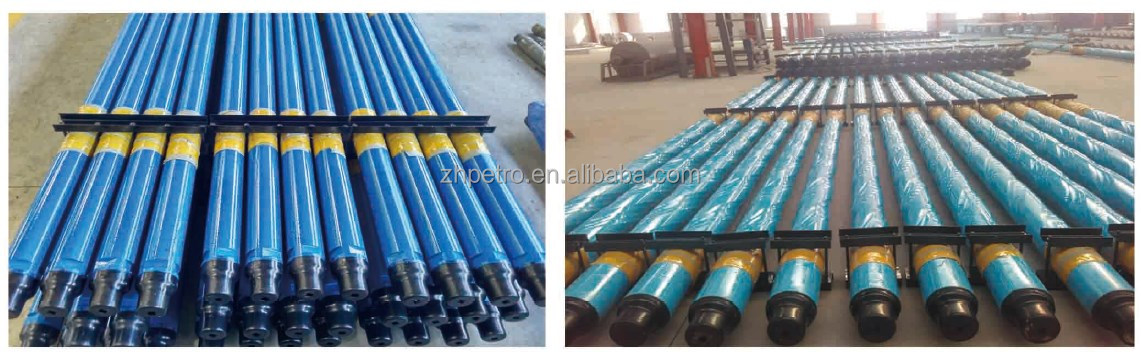

API Drill Collars Overview
🚚 Packaging & Shipping

Packaging Details: Standard export package

Packaging & Shipping
🛠️ Our Services
✔️
24h Response: We possess a 24-hour response system to provide convenient, fast, and effective service throughout the sales process.
✔️
Global Service Promise: For any equipment sold anywhere in the world, we provide after-sale service promptly and efficiently.
✔️
Warranty Coverage: We bear the direct cost of parts damaged by manufacturing defects during the warranty period.
📅
Warranty Period: 18 months from the day the unit leaves the factory or 12 months from the date of use (whichever comes first).
Quality Service
❓ Frequently Asked Questions
Q1. How can I place an order?
You can contact us via email or place your order directly through our online platform for a fast processing experience.
Q2. What are the advantages of your manufacturing?
We employ professional technical personnel and provide highly competitive pricing coupled with industry-leading after-sales support.
Q3. What are the available payment terms?
We offer flexible options: 30% pre-payment and 70% before shipment, L/C at sight, or combined pre-payment and L/C.
Q4. How do you guarantee product quality?
We conduct strict factory inspections before purchase and monitor the final quality of products directly during the production phase.
Q5. What material is used for the drill collars?
Our drill collars are made from high-quality AISI4145H Cr-Mo steel, ensuring superior control over trace elements and durability.
Q6. Do you offer non-magnetic drill collars?
Yes, our C-type drill collars are made of stainless alloy steel with low magnetic permeability specifically for sensitive drilling operations.
