Drill Collar Overview
Drill collar is located at the bottom of the drill string and is the main component of the BHA. It is characterized by large wall thickness (generally 38~53mm, equivalent to 4~6 times of drill pipe wall thickness), high gravity and stiffness. In order to facilitate tripping, the elevator slot and slip slot can be machined on the outer surface of the internal thread of the drill collar.
Frequently Asked Questions
What is the primary function of a drill collar in a drill string?
The drill collar provides weight on bit (WOB) for drilling and ensures the drill string remains in tension, which helps in maintaining a straight wellbore and preventing buckling.

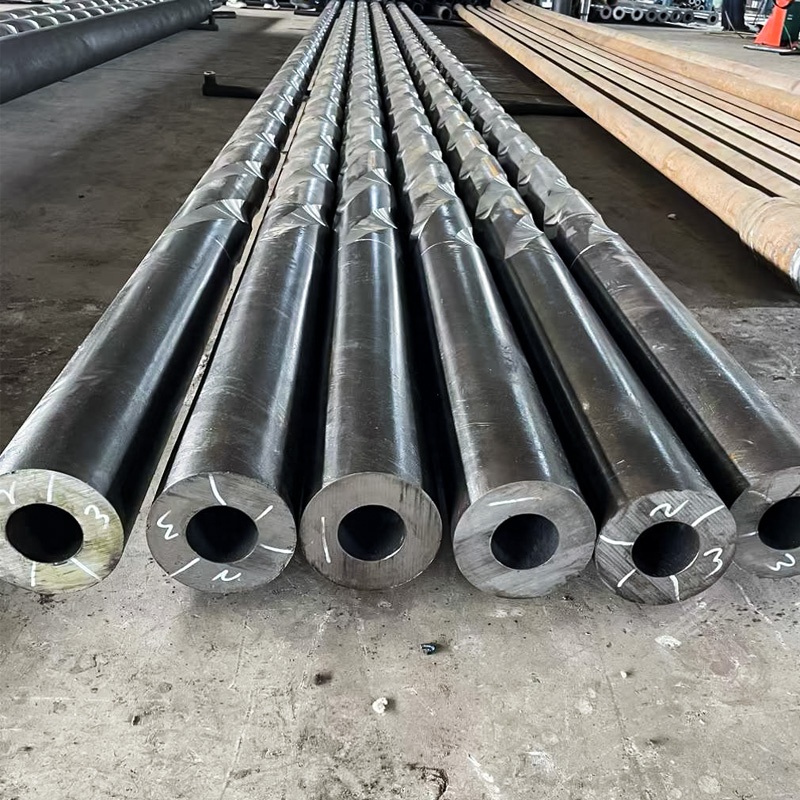

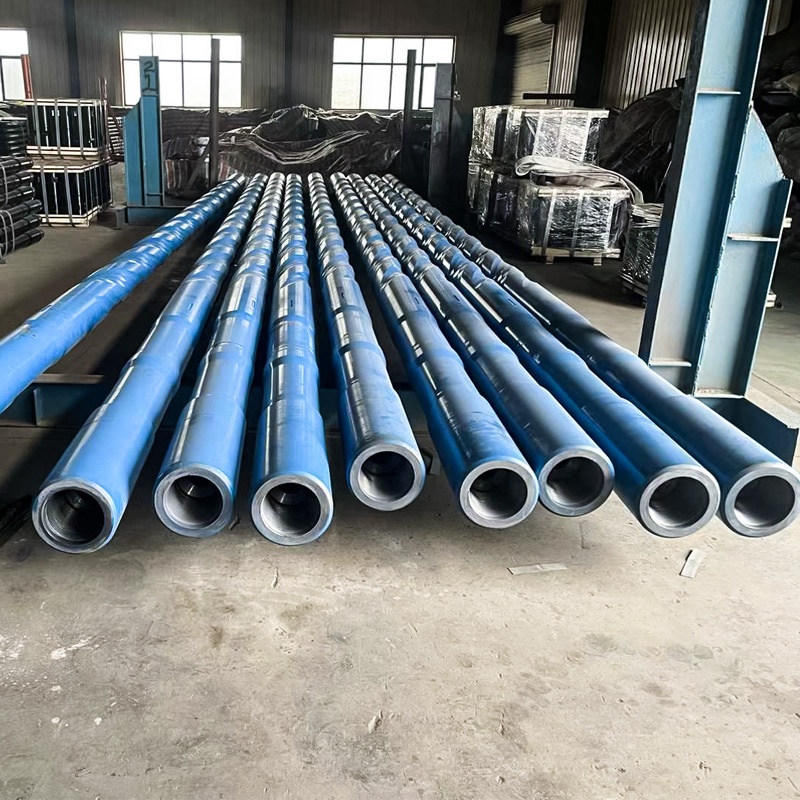

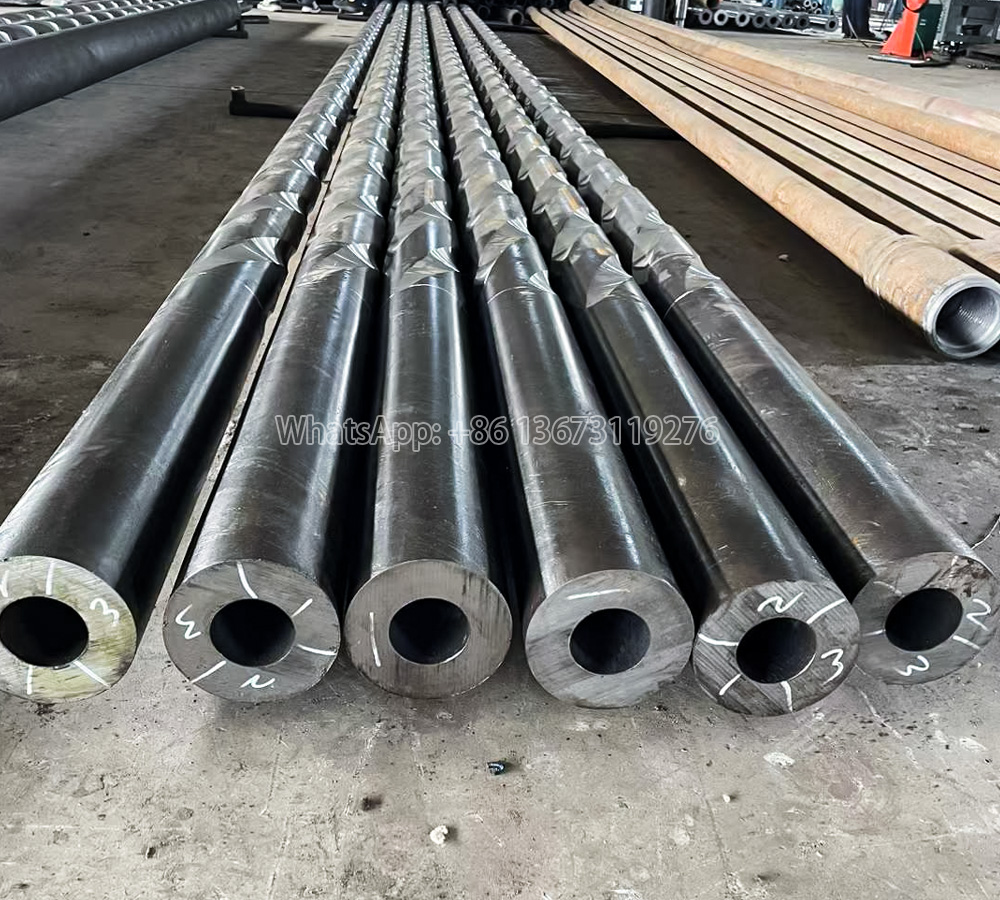

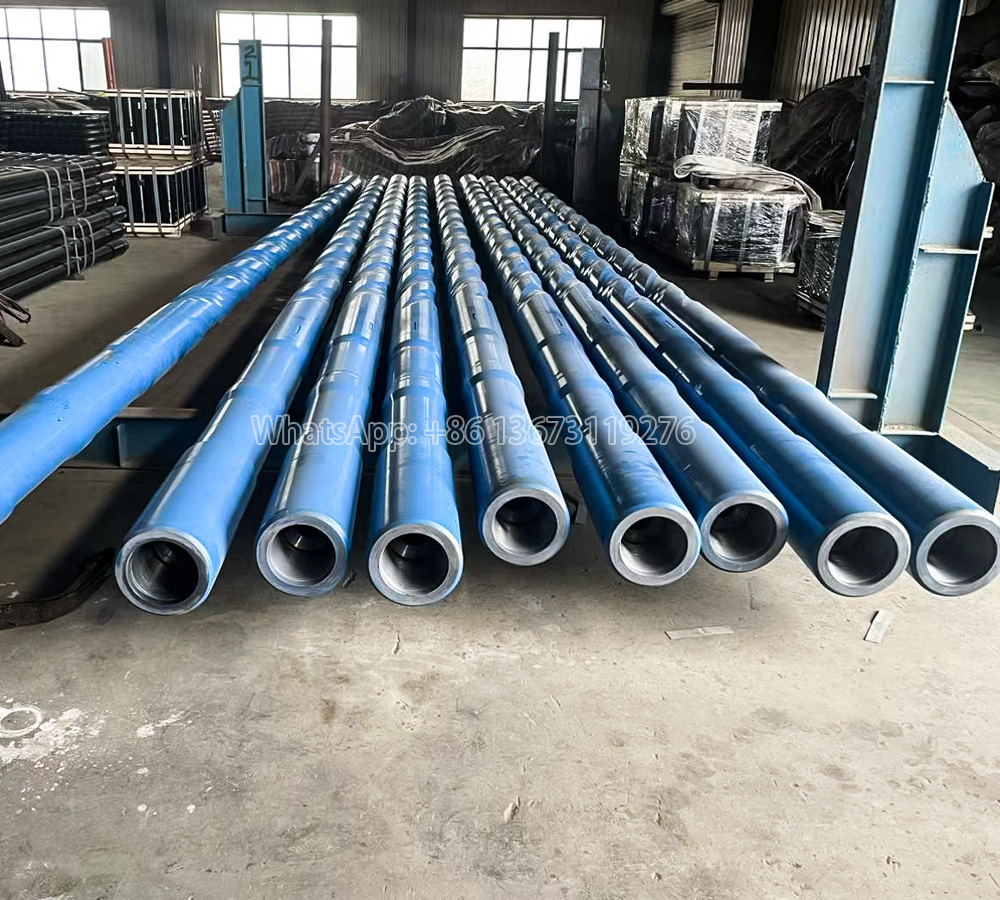

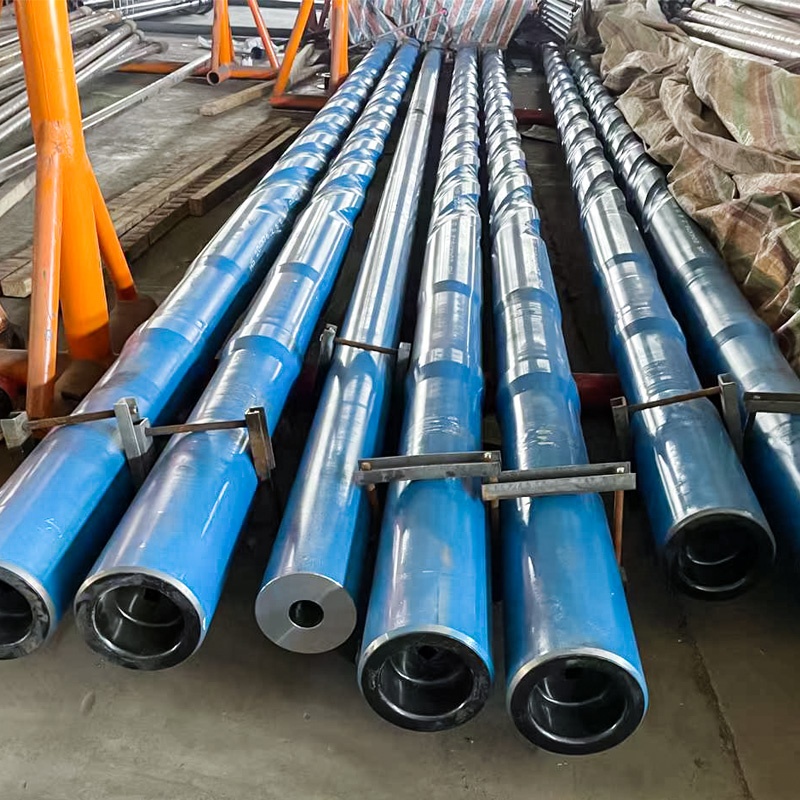

Why is the spiral design preferred for drill collars?
The spiral grooves reduce the contact area between the drill collar and the wellbore wall, significantly lowering the risk of differential pressure sticking.
What material is used for these drill collars?
These drill collars are typically manufactured from AISI 4145H modified quenched and tempered steel, providing excellent strength and durability for demanding oilfield environments.

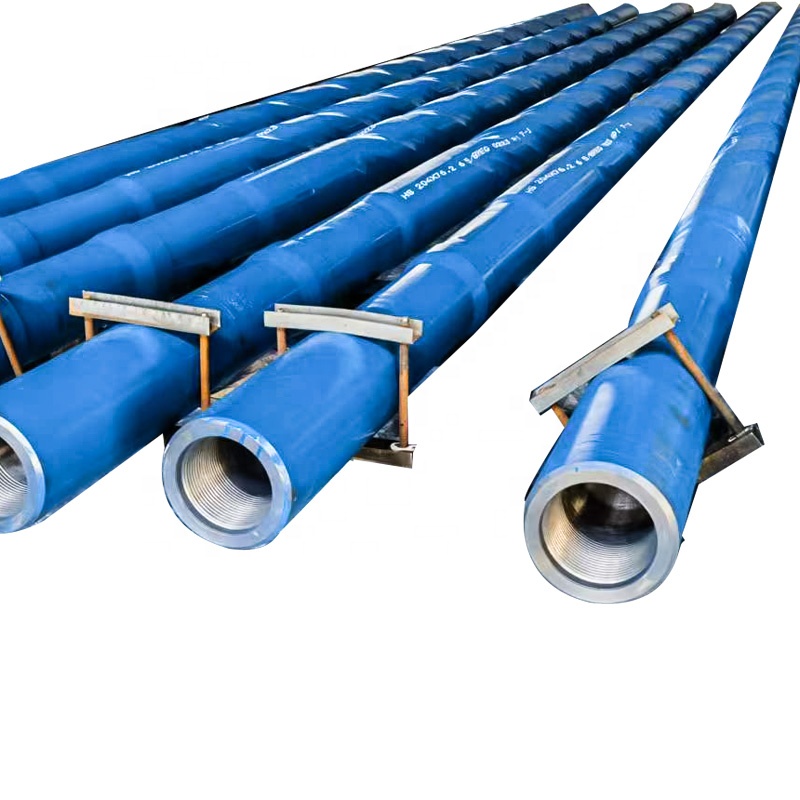

How do elevator and slip slots assist in drilling operations?
These slots are machined on the outer surface to allow for safer and more efficient handling during tripping operations, ensuring the drill collar can be securely held by rig equipment.

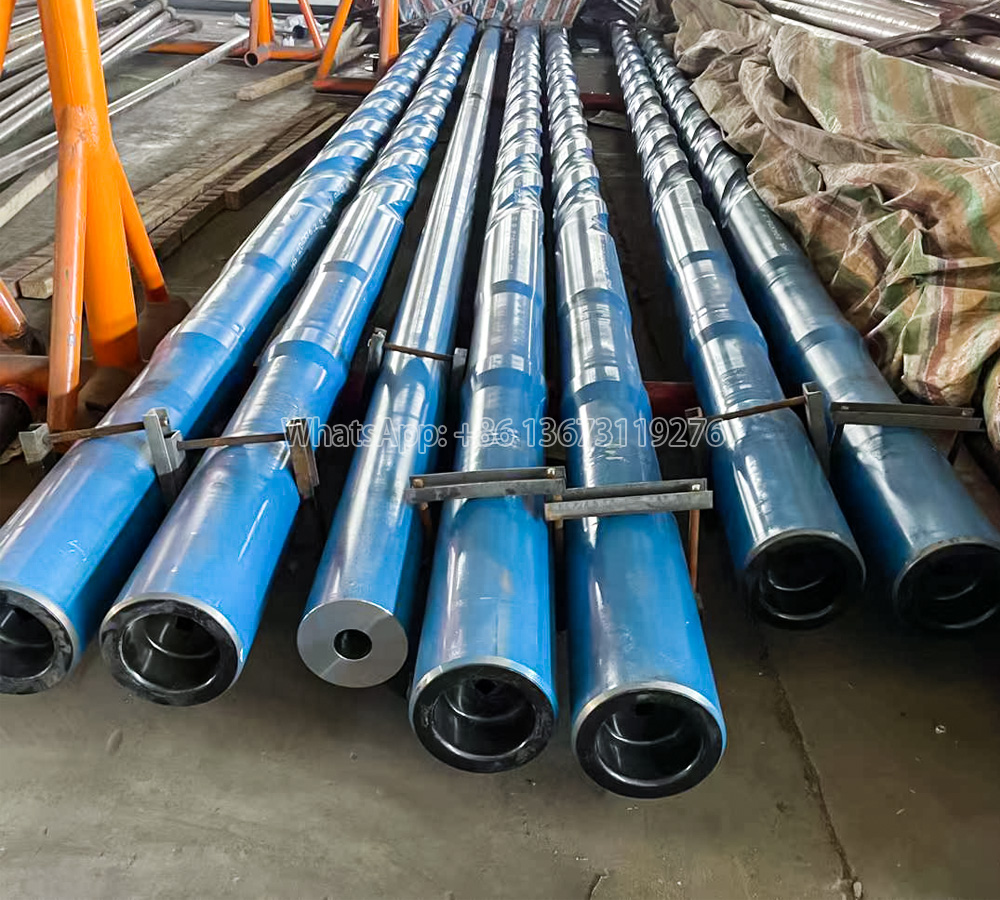

What are the common thread types for drill collars?
Common connection types include NC44, NC50, and NC62, which are designed to withstand high torque and provide a reliable seal under high-pressure conditions.
What are the typical dimensions for a standard spiral drill collar?
Standard specifications often include an OD of 6-1/4 inches, an ID of 2-1/4 inches, and a length of approximately 9.45 meters, weighing around 1200kg per piece.
