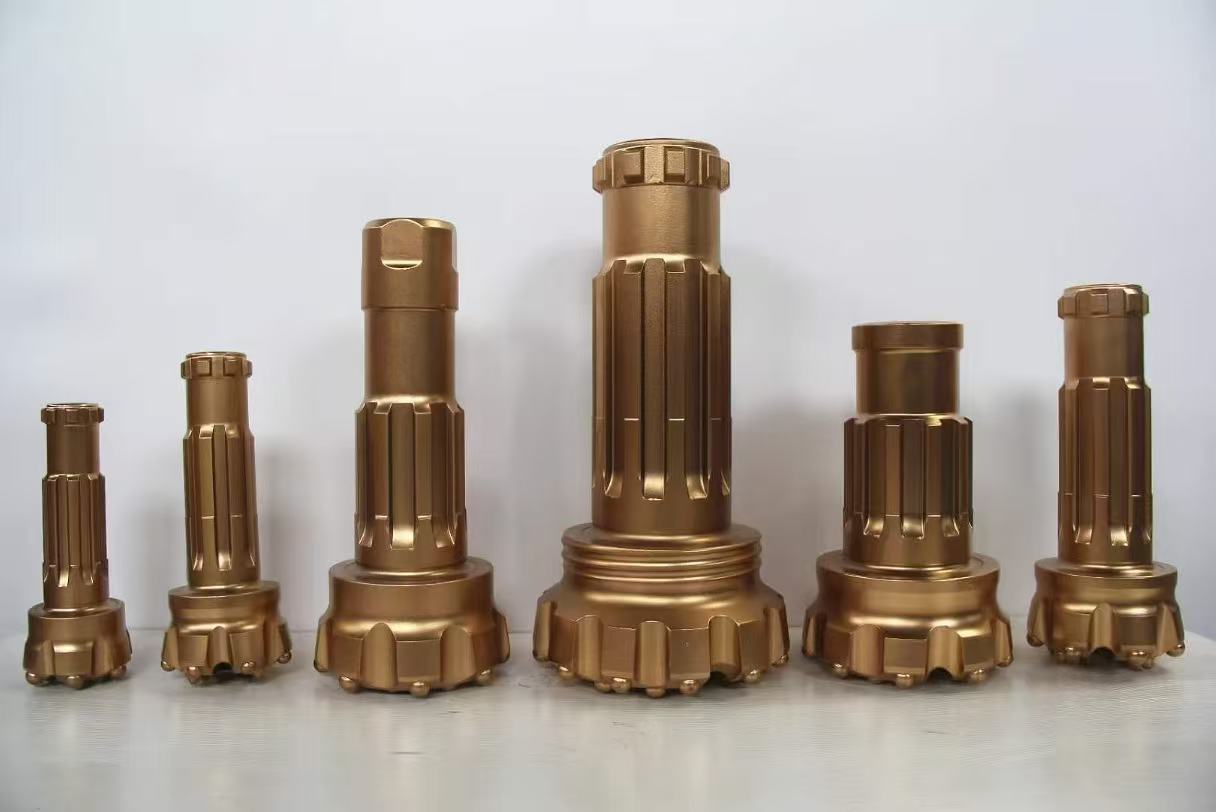

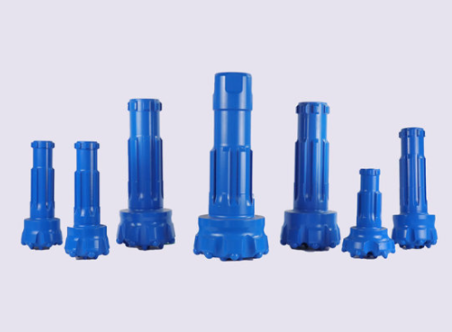

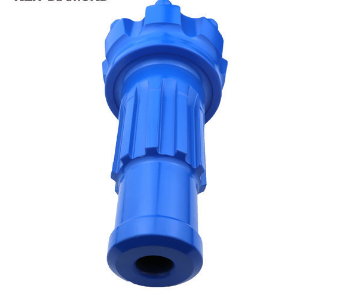

Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling

Product Description

Product Highlights

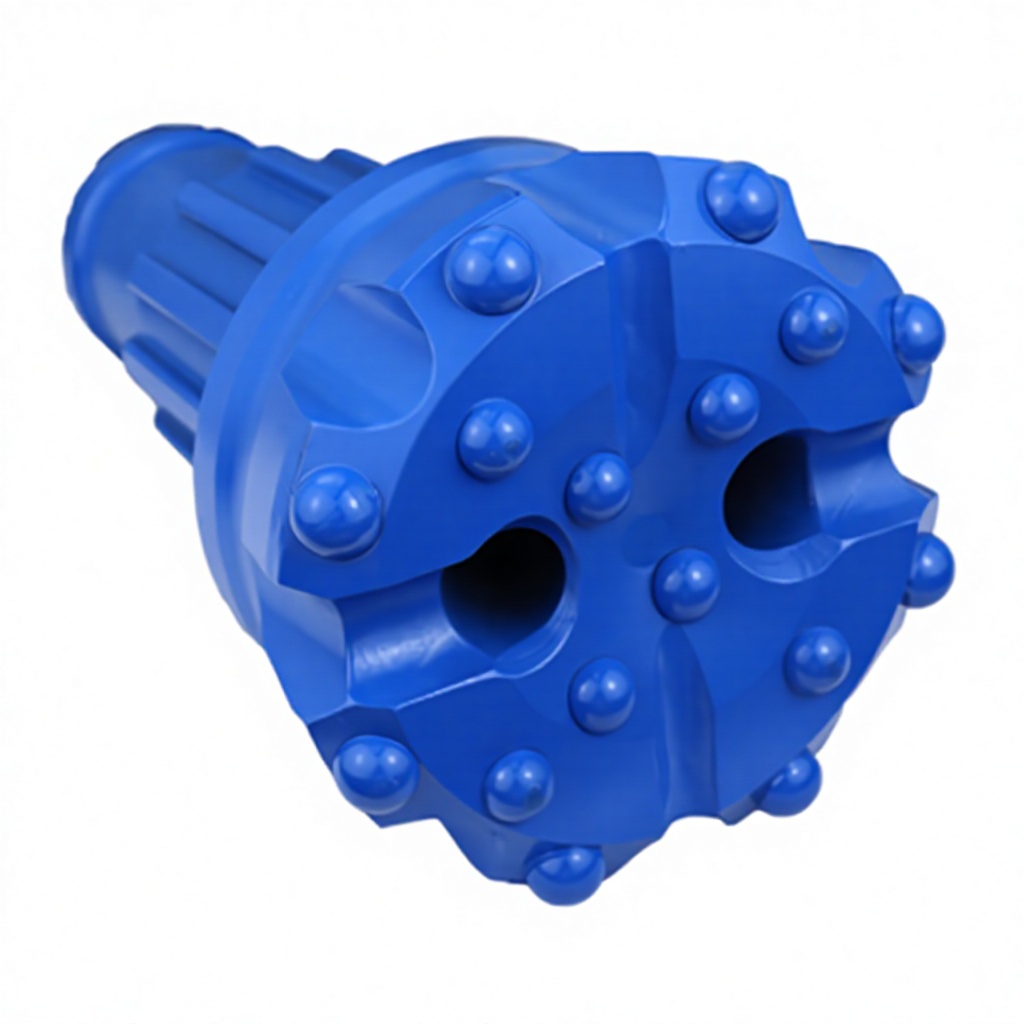

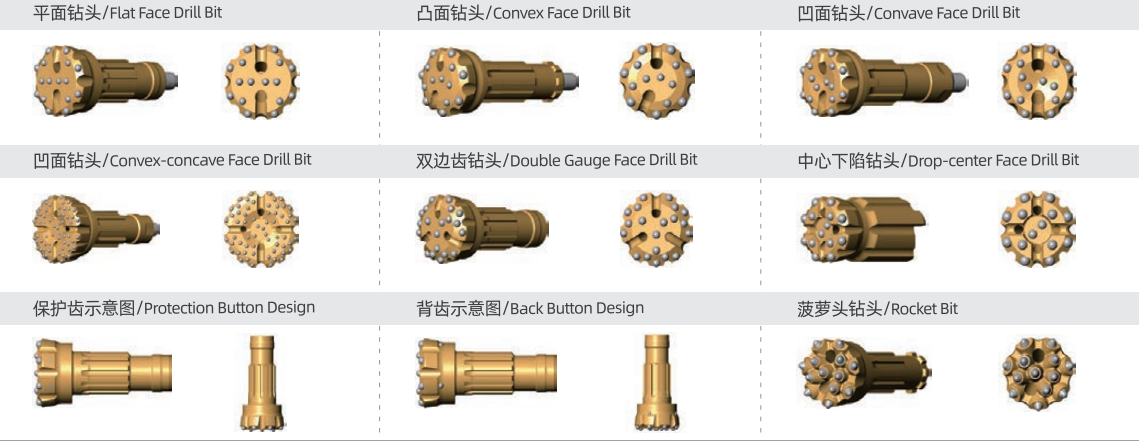

  • High pressure DTH drill bit with full models and sizes, supplied in flat face, concave face, convex face, double side tooth and center concave types for mining drilling projects.

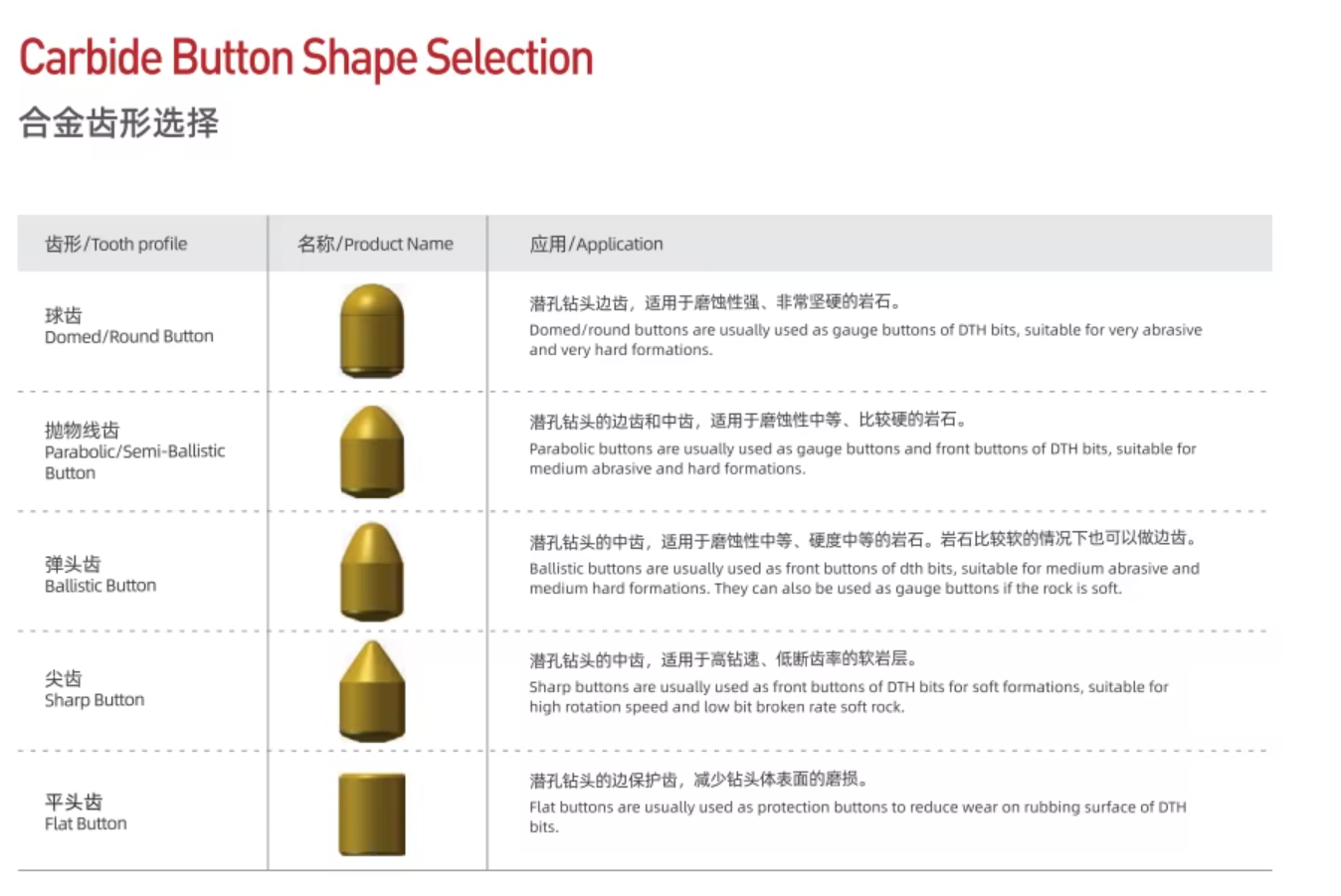

  • Various cemented carbide button designs optional: spherical button, parabolic button, bullet button, sharp button and flat top button, perfectly matching different rock formations.
  • Widely applicable to rock formations of various hardness and corrosion degree, ideal for mining, quarrying and water well drilling with strong stratum adaptability.
  • Optimized button tooth structure delivers fast drilling speed and high penetration rate, improving working efficiency for down the hole drilling operation.

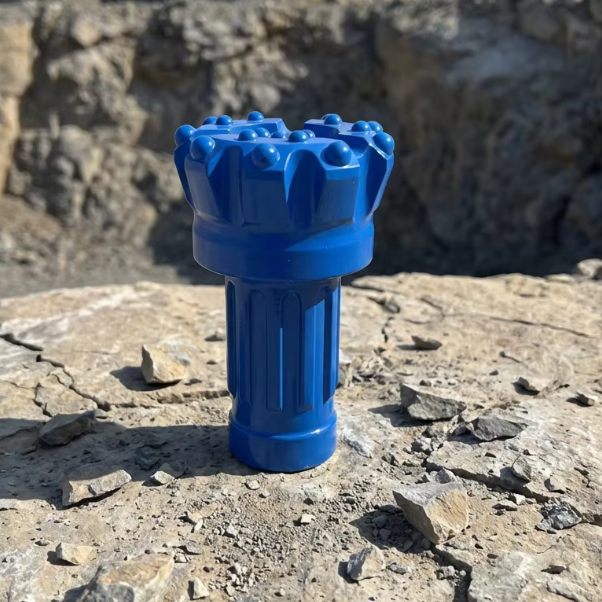

Scene Image
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Specification Head Shape Head Dia.(mm) Shank Length Spline Port Holes Button Type Gauge Buttons Front Buttons Weight(KG)
SD5 Convex Face 140 259 8 2 Spherical+Ballistic 7XΦ18 4xΦ15+3xΦ14 15
Flat Face 146 259 8 2 Spherical+Ballistic 8XΦ18 8xΦ14 15.8
Flat Face 152 259 8 2 Spherical+Ballistic 8XΦ18 8xΦ14 16.1
Concave Face 165 259 8 2 Spherical 8XΦ18 4xΦ16+4xΦ14 18.2
Concave Face 178 259 8 2 Spherical 8XΦ18 6xΦ16+5xΦ14 19.6
SD8 Concave Face 203 321 8 2 Spherical 10XΦ18 4xΦ18+10xΦ16 41.3
Concave Face 216 321 8 2 Spherical 10XΦ18 4xΦ18+10xΦ16 45
Concave Face 230 321 8 2 Spherical 12XΦ18 12xΦ18+6xΦ16 47.8
Concave Face 235 321 8 2 Spherical 12XΦ18 12xΦ18+6xΦ16 48.4
Concave Face 254 321 8 2 Spherical 12XΦ18 12xΦ18+8xΦ16 55.3
ConvexConcave Face 275 321 8 2 Spherical 12XΦ18 27xΦ16 62
Convex Concave Face 305 321 8 3 Spherical 15XΦ18 35xΦ16 70.5
SD10 Convex Concave Face 254 356 8 2 Spherical 12XΦ19 8XΦ18+19XΦ16 83.2
Convex Concave Face 275 356 8 2 Spherical 12XΦ19 8XΦ18+20XΦ16 87.7
Convex Concave Face 305 356 8 3 Spherical 15XΦ19 27XΦ18+8XΦ16 97.5
Convex Concave Face 325 356 8 3 Spherical 15XΦ19 27XΦ18+9XΦ16 106
Convex Concave Face 350 356 8 4 Spherical 16XΦ19 32XΦ18+14XΦ16 115.3
Convex Concave Face 400 356 8 4 Spherical 16XΦ19 40XΦ18+25XΦ16 140.7
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
About The Supplier

Specializing in water drilling rig, air compressors and related drill tools etc. for more than 20 years, we have a high-quality work team full of vigor and promise. After 5 years international business exploration and resource integration, we have exported to more than 50 countries and regions. Established the terminal service stations in South America, Southeast Asia, Middle Asia, Africa and provide more timely and accurate service to customers. Based on high-quality products and premium services, we persist in the management philosophy of "success with quality & service creating value", and committed to providing package solutions for customers in the construction and mining drilling industry.

What we offer:

  • Provide maintenance instruction, video, parts list, packing list, accessories and tools free of charge, and operation training if necessary.
  • Provide the parts free of charge in the guaranty time if the parts break down.
  • Guaranty time: 12 months (which begins from the drill rig arrived destination port date) or 3000 working hours, whichever comes first. Details are according to warranty policy.
  • Training: Customer can come to our factory and accept training, or our technical engineer go to customers' market to train, including using/maintenance/repairing training.
Company Overview
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Factory Profile
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling

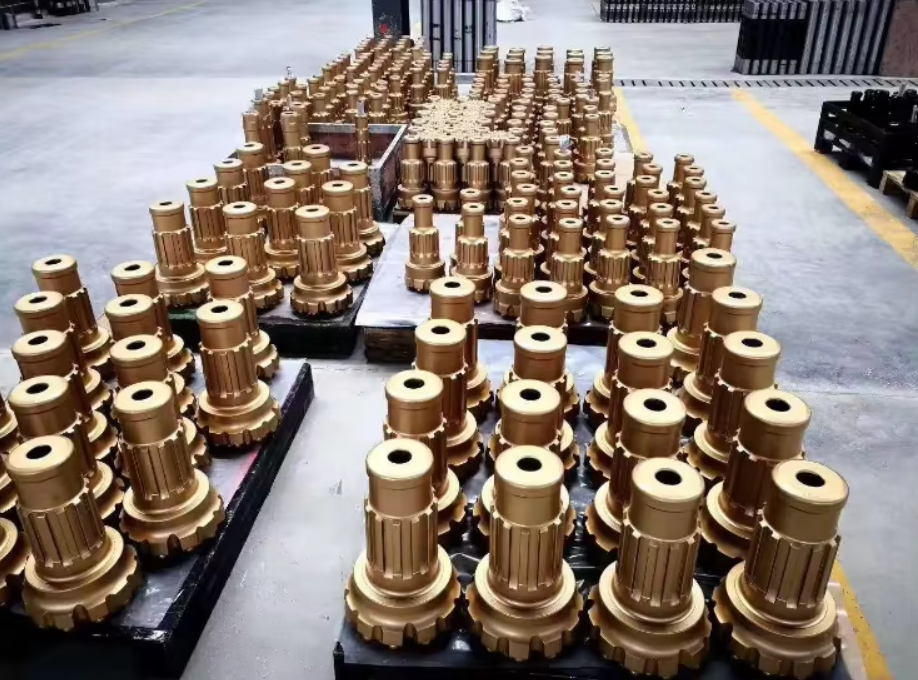

Production Workflow
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Trade Show Participation
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Packaging & Shipping Specifications
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
Extended Company Profile
Carbon Steel High Pressure DTH Drill Bit Drilling Rig Spare Parts for Mining and Water Well Drilling
FAQs
Q: What is the product range of our factory?
The main products of our factory include blasting drilling rig, water drilling rig, core sampling drilling rig and air compressors. We also supply drill bits, drill pipes, and other drilling rig accessories.
Q: Do we accept small orders?
Don't worry - feel free to contact us. To better serve customers and expand the market, we do accept small orders.
Q: Why choose us?
We have an excellent team dedicated to providing high quality products at competitive prices along with outstanding after-sales service. Our goal is to contribute to a better global environment and ensure customer satisfaction.
Q: Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
Q: How about our delivery time?
Normally it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But some products will take more time, depending on the requirements of your order.
Q: How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
