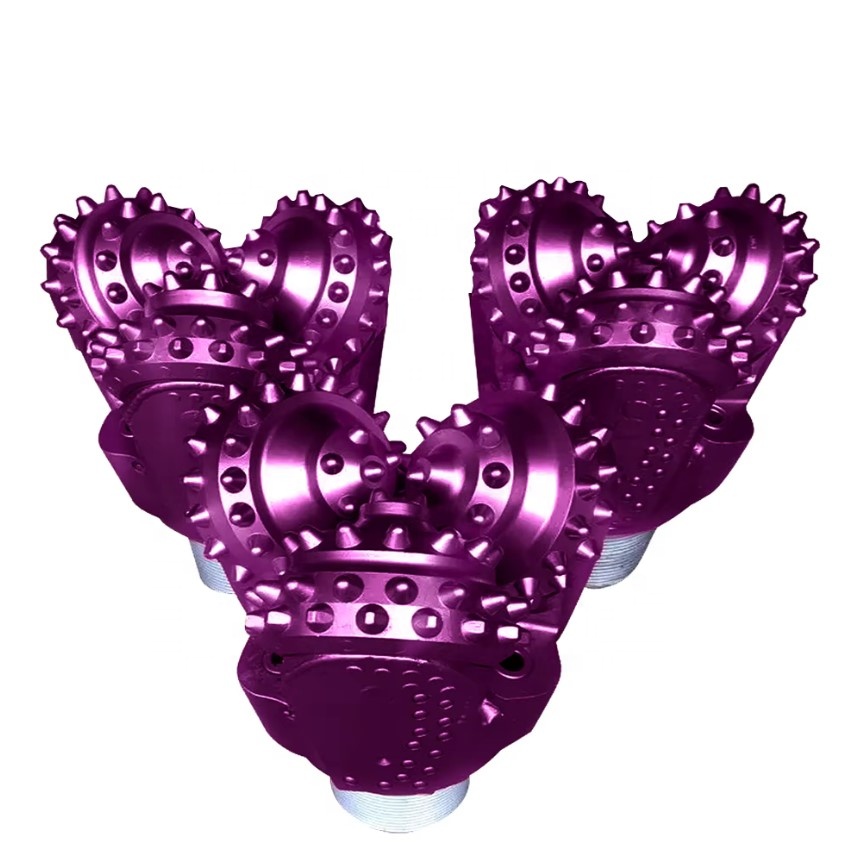

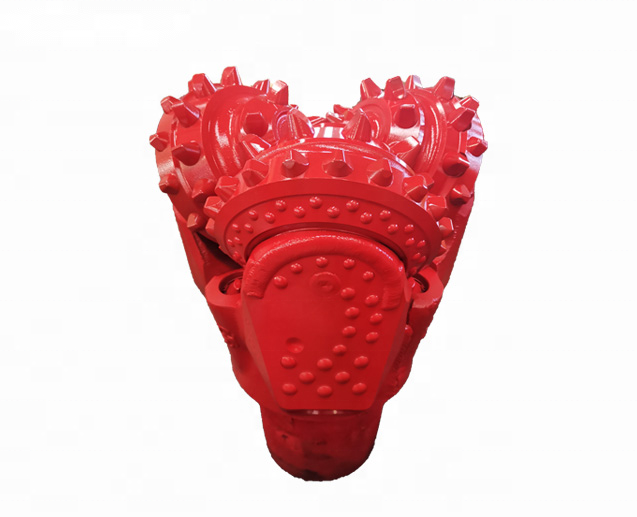

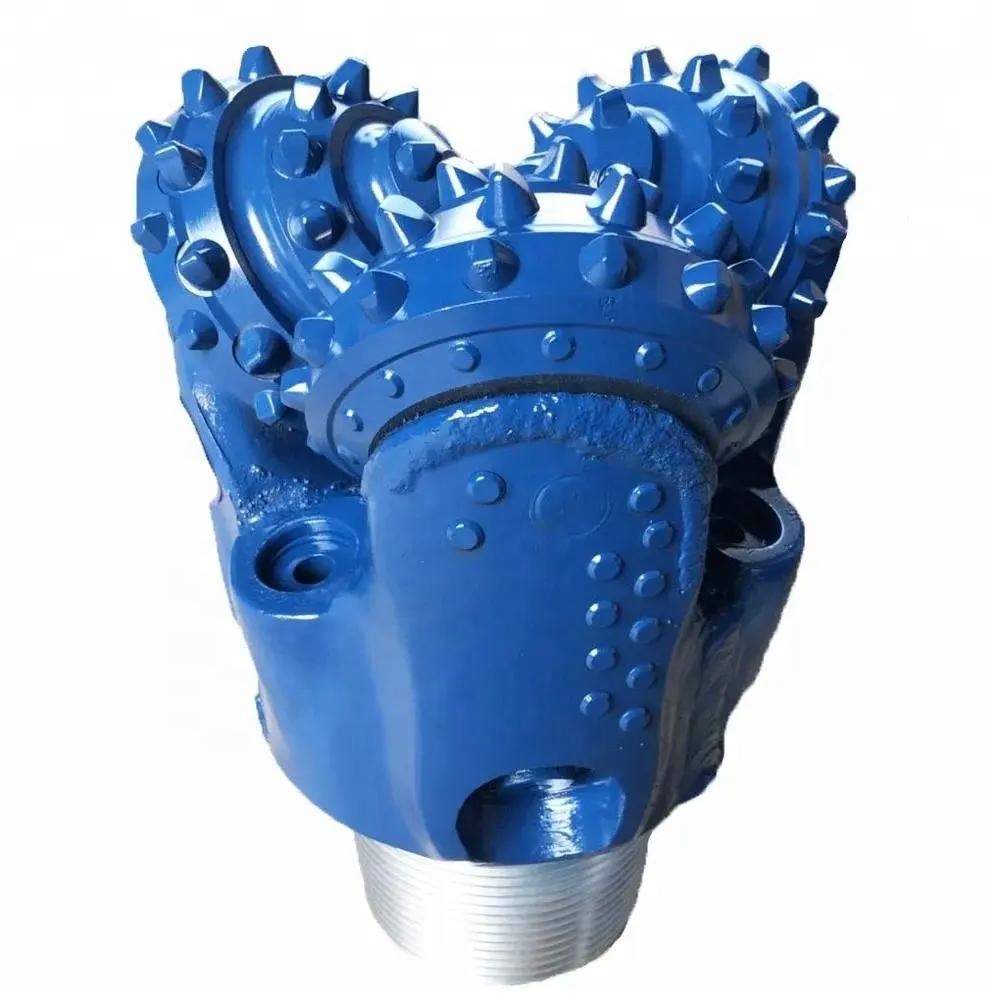

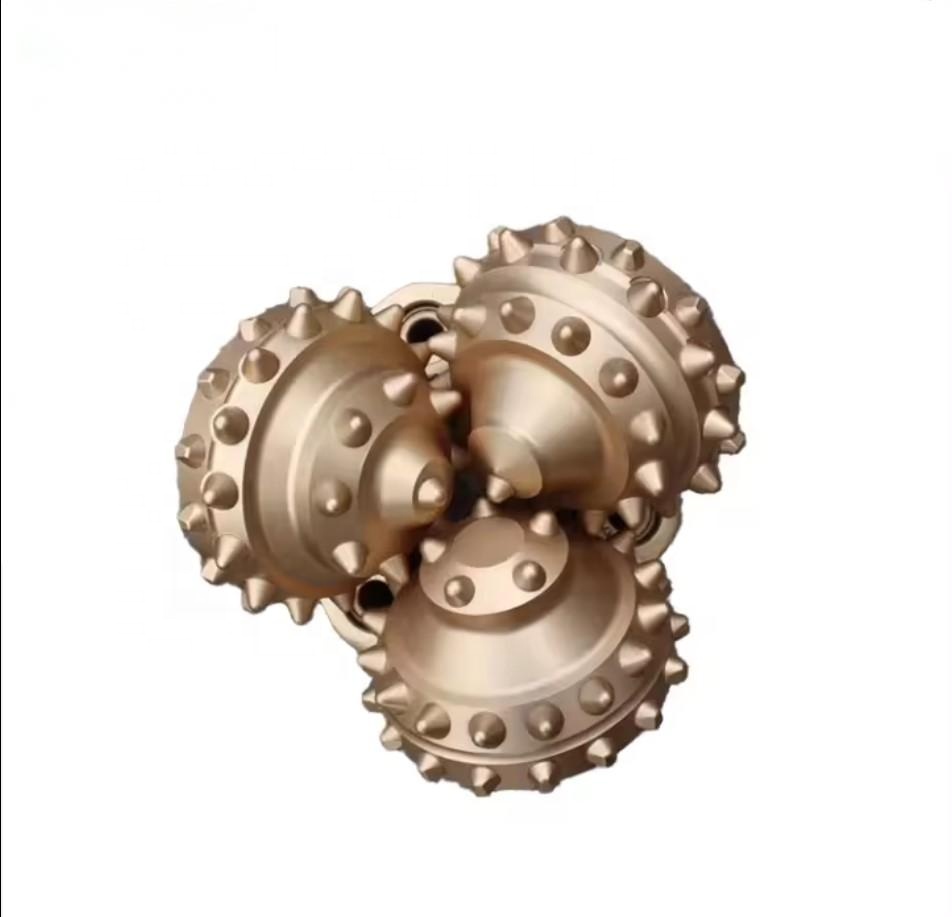

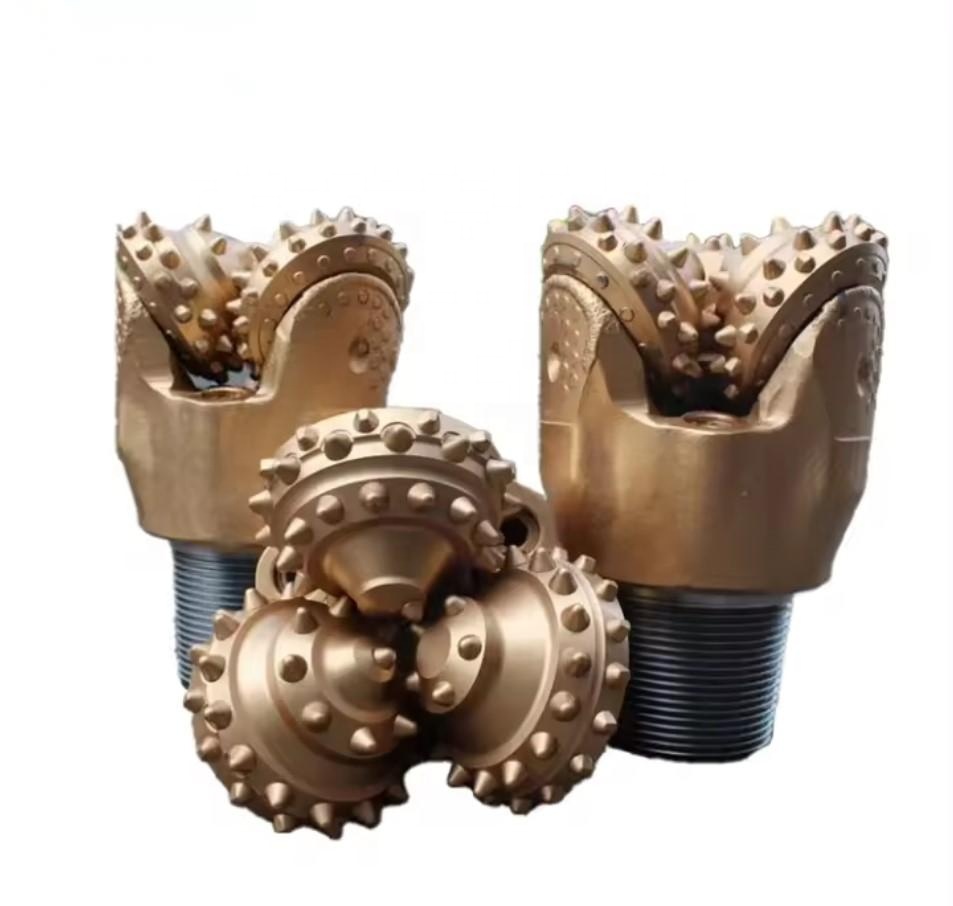

High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
1 / 5
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified
High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified

High Quality 2-1/4 Iadc 537 Tricone Rock Bit For Oilfield & Water Well Drilling API Certified

Send Inquiry

Product Description

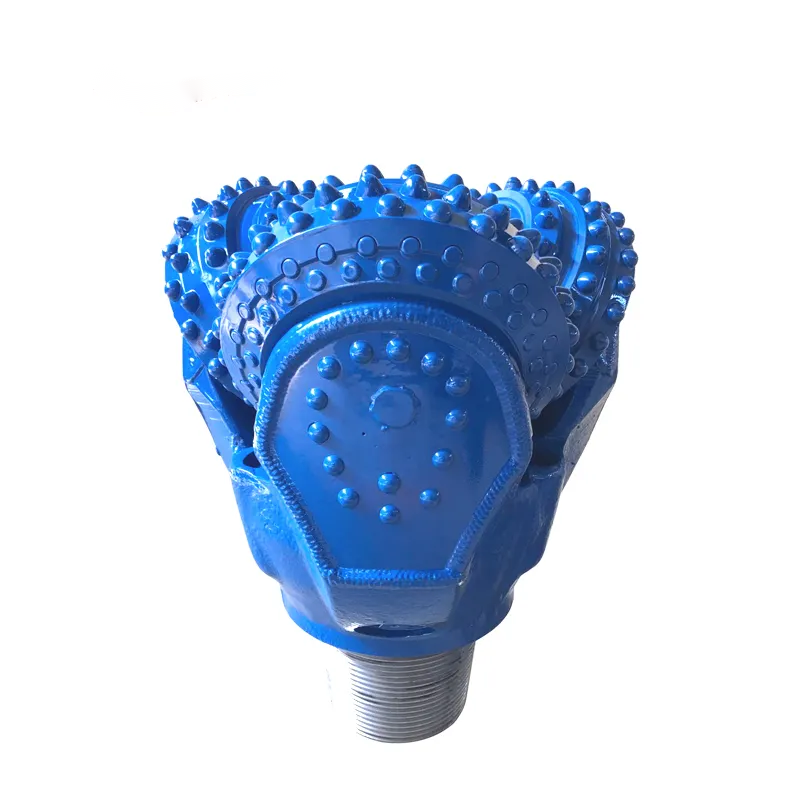

🔶 Tricone Bits
Tricone Bits are designed for multiple drilling applications, such as Gas and Oil production, Mining and Mineral Exploration, Water Well production, and various other industrial uses.
Tricone Bits
✓ Manufactured from high-quality materials including steel forging and carbide.
✓ Compliance with API spec 7 and ISO9001 systems.
✓ Full range available: S series (elastomer sealed/non-sealed), SV series (six-point stabilization), SL series (pilot hole-reaming), and SD series (single cone).
* Please provide the IADC code when requesting a quotation.
📊 Technical Specifications
IADC Roller Cone (m/h) Formation Hardness Rock Type Compress Strength
WEM OBM
111/124 15-30 18-33 Very soft Clay, silts, sands Less than 25mpa
116/137/437 9-15 12-18 Soft Claystone, marl, lignite, sandstone, tuff 25-50mpa
136/137/517/527 4.5-9 6-12 Medium soft Claystone, marl, silts, anhydrites, tuff 50-75mpa
211/217/517/537 2.5-6 3-6 Medium Mudstone, limestone, sandstone (calcareous) 75-100mpa
211/236/537/617 1.5-2.5 1.5-3 Medium hard Limestone, anhydrites, dolomite 100-120mpa
311/347/627/637 1-1.5 1-1.5 Hard Shale (calcareous), sandstone (siliceous) 100-200mpa
637/737/837 1 1 Very hard Quartzite, Igneous rocks More than 200mpa

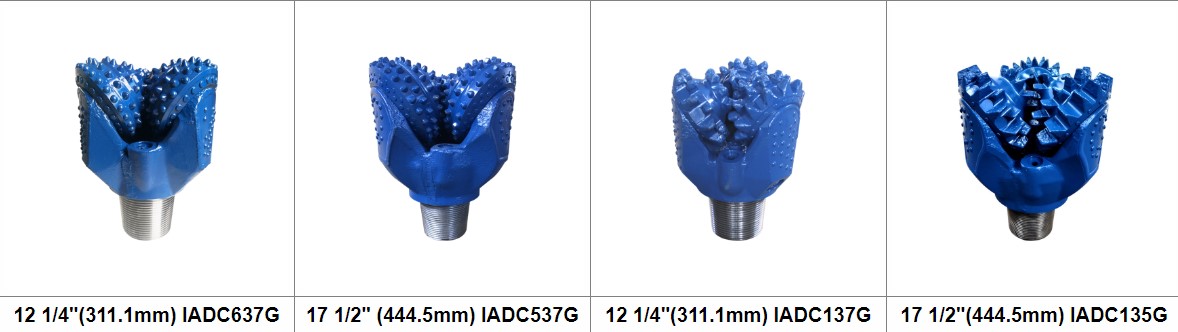

Bit Detail
📦 Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

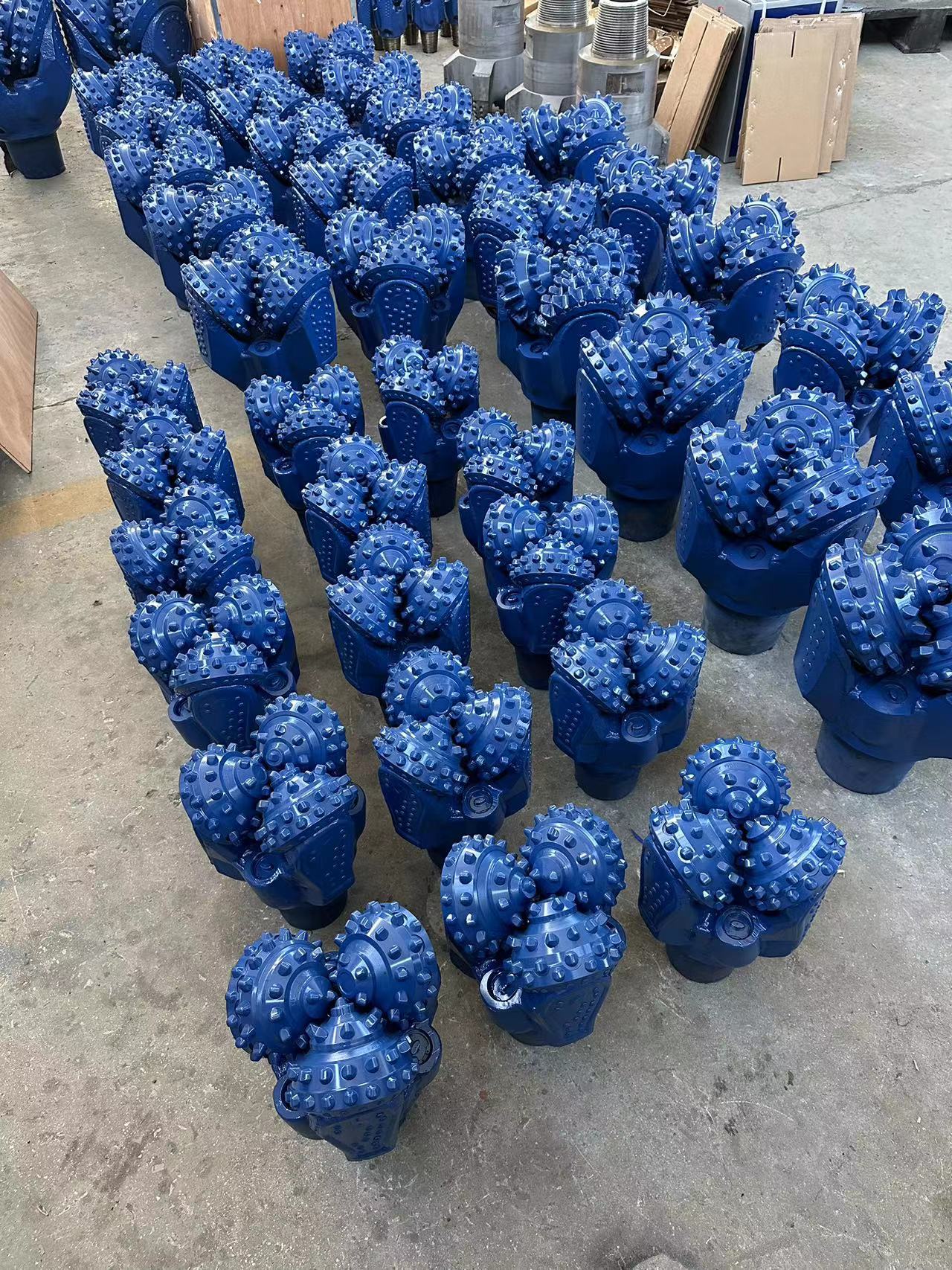

Packing 1 Packing 2 Packing 3
❓ Frequently Asked Questions
1. What are Tricone Bits primarily used for? They are widely used in oil and gas production, mining, mineral exploration, and water well drilling across various industrial sectors.
2. How is the quality of the drilling bits guaranteed? We ensure quality through a pre-production sample before mass production and a rigorous final inspection before every shipment. All products follow API spec 7 or ISO9001 systems.
3. What information is required to receive a quotation? Please provide the specific IADC code and the required quantity so we can calculate the most accurate pricing for you.
4. What are the available delivery and payment terms? We accept various delivery terms including FOB, CFR, CIF, EXW, CIP, FCA, DDU, and Express Delivery. Payments can be made via T/T, L/C, D/P, D/A, or Western Union in USD, EUR, or CNY.
5. What is the typical lead time for delivery? Delivery time depends on the order quantity. Generally, we maintain a stock of regular items for immediate dispatch.
6. Are there different types of bearing bits available? Yes, we supply elastomer sealed journal bearing bits, non-sealed journal bearing bits, and specialized motor bits for different formation requirements.
