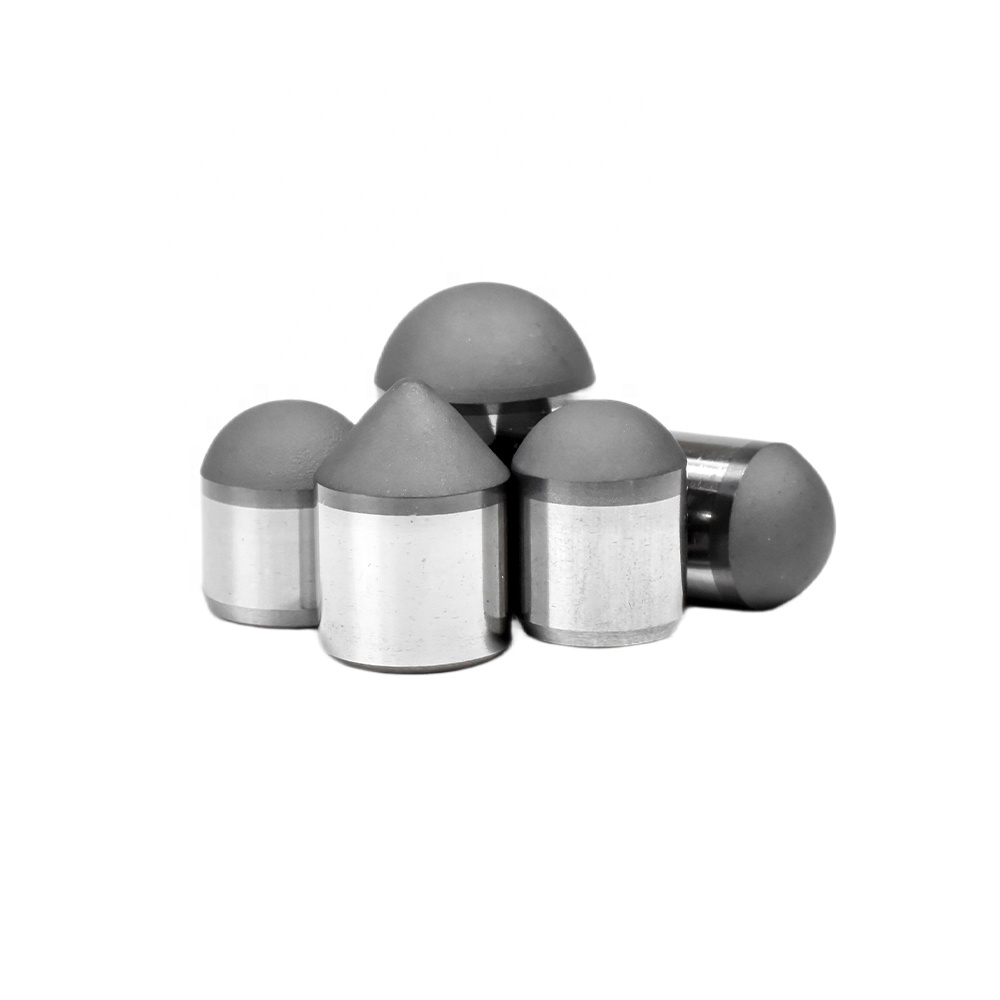

DTH Hammer Bit PDC Inserts for Mining and Water Well Drilling
PDC inserts are crafted from tungsten carbide substrates and diamond powder sintered under extreme temperature and pressure. They integrate the rugged impact properties of tungsten carbide with the exceptional wear resistance of diamond. This unique composition significantly reduces thermal fatigue failure during rock breaking, ensuring longevity and efficiency.

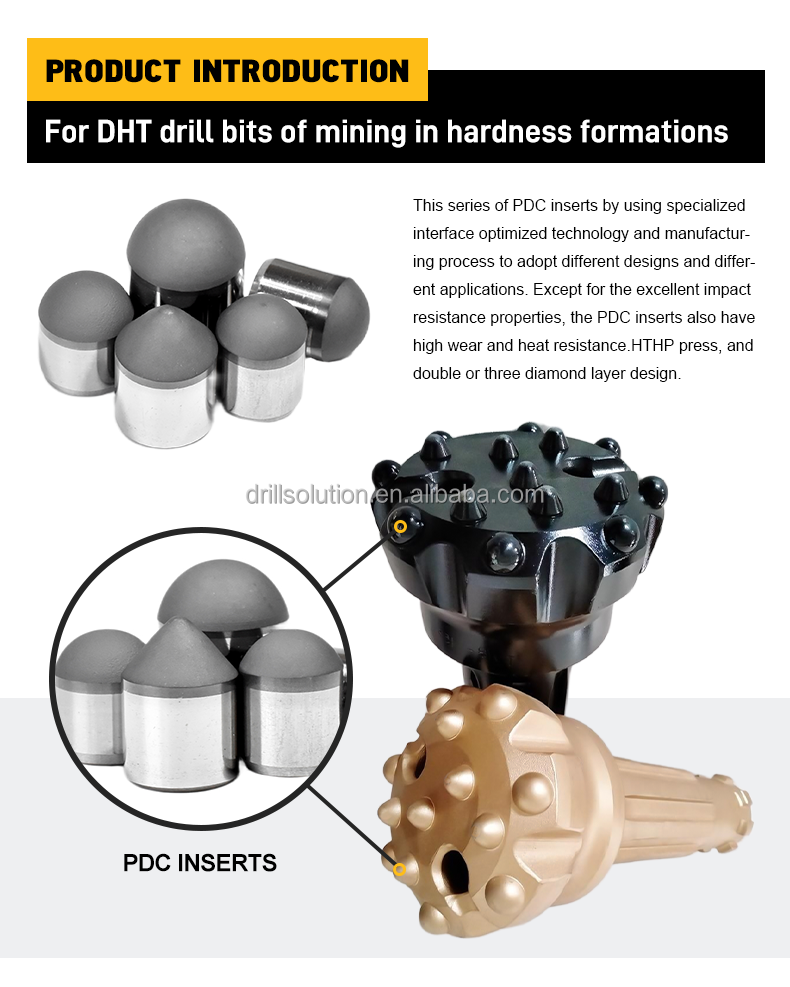

These inserts are specifically engineered for down-the-hole (DTH) hammer drilling, prioritizing high-impact resistance and superior wear performance. They are ideal for navigating hard rock and abrasive formations, maintaining stable cutting efficiency even under high-frequency impact.
Key Technical Advantages
High Impact Strength
Optimized diamond structure and carbide substrate withstand repeated DTH hammer impacts without chipping or fragmentation.
Superior Wear Resistance
High-density polycrystalline diamond layer ensures a long service life when drilling through hard and abrasive rock materials.
Thermal Stability
Maintains peak cutting performance under the intense heat generated during high-speed impact drilling operations.
Stable Cutting Performance
Reduces the risk of insert breakage, significantly improving overall drilling efficiency in challenging DTH applications.

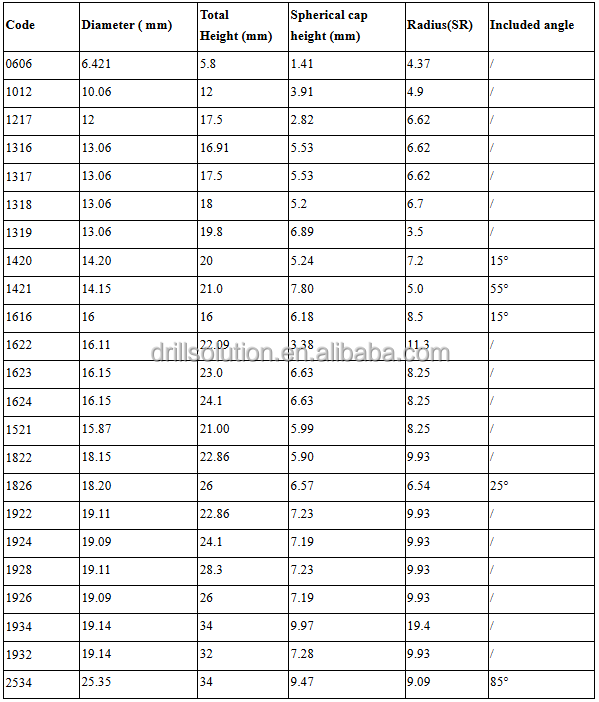

Available Sizes & Specifications
We offer a wide range of specifications to meet diverse user needs. Customized production and processing are available based on specific drawings and requirements regarding size, chamfer, and diamond thickness.

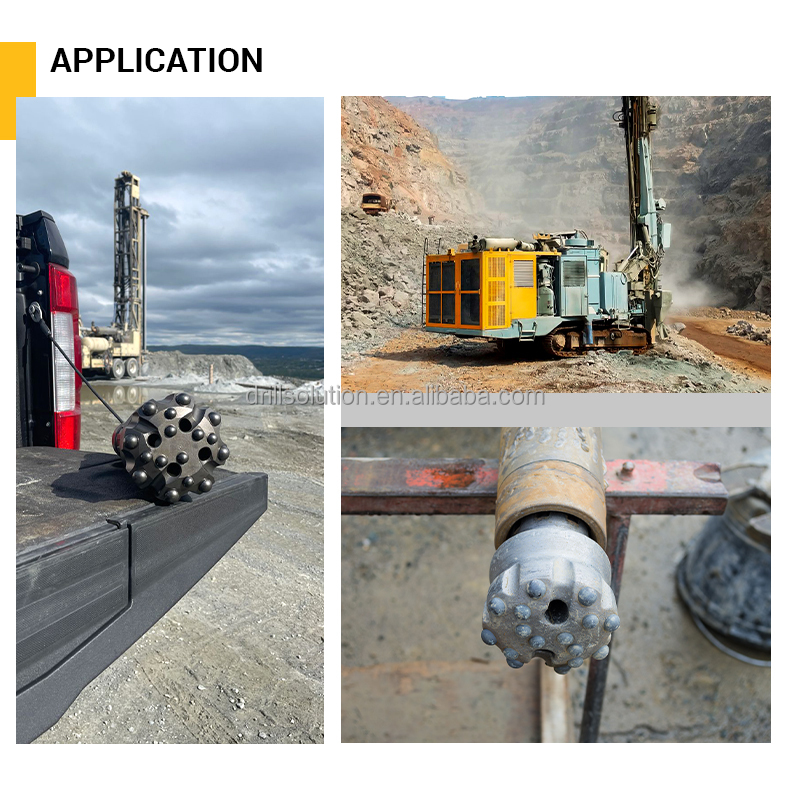

Operational Applications
PDC Inserts for DTH Bits are designed to endure abrasive conditions in high-impact environments. Key fields of application include:
DTH Hammer Bits: Enhances penetration rates and minimizes insert breakage under heavy loads.
Hard Rock Drilling: Ideal for granite, basalt, limestone, and other challenging formations.
Mining & Quarrying: Critical for production and bench drilling where stable performance is required.
Water Well Drilling: Extends bit life in deep and hard-to-penetrate formations.
Foundation Drilling: Suitable for rock anchoring and piling in abrasive ground.

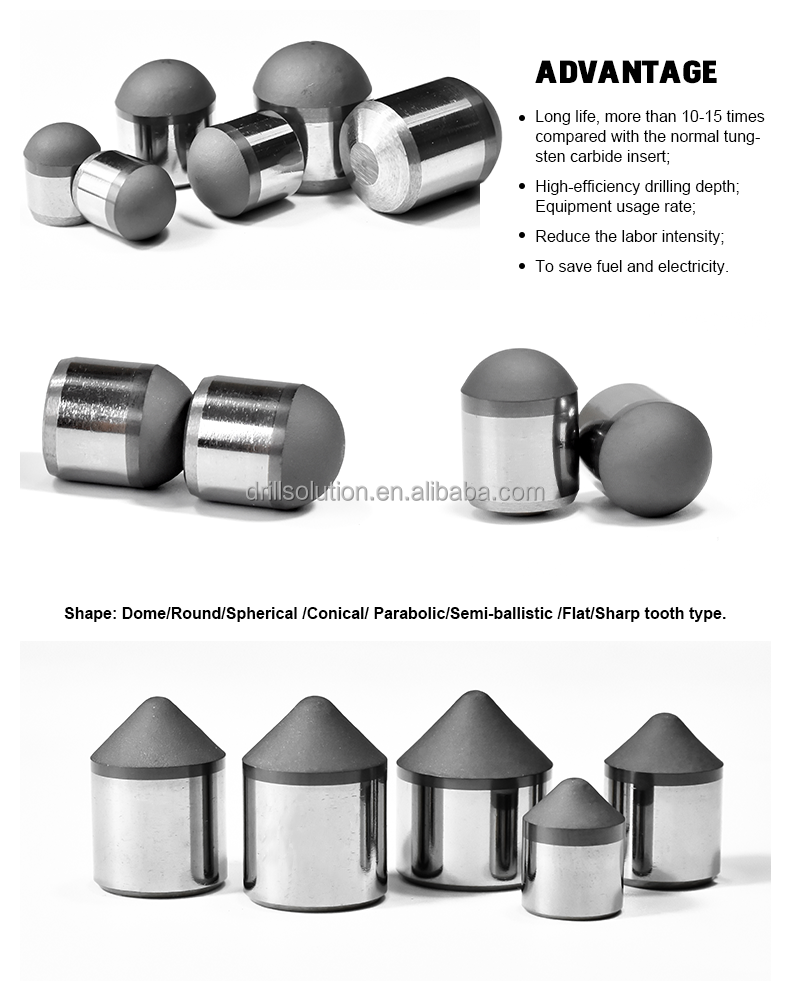

Why Choose PDC Drilling Solutions?

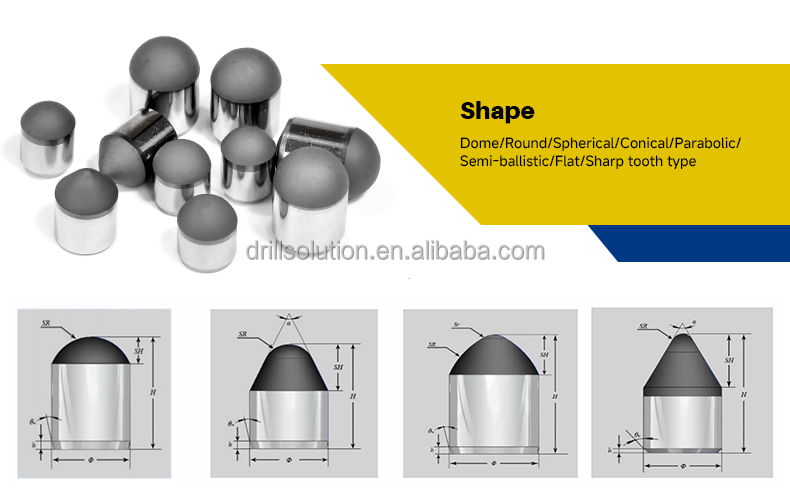

- Multiple cutter geometries tailored to specific drilling needs.
- Extended service life (10-15 times longer than tungsten carbide inserts).
- Cost-effective performance with reduced tool replacement frequency.
- Strict quality control and technical support for custom solutions.
Contact professional suppliers to get the latest technical datasheets and customized drilling solutions.
FAQ – PDC Inserts for DTH Bits
Q1: What are PDC inserts for DTH bits used for?
A: They are used in down-the-hole hammer drilling to provide efficient rock cutting under high-frequency impact, specifically in hard and abrasive formations like granite and limestone.
Q2: How are DTH PDC inserts different from conventional PDC cutters?
A: DTH PDC inserts are engineered with enhanced impact resistance and reinforced edges to withstand repeated vertical hammer impacts, whereas conventional cutters are optimized for rotary shearing.
Q3: What are the key advantages of using PDC in DTH applications?
A: The main benefits include high impact strength, superior wear resistance, excellent thermal stability, and a significantly longer service life compared to traditional carbide inserts.
Q4: Can these PDC inserts be customized for specific bit designs?
A: Yes, customization is available for size, chamfer type, diamond layer thickness, and geometry to match unique DTH bit structures and specific drilling conditions.
Q5: What is the typical service life of these inserts?
A: While it depends on rock hardness, these PDC inserts generally last 10-15 times longer than standard tungsten carbide inserts, offering much more stable footage efficiency.

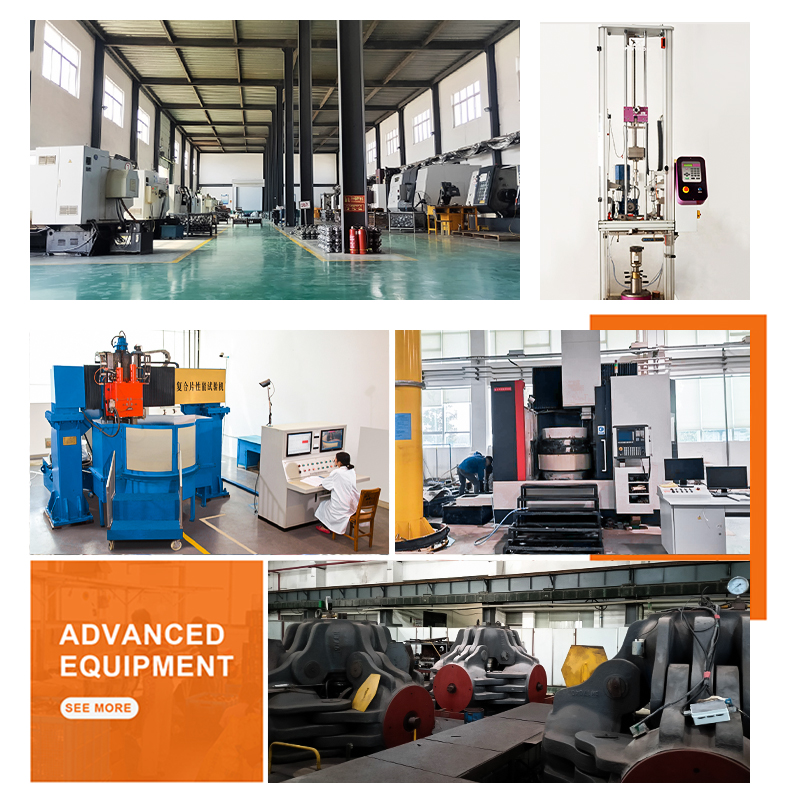

Q6: What quality tests do the inserts undergo?
A: Each batch is subjected to rigorous impact resistance testing, diamond layer ultrasonic inspection, wear evaluation, and dimensional accuracy checks.
