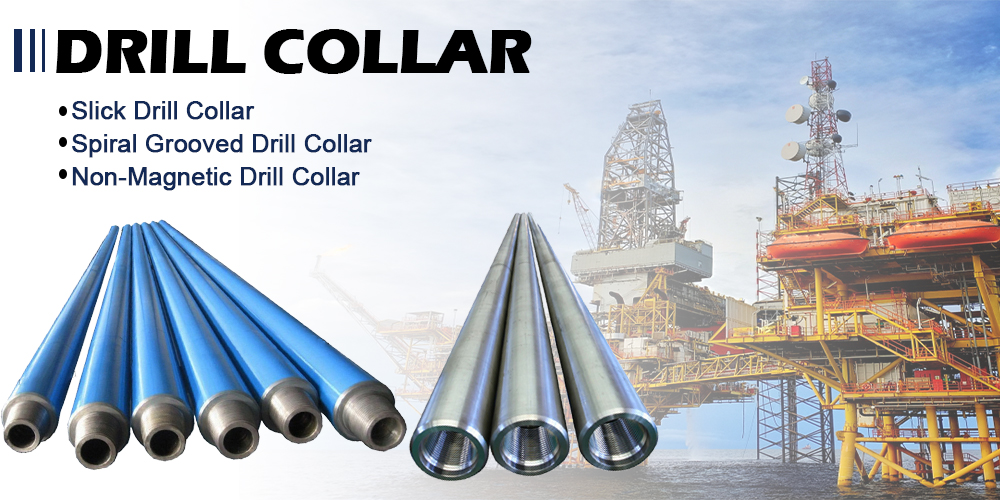

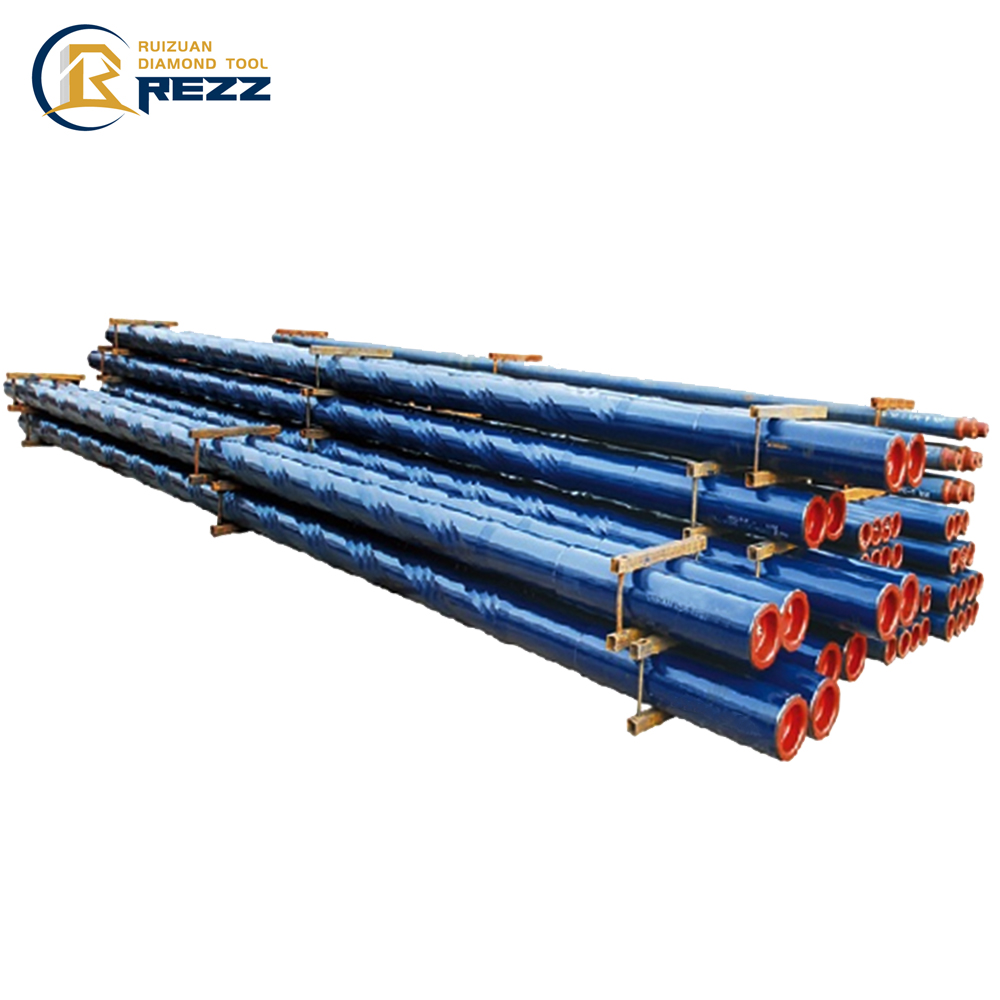

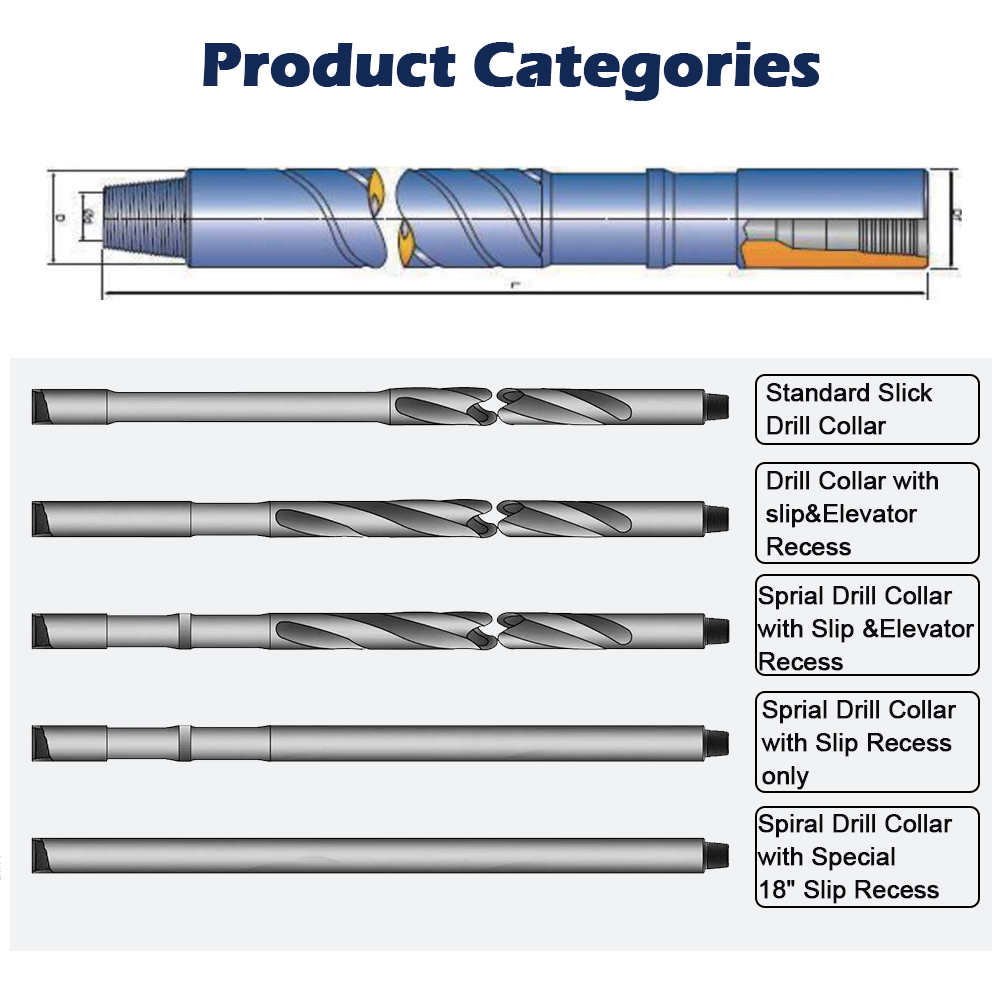

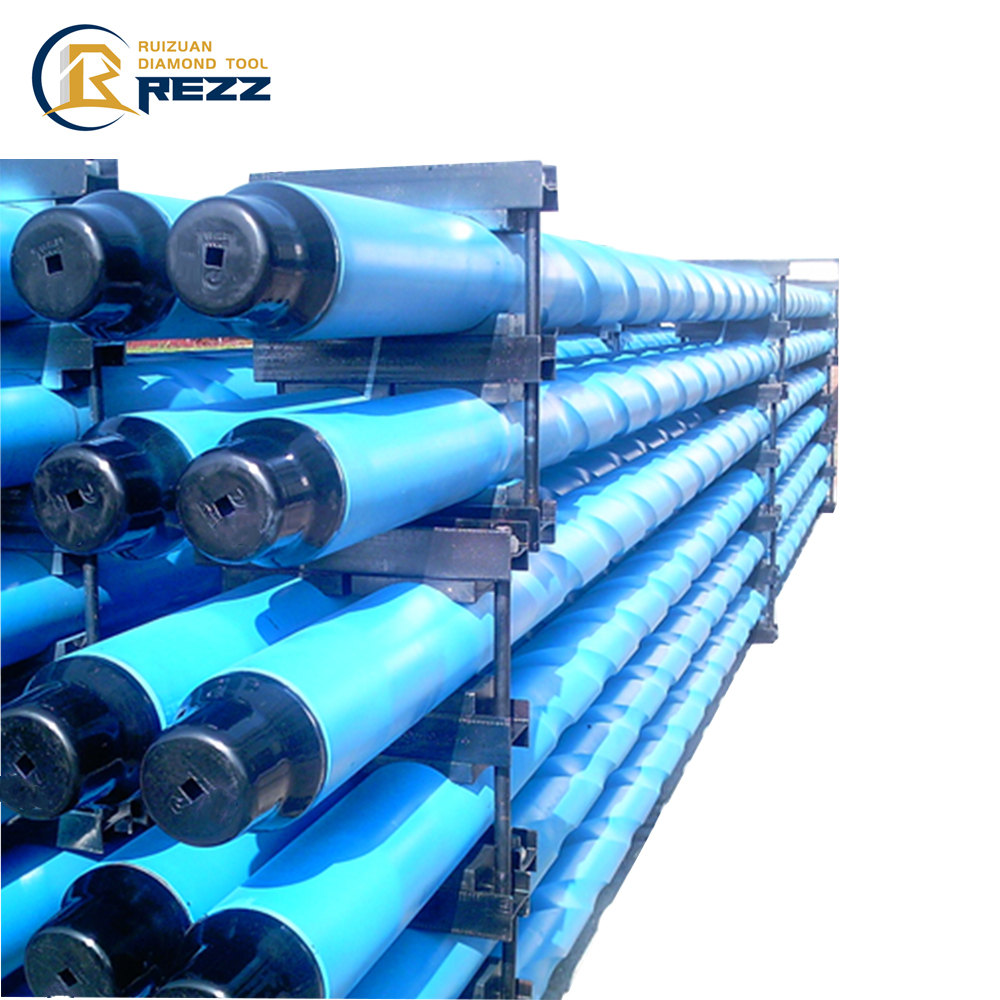

As an important part of drill string, drill collar can supply the drill bit and increase the rigidity of drill string. Drill collar are manufactured strictly according to API Spec7-1 standard with material of AISI 4145 Mod. We supply slick drill collars, spiral drill collars, etc. The size of drill collar we can provide is from 3.1/8 to 11 inches. We can also provide other drill collars at customers’ specific request.
| Product Name: | Drill Collars, Spiral Drill Collar, Non-magnetic Drill Collar, Drill Collar and Drill Stem Accessories |
| Size： | Outer diameter: 3 1/8"-11" |
| Length： | 30Ft/31Ft/43Ft/R1~R3 |
| Connection type: | NC, REG, FH, IF |
| Thread: | NC26, NC31, NC38, NC40, NC46, NC50, 5.1/2FH |
| Material: | Stainless Steel/Alloy steel/4145H/Carbon steel |
| Standard: | API 5DP/API Spec 7-1 |
| Application: | Oil and gas well drilling/Oilfield Drilling |

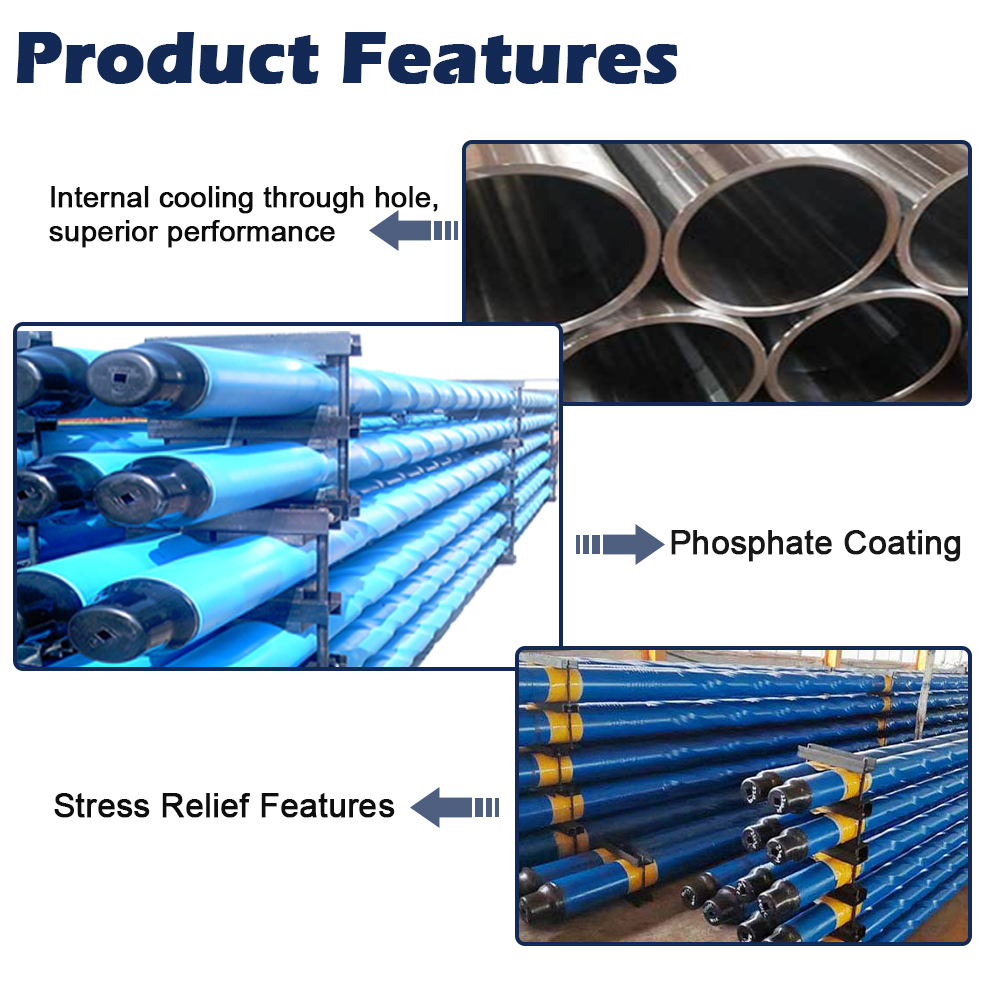

1. API connections – All API connections (regular, NC, H90, and PAC) comply with dimensional requirements specified in API Spec.
2. Phosphate coating – All connections are phosphate-coated to improve resistance to galling.
3. Stress relief features – API pin stress relief groove and API box boreback decrease the frequency of fatigue failures.

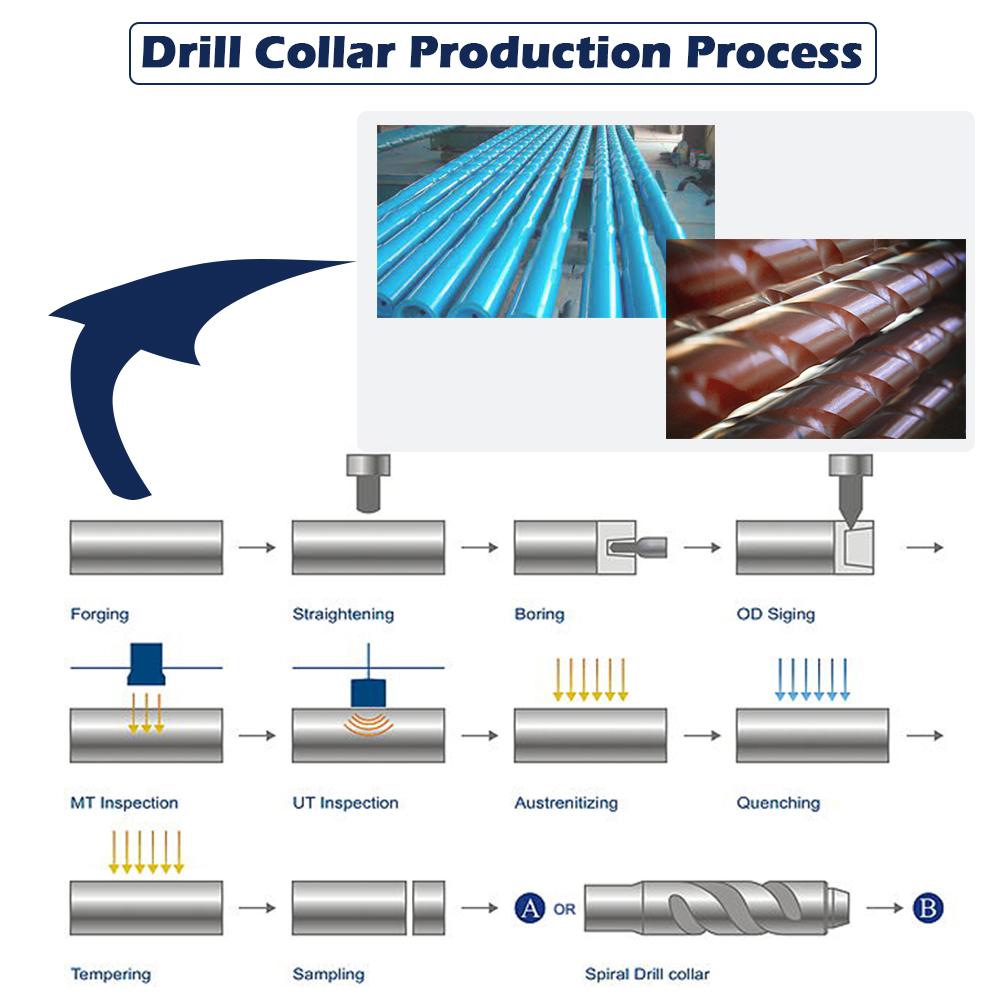

4. Cold rolling – Drill collar thread roots are cold-rolled. Cold rolling creates a compressive stress condition that increases fatigue life by minimizing crack initiation.
Widely used in oil, gas, HDD and geothermal field.
Our team is committed to providing customers with tools for grinding, cutting, turning, milling, drilling, and reaming. It includes abrasive tools & wheels, diamond/CBN wheels & tools, PCD/PCBN inserts & tools, tungsten carbide inserts & tools and HSS steel tools & cutters. Our tools are applied in many different industries. Our customers find good applications in woodworking, metalworking, Automotive, Stone, Glasses, gemstones, Industrial ceramic, oil & Gas drilling and Constructions industries. In these industries, our products are performing well on long lifetime, high-efficiency and less unit-cost.
PACKAGE:
SINGLE BOX PER WHEEL, 10 to 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order, detail delivery date should be decided according to production season and order quantity.
