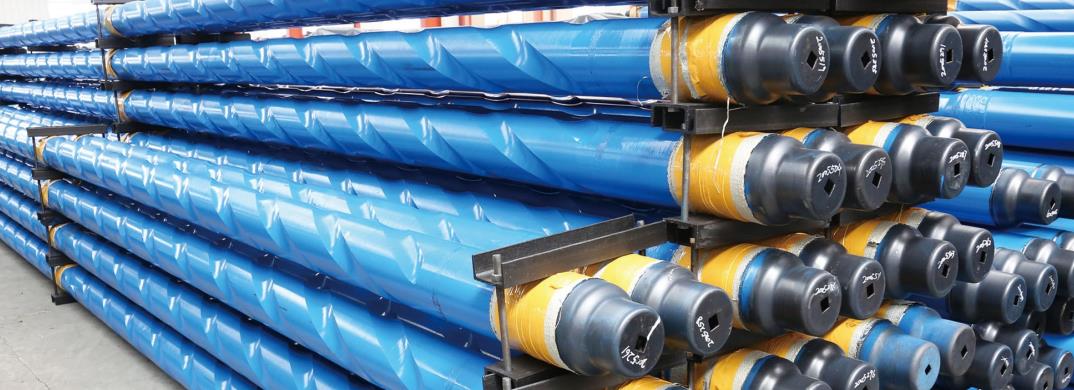

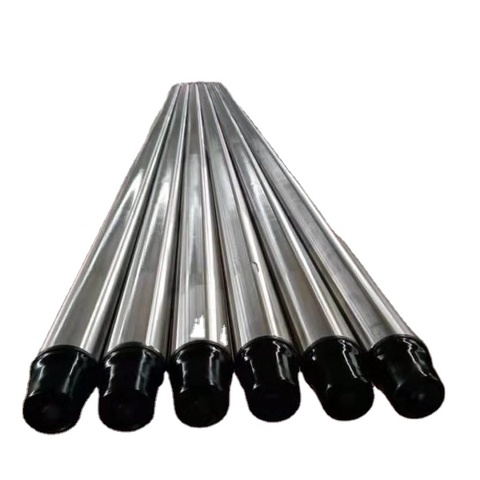

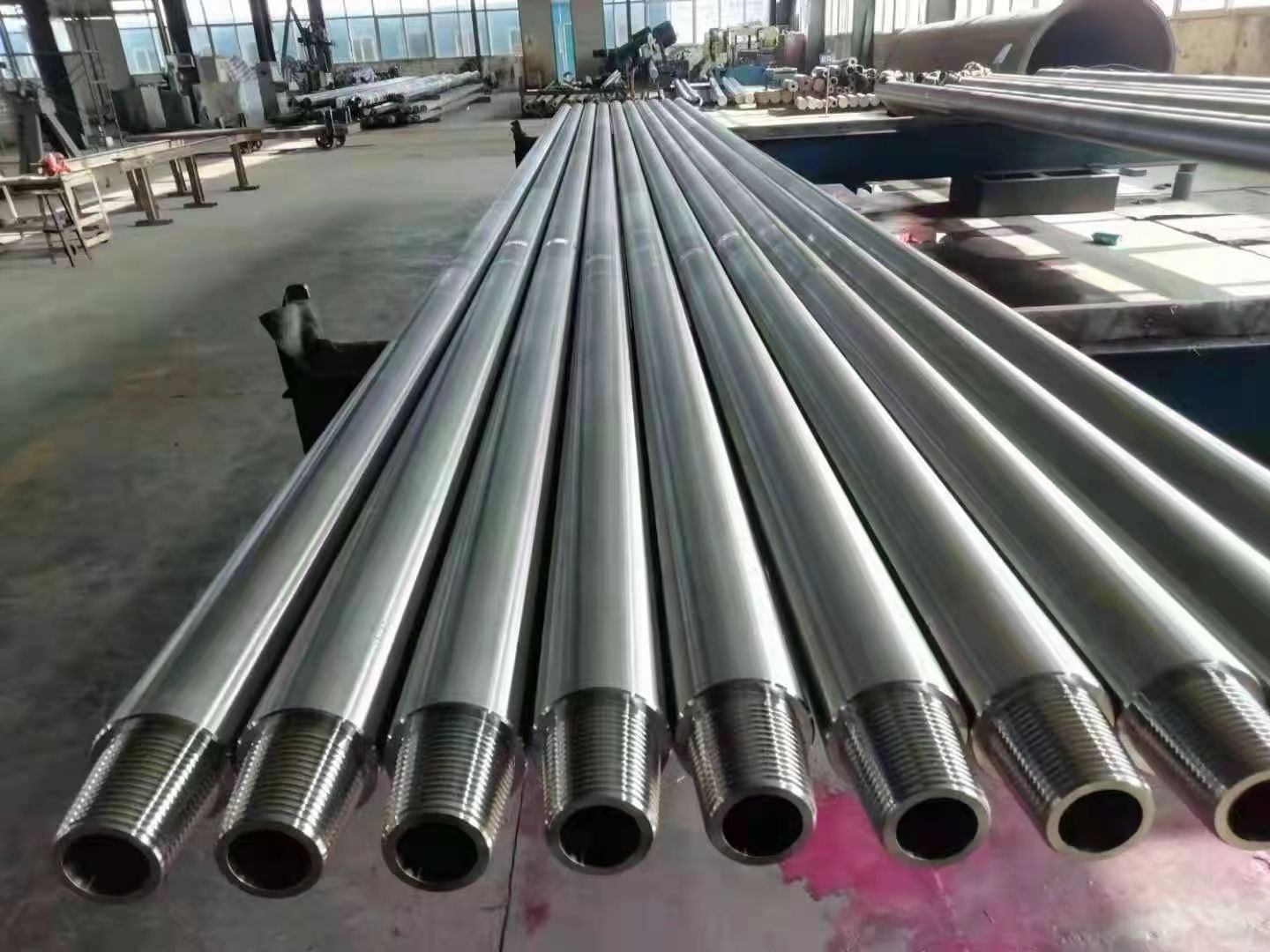

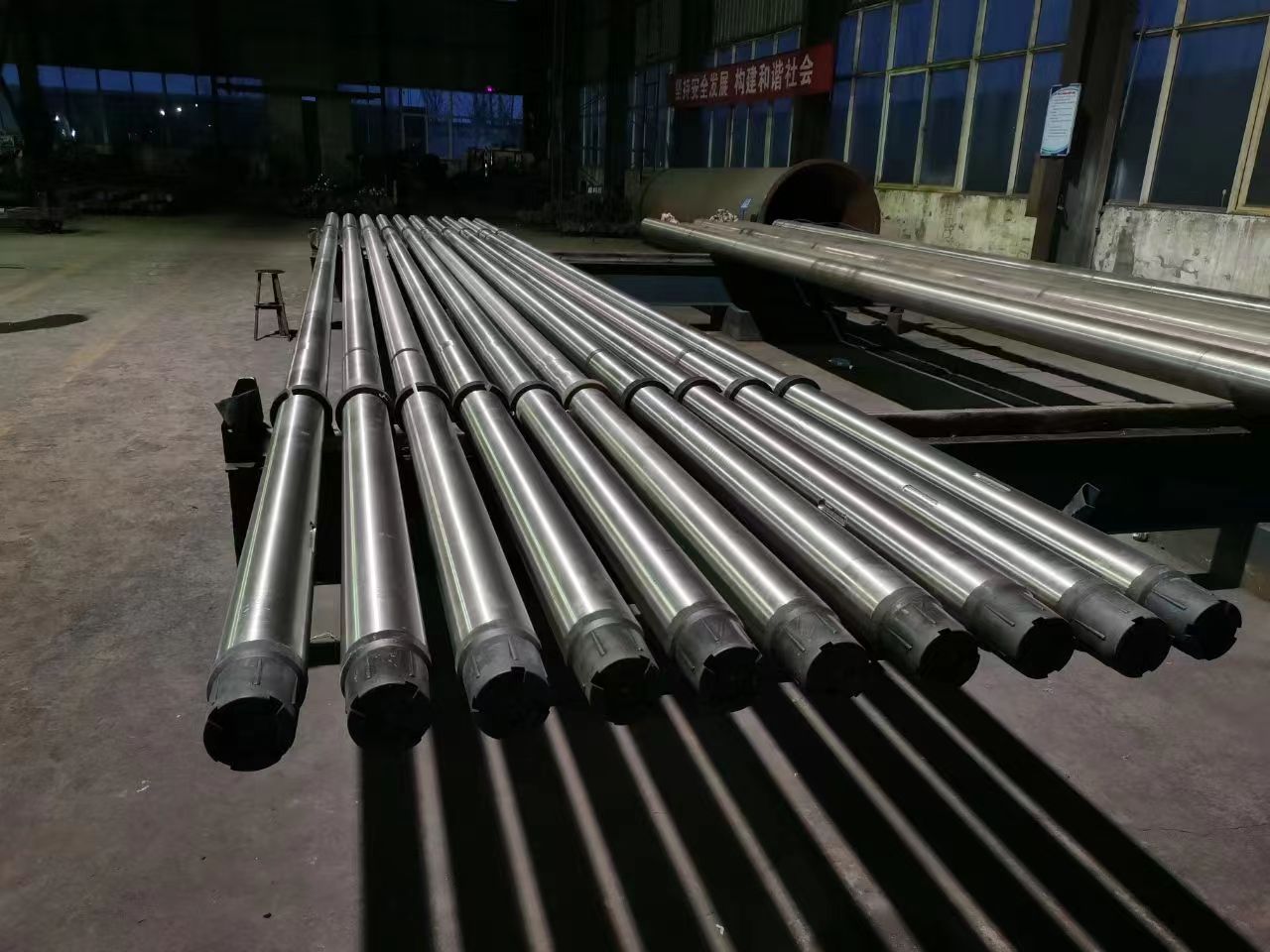

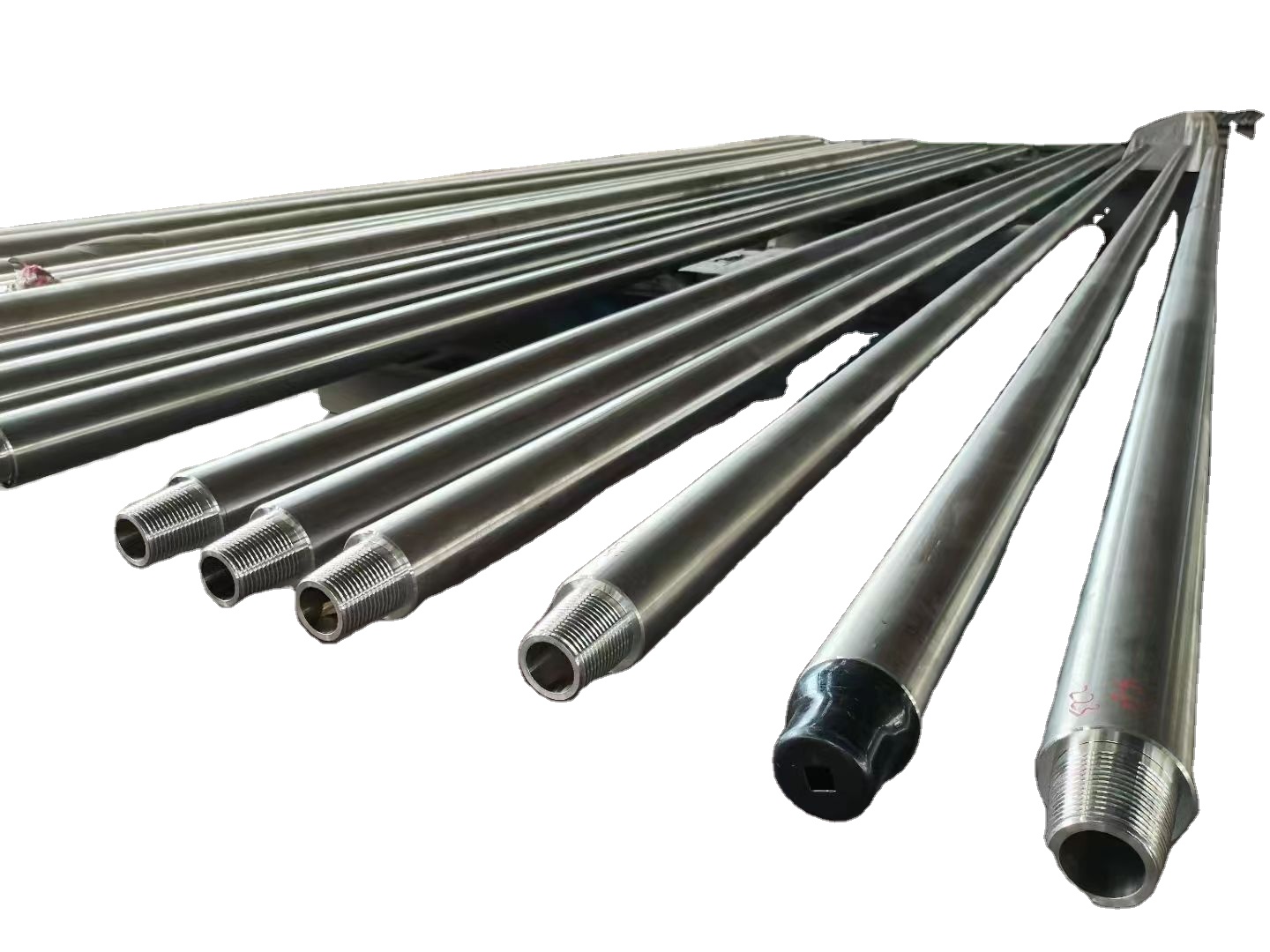

P550 Oilfield Drilling Tools Non Magnetic Spiral Drill Collar for Drilling Rig

1 / 5

P550 Oilfield Drilling Tools Non Magnetic Spiral Drill Collar for Drilling Rig

Send Inquiry

Product Description

Specification

Drill collar Number and Connection (mm)	Outside Diameter (mm)	Bore Diameter (mm)	Length (mm)	Shoulder guide angle diameter mm
NC23-31	79.4	31.8	9150	76.2
NC26-35	88.9	38.1		82.9
NC31-41	104.8	50.8		100.4
NC35-47	120.7	50.8		114.7
NC38-50	127	57.2		121
NC44-60	152.4	57.2	9150 or 9450	144.5
NC44-60	152.4	71.4		144.5
NC46-62	158.8	57.2		149.2
NC46-62	158.8	71.4		150
NC46-65	165.1	57.2		154.8
NC46-65	165.1	71.4		154.8
NC46-67	171.4	57.2		159.5
NC50-67	171.4	71.4		159.5
NC50-70	177.8	57.2		164.7
NC50-70	177.8	71.4		164.7
NC50-72	184.2	71.4		169.5
NC56-77	196.8	71.4		185.3
NC56-80	203	71.4		190.1
6-5/8REG	209.6	71.4		195.7
NC61-90	228.6	71.4		212.7
7-5/8REG	241.3	76.2		223.8
NC70-97	247.6	76.2		232.6
NC70-100	254	76.2		237.3
8-5/8REG	279.4	76.2		266.7

Product Description

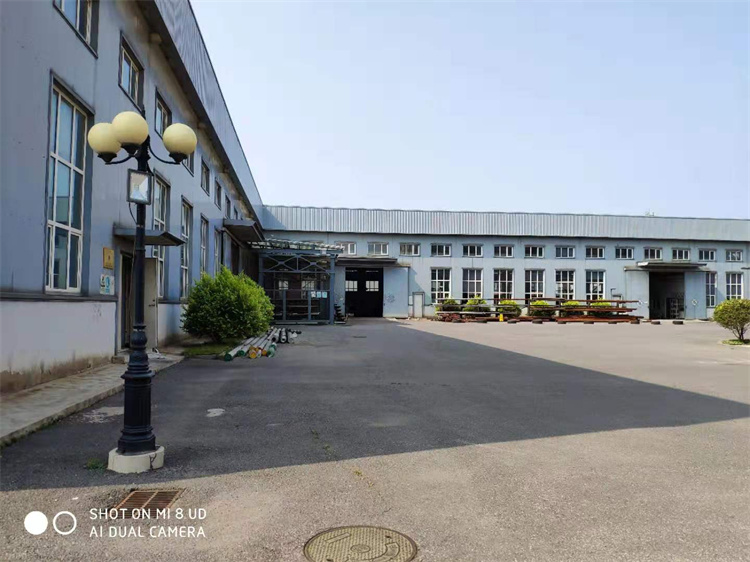

Company Profile

A professional precision machining factory focusing on the design and manufacture of petroleum welling logging apparatus, instrument facility, and equipment. We specialize in deep hole and slender hole processing and precision parts according to drawings and samples.

⚙

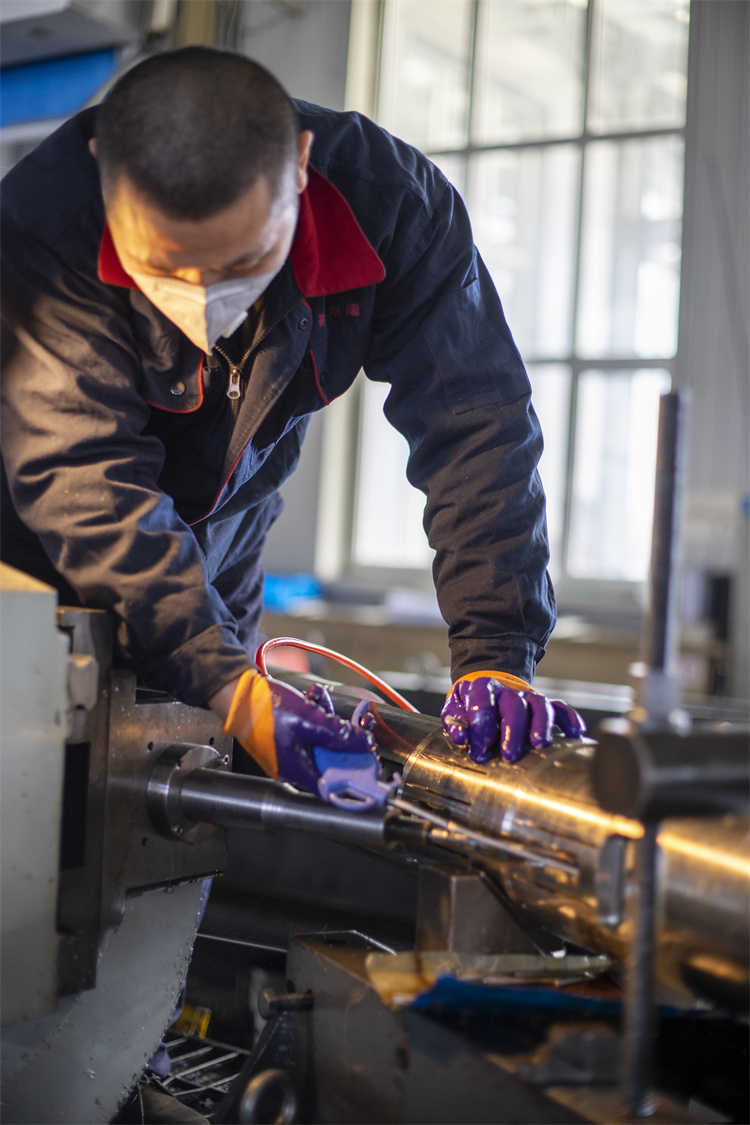

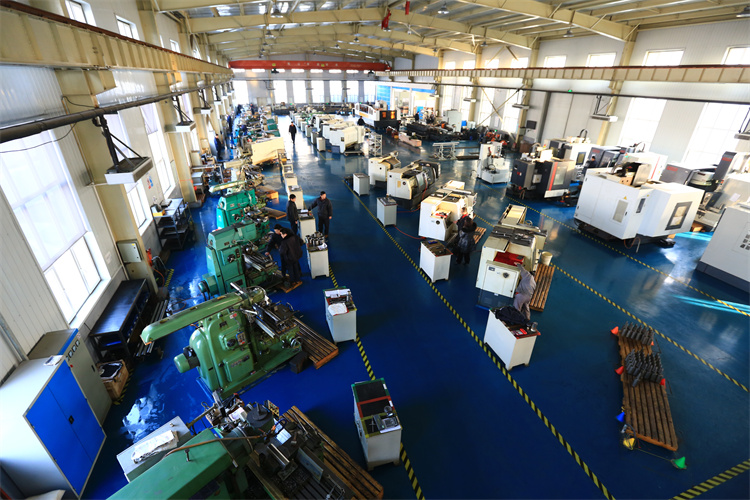

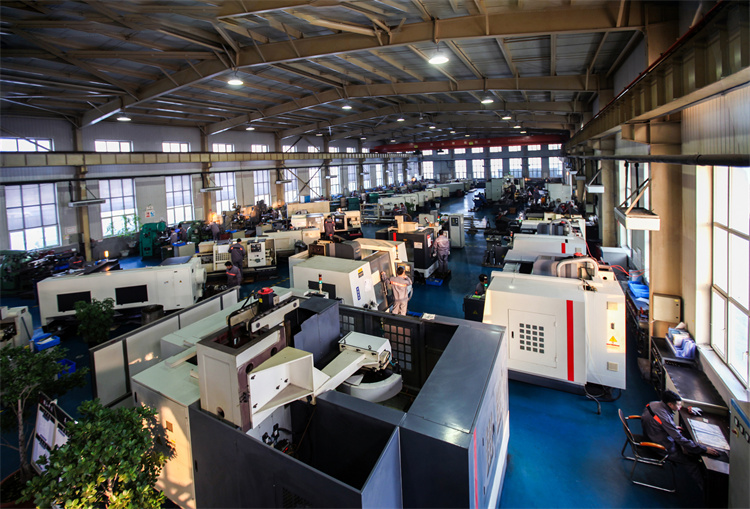

Equipment Capacity: Nearly 100 sets of mechanical equipment including CNC machining centers, CNC lathes, CNC cutting machines, professional deep-hole machining lathes, CNC EDM, and electric punching machines. Machining accuracy reaches up to 0.015mm.

🔬

Processing Characteristics: Expertise in ferro-titanium and non-magnetic materials; specialized in deep-hole and slender hole precision machining for enterprises in the petroleum sector.

✔

Quality Management: Certified by ISO 9001:2000 and API. Strict inspection procedures from raw material to production guarantee a high factory qualified rate.

Certifications

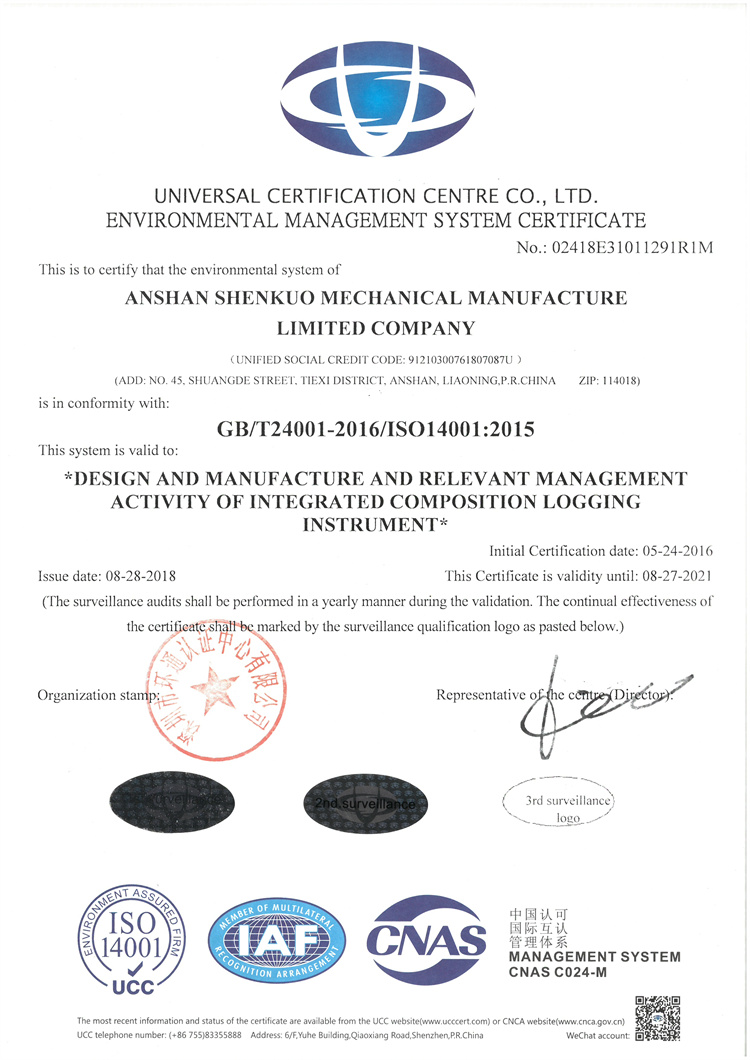

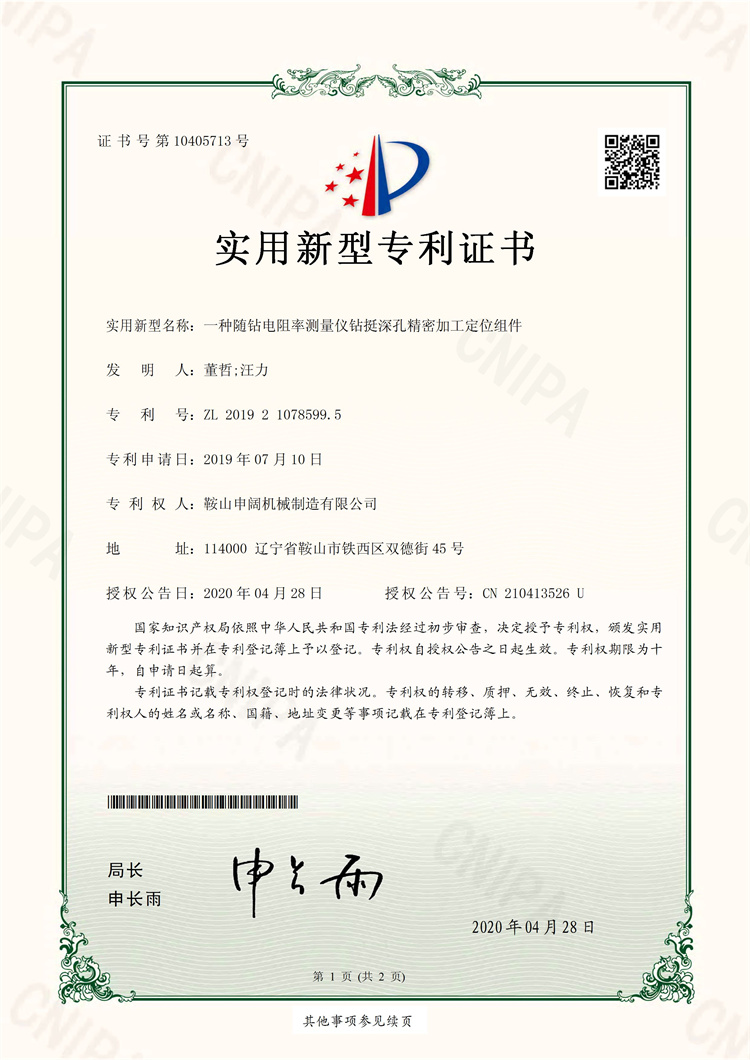

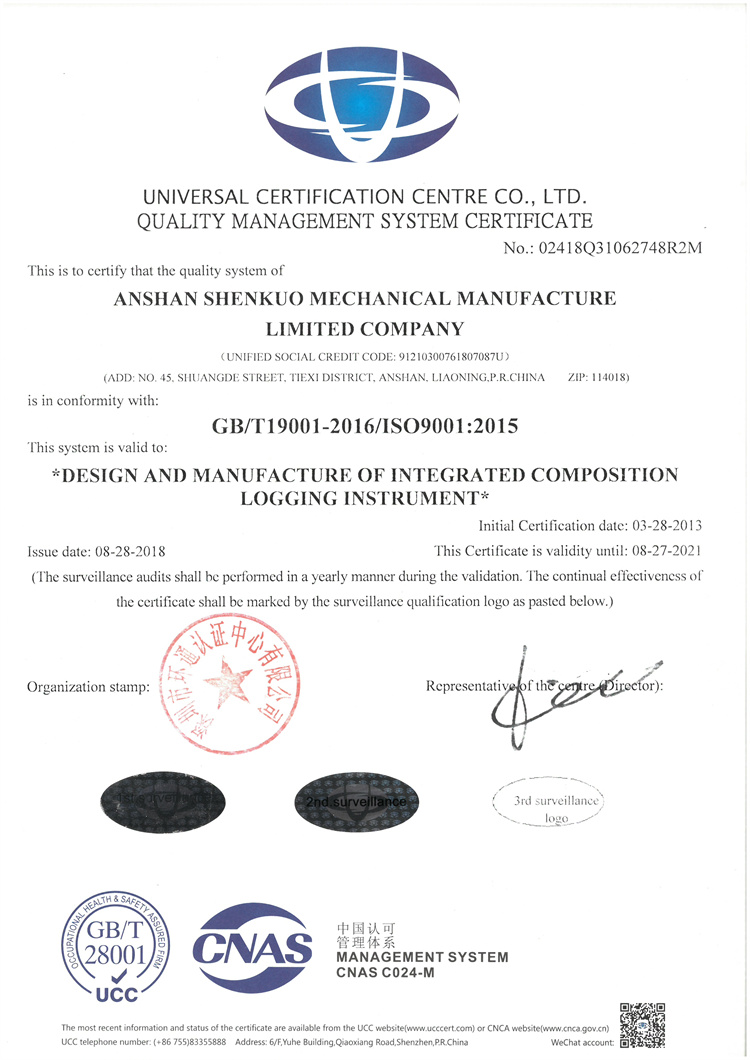

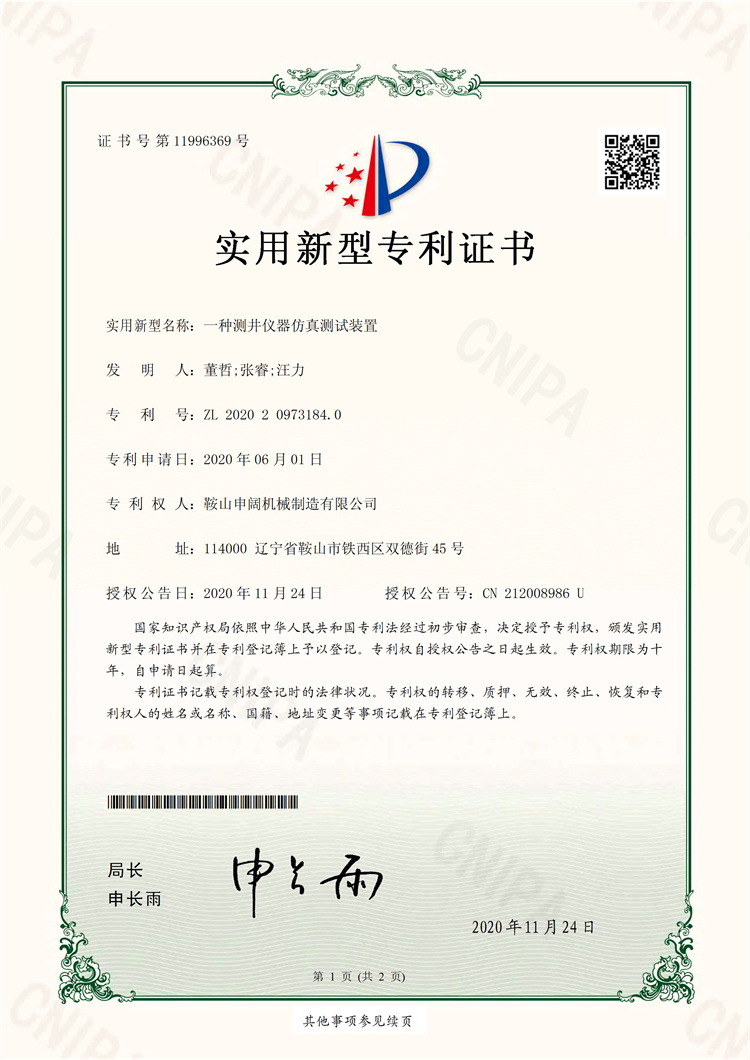

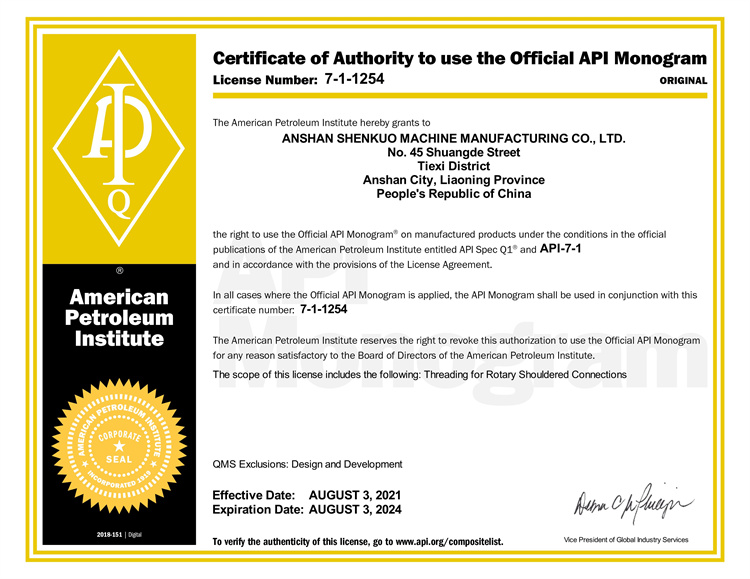

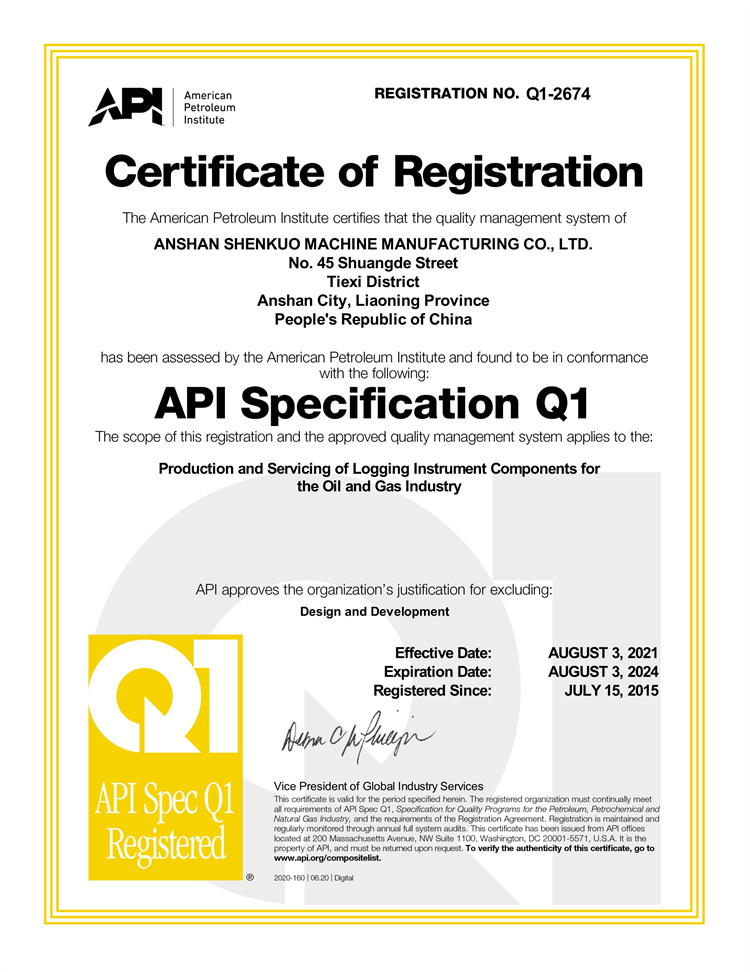

Patent certificates and Qualification certifications:

Packing & Delivery

Exhibition

Frequently Asked Questions

Q1: What are your primary machining capabilities? We have more than 15 years of experience in precision machining, specifically in multi-varieties and small batch processing. We are leading experts in long deep hole and slender hole processing.

Q2: How do you guarantee the quality of your products? Quality is ensured through strict inspection procedures from raw materials to final production. We always provide a pre-production sample before mass production and a final inspection before shipment. We are also ISO 9001 and API certified.

Q3: What types of materials can you process? We have specialized capabilities for processing both metal and non-metal materials, including ferro-titanium and various non-magnetic materials.

Q4: Can you manufacture parts based on specific samples or drawings? Yes, we specialize in processing precision parts subject to customer-provided drawings and samples to meet exact technical specifications.

Q5: What are your accepted delivery and payment terms? We accept various delivery terms including FOB, CIF, FAS, and CPT. Payment can be made via T/T or L/C in USD or CNY.

Q6: What is the scale of your equipment capacity? Our facility is equipped with nearly 100 sets of mechanical equipment, including CNC machining centers, EDM machines, and professional deep-hole lathes, achieving accuracy up to 0.015mm.
