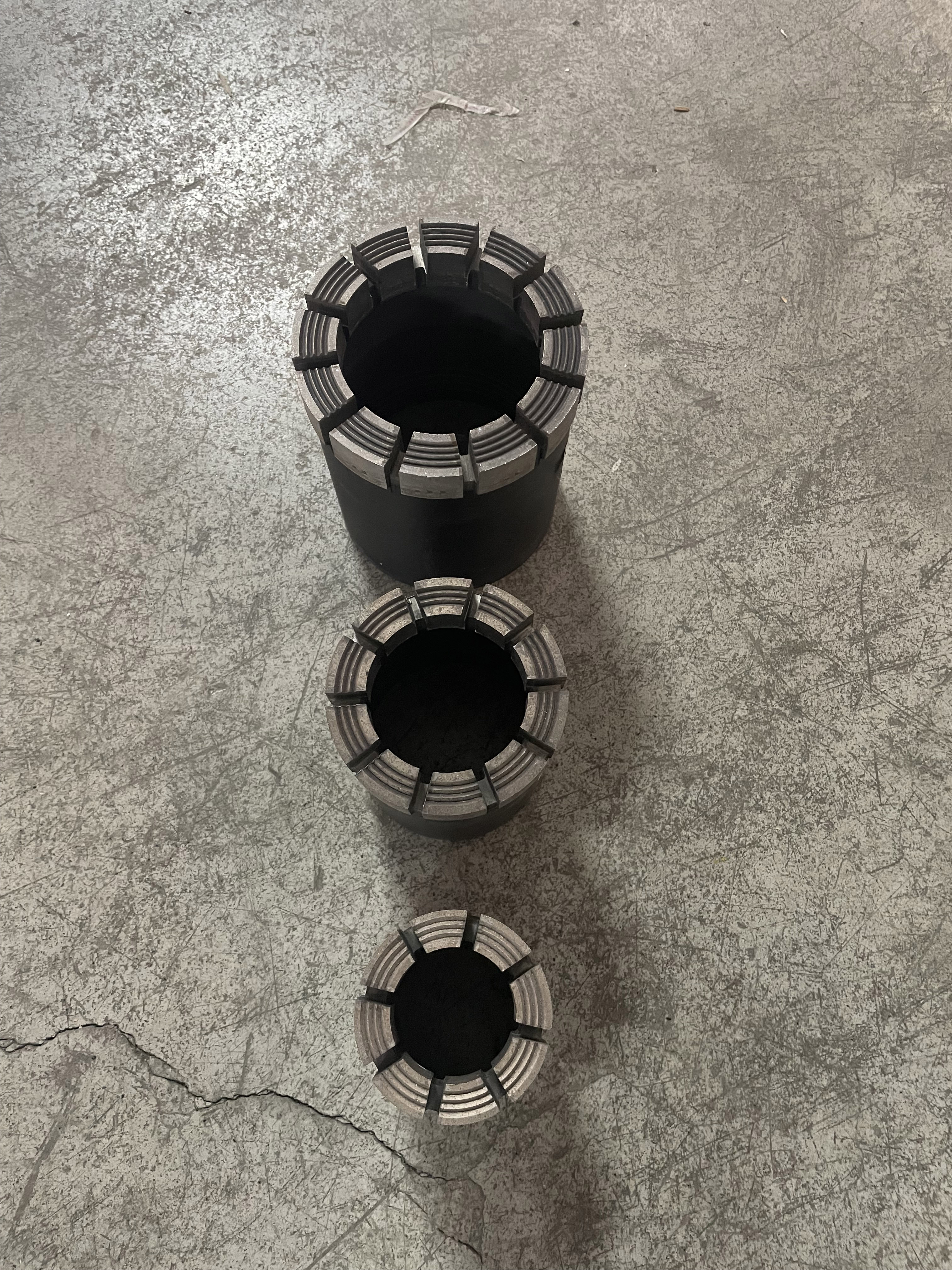

Hard and ultra-hard formations (granite, quartzite, basalt, etc.)
Mineral exploration and core sampling
Geological and geotechnical investigations
Water well and infrastructure drilling
High core recovery rate in fractured or broken zones
Stable performance across variable ground conditions

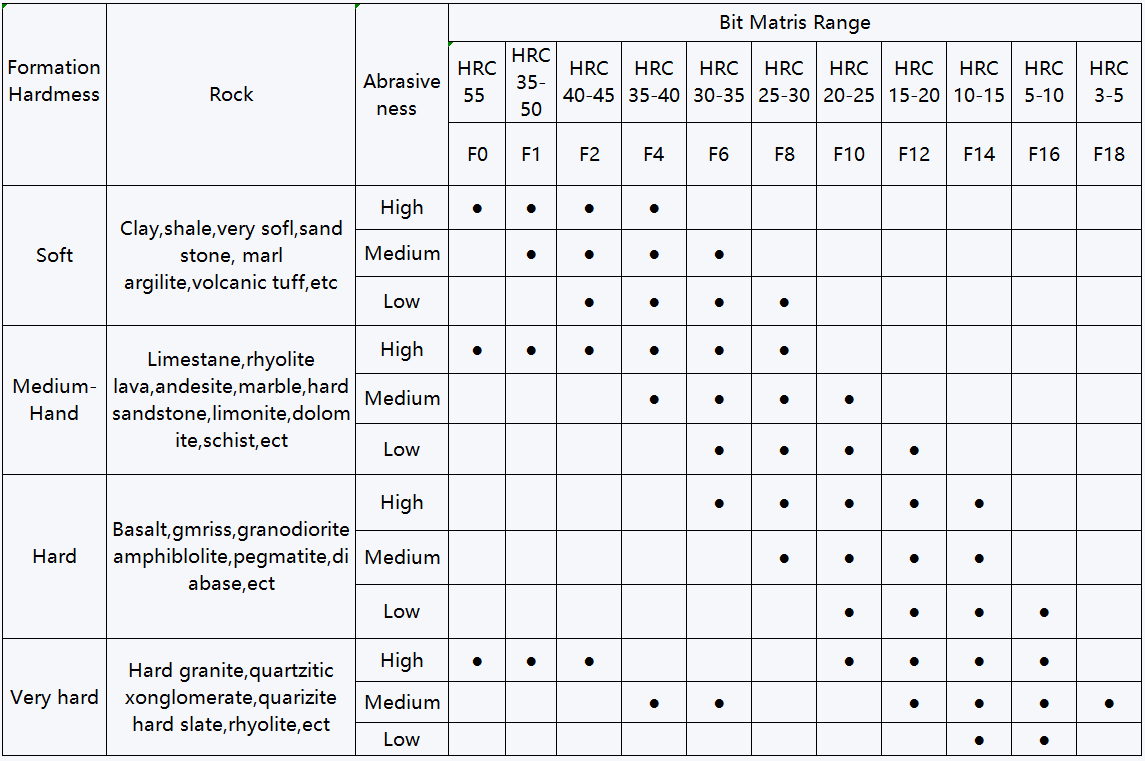

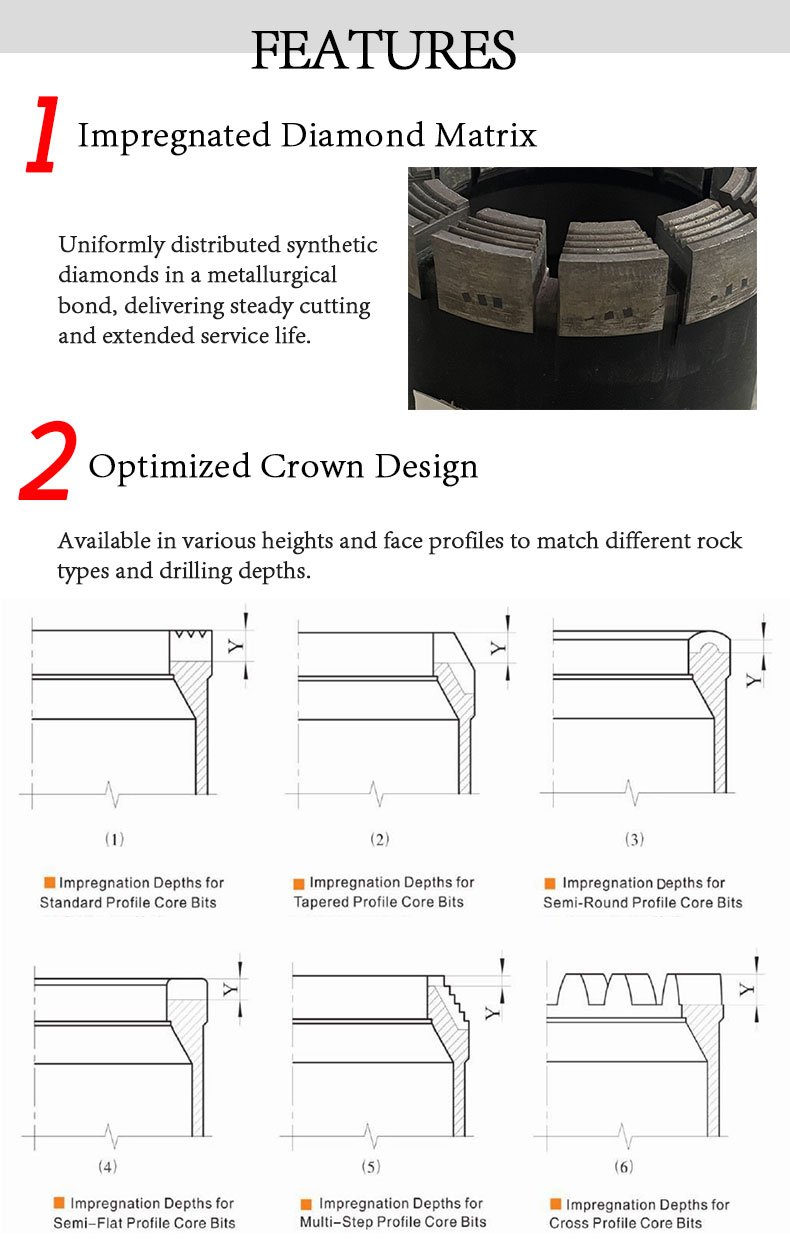

Custom bond and diamond grade options for different drilling environments
Long service life, lower cost per meter drilled
| Model | Core Bit Outside Diameter | Core Bit Inside Diameter | Reaming Shell Outside Diameter | |||
|---|---|---|---|---|---|---|
| Inches | mm | Inches | mm | Inches | mm | |
| BTW | 2.3455 | 59.56 | 1.667 | 42.1 | 2.36 | 59.95 |
| NTW | 2.965 | 75.31 | 2.218 | 56.1 | 2.98 | 75.7 |
| HTW | 3.762 | 95.57 | 2.809 | 71.1 | 3.783 | 96.09 |
| AC(AQ) | 1.875 | 47.63 | 1.062 | 26.97 | 1.89 | 48.01 |
| BC(BQ) | 2.345 | 59.56 | 1.433 | 36.4 | 2.36 | 59.95 |
| BC3(BQ3) | 2.345 | 59.56 | 1.32 | 33.53 | 2.36 | 59.95 |
| NC(NQ) | 2.965 | 75.31 | 1.875 | 47.63 | 2.98 | 75.7 |
| NC3(NQ3) | 2.965 | 75.31 | 1.775 | 45.08 | 2.98 | 75.7 |
| HC(HQ) | 3.762 | 95.57 | 2.5 | 63.5 | 3.783 | 96.09 |
| HC3(HQ3) | 3.762 | 95.57 | 2.406 | 61.11 | 3.783 | 96.09 |
| PC(PQ) | 4.805 | 122.05 | 3.345 | 84.96 | 4.828 | 122.65 |
| PC3(PQ3) | 4.805 | 122.05 | 3.27 | 83.06 | 4.828 | 122.65 |
| T2-56 | 2.205 | 56 | 1.642 | 41.7 | 2.217 | 56.3 |
| T2-76 | 2.992 | 76 | 2.429 | 61.7 | 3.004 | 76.3 |
| T2-86 | 3.385 | 86 | 2.823 | 71.7 | 3.398 | 86.3 |
| T2-101 | 3.976 | 101 | 3.295 | 83.7 | 3.988 | 101.3 |
| T6-101 | 3.976 | 101 | 3.11 | 79 | 3.996 | 101.5 |
| T6-131 | 5.157 | 131 | 4.252 | 108 | 5.157 | 131.5 |
