Product Description

Technical Specification
Product Name Diamond Drill Bits
Craft New Brazing Process
Color Black, Blue, Gold Plated or Custom
Material 45Mn + Diamond

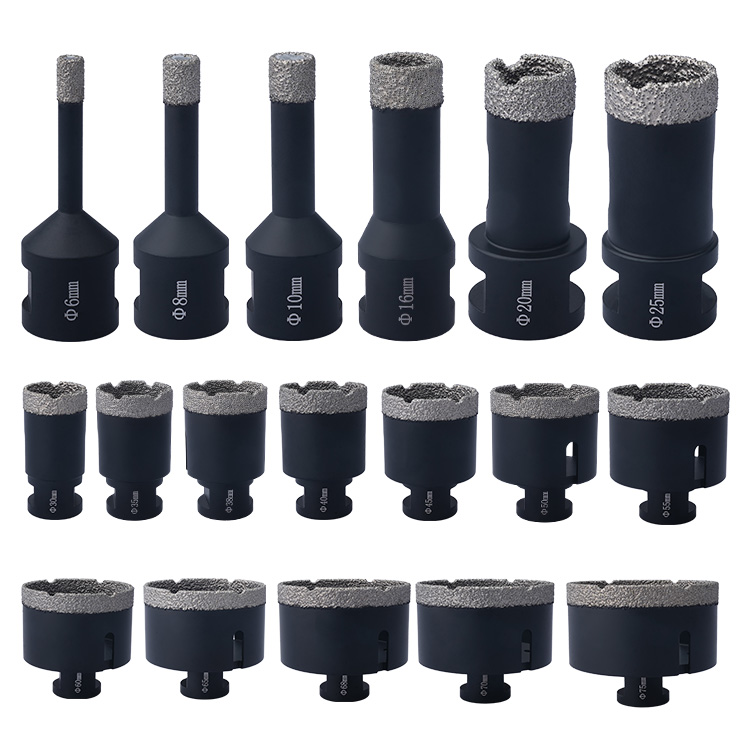

Opening Diameter Φ8, Φ10, Φ12, Φ14, Φ18, Φ20, Φ25, Φ30, Φ35, Φ38, Φ40, Φ43, Φ45, Φ50, Φ55, Φ60, Φ65, Φ68, Φ70, Φ75, Φ80, Φ85, Φ90, Φ95, Φ100, Φ105, Φ110, Φ115, Φ120, Φ125, Φ130
Working Depth ≤30mm
Sand High 10mm / 15mm
Total Length 60mm / 62mm / 70mm / 90mm
Mesh 40/45, 50/60
Recommended Speed Above 11000 RPM

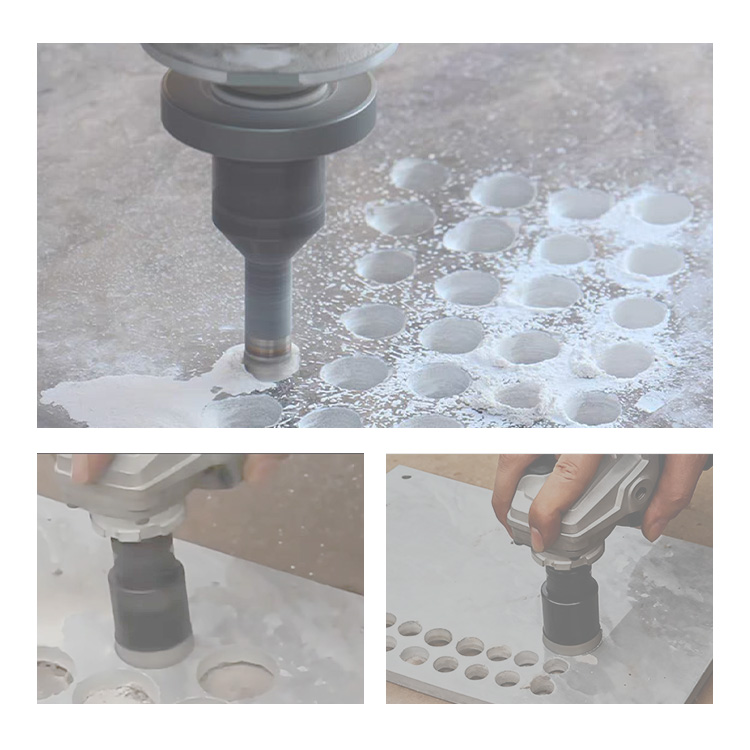

Scope of Application Ceramic tiles, vitrified tiles, ordinary glass, marble porcelain, artificial stone
Matching Model Angle Grinder
Product Features & Advantages

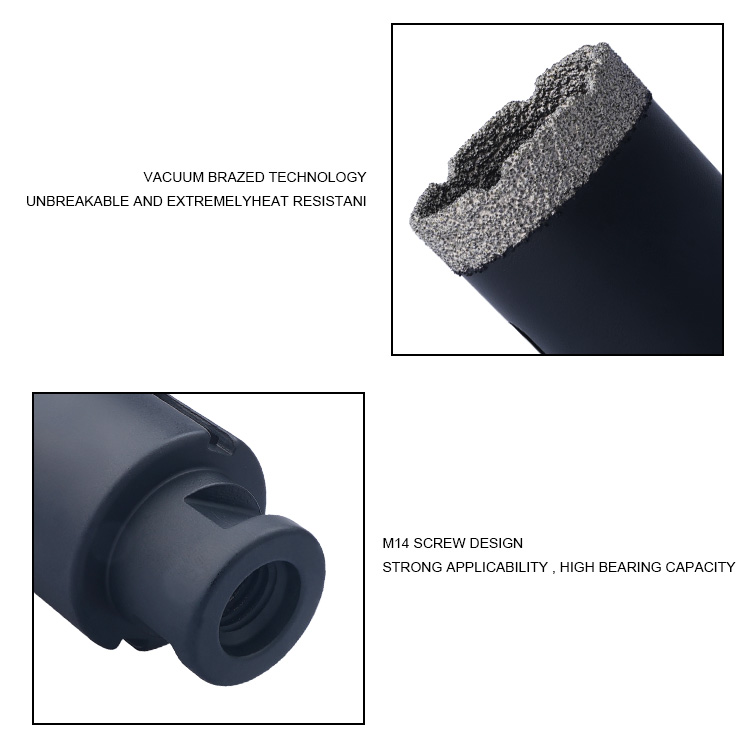

Advanced Brazing Process: Utilizes a new brazing technology that firmly fixes diamond particles to the substrate, preventing them from falling off and ensuring extreme durability.
Dry Drilling Capability: Specially developed for drilling superhard materials without the need for water, providing a clean and efficient working environment.
Sharpness & Precision: Combines the sharpness of a glass hole saw with the durability of a sintered hole saw to easily penetrate hard tiles and marbles.
High Efficiency: High diamond density ensures wear resistance and a longer lifespan, reducing the frequency of head replacement and saving production time.
Safety Guaranteed: Built with a high-strength steel matrix, eliminating safety hazards caused by fragmentation or flying debris during high-speed operation.
Product Gallery

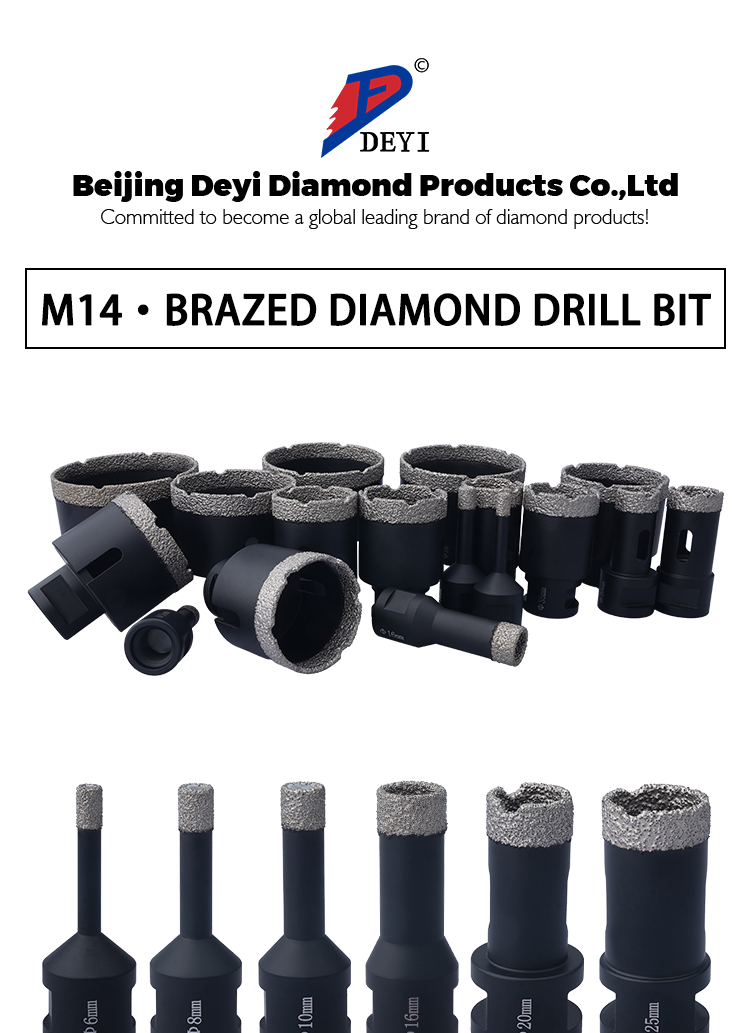

Diamond Drill Bit 1

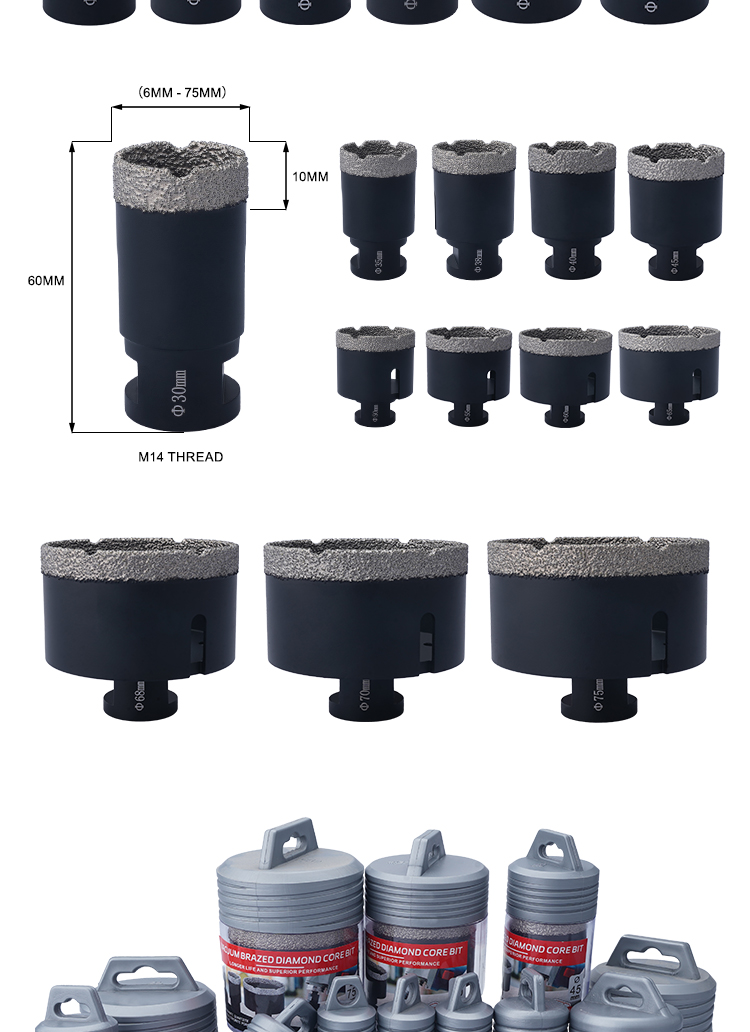

Diamond Drill Bit 2

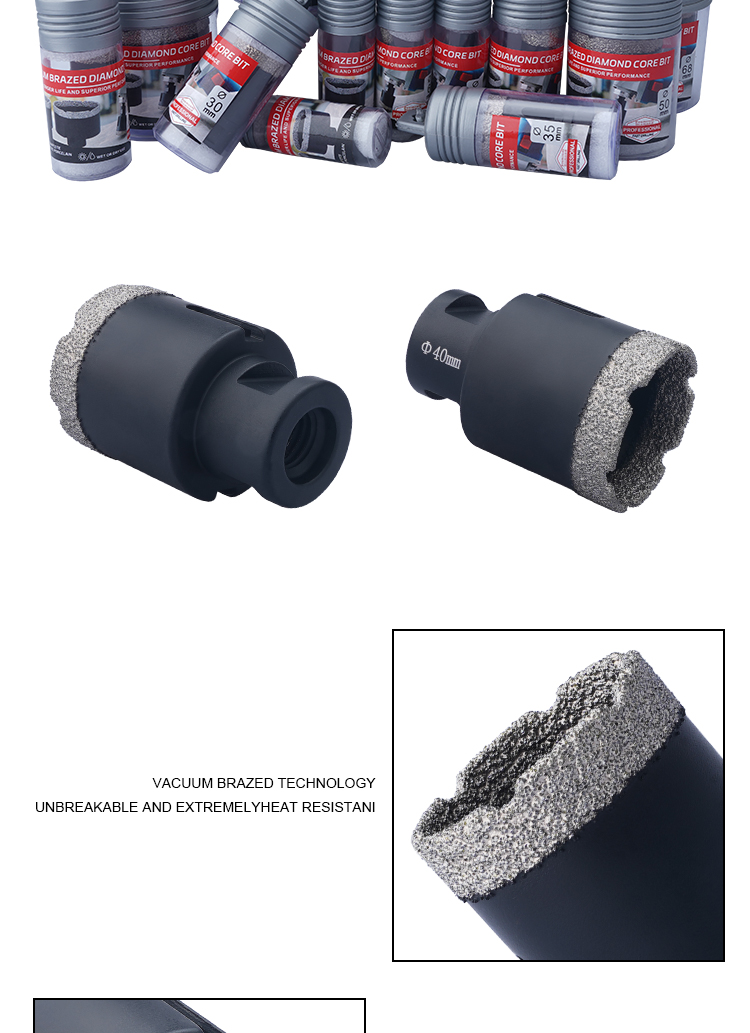

Diamond Drill Bit 3

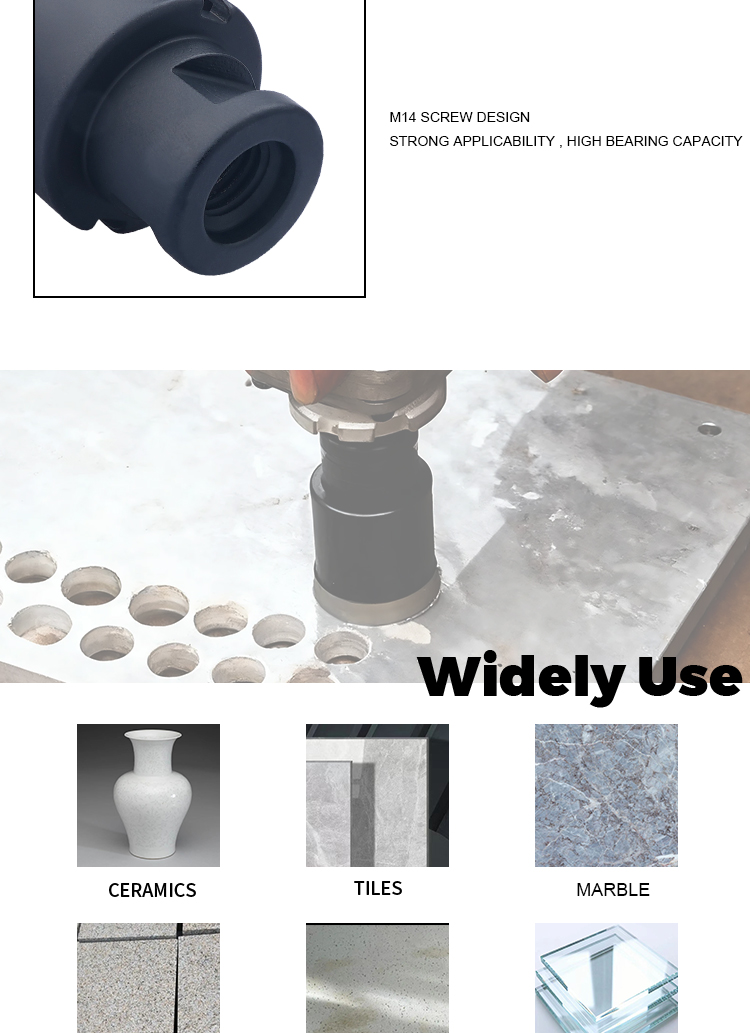

Diamond Drill Bit 4

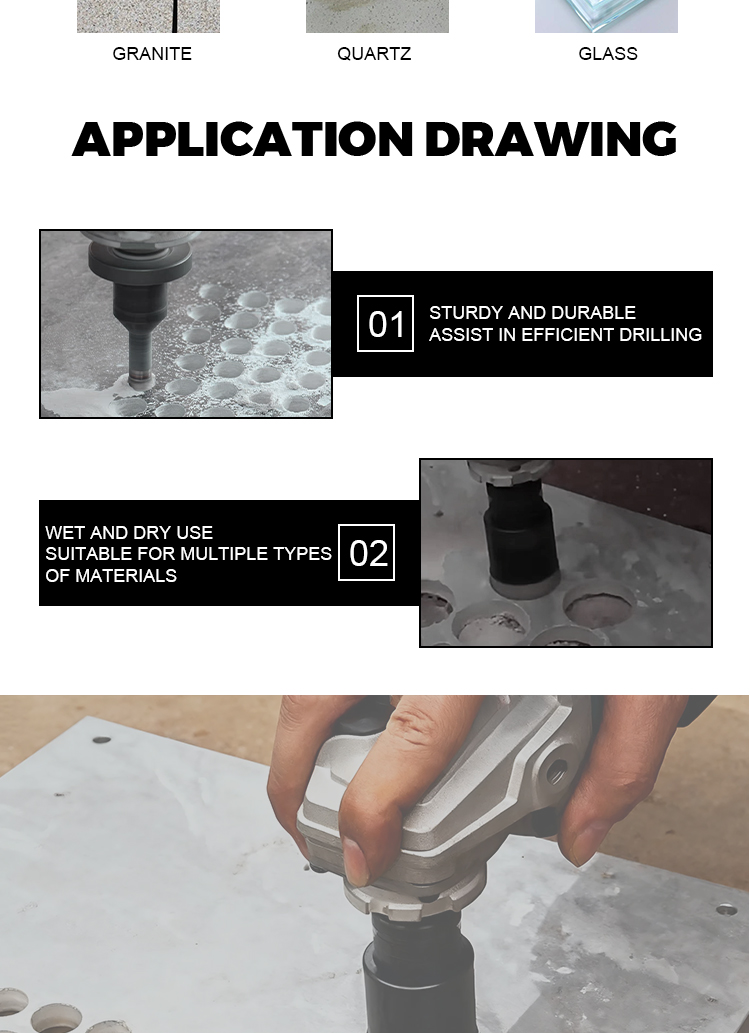

Diamond Drill Bit 5

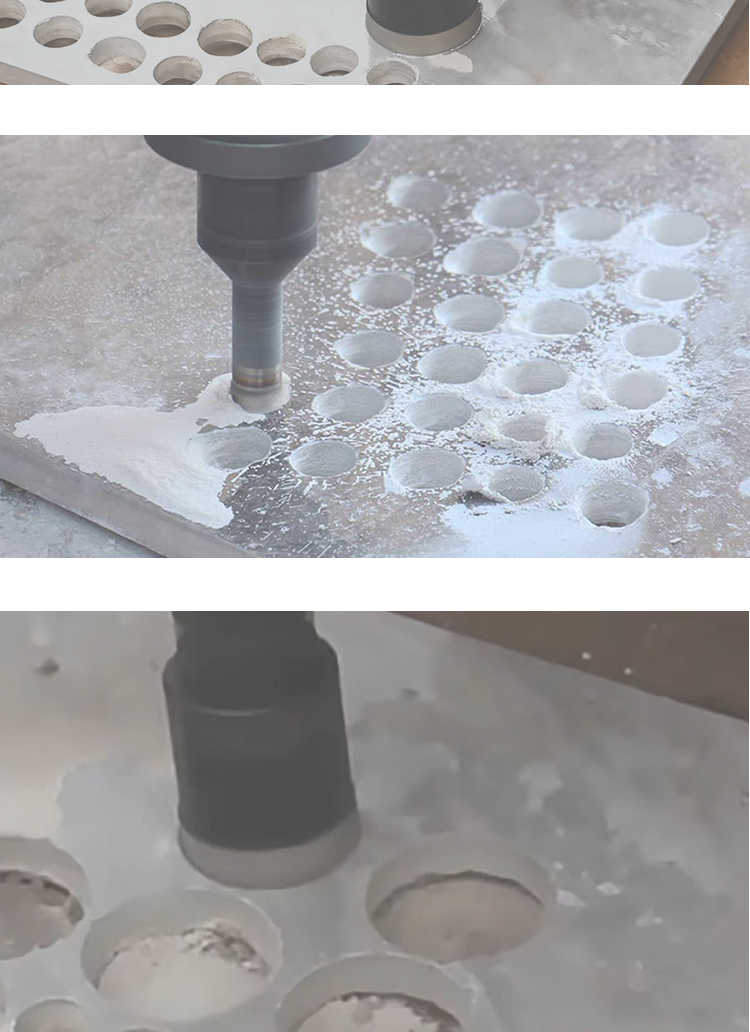

Diamond Drill Bit 6

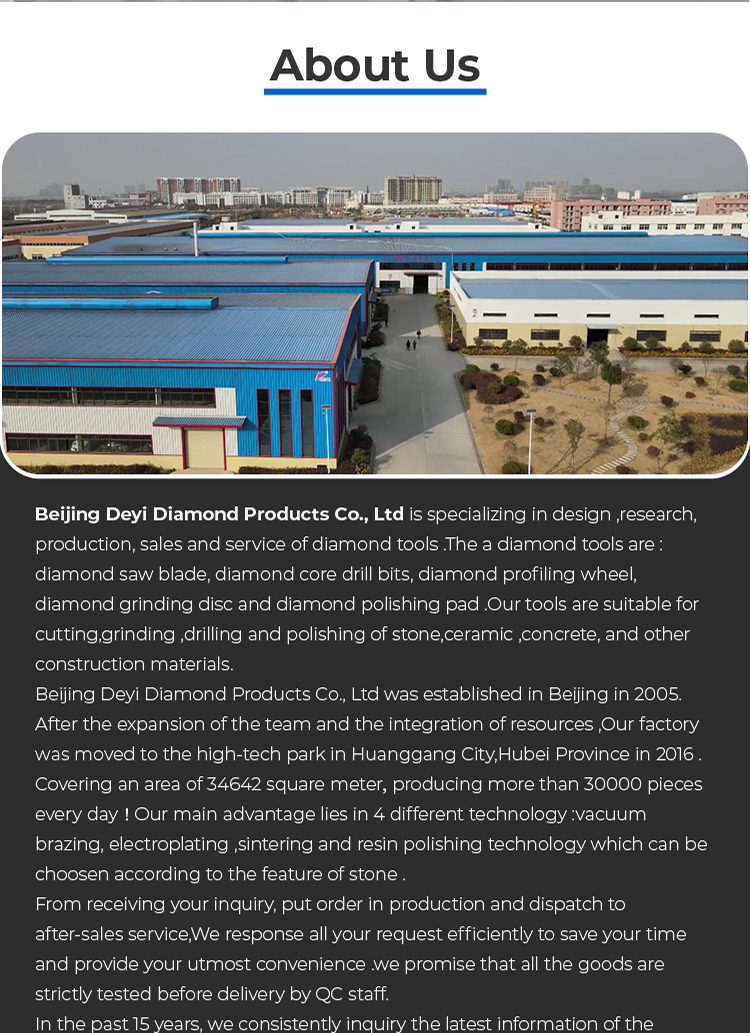

Diamond Drill Bit 7

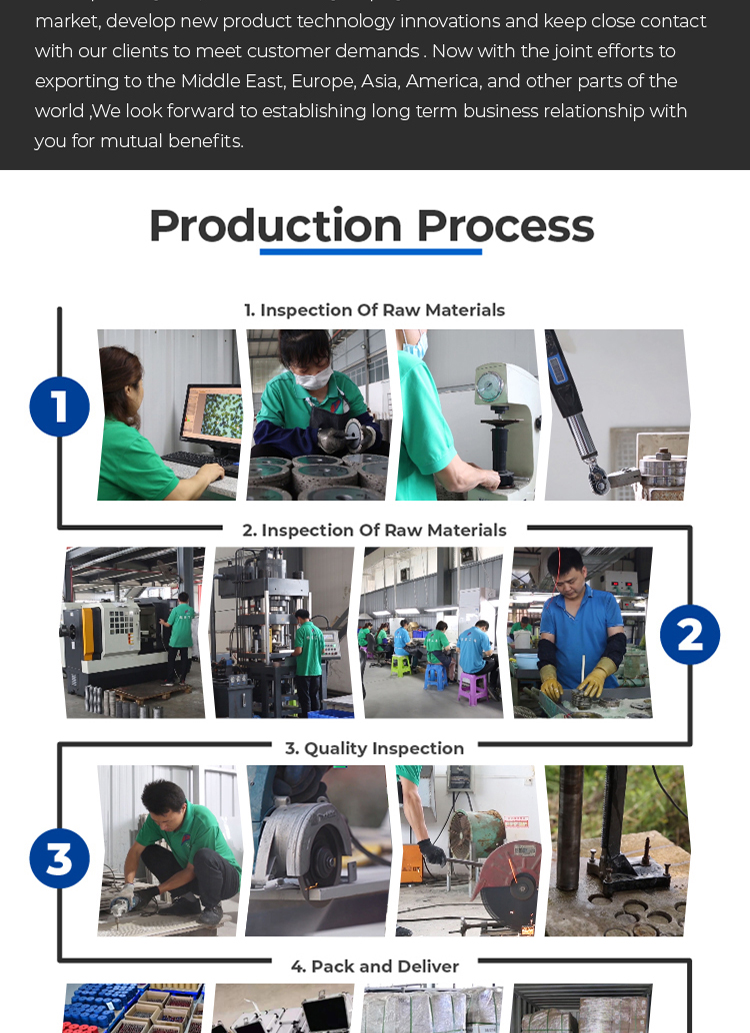

Diamond Drill Bit 8

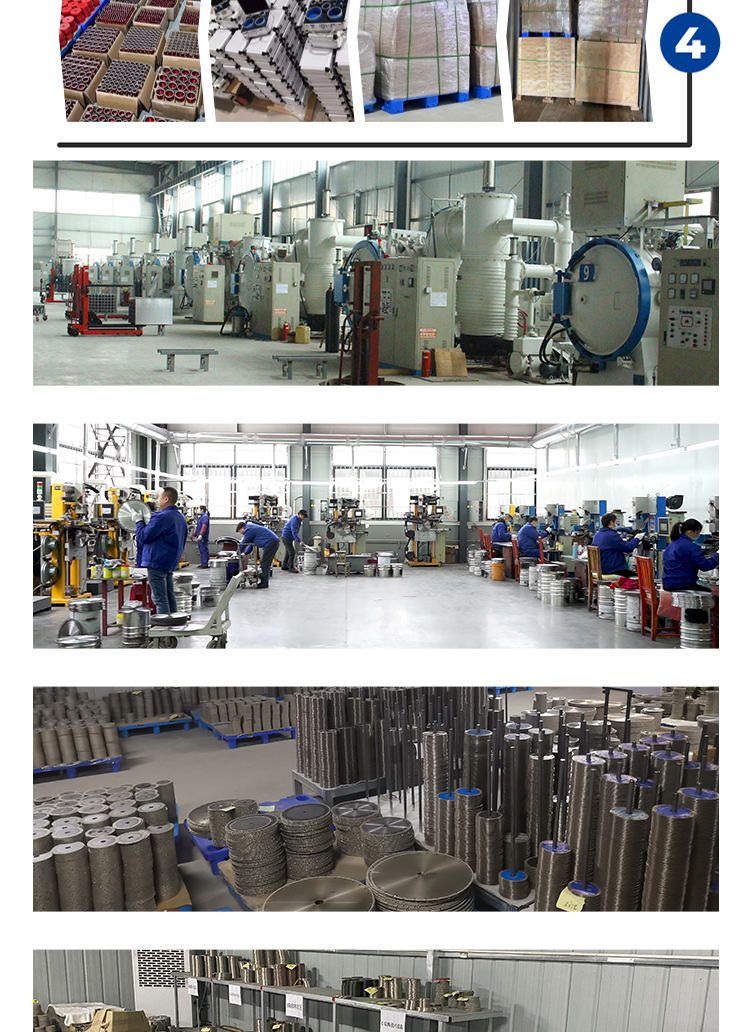

Diamond Drill Bit 9
Diamond Drill Bit 10
Frequently Asked Questions
1. Can these diamond drill bits be used without water?
Yes, these bits are specifically developed for dry drilling superhard materials like stone and tiles. The new brazing process ensures high performance even without water cooling.
2. Which tools are compatible with these drill bits?
These diamond drill bits are designed to be used with standard angle grinders. We recommend an operating speed of above 11,000 RPM for the best results.
3. What materials can I drill with this product?
They are ideal for drilling ceramic tiles, vitrified tiles, ordinary glass, marble, porcelain, and various types of artificial stone.
4. What is the advantage of the "New Brazing Process"?
The brazing process chemically bonds the diamond particles to the steel core. This results in much higher retention of the diamonds, making the bit sharper, more wear-resistant, and giving it a longer life compared to traditional electroplated bits.
5. Are there different sizes available?
Yes, we offer a wide range of diameters from Φ8mm up to Φ130mm to suit various installation and construction needs.
6. Is it safe to use at high speeds?
Absolutely. The bits are constructed using a high-strength steel matrix which prevents fragmentation and ensures safety even during high-intensity processing.
