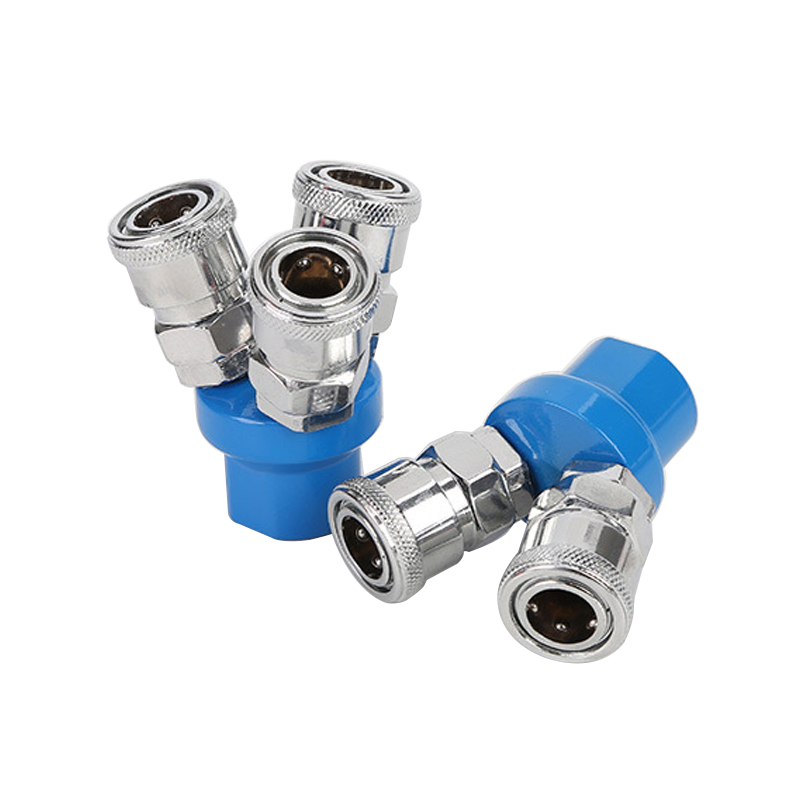

C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
1 / 5
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints
C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints

C Type Quick Joint Pneumatic Air Compressor Pump Accessories Tools Gun Quick Male Female Tracheal Joints

Customization: Available
Customized: Customized
Number of Cylinders: 8
Send Inquiry

Product Description

Basic Information
Model NO.
C-Type
Type
Quick Connector
Usage
Air transport Screwdriver, Impact Wrench, Air Drill, Grinding Machinery, Air Compressor, Air Line
Work Temp
0--60℃
Material
Copper
Capacity
500,000/Month
Origin
China
HS Code
3917400000
Product Gallery

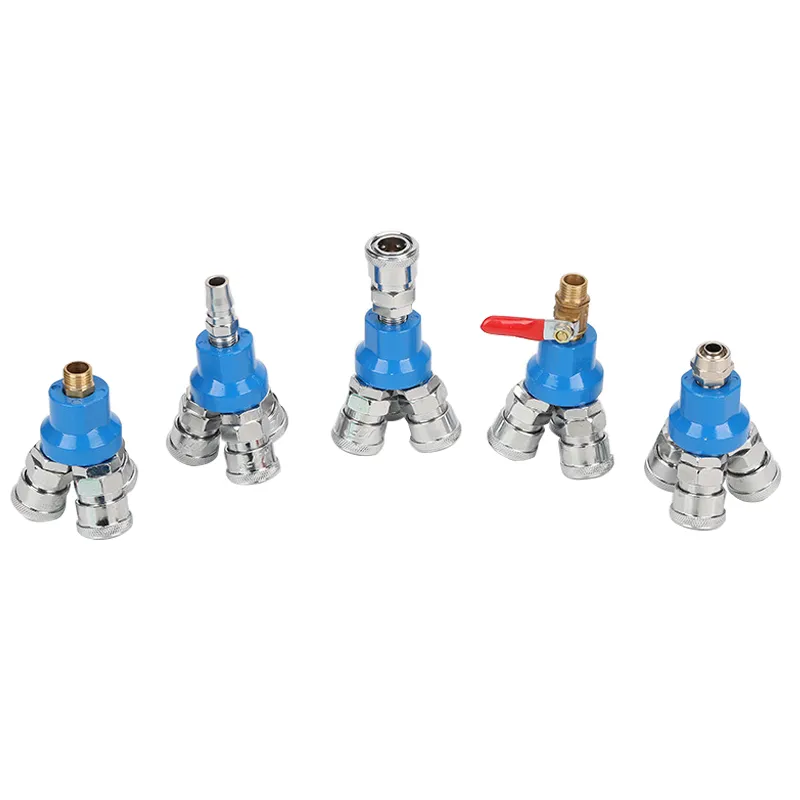

C Type Quick Joint 1

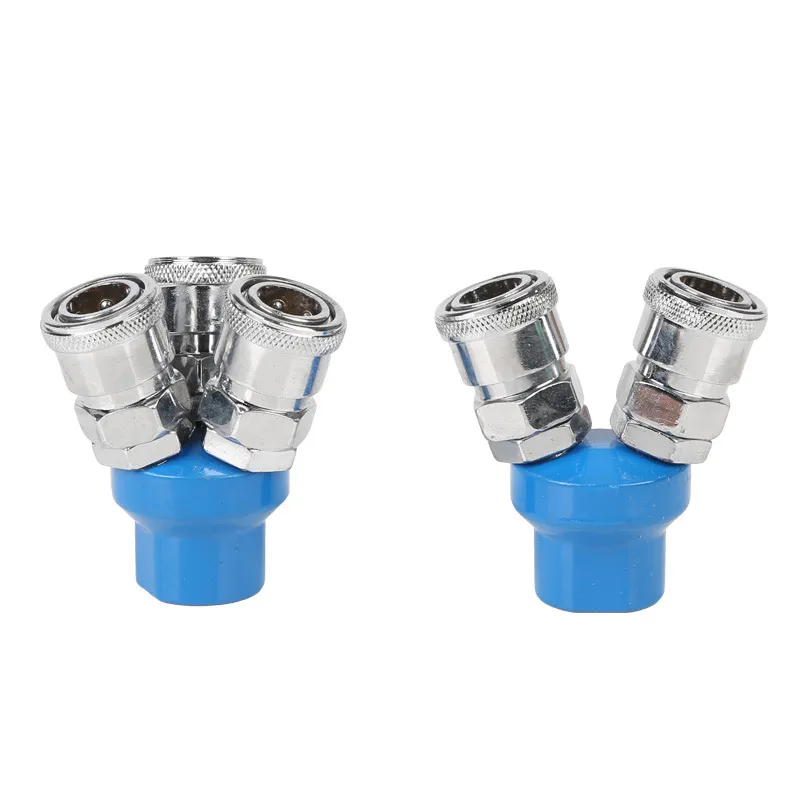

C Type Quick Joint 2

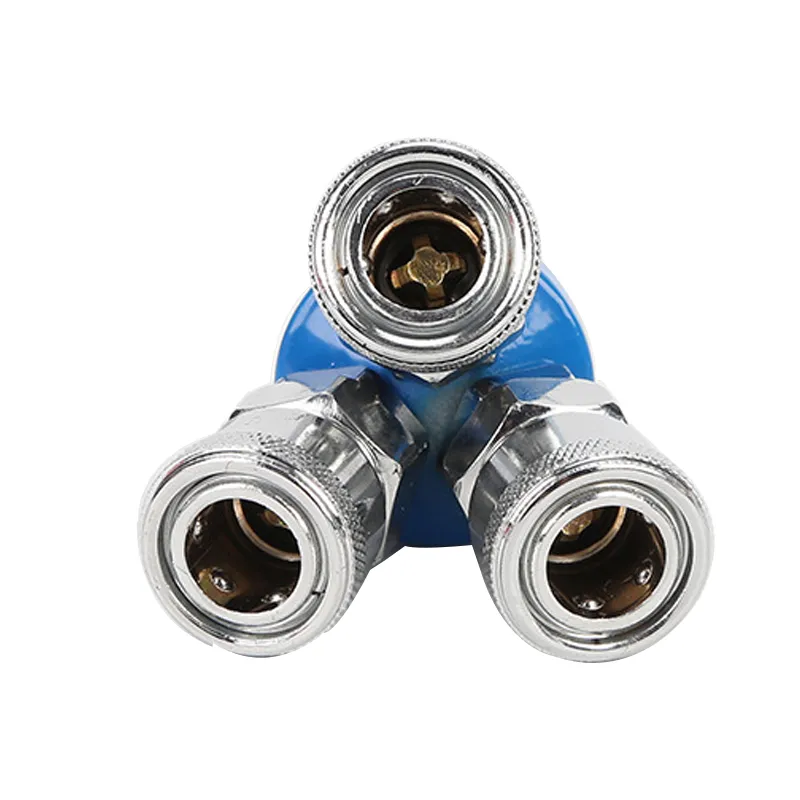

C Type Quick Joint 3

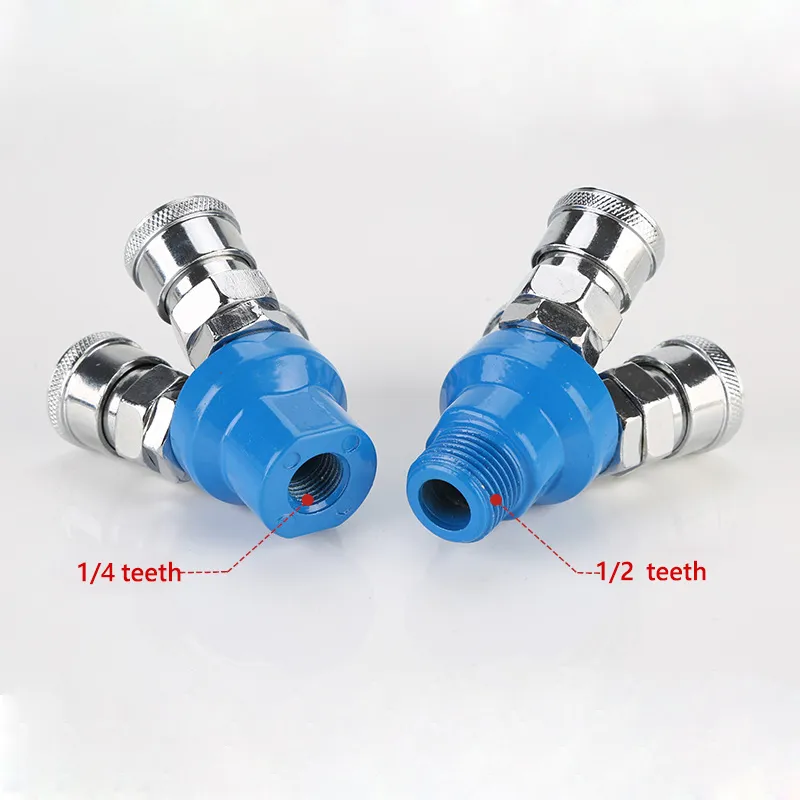

C Type Quick Joint 4

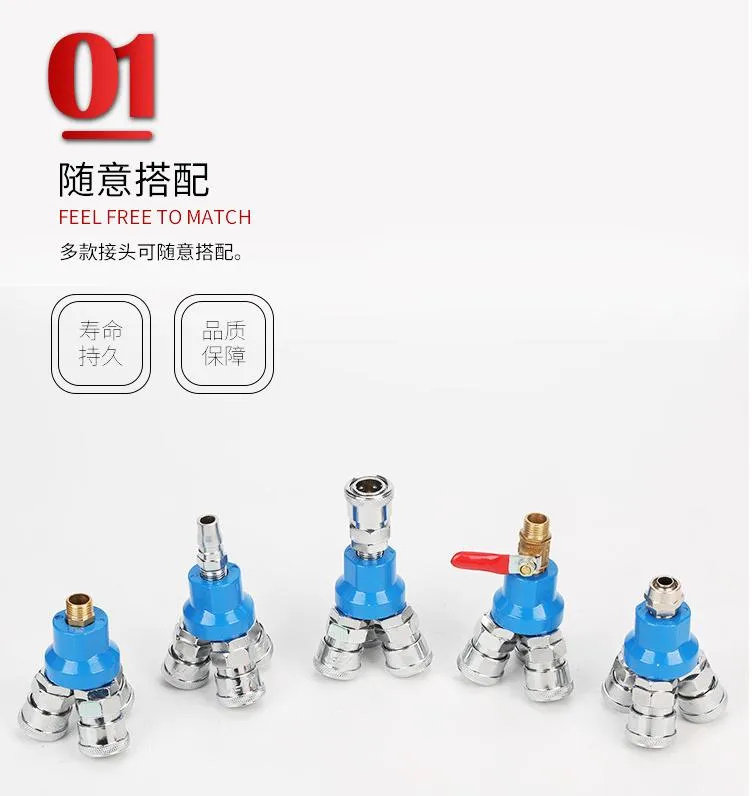

C Type Quick Joint 5

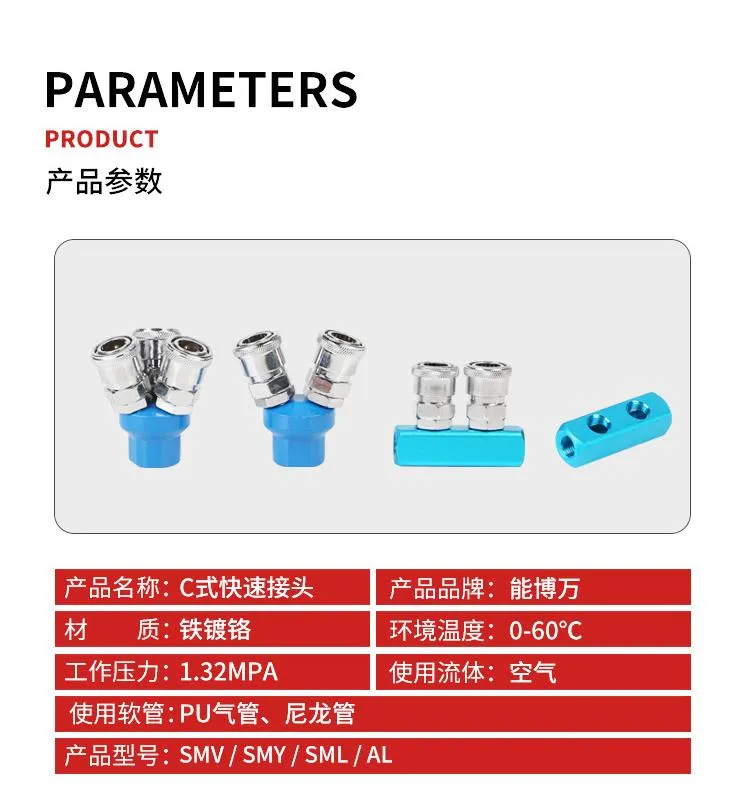

C Type Quick Joint 6

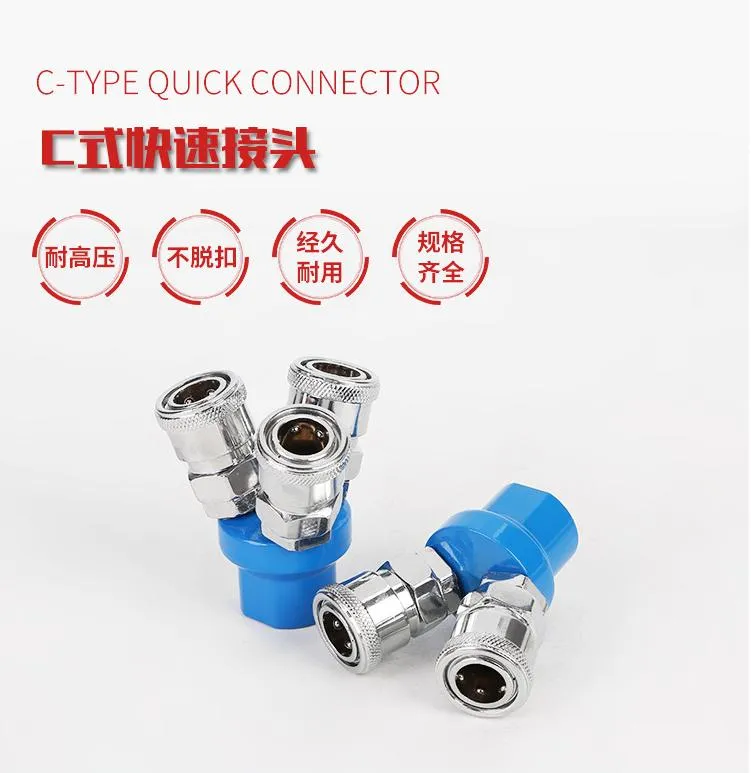

C Type Quick Joint 7

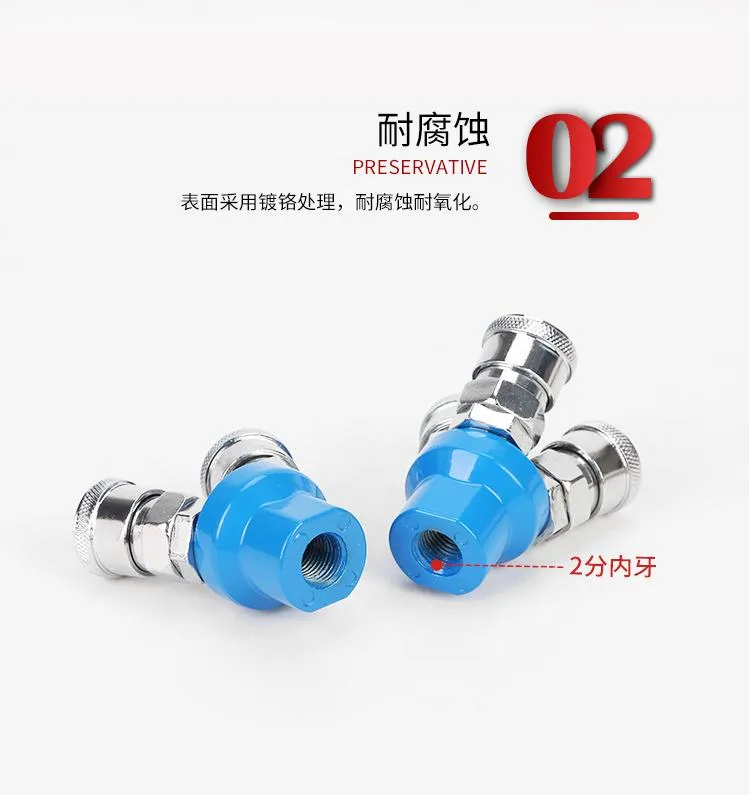

C Type Quick Joint 8

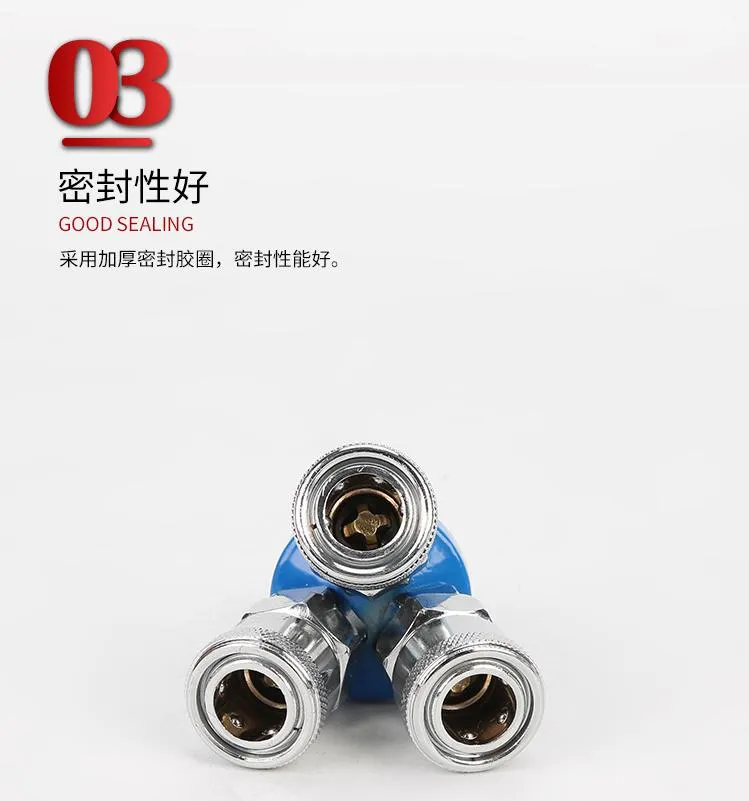

C Type Quick Joint 9
Technical Specifications
TypeC-type quick connector
SizeTube 4-16mm
FluidClean air
Used hosePU hose or Nylon hose
Max Pressure0-1.0mpa
Min Pressure0-1.0mpa
Used temperature0-60ºC
Used Pressure0-1.0mpa
🔍 Selection Guide
  • Avoid pulling or rotating connecting threads and pipe parts to prevent detachment.
  • Ensure the pipe bending is greater than the minimum bending radius to prevent breakage.
  • Do not transport inflammable, explosive, or toxic gases.
  • Suitable for general industrial water application.
  • Monitor impulse pressure; do not exceed maximum operating pressure.
🛠️ Installation Tips
  • Verify the correct model and size and check for cracks before installation.
  • Allow extra length margin for connecting pipes as they may change under pressure.
  • Do not twist or stretch the joint box tube to avoid damage or falling off.
  • Ensure no chips or sealing materials enter the pipe during screw-in.
  • Leave about 2 pitches free at the thread head when applying sealing tape.
⚠️ Environmental Precautions
  • Avoid electrostatic sensitive environments to prevent system malfunction.
  • Do not use where sparks occur to prevent fire hazards.
  • Avoid direct contact with cutting oil, lubricating oil, or liquid coolants.
Frequently Asked Questions
What materials are used in the construction of these quick connectors?
These C-Type quick connectors are primarily manufactured using high-quality Copper for durability and reliable performance in pneumatic applications.
Which types of hoses are compatible with this connector?
The connectors are designed for use with PU (Polyurethane) hoses or Nylon hoses, supporting tube sizes ranging from 4mm to 16mm.
What is the maximum operating pressure and temperature?
The C-Type quick connector operates within a pressure range of 0-1.0mpa and a temperature range of 0 to 60ºC.
Can these connectors be used for gases other than clean air?
These connectors are specifically designed for clean air and general industrial water. They should NOT be used for flammable, explosive, or toxic gases.
What are the main applications for these pneumatic joints?
They are ideal for air transport screwdrivers, impact wrenches, air drills, grinding machinery, air compressors, and standard air lines.
How should I apply sealing tape during installation?
When using sealing tape, it is recommended to leave approximately 2 pitches of the thread head free to ensure a clean and secure connection without debris entering the pipe.
