Send Inquiry

Product Description

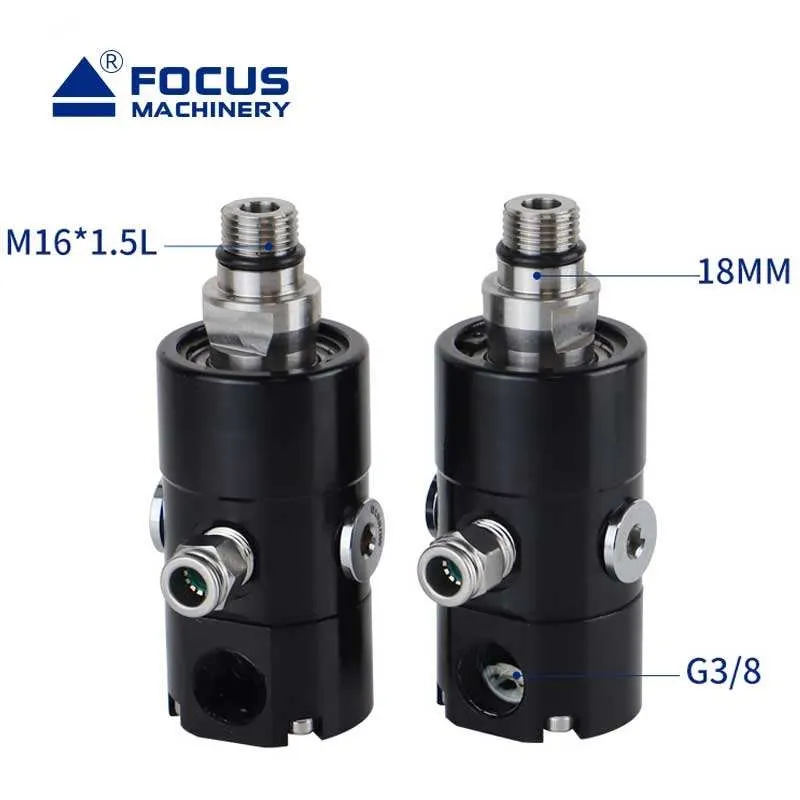

Company Profile
Coolant Rotating Union Profile

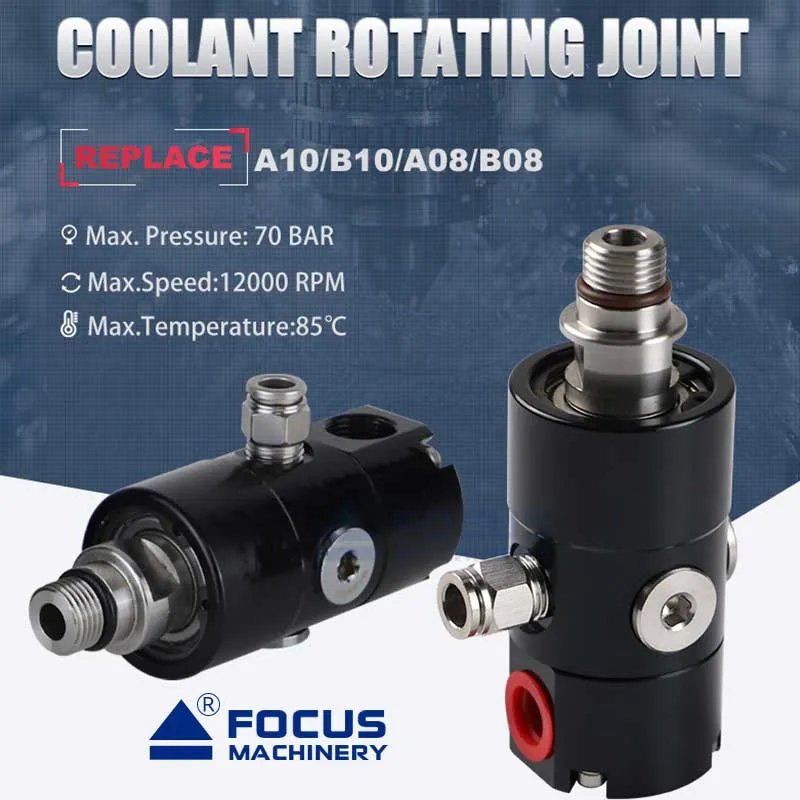

Rotating Union Application

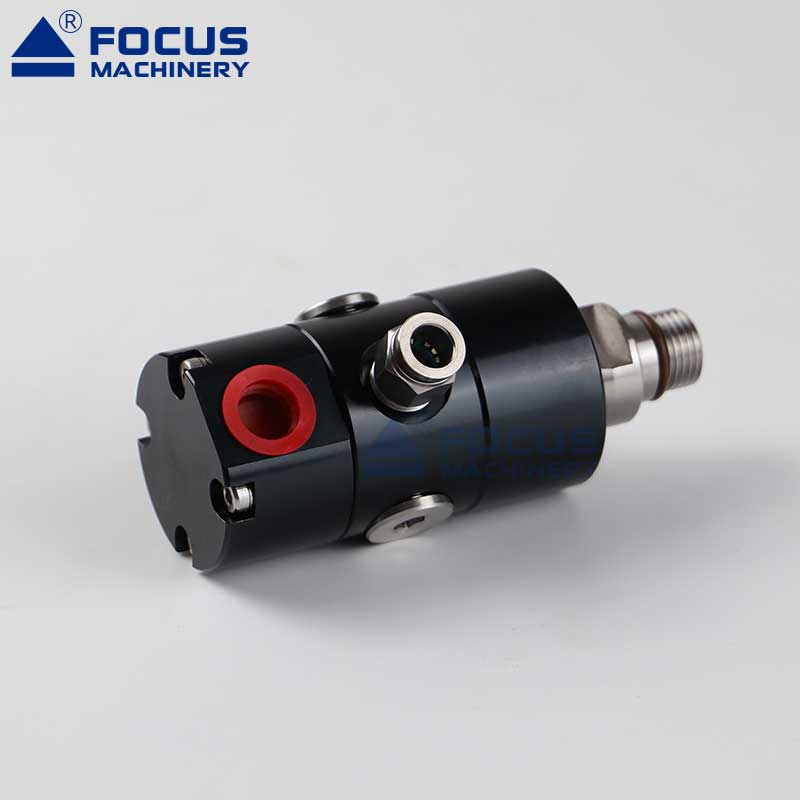

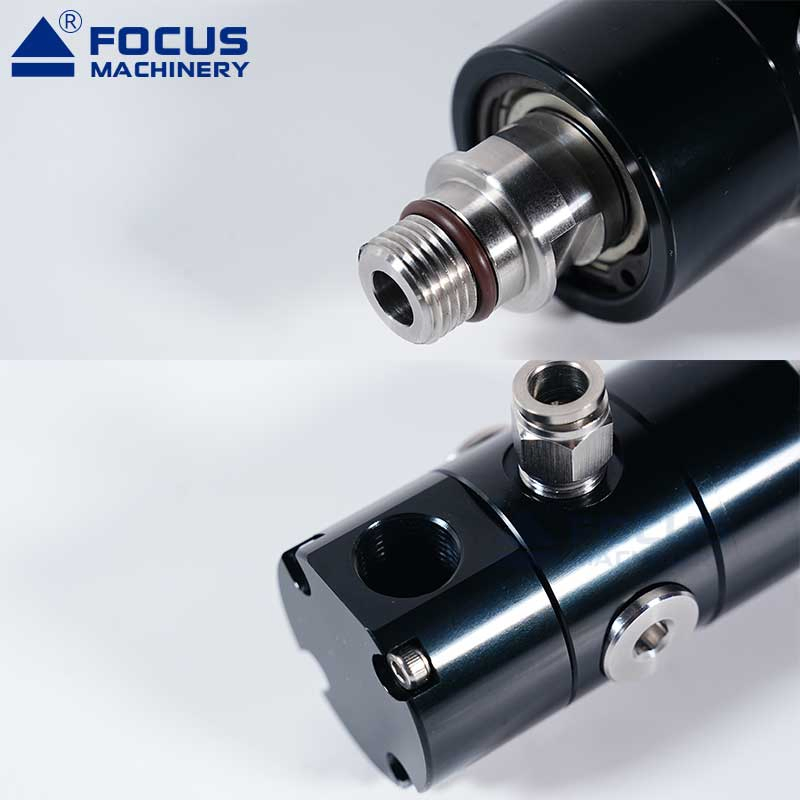

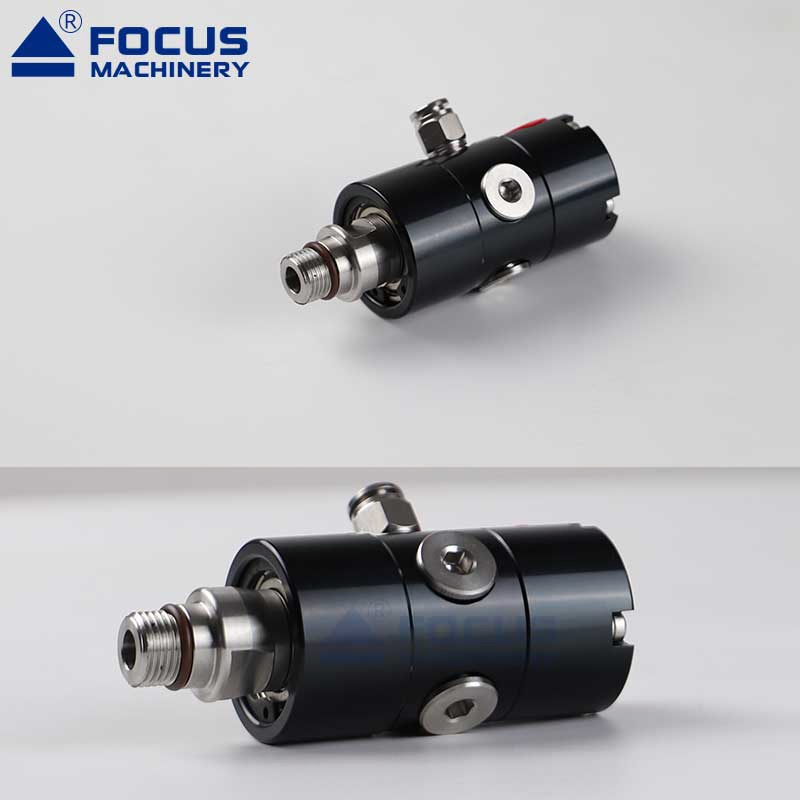

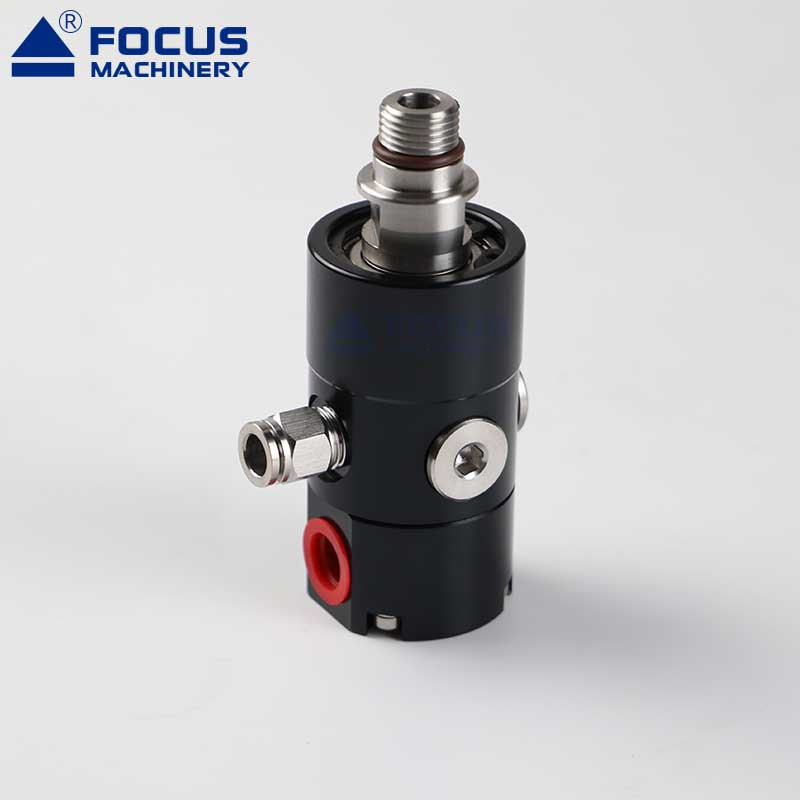

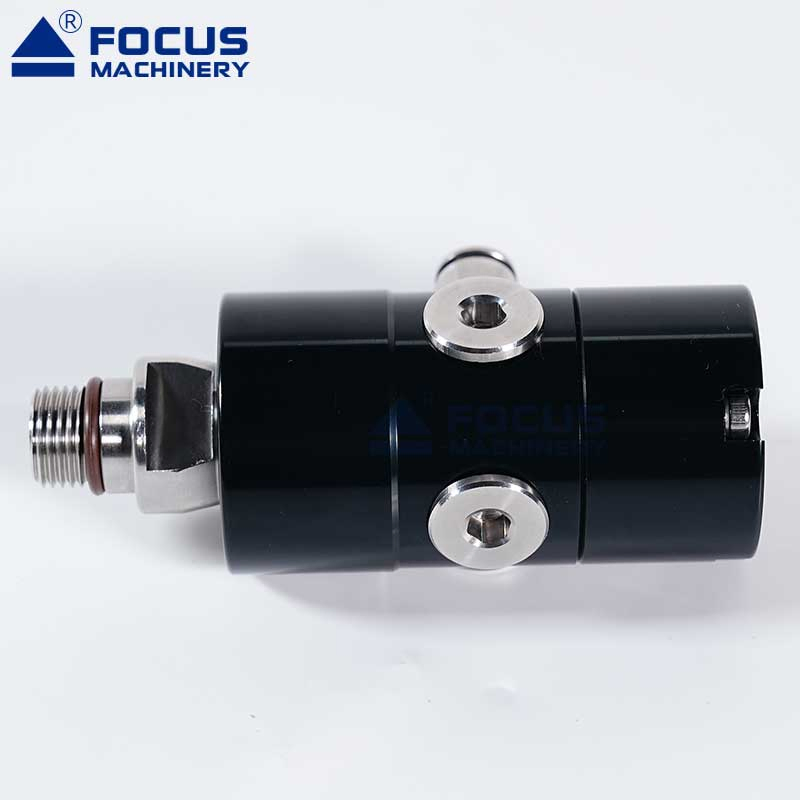

Product Description
Features of the A10 A08 series coolant rotary joint
  • Closed seal, automatic line or similar applications
  • Full flow design, no debris or burr blockage generated
  • Bearing support and threaded rotor, easy to install-deep groove radial ball bearings for smooth operation
  • Adopting labyrinth seal and large leakage port to protect ball bearings
  • Balanced machine seal, made of silicon carbide material, can extend service life even under harsh working conditions
  • Anti corrosion anodized aluminum components, replaced with high-pressure resistant rotating seals, with a pressure resistance of up to 12MPa
  • Suitable for closed sealing of high-speed machine tool spindles, gun drills (deep hole machining) and other equipment, automatic lines or similar applications
Specifications High Speed Coolant Rotary Joint Details
Model A10 / A08 Series
Speed 12000rpm
Temperature Range -30~+85°c
Max. Pressure 70-100Bar
Optional A10 Models A10-1701-04R, A10-1701-05L, A10-1702-04R, A10-1702-05L, A10-1720-04R, A10-1720-05L, A10-1722-04R, A10-1722-05L
Optional A08 Models A08-1501-04R, A08-1501-05L, A08-1502-04R, A08-1502-05L, A08-1520-04R, A08-1520-05L, A08-1522-04R, A08-1522-05L
*** If parameters exceed the specified limits, please consult before placing an order.

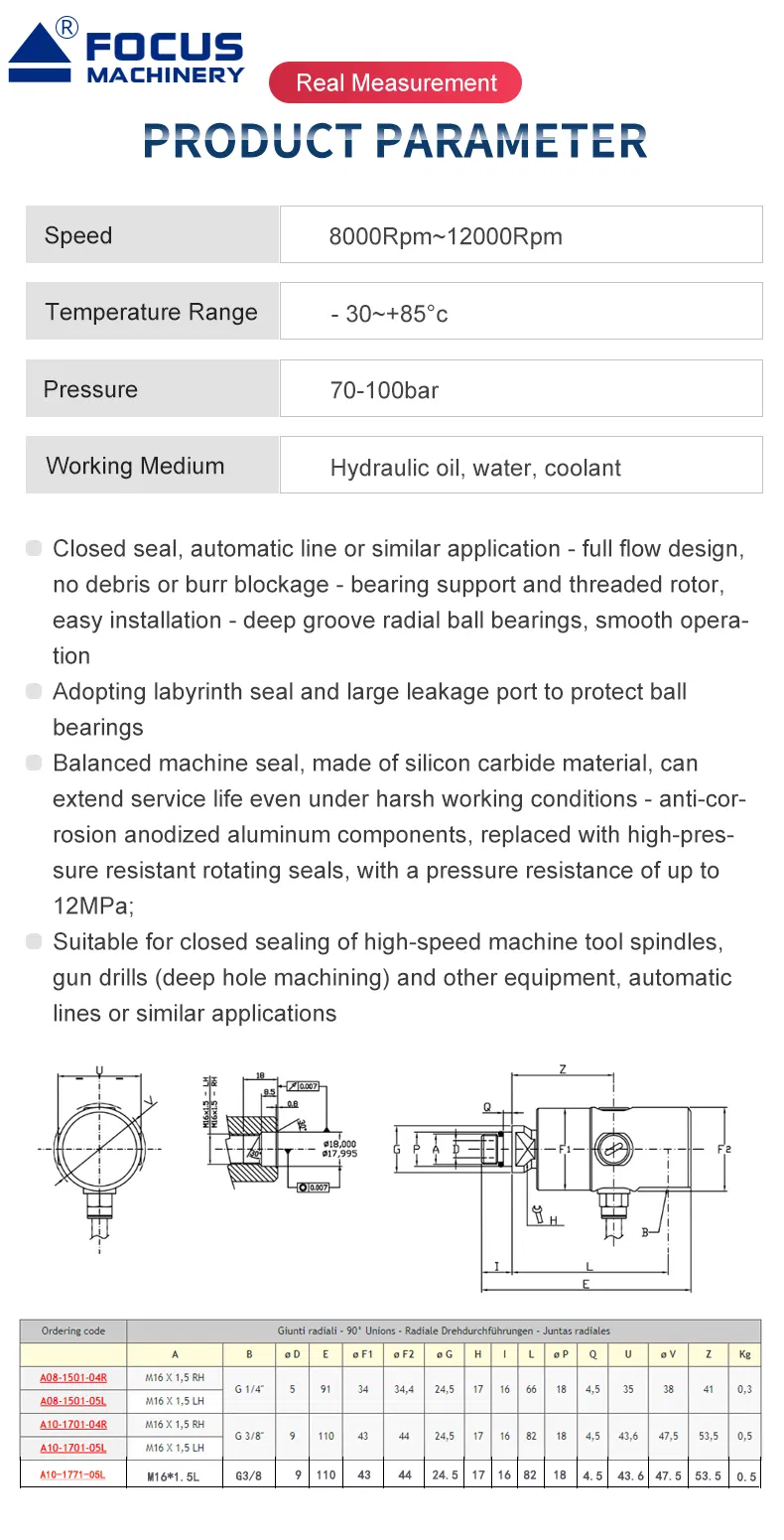

A10 A08 Series Technical Drawing

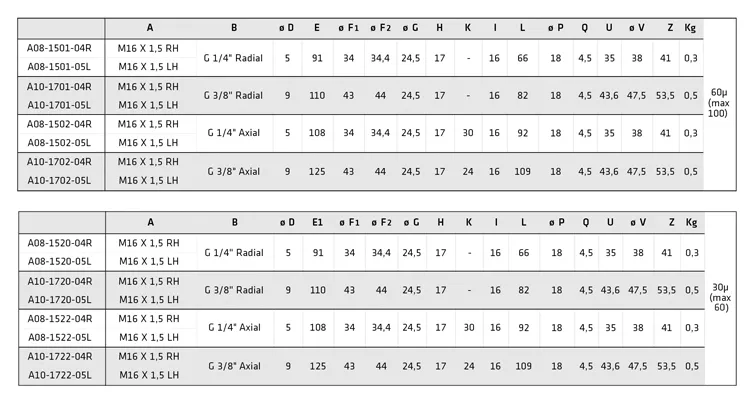

Joint Dimensions

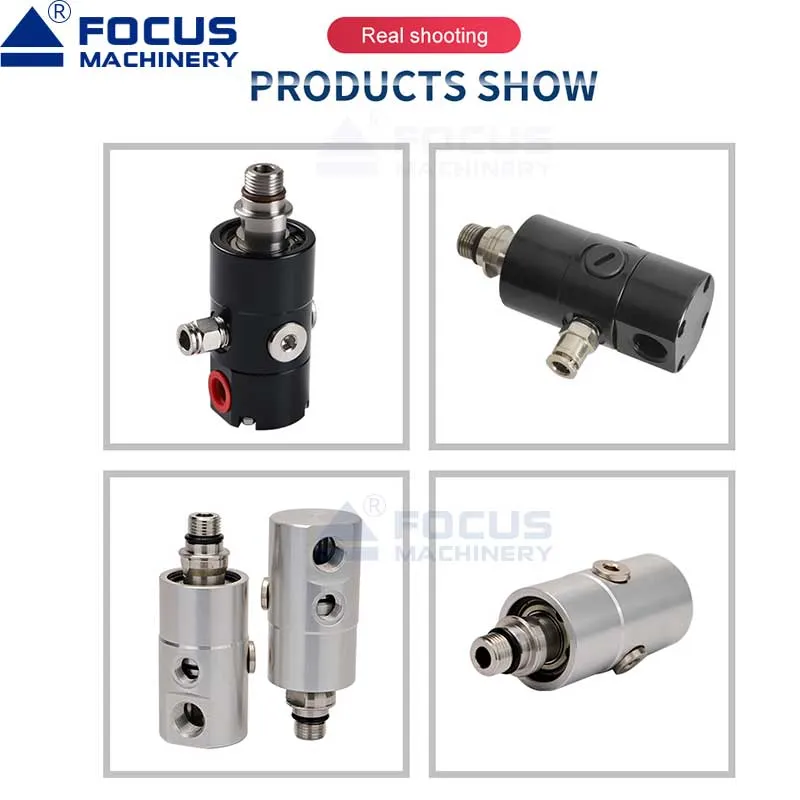

Spindle Center Outlet Joint
INSTALLATION TECHNOLOGY
To ensure the maximum service life and reliability of the coolant rotary joint, installation engineers need to follow these guidelines:
1
Before installing the joint onto the spindle, the supply pipe and discharge hose of the joint should be connected first to avoid bending moments that may lock or wear the bearings.
2
The installation surface and positioning hole of the spindle must be thoroughly cleaned, free of chips, burrs, and dents to prevent bouncing and vibration.
3
Ensure the discharge hose runs continuously downwards. For horizontal spindles, ensure the discharge hose is connected downwards at the 6 o'clock position.

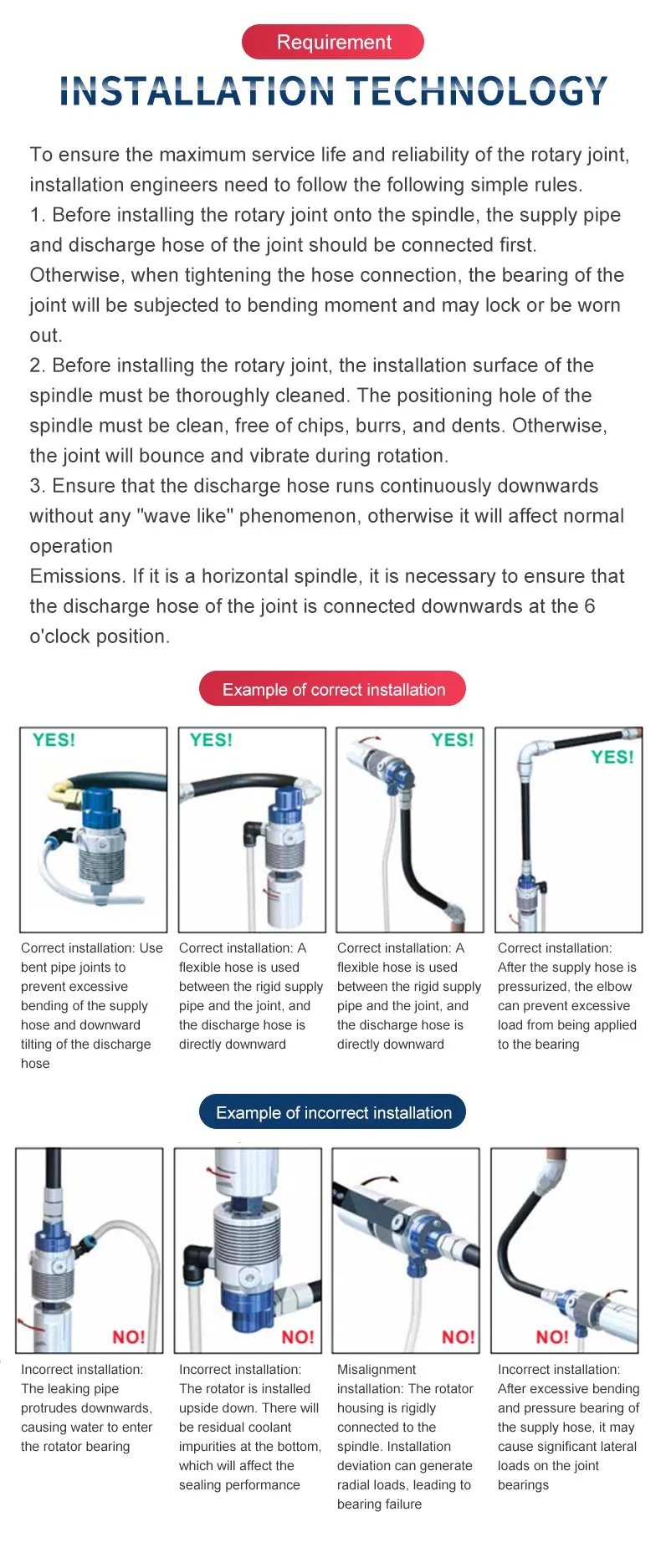

Installation Diagram 1

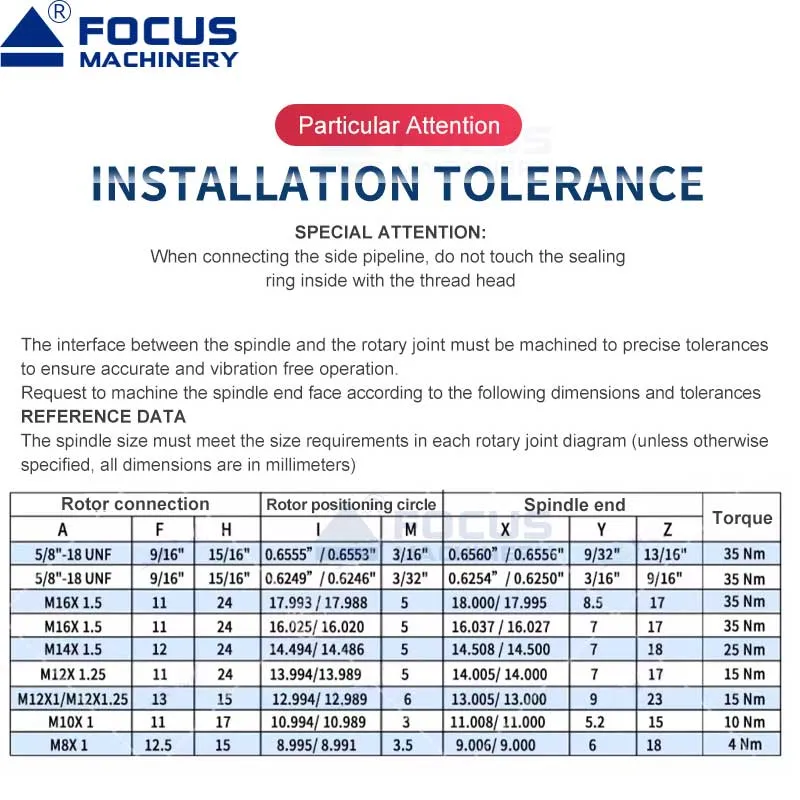

Installation Diagram 2
FAQ Questions & Answers
What is a rotary union?
A rotary union (or swivel joint) is a device used to transfer fluid under pressure or vacuum from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.
How do I choose a rotary union?
Proper selection requires details about operating parameters including pressure, speed, media type, number of flow passages, and connection sizes. If you need assistance, our experts are here for you.
Do you offer custom rotary unions?
Yes! We can meet exact requirements from modifying standard products to complete custom design and manufacturing.
What is the life expectancy of a rotary union?
Life expectancy varies widely based on application variables such as media type, pressure, rotational speed, duty cycle, and temperature.
Can you replace other manufacturer's fluid rotary unions?
Yes, we can cross-reference other manufacturer's units to find an equivalent compatible solution for your machinery.
Is there a quantity price break?
To discuss quantity price breaks for multiple units, please contact our support team.
