High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
1 / 5
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety
High Pressure Testing Bay for Tools Valves and Joints for Safety

High Pressure Testing Bay for Tools Valves and Joints for Safety

Customization: Available
After-sales Service: 24/7
Warranty: 1 Year
Send Inquiry

Product Description

● Basic Information
High-pressure Testing Machine
High Pressure Testing Machine Overview
Model NO.
High pressure
Process
Anti-Explosion
Surface Treatment
Painting
Operation Pressure
Hydraulic Power Station
Material
Alloy
Use
Pressure Testing for Valves, Pup Joint
Explosion Rating
Exdiibt4
Driving
Air Compressor
Origin
China
Transport Package
Plywood Box
● Detailed Photos

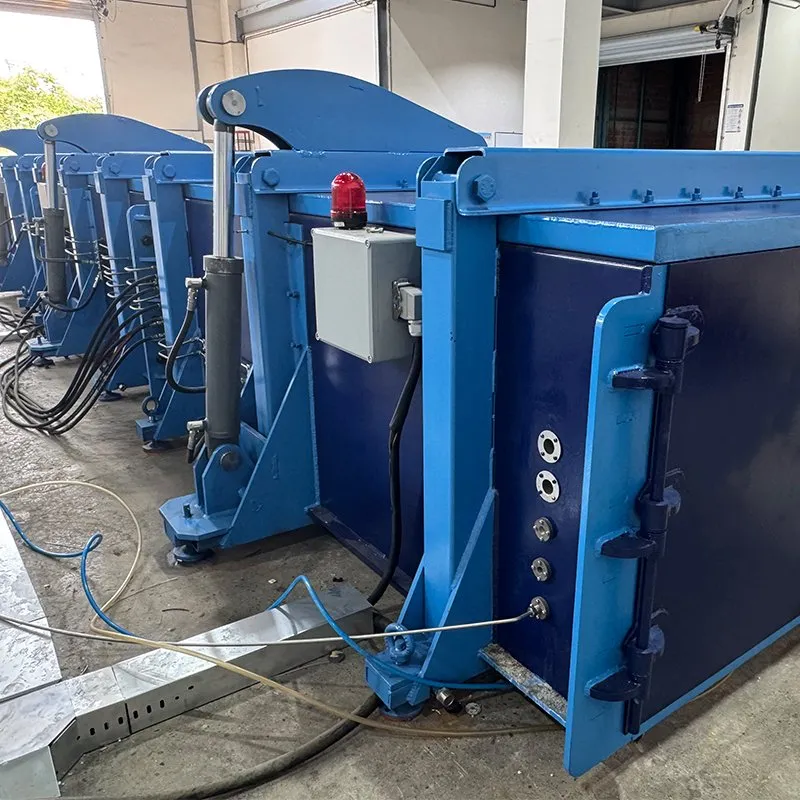

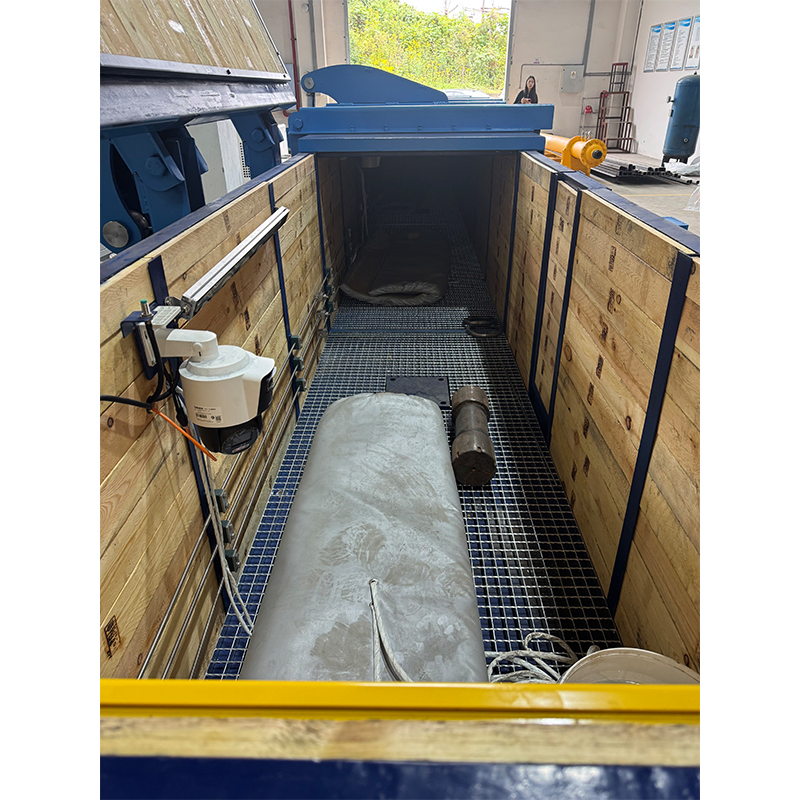

Testing Bay Detail 1

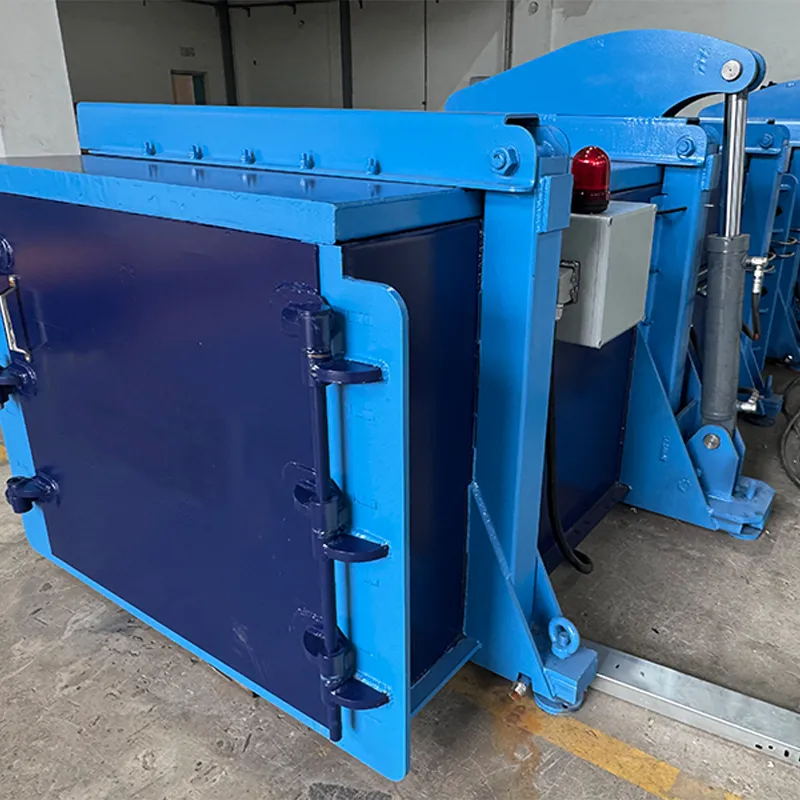

Testing Bay Detail 2

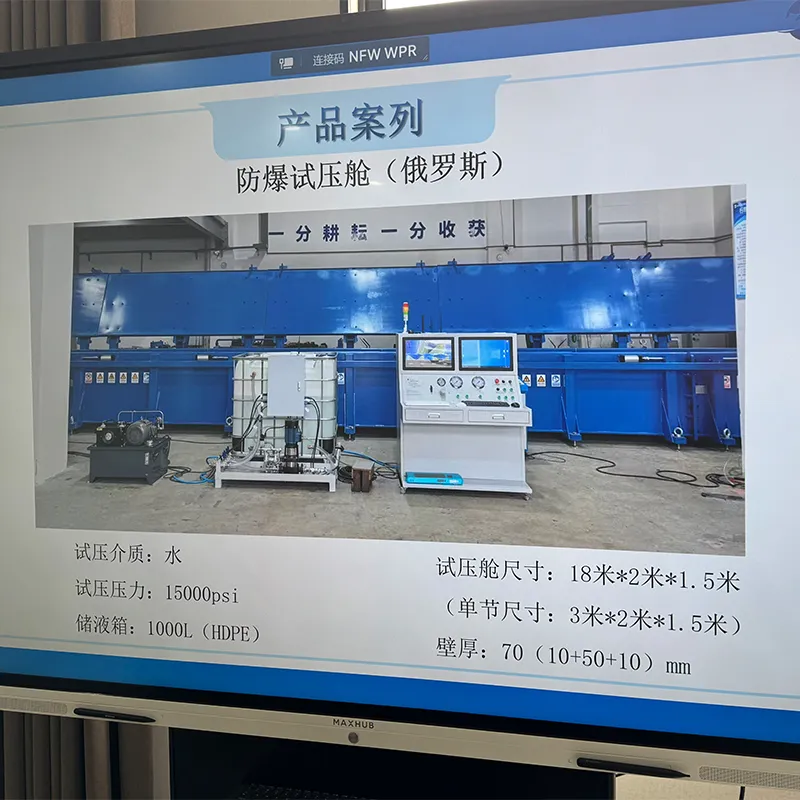

Testing Bay Detail 3
● Product Description

This testing machine is integrated with an oil tank, motor, oil pump, adjustable relief valve, directional valve, and pressure gauge. The motor drives the oil pump to supply system pressure, which is easily monitored via the MPa-calibrated gauge. The directional valve provides precise control over the cylinder piston stroke and return functions.

Safety first: The integrated relief valve offers reliable overload protection, preventing damage to the hydraulic cylinder and motor during high-pressure operations.

Main Chamber Specifications

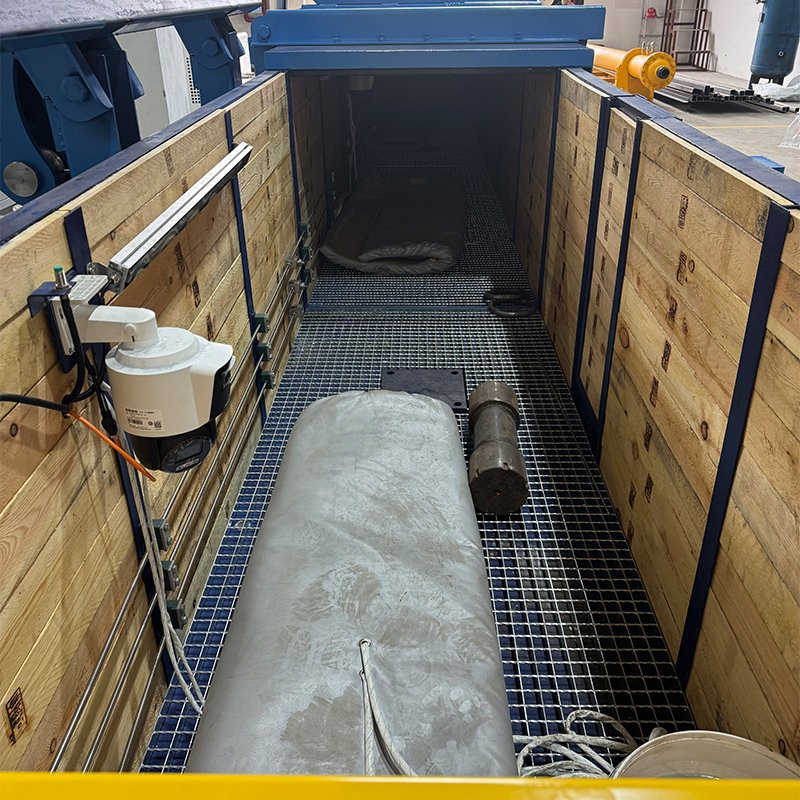

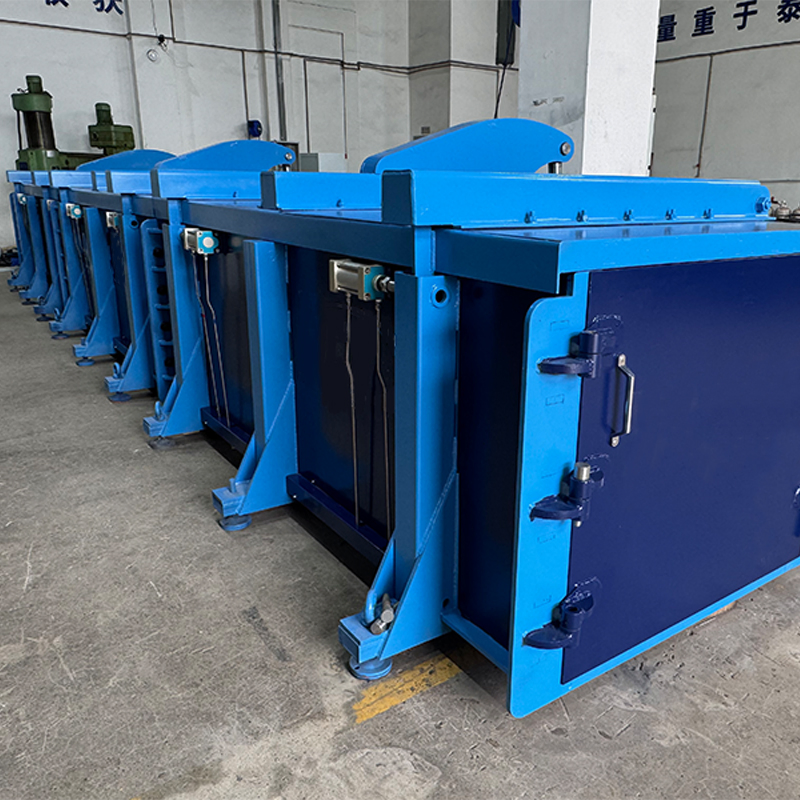

Main Chamber Side tank: 3100 x 1915 x 1580 mm
Center tank: 3000 x 1915 x 1580 mm
Material: Q235 Steel
Thickness: 70mm (10mm outer + 50mm sandwich + 10mm inner)
Bottom: 16mm | Connection: M30 Bolts
System Components
➔ Test Chamber Body
➔ Hydraulic Station

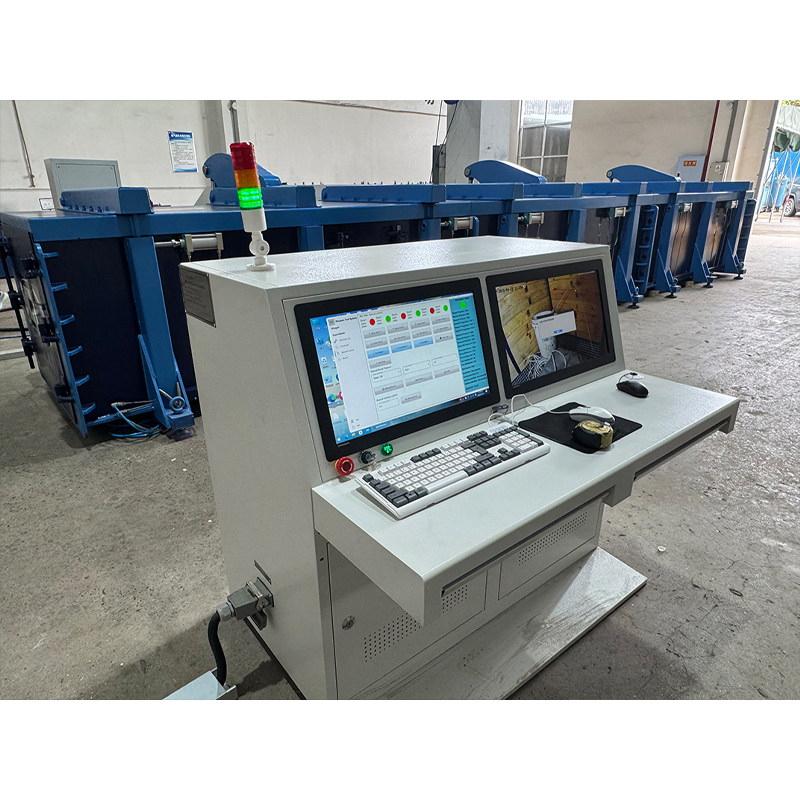

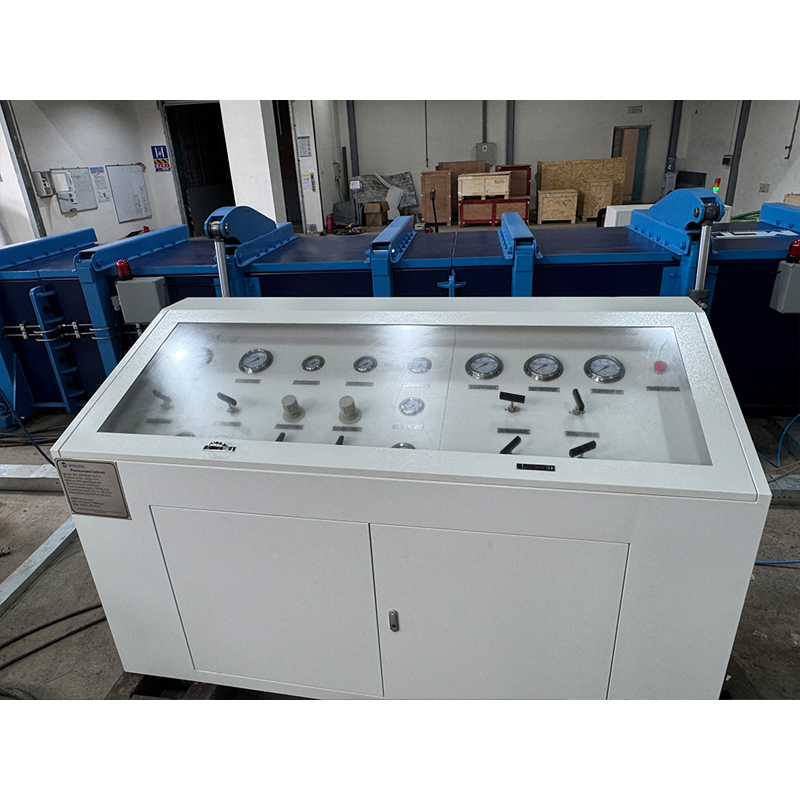

➔ Control Console
➔ Pre-fill Skid
➔ Hydraulic & Air Hoses
➔ Power & Drain Cables
● Gallery & Production
Production View 1 Production View 2
● Frequently Asked Questions
What is the primary application for this testing machine?
The machine is specifically designed for high-pressure testing of valves, tools, and pup joints to ensure operational safety and integrity.
How is the explosion protection rated?
The system features an explosion-proof rating of Exdiibt4, making it suitable for hazardous environment operations.
What material is used for the test chamber construction?
The cabin is built using high-strength Q235 steel with a total thickness of 70mm, incorporating a reinforced intermediate sandwich plate design.
Can the pressure be adjusted during operation?
Yes, the system pressure can be adjusted using the handwheel on the relief valve. Turning it clockwise increases pressure, and counterclockwise decreases it.
What are the power requirements and driving mechanism?
The unit is driven by an air compressor and utilizes a hydraulic power station for high-pressure generation. Power specifications can be customized.
How is the equipment packaged for international shipping?
The equipment is securely packed in high-quality plywood boxes to ensure protection during transport. Total gross weight is approximately 750kg.
