Professional manufacturer of drilling rigs. Here, you can choose from a variety of colors, engines, and different accessories.

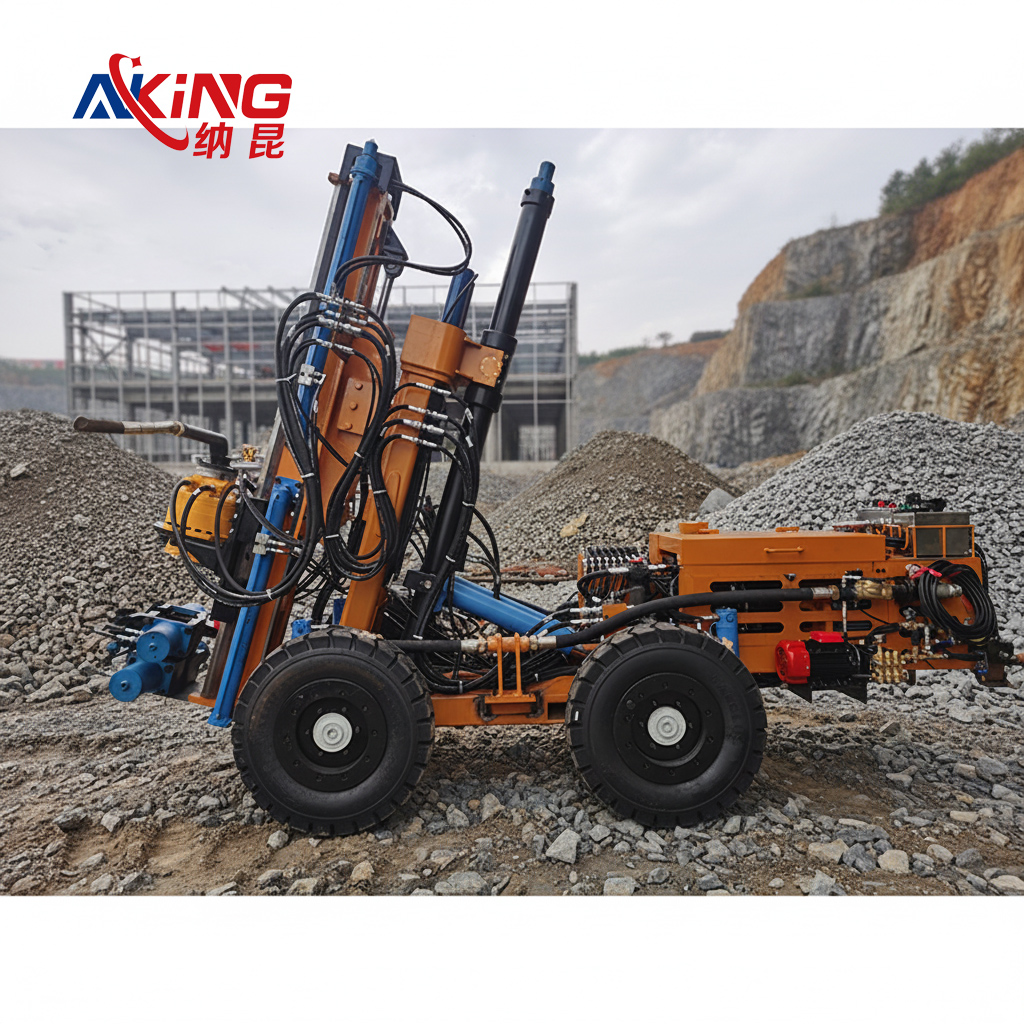

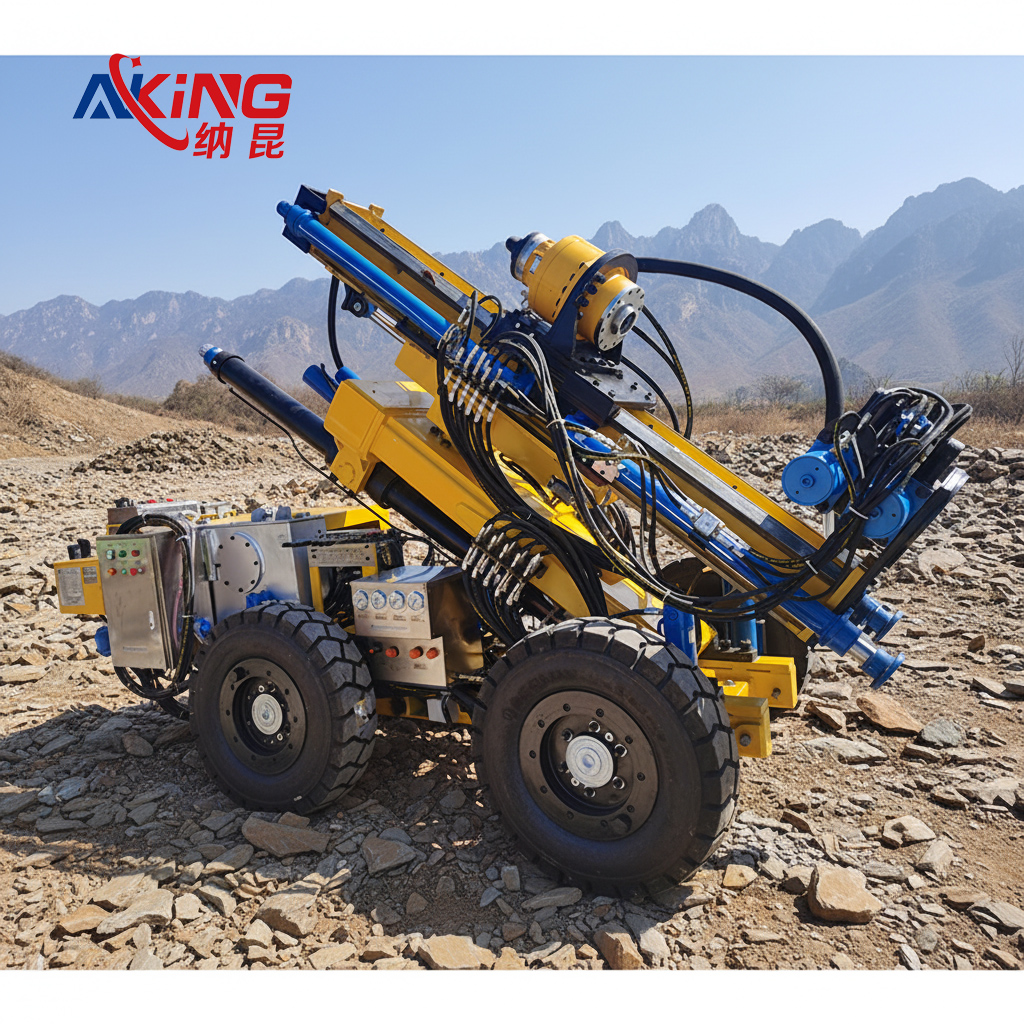

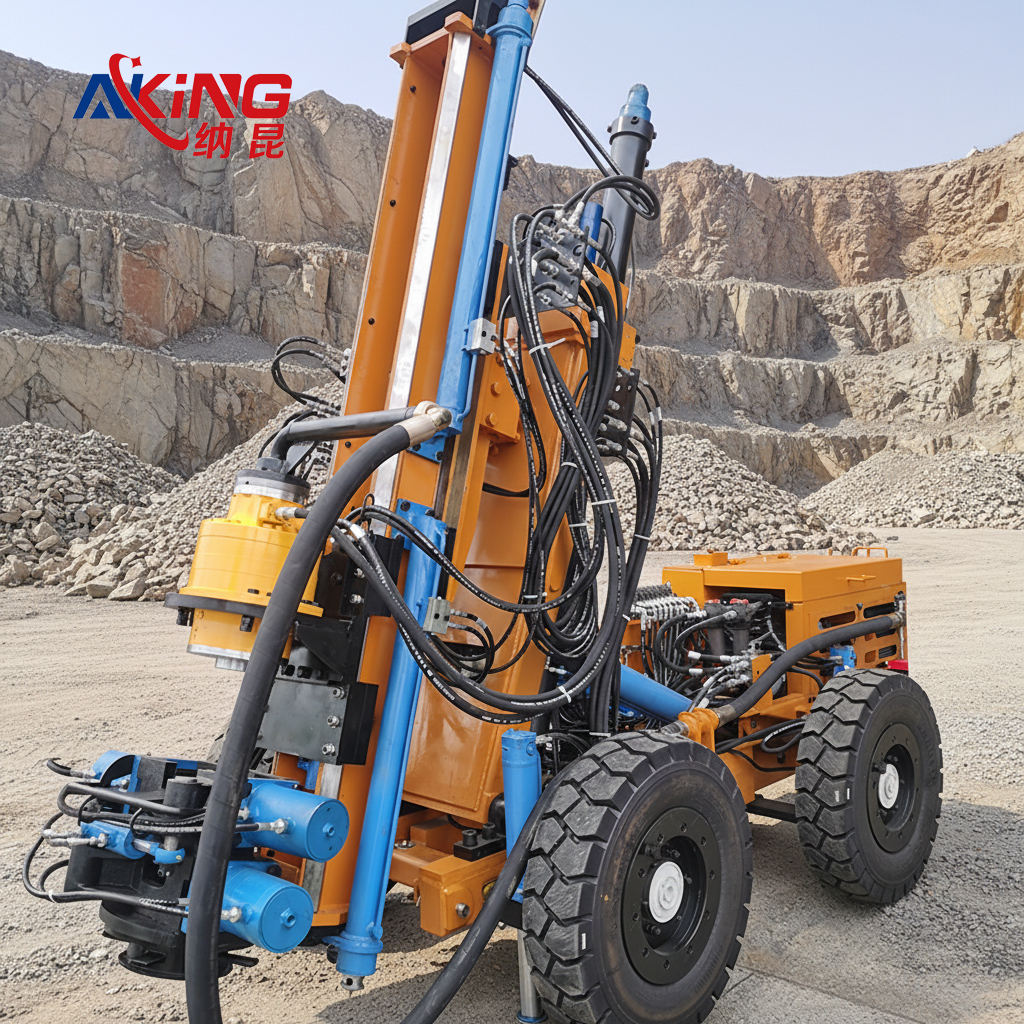

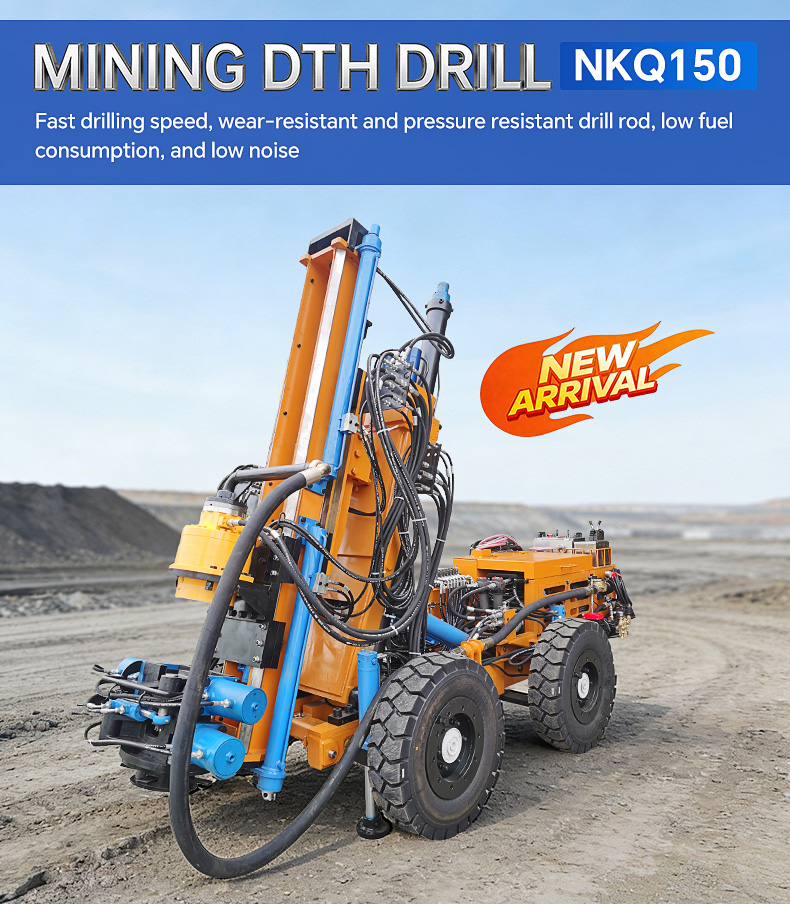

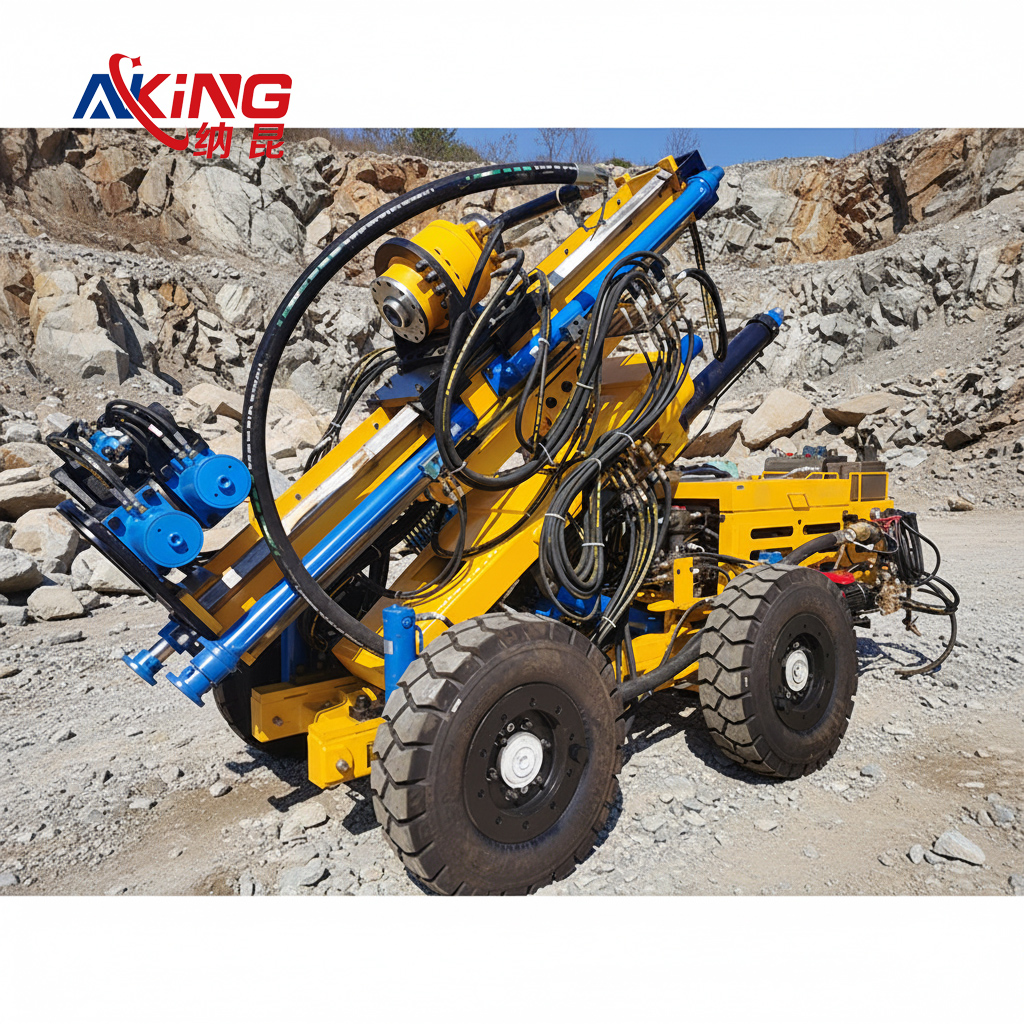

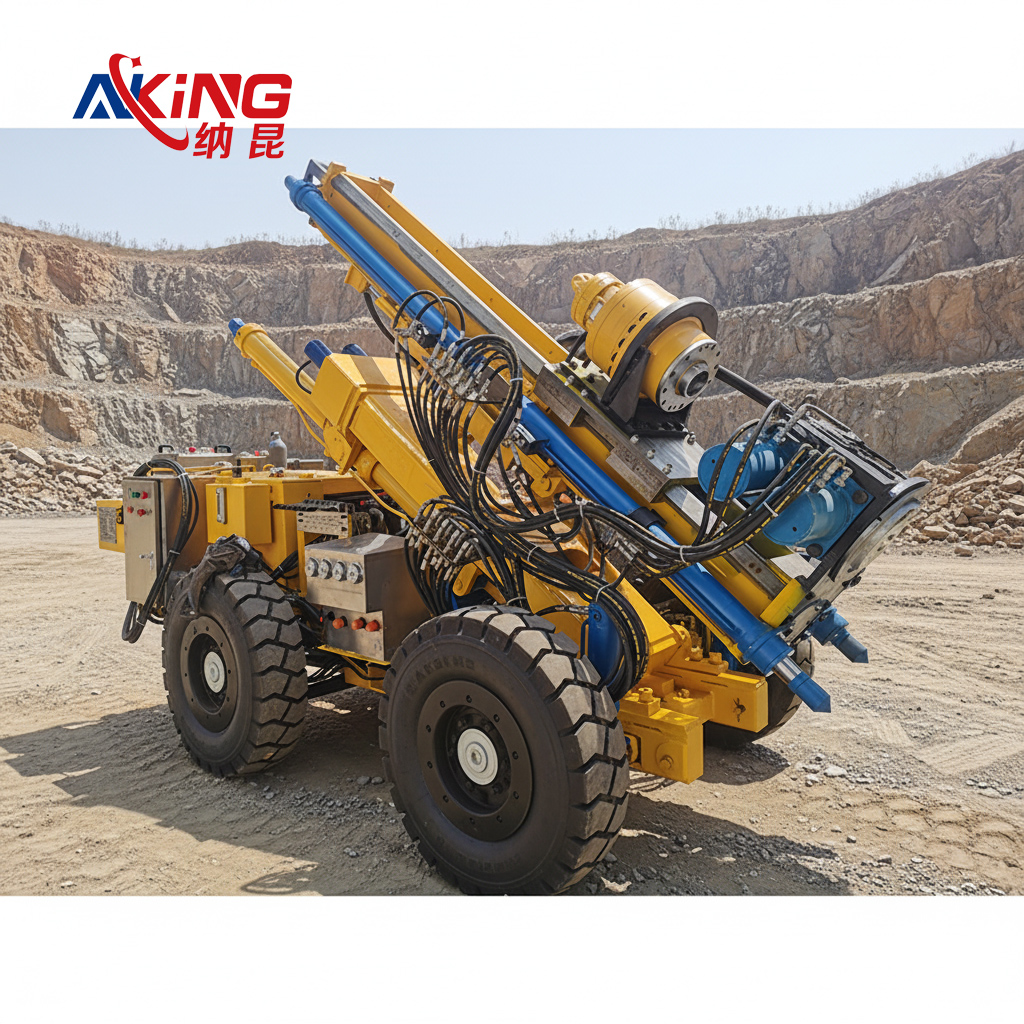

The NKQ-150 mining down the hole drilling rig is mainly used for deep hole drilling in non-coal underground mines, tunnels, water conservancy and other geotechnical engineering using the all-round large-diameter and high segmented collapse mining method, especially suitable for drilling circular holes in underground mining sites. It can significantly increase the height of mining sections and greatly reduce the workload of mining preparation. The drilling rig is driven by imported wheel edge motors, and both rock drilling and drilling positioning operations can be completed on a mobile operating platform, achieving human-machine separation and remote multi-directional operation. It has the characteristics of small size, high efficiency, strong adaptability, and easy operation and maintenance.
| Minimum Travel Height | 2425+100 mm | Rotation Torque | 3400 N·m |
| Minimum Working Height | 3250+100 mm | Guide Rail Total Length | 2600±100 mm |
| Max Drilling Profile Dimensions | 3090x926x800 mm | Single Push Depth | 1800±50 mm |
| Total Weight | 6000 kg | Pushing Force | 42 kN |
| Total Power | 25.5 kW | Guide Rail inclination | Front 10° , Rear 55° |
| Drilling Depth | 0-100 m | Guide Rail Left/Right Swing | ±180° |
| Drill Diameter | φ76-φ220 mm | Min Ground Clearance | 220 mm |
| Working Gas Pressure | 1.5-2.1 MPa | Max Climbing Ability | ≥ 15° |
| Rotation Speed | 30 r/min | Travel Speed | 3.5 ± 0.5 m/min |
| Overall Dimensions (LxWxH) | 4500x1670x2366 mm | ||

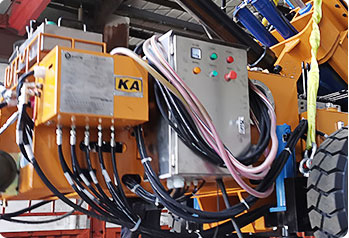

High horsepower, low fuel consumption, fast efficiency, and long service life.

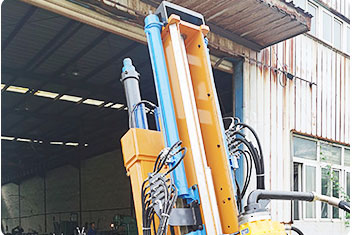

Strong sealing, no oil leakage, low power loss, and improved work efficiency.

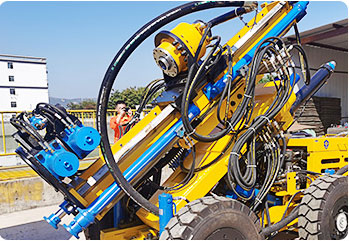

High torque, fast drilling speed, and adjustable speed and thrust to meet different ore layers.

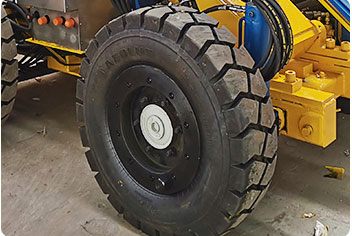

High flexibility, good pass ability, simple maintenance, and easy handling of complex terrains.
SPECIAL REMINDER: Different customers will customize the color, configuration, model, appearance and so on according to their own needs. Quotations vary based on requirements.
For consumers: 7x24 hours online customer service. Our products are affordable with quality assurance and many models to choose from. Support personalized customization to give you a unique machine.
For the supplier: We provide regional protection and sufficient profit margins. After-sales service provided for 1-3 years. Parts can be sent by air. Factory testing is ensured before leaving to guarantee quality. Free publicity in your country is available.
