Product Description

⚒️ About Down the Hole Hammer Technology
DTH Hammer
Focusing on drilling technology for over 16 years, our solutions are designed to ensure safety and stability in engineering, providing professional and reliable drilling results across the globe.
📦 Product Description

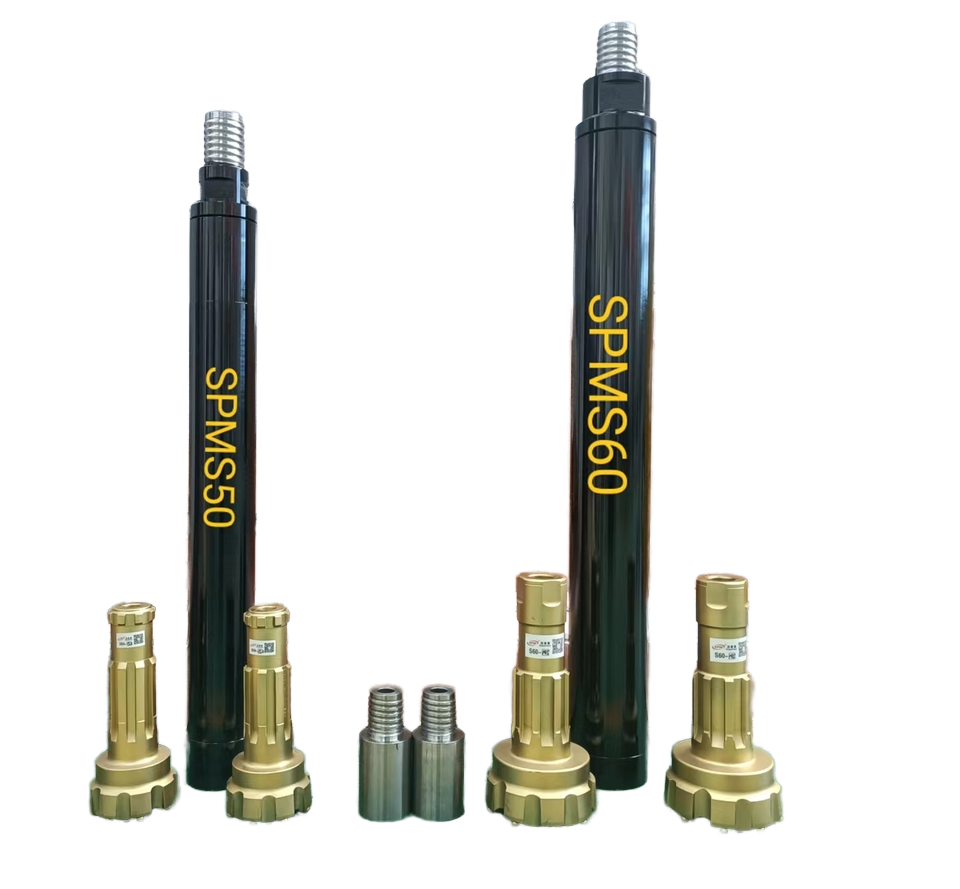

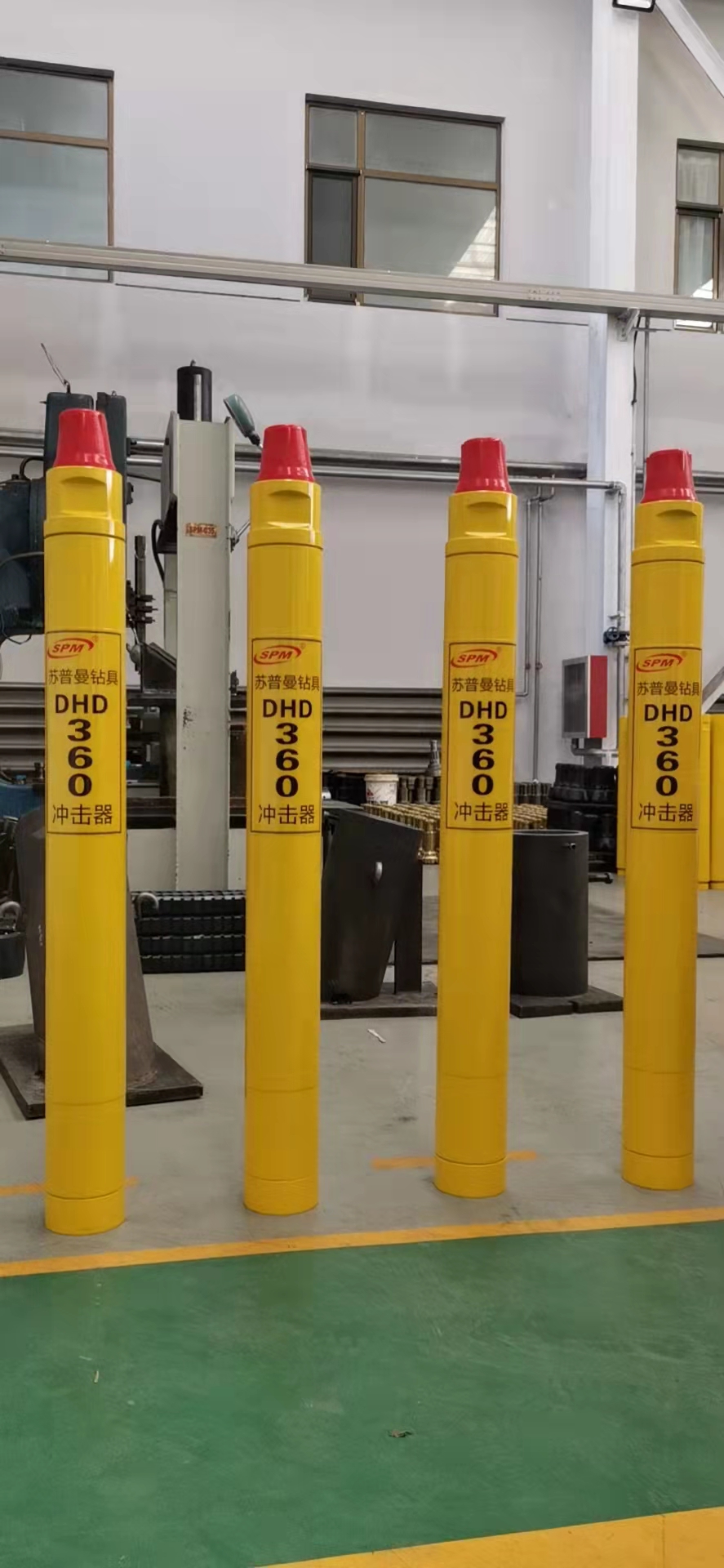

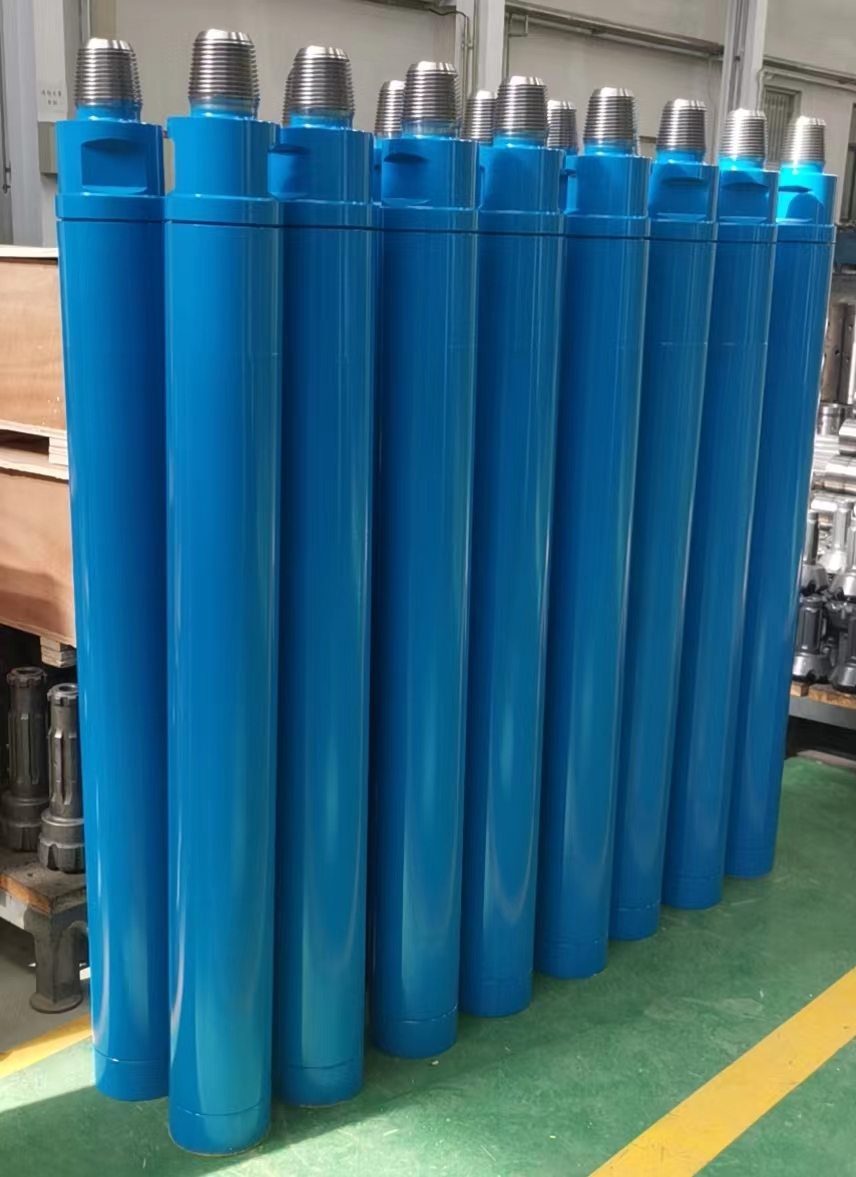

S60 DHD360 165mm DTH Down the Hole Hammer Drills
The 6 inch High Pressure DTH Air Drill Hammer S60 is highly recognized in the international well drilling field. It serves as an efficient alternative for heavy-duty drilling requirements.
  • Drill Range: Suitable for holes from 165mm to 305mm.

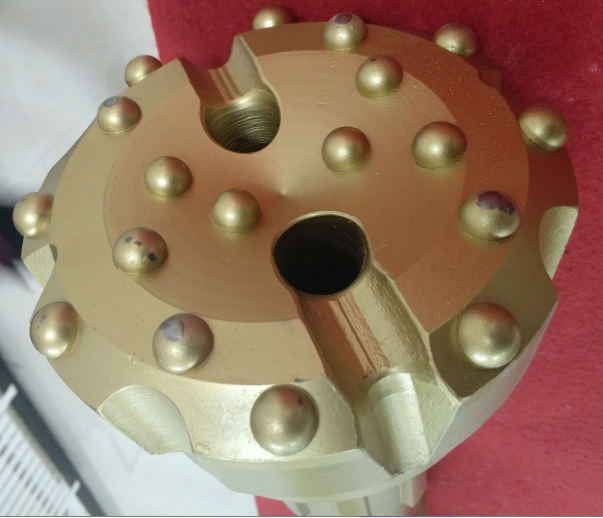

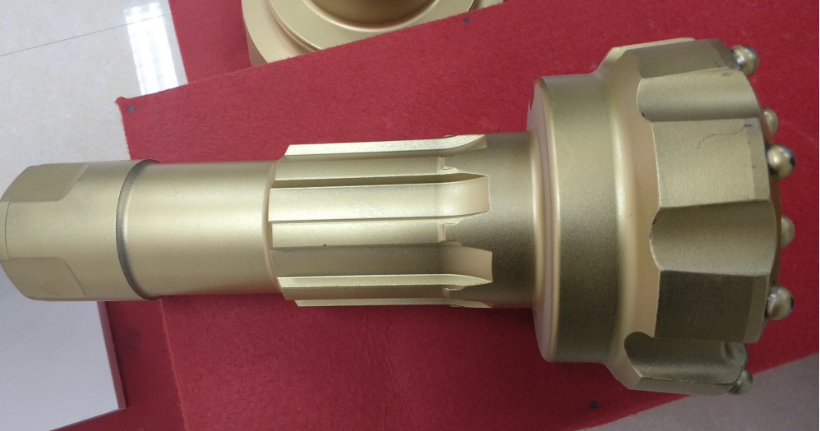

  • Matched Bits: Compatible with S60-165, S60-178, S60-185, S60-194, S60-203, S60-216, S60-230, S60-254, S60-305.
  • Versatility: We provide various sizes from 5" to 12" (Φ125mm-Φ275mm) for diameters up to 508mm.
    • Technical Parameters
    Hammer NameDTH drill hammer S60
    ModelS60
    Item Number660000000
    Drilling Diameter(mm)165 - 305
    Hammer Length(mm)1426
    External Diameter(mm)Φ152
    Weight(kg)133
    Working Pressure (Bar)0.7 - 2.4
    Air Consumption(m³/min)9 - 25.8
    Impact frequency(bpm)822
    Top SubAPI 3 1/2 Reg Pin
    Drive SubΦ99.5-8
    Bit ShankS360 series
    Key Advantages:
    • Non-Blocking: Low blocking rate during operation.
    • High Efficiency: Larger impact frequency and torque, improving efficiency by 10%.
    • Longer Service Life: Anti-friction treated surfaces, capable of reaching 5000+ meters.
    • Excellent Cleaning: Large air output designed to flush cuttings in deep holes.
    🛠️ Professional Drilling Services
    Service 1
    Service 2
    Specializing in DTH hammers, bits, rigs, and pipes for water wells, mines, and oil industries. We ensure international leading techniques are applied to every project.
    Operation
    Our tools utilize high-quality raw materials and advanced craft technologies, undergoing strict quality inspections. We provide a full range of drilling equipment including threaded bits, reverse circulation tools, and air compressors.
    📜 Quality Certifications
    Certification Main
    Cert 1
    Cert 2
    Cert 3
    Cert 4

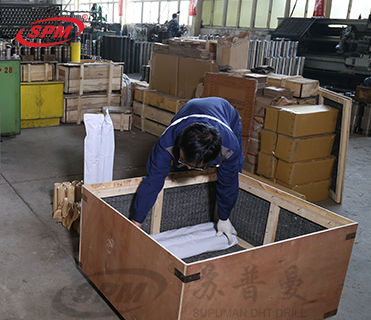

    🚢 Packing & Delivery
    Packing
    Packaging Specifications
    Dimensions1500mm (L) * 180mm (W) * 220mm (D)
    Weight145kg
    Package TypeWooden box (Fumigated for export)
    ProtectionPE film or custom request for tight container loading
    🔍 Related Drilling Products

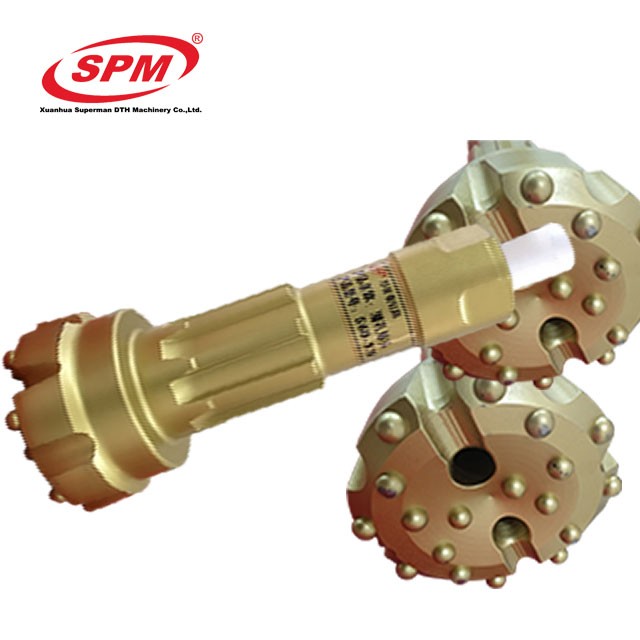

    Product 1
    Drill Bit Series
    91.8% Response Rate

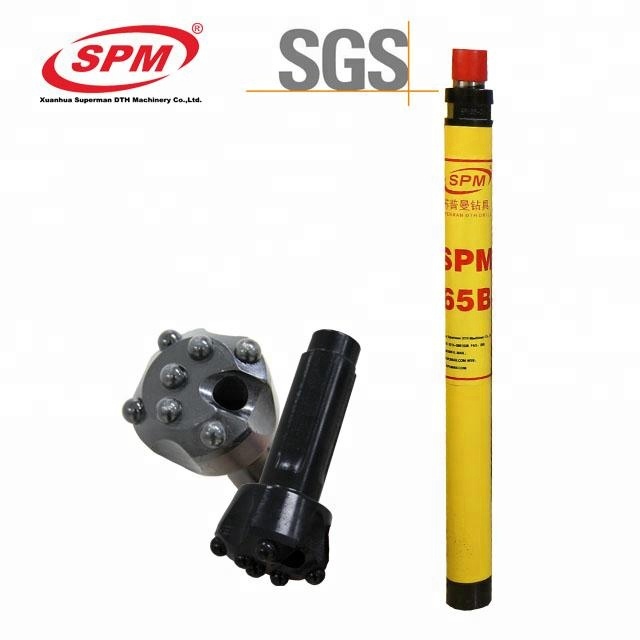

    Product 2
    Drill Pipe Series
    91.8% Response Rate

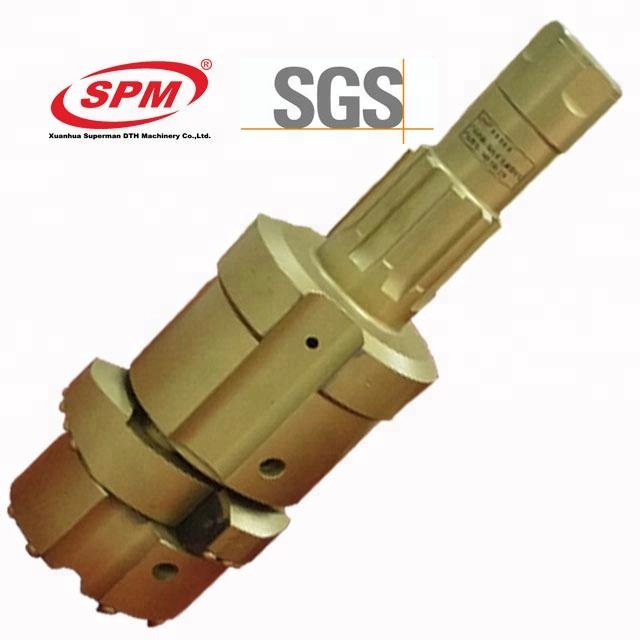

    Product 3
    Coupling Sleeves
    91.8% Response Rate
    ❓ Frequently Asked Questions
    Are you a manufacturer?
    Yes, we have focused on DTH drilling for 16 years and serve clients in over 50 countries.
    Do you offer technical support for drilling?
    Absolutely. We provide tailored down the hole drilling solutions based on our extensive field experience.
    What is the standard delivery time?
    In-stock goods typically take 5-15 days. Custom or large orders usually require approximately 30 days.
    Do you accept small orders or LCL?
    Yes, we offer both LCL and FCL services via air, sea, and land transport.
    What is the drilling range for the S60 hammer?
    The S60 hammer is designed for drilling hole diameters ranging from 165mm to 305mm.
    Can these hammers handle deep-hole drilling?
    Yes, due to advanced anti-friction technology, our hammers can effectively reach depths of 5000 meters or more.
    📞 Industrial Support
    Support
    • 16 years of expertise in the well drilling field.
    • Rich experience on actual drilling construction sites.
    • Full technical support and complete equipment supply.
    • National patents on multiple drilling inventions.
    • Professional logistics solutions for global delivery.
