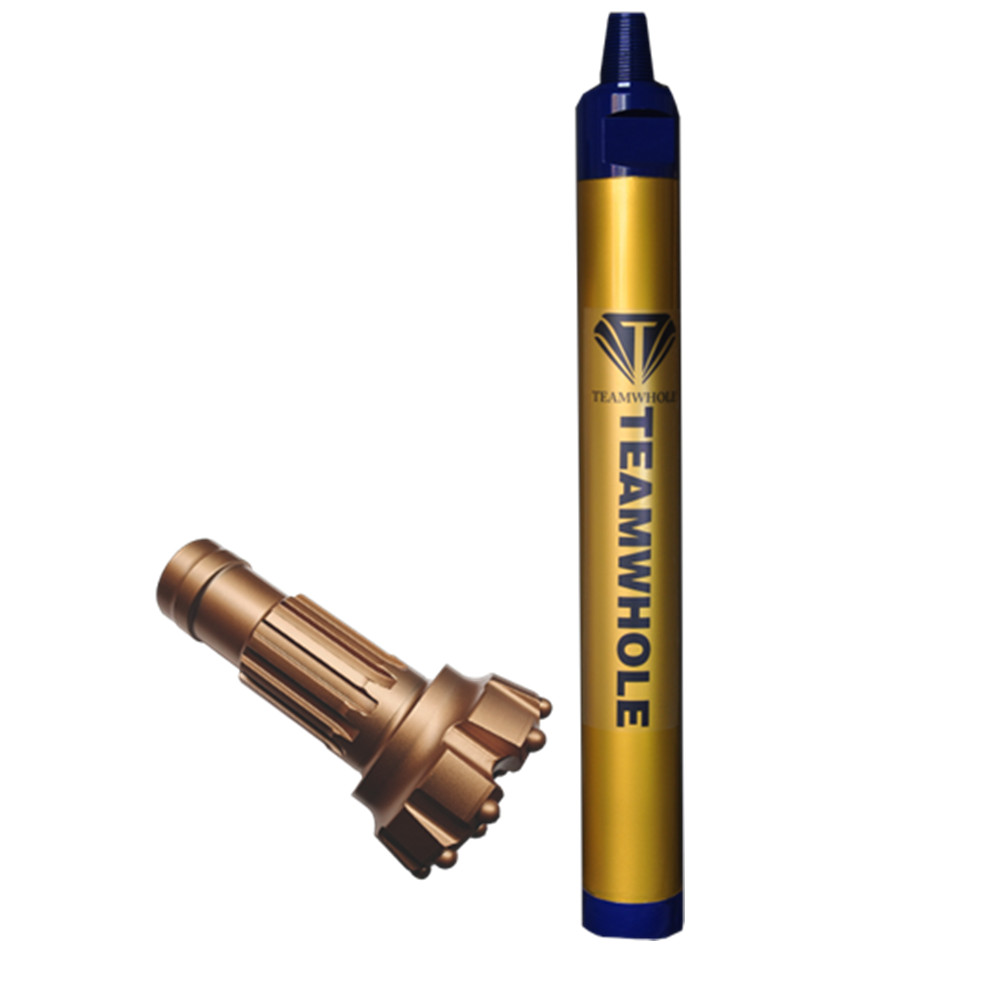

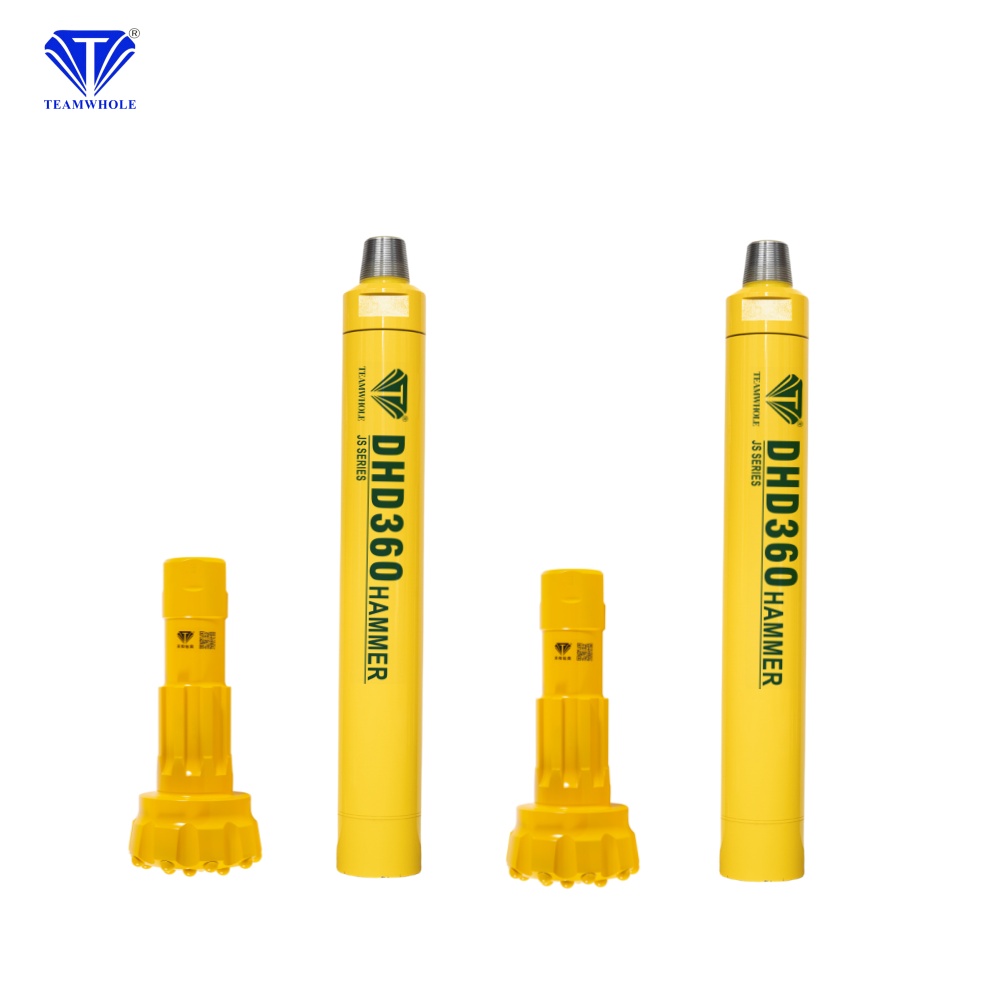

Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
1 / 5
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers
Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers

Mining Blasting Hole Drilling 6'' QL60 Hammer DTH QL 60 High Pressure Down The Hole Drilling DTH Hammers

Send Inquiry

Product Description

⚡ PRODUCT OVERVIEW

JS DTH HAMMER

The JS series DTH hammer is a new type of high pressure hammer. It is one of the most cost-effective DTH hammers available. This series of hammers matches bits without foot valves. It features fast penetration, low air consumption, excellent stability, and a long service life.

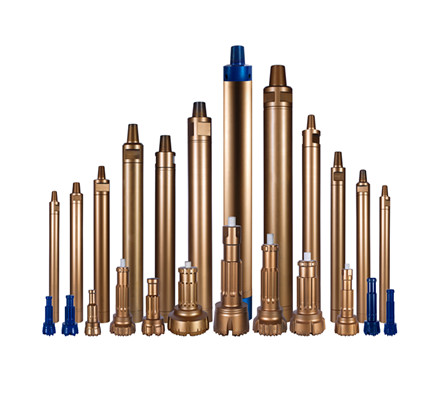

DTH Hammer Overview

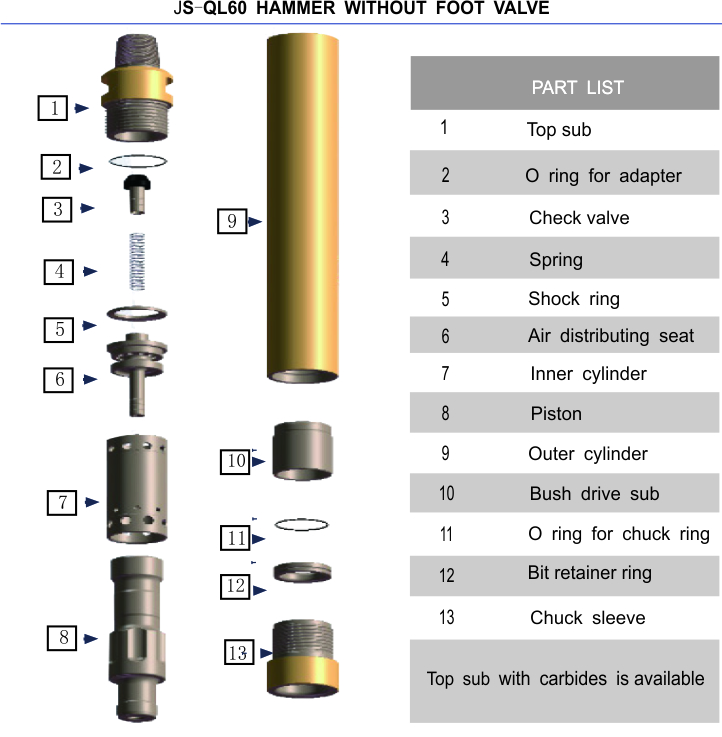

Hammer Details
🛠️ FEATURES AT A GLANCE

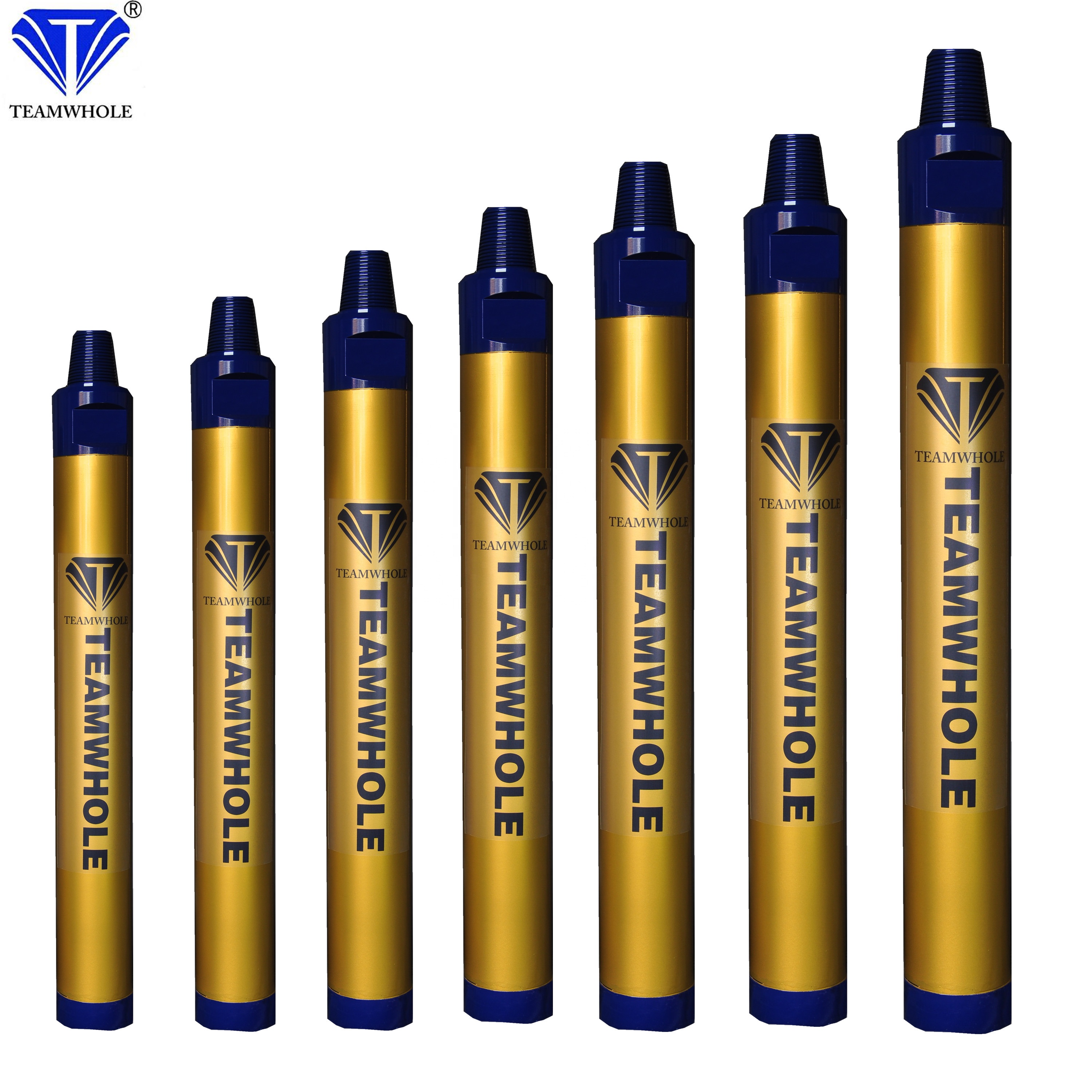

QL60 Hammer
QL60 DTH HAMMER

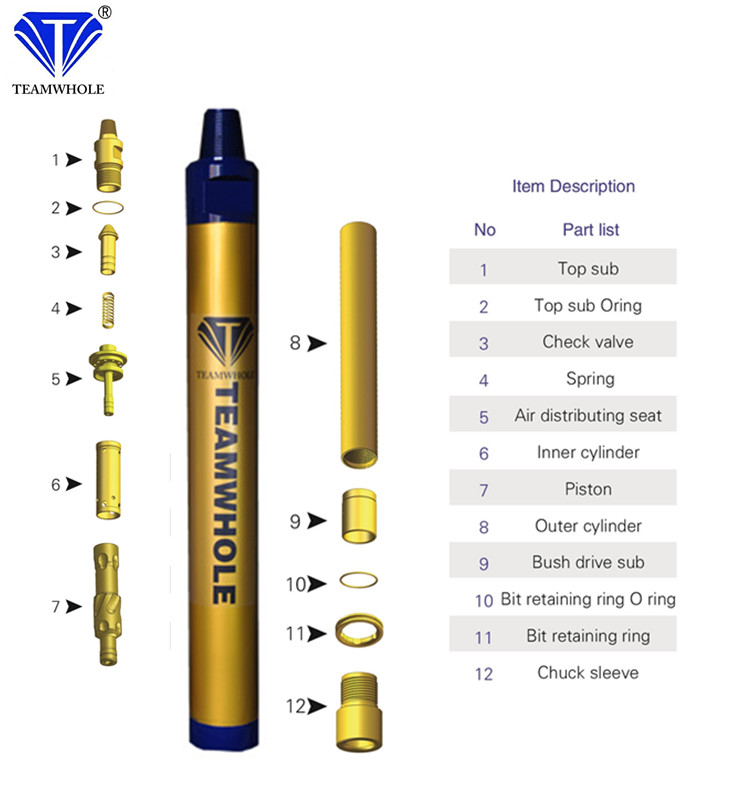

Structure
Internal Structure

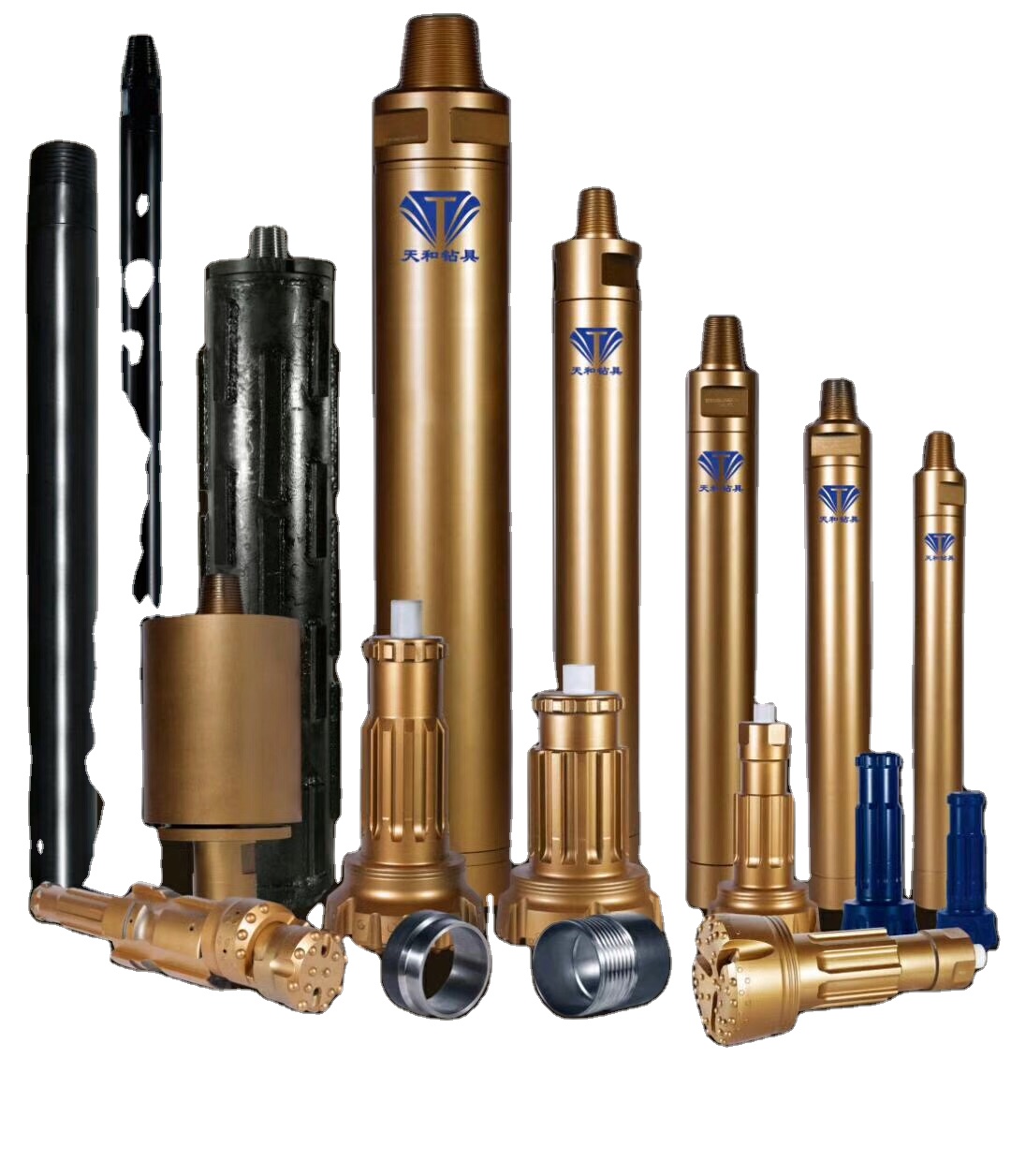

Rock Drilling Tools
Rock Drilling Tools
📊 PRODUCT SPECIFICATIONS
JS--QL SHANK DTH HAMMER SPECIFICATION
Bit Shank Length (mm) Thread OD (mm) Work Pressure Speed (r/min) Air Consumption Weight (kg)
QLX40967mmAPI 2 3/8"REG99MM2.5Mpa30-601138.4
QL501070mmAPI 3 1/2"REG126MM2.8Mpa25-551668.4
QL601164mmAPI 3 1/2"REG148.5MM3.0Mpa25-5520101.5
QL801366mmAPI 4 1/2"REG185MM3.0Mpa25-5523152.7
QL1201522mmAPI 6 5/8"REG275MM3.0Mpa25-5541295

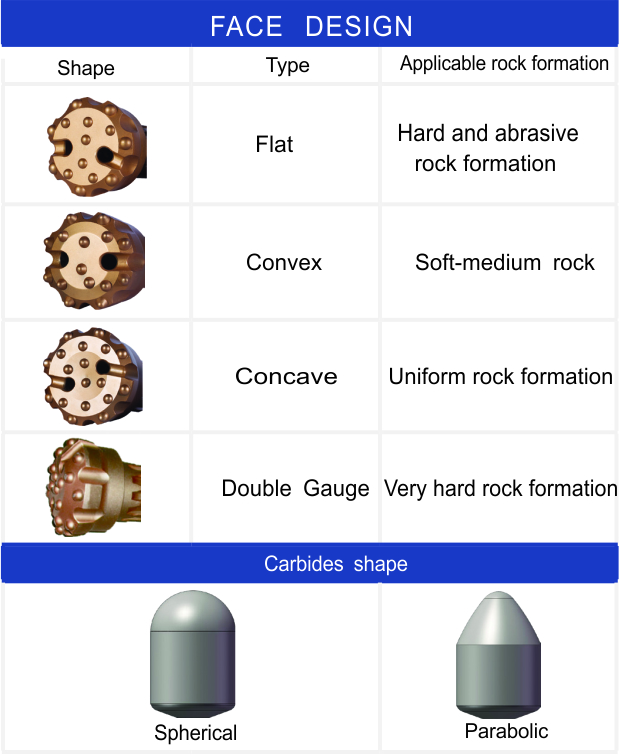

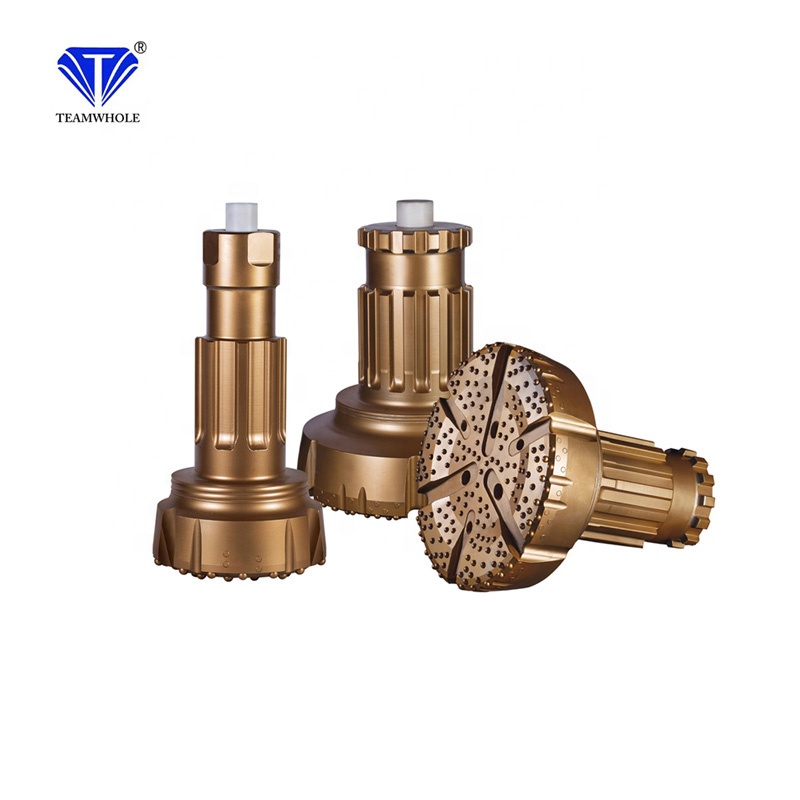

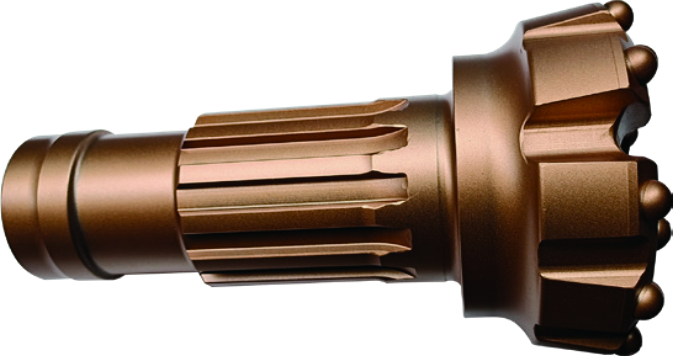

Matched DTH bits: Our DTH bits are made of superior quality alloy steel. Tungsten carbides are sourced from top suppliers. Advanced heat treatment and precise manufacturing ensure reliable quality.

DTH Bits
⚙️ PRODUCT CONFIGURATION
Engine
High Power Engine

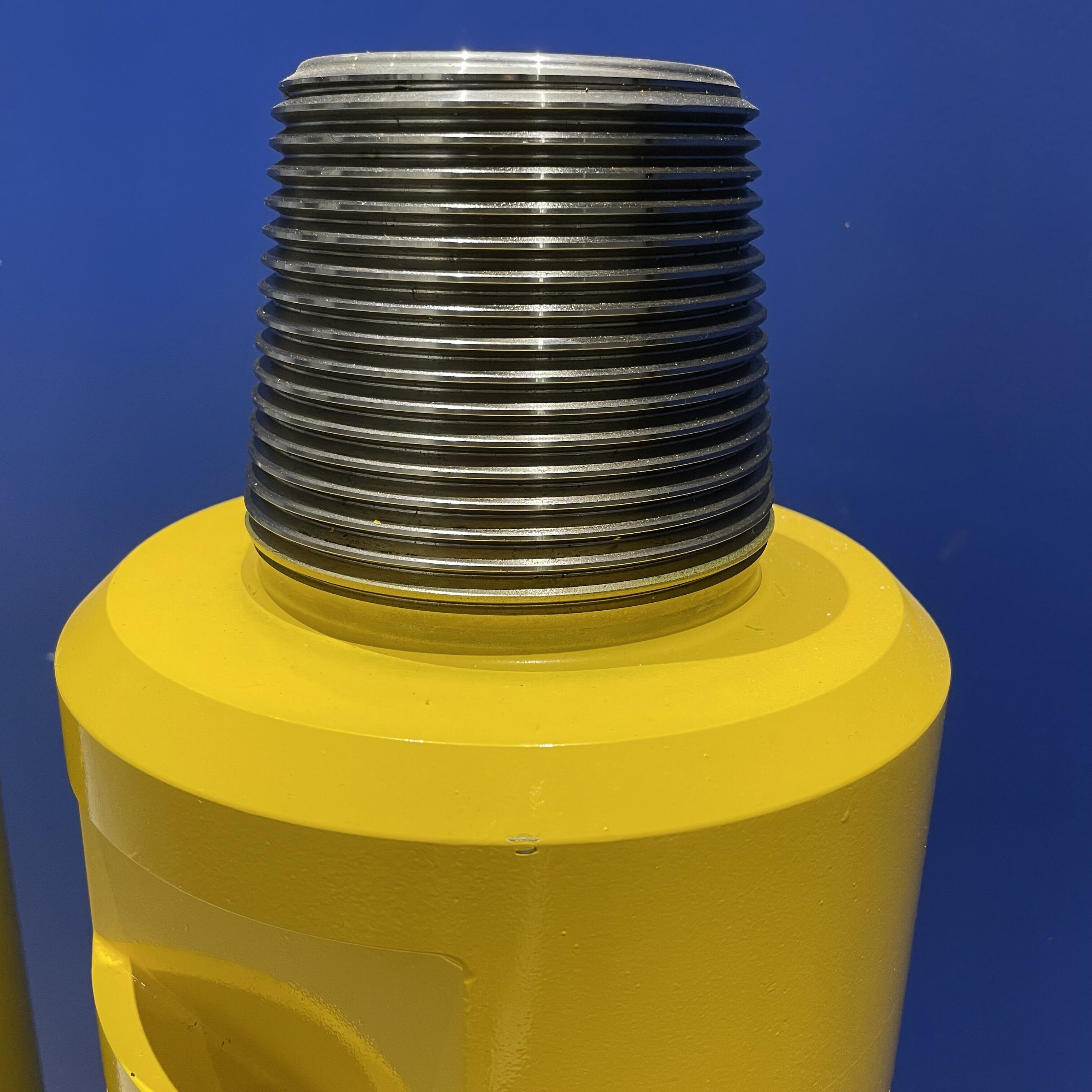

Valve
Imported Control Valve

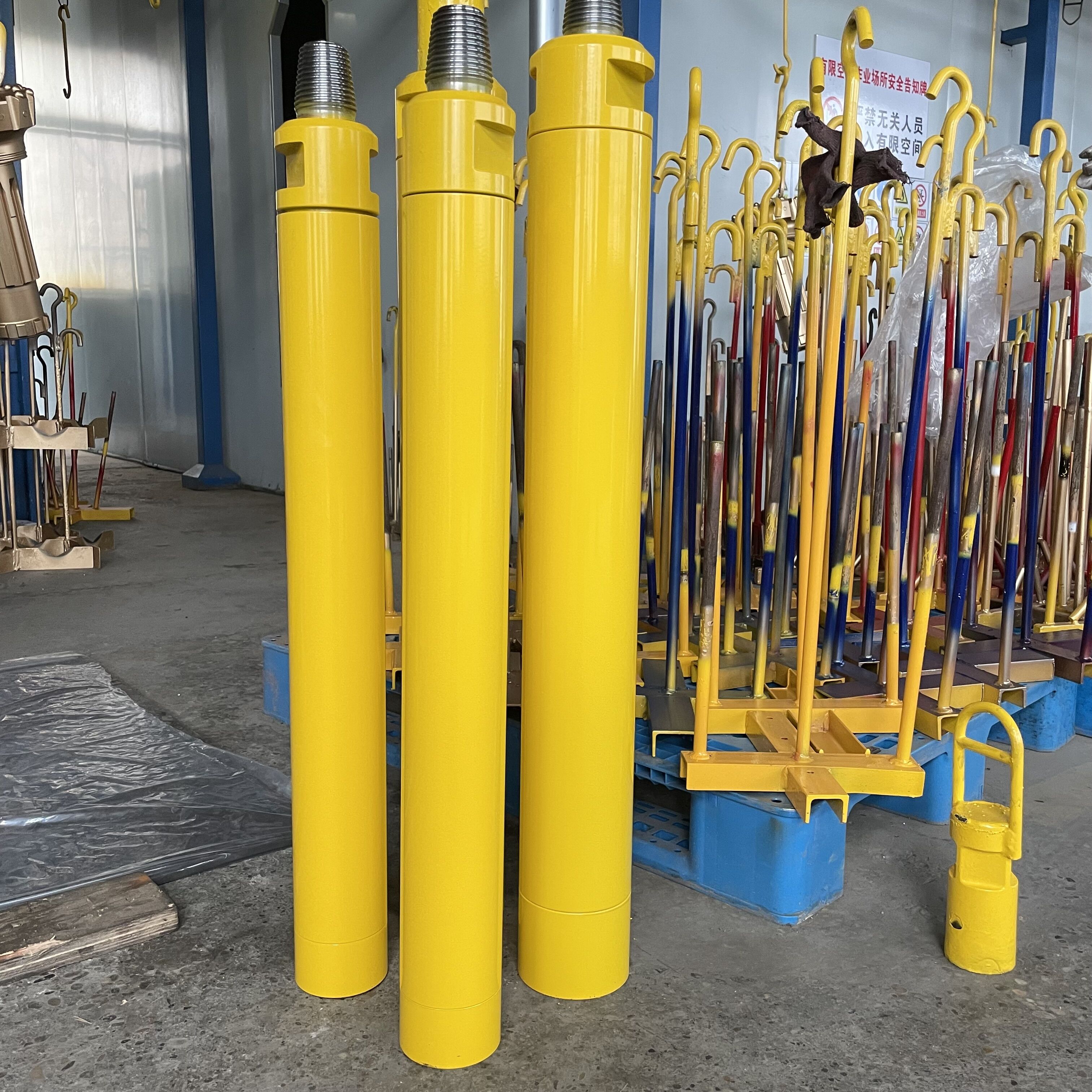

Motor
Hydraulic Motor
✅ SUCCESSFUL PROJECTS

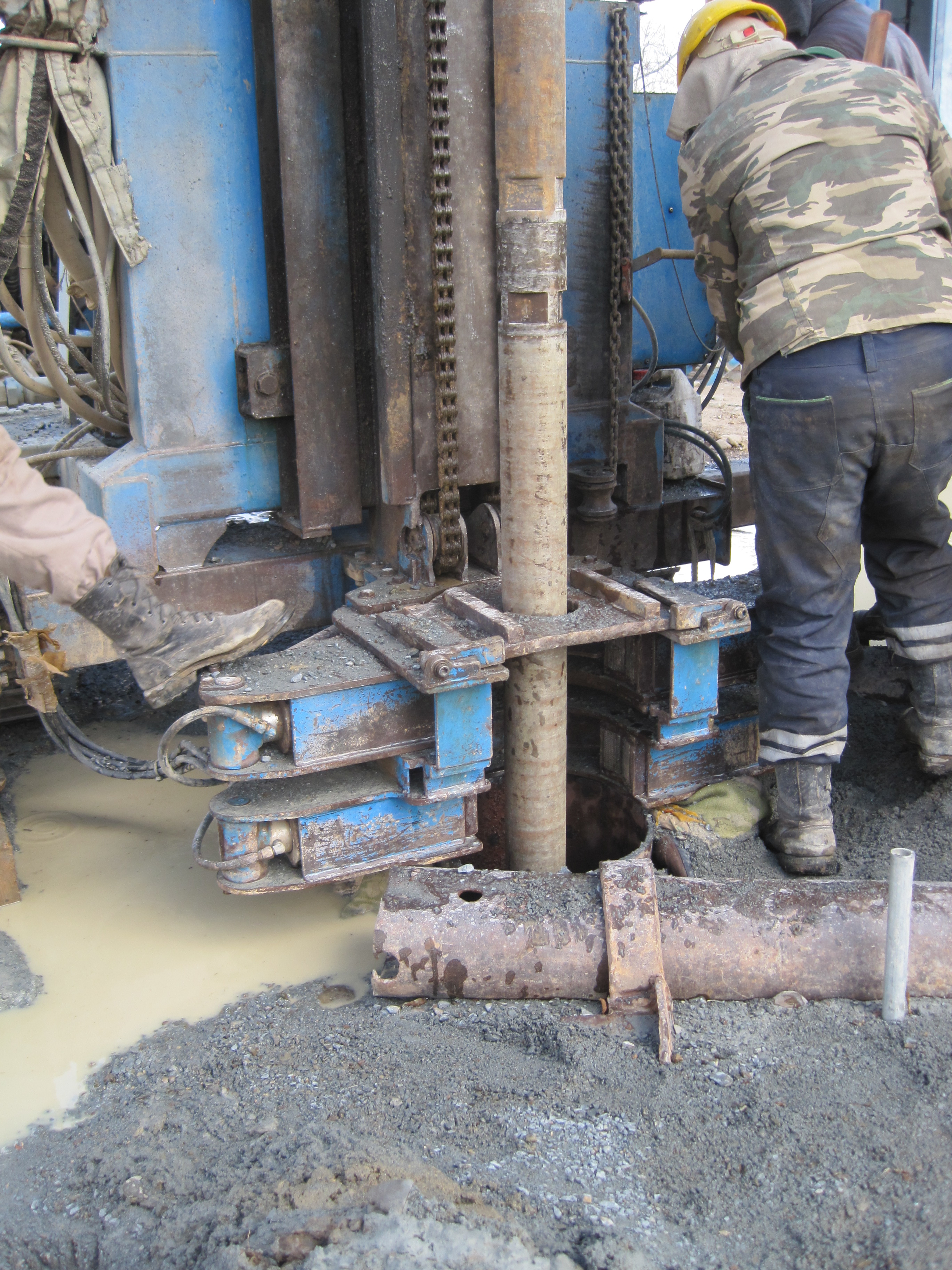

Water well
Water Well Drilling

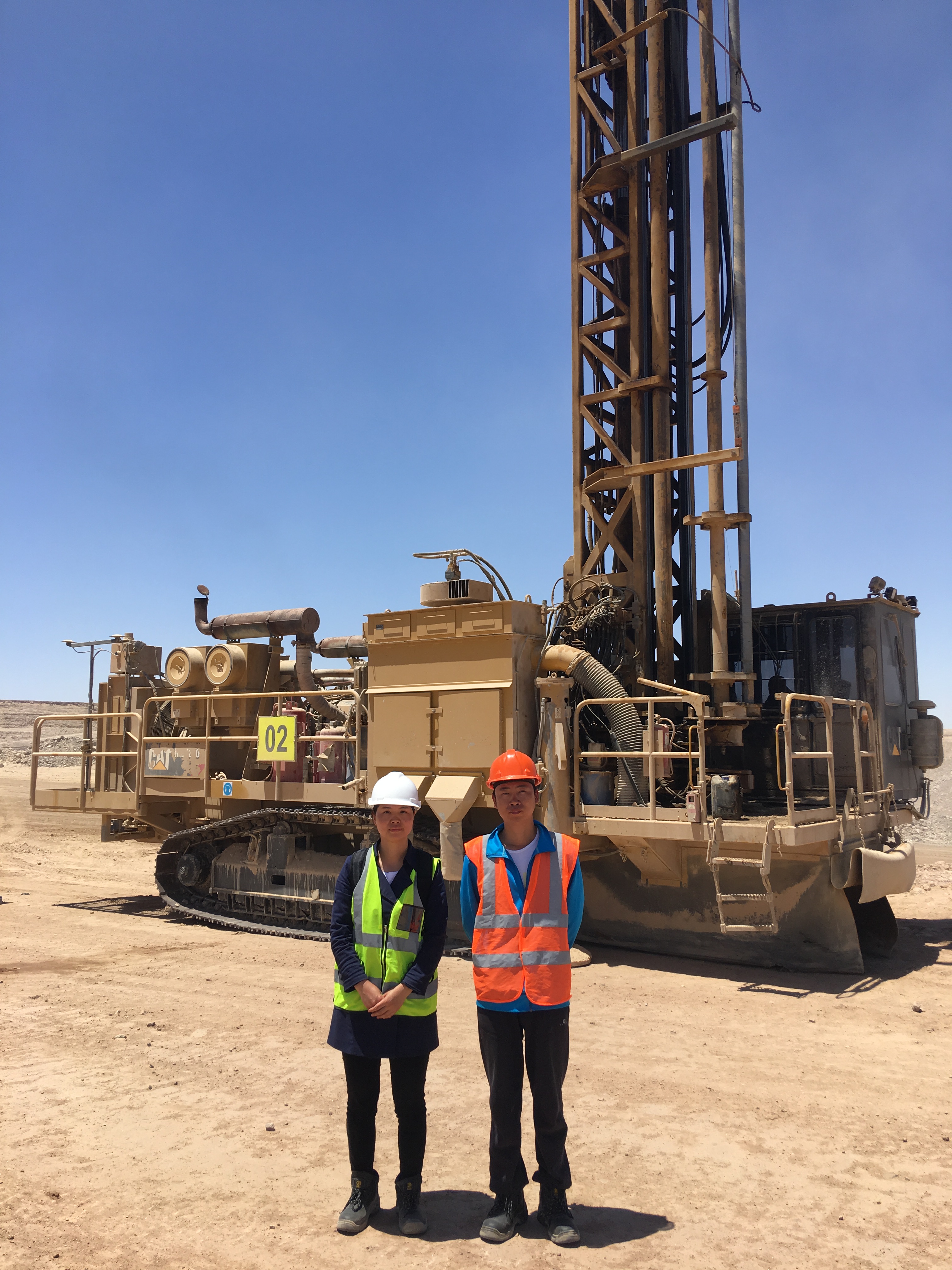

Open mine
Open Mine Drilling

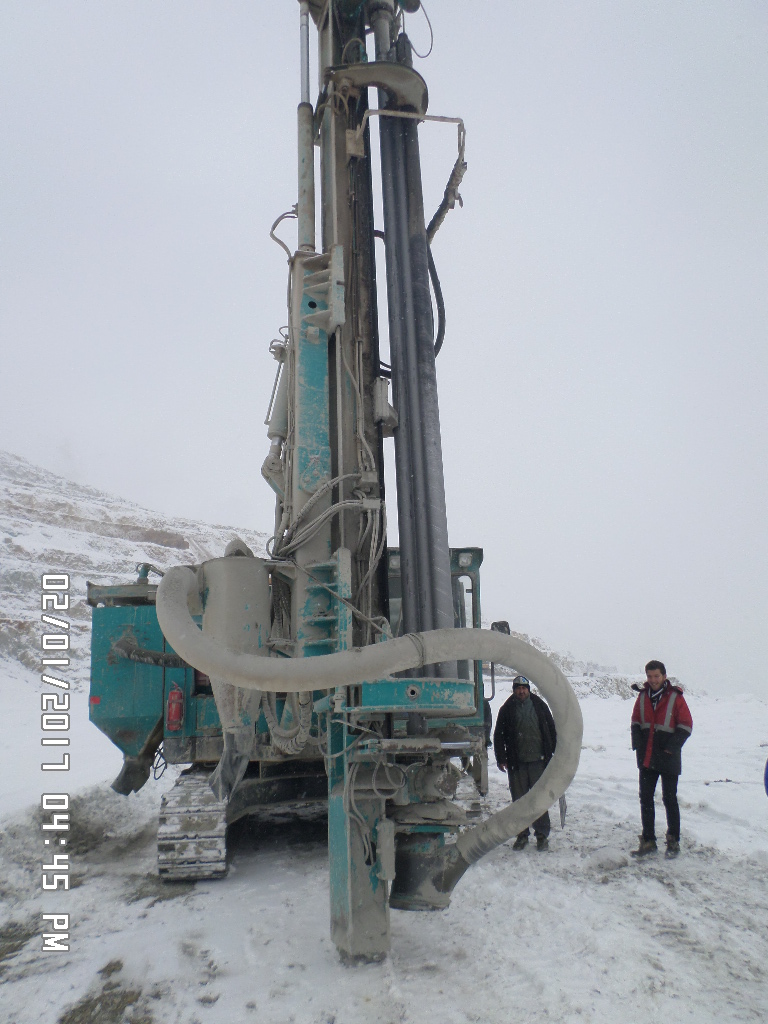

Mine blasting
Blasting Hole Drilling
📝 PRODUCTS DESCRIPTION

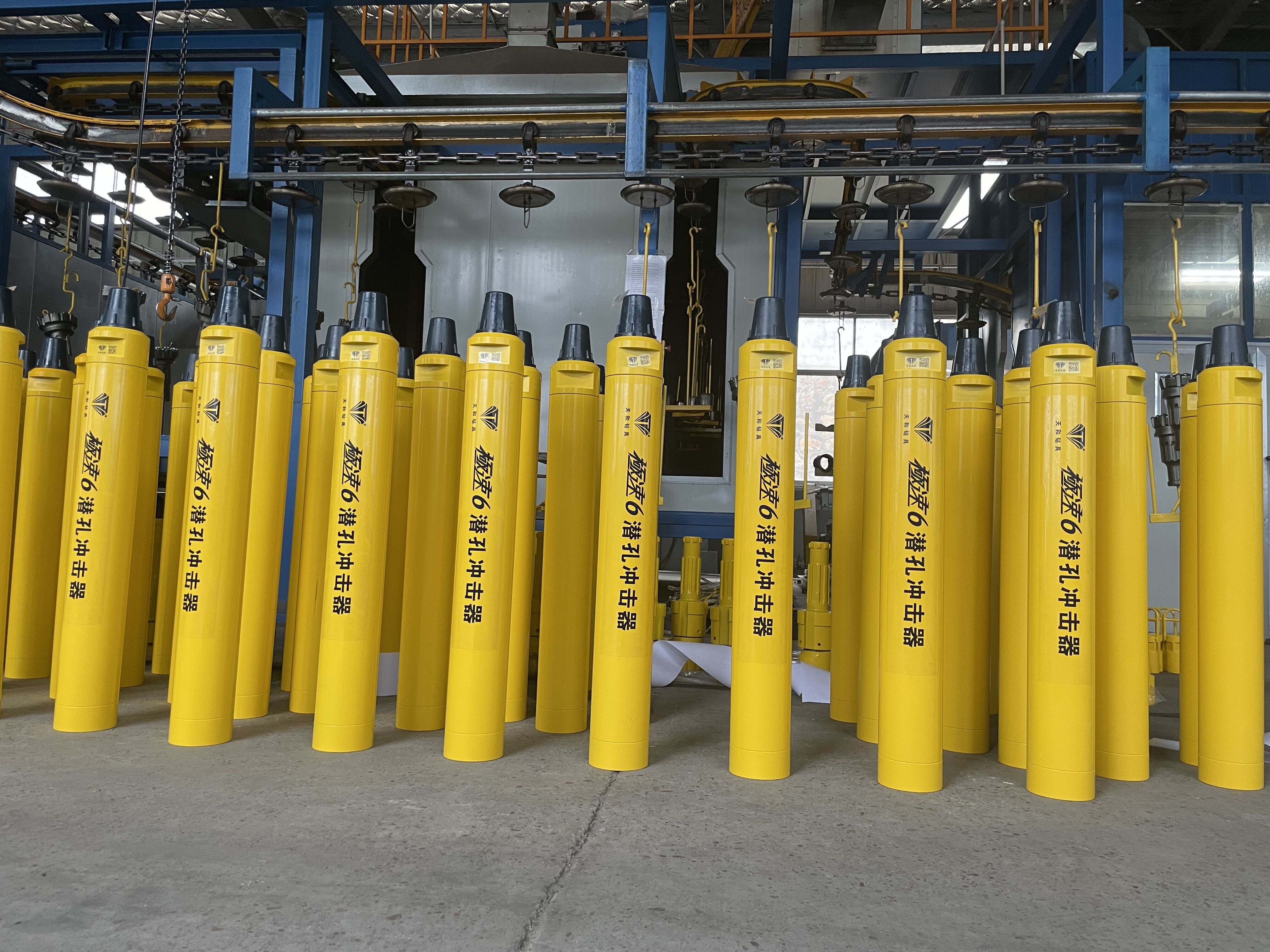

Product Description Detail

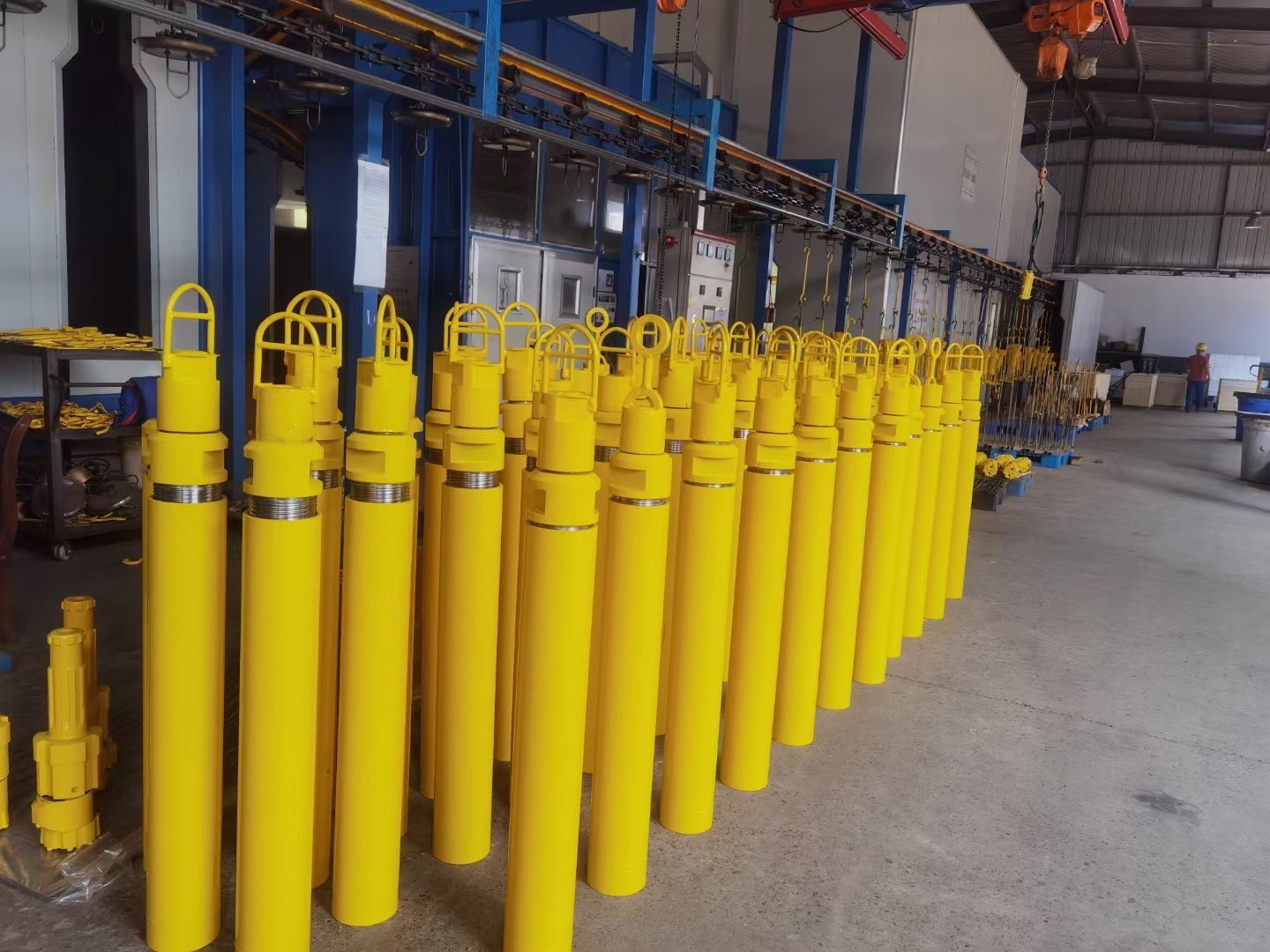

Hammer Part 1

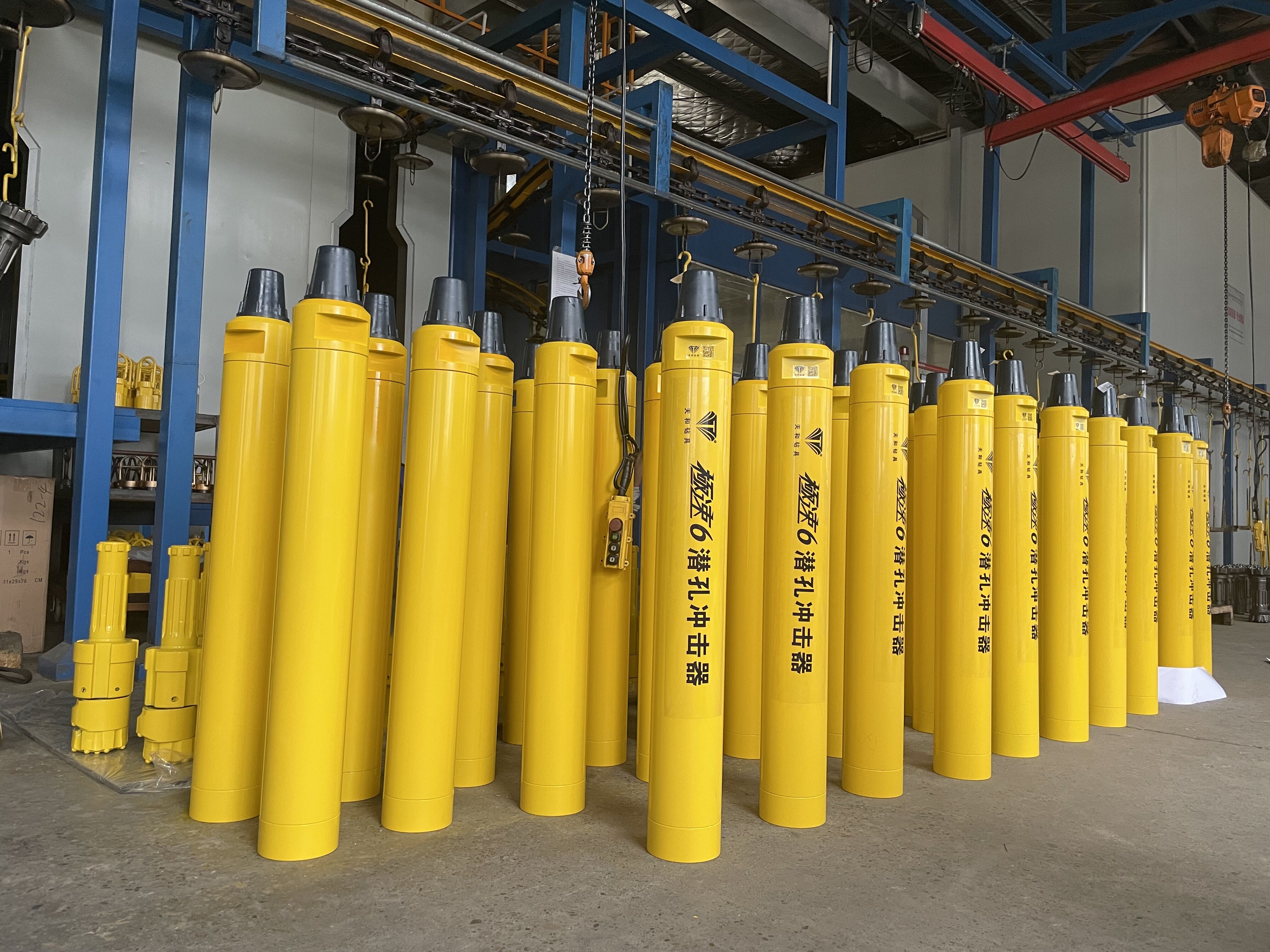

Hammer Part 2
MORE DTH HAMMERS
Hammer Model Matched Bit Shank Type Rec. Diameter
3.5"/3"COP34, DHD3.5, MISSION3090mm~ 105mm
4"DHD340, QL40, SD4110mm~ 130mm
5"DHD350, QL50, SD5134mm~ 152mm
6"DHD360, QL60, MISSION60152mm~ 203mm
8"DHD380, QL80, SD8203mm~ 305mm
12"DHD112, SD12, QL120305mm~ 381mm
🔄 SIMILAR PRODUCTS
❓ FREQUENTLY ASKED QUESTIONS
Are you a manufacturer?
Yes, our facility was established in 2002. We have over 60,000 square meters of workshop and more than 100 technological backbone experts with over 20 years of experience in DTH rock drilling tools.
What products do you mainly produce?
Our main products include DTH hammers and bits (diameters from 76mm to 1000mm), drill pipes, RC hammers and bits, top hammer drilling tools, and casing systems. We offer a wide range of drilling tools.
Which countries do you export to?
We have exported to over 100 countries, including Russia, Mexico, Italy, Chile, Brazil, and South Korea, providing reliable drilling solutions worldwide.
What kind of payment terms do you offer?
We offer flexible payment terms to meet different needs, including T/T, D/A, A/P, L/C, and O/A.
Do you offer OEM services?
Yes, we provide flexible business models, including full OEM services for customers looking for customized drilling equipment.
How do you ensure product quality?
We use superior alloy steel and high-grade tungsten carbides. Our accurate manufacturing technology and specialized heat treatments ensure the highest reliability.
