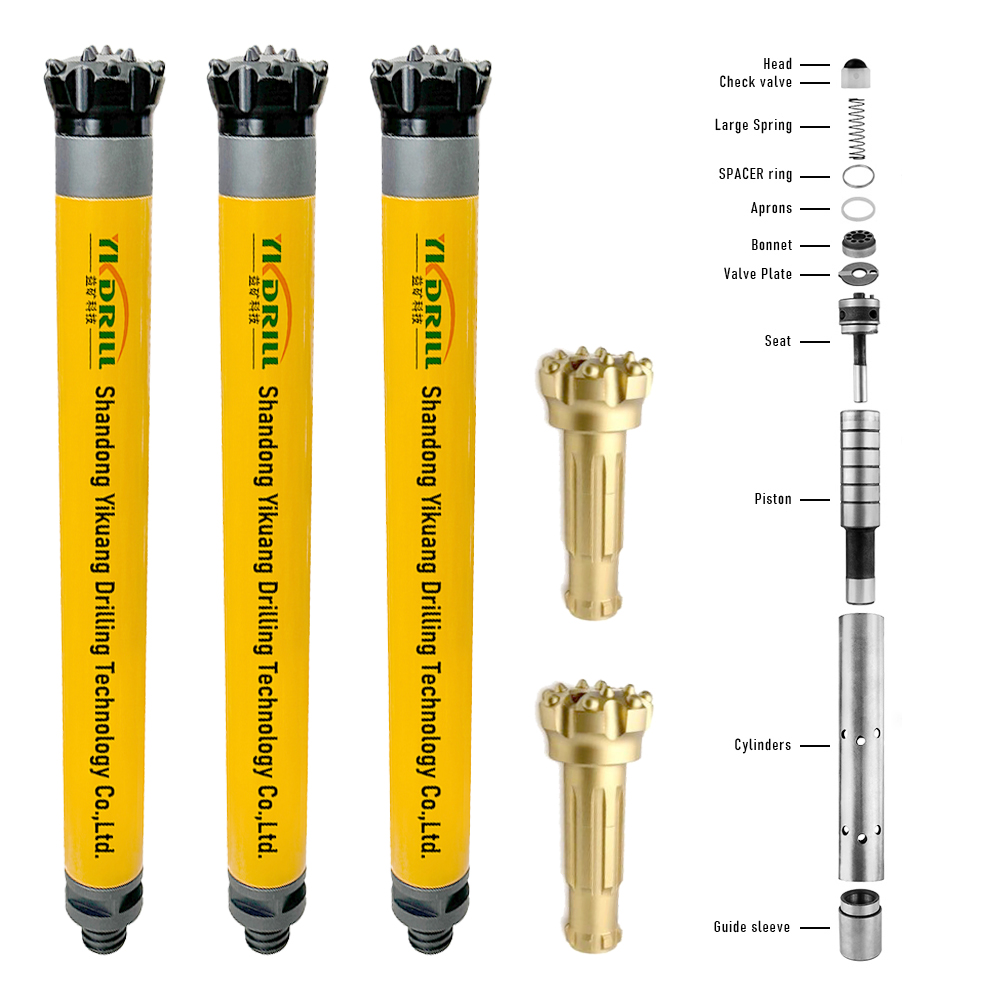

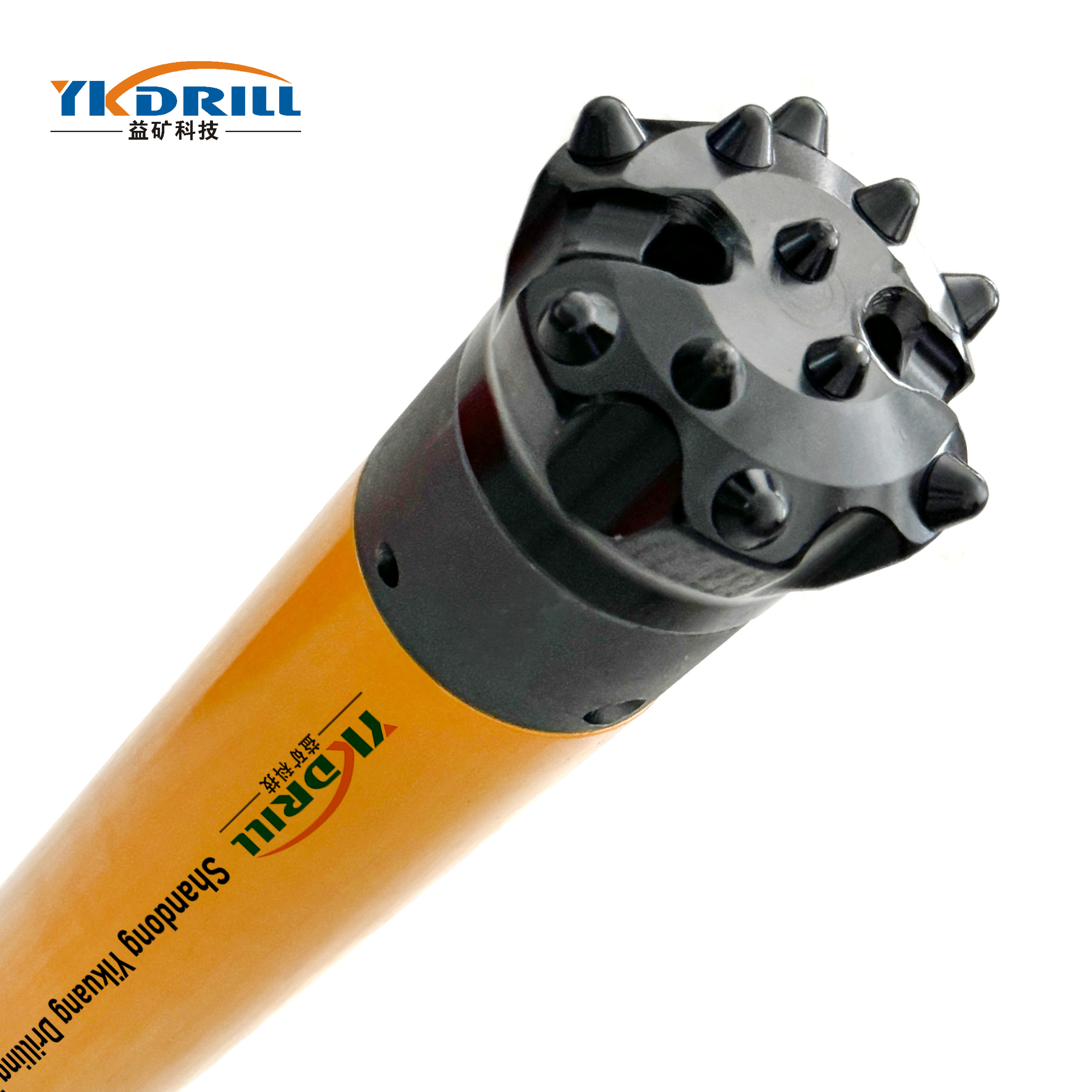

CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
1 / 5
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines
CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines

CIR90 DTH Hammer Medium And High Pressure DTH Impactor For Open-pit And Underground Mines

Send Inquiry

Product Description

DTH Hammer Banner
⚙️ Product Description

DTH Hammer is widely used in geotechnical engineering, with various hardness and high hardness levels. Hard rock with poor toughness has the following characteristics: reasonable material selection, advanced manufacturing technology, and perfect quality assurance.

  • Higher penetration rate for efficiency.
  • Hardening treatment to prolong service life and reduce costs.
  • Large single impact force with low power consumption during crushing.
  • Excellent power transmission through optimized piston and weight design.
  • Modern structural theory for longer stress waves and lower stress amplitude.

CIR90 DTH Hammer Medium and High Pressure DTH Impactor is ideal for Open-pit and Underground Mines, marble quarrying, water well drilling, and other engineering construction projects.

📊 Specification

The sizes are here for your convenience. If you do not find the specific model you require, please consult our technical parameters.

CIR90A Parameters
Length (Less bit) Weight (Less bit) External Diameter Bit Shank Hole Range Connection Thread
796mm 20.3kg φ80mm CIR90 φ90-130 F48X10PIN
Working Pressure Impact rate at 0.63Mpa Recommended rotation speed Air Consumption
0.5-1.0Mpa 16.6Hz 30-80r/min 0.5Mpa 0.63Mpa 1.0Mpa
75L/s 95L/s 110L/s

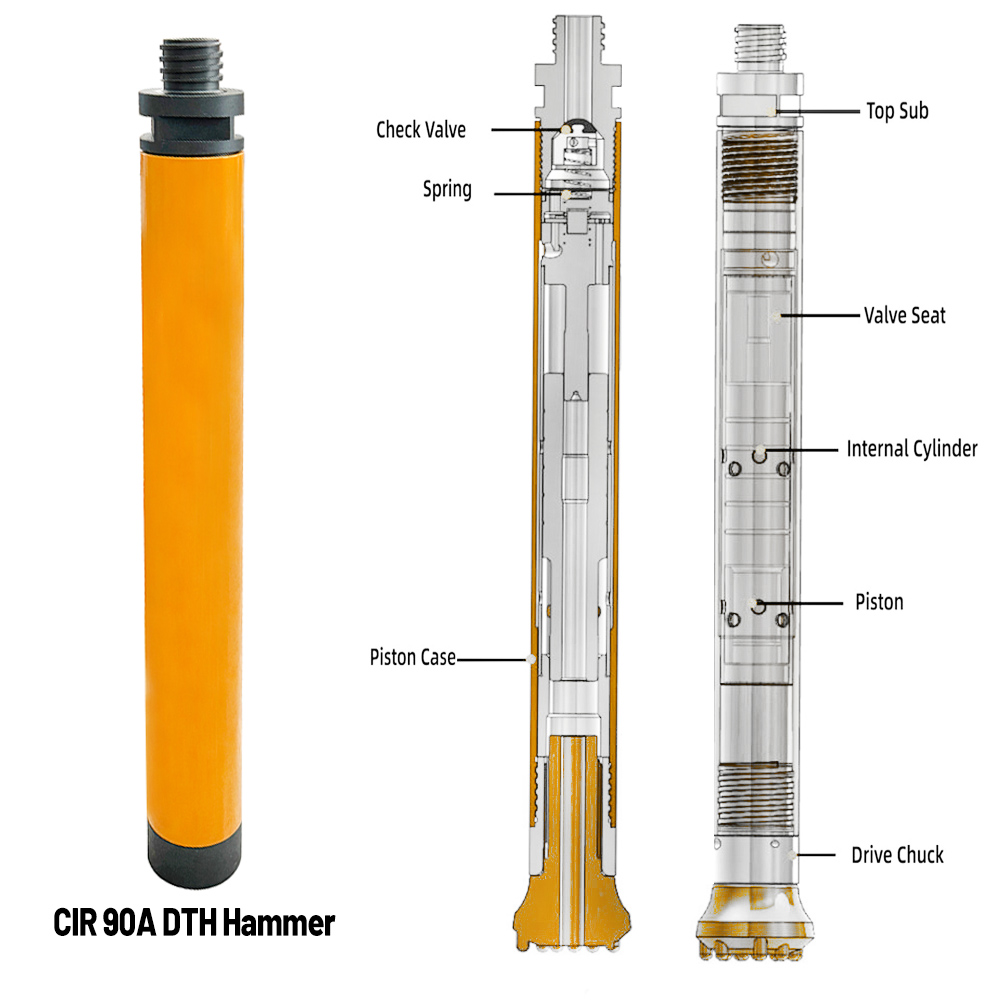

DTH Hammer Detail 1
DTH Hammer Detail 2

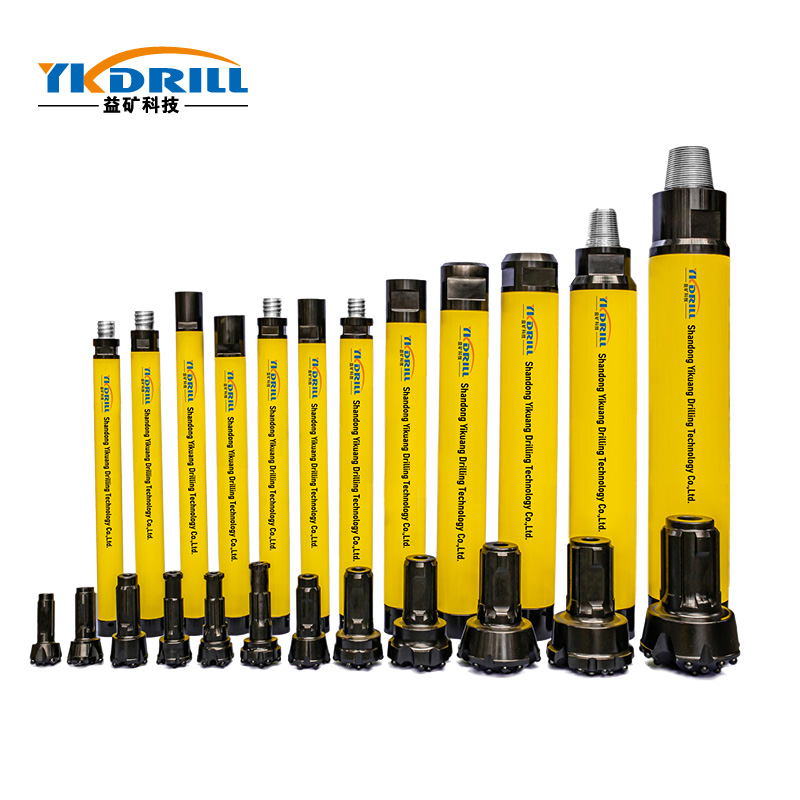

DTH Hammer Detail 3

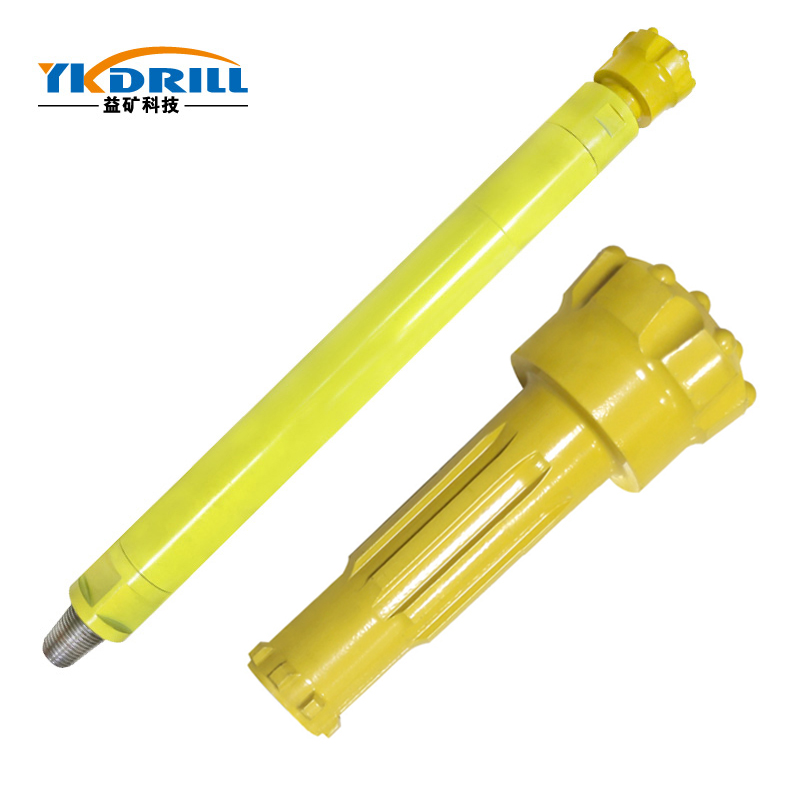

DTH Hammer Detail 4

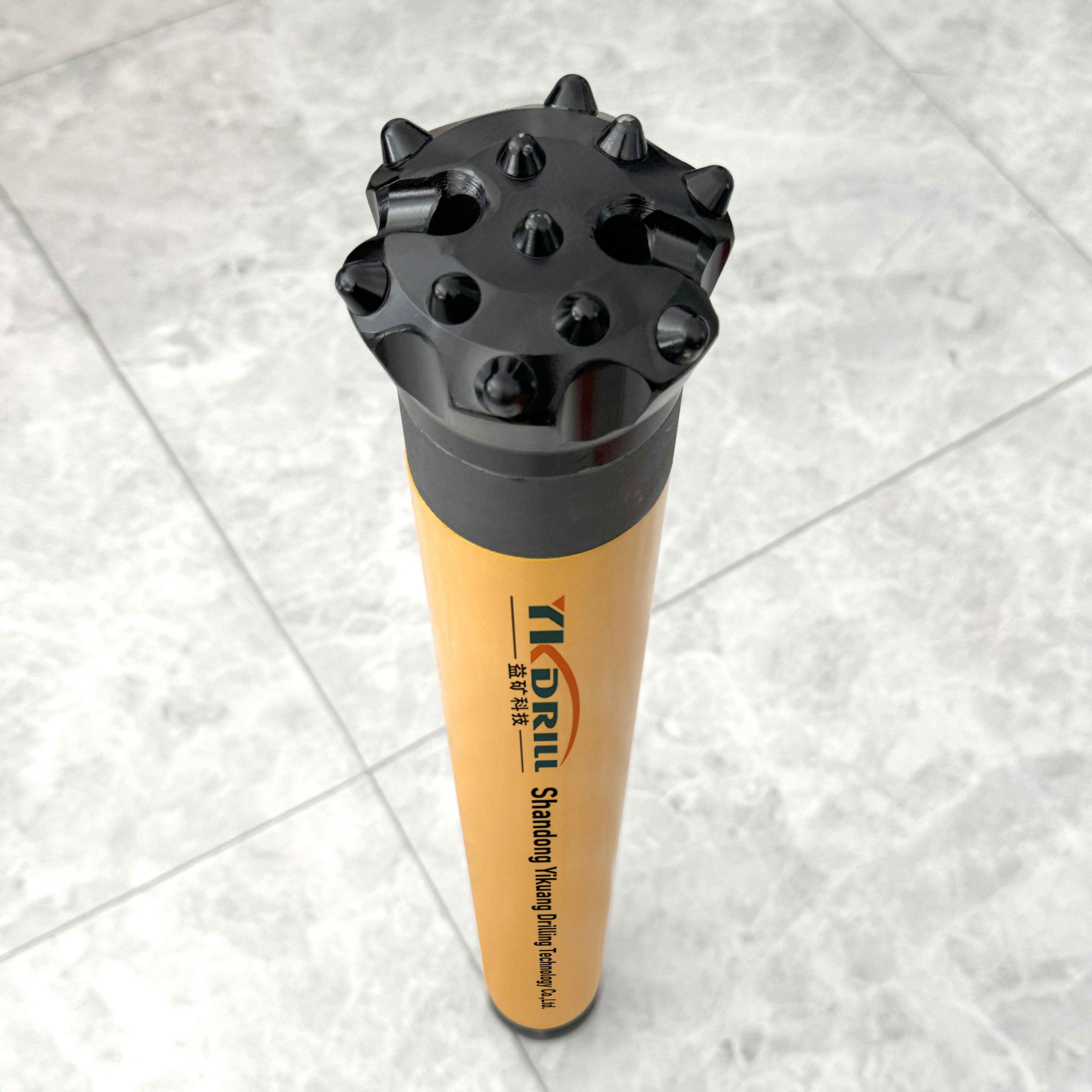

DTH Hammer Detail 5

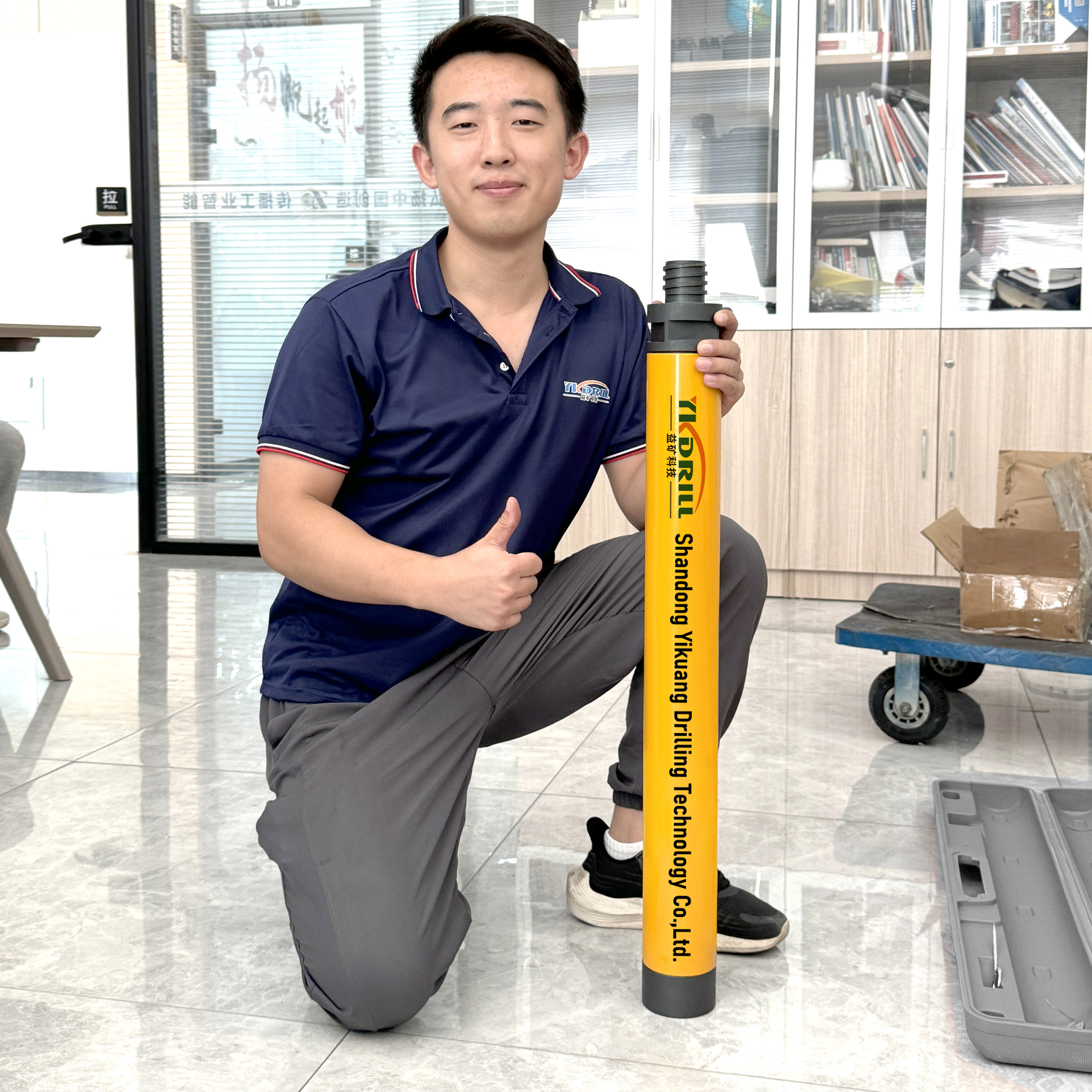

DTH Hammer Detail 6

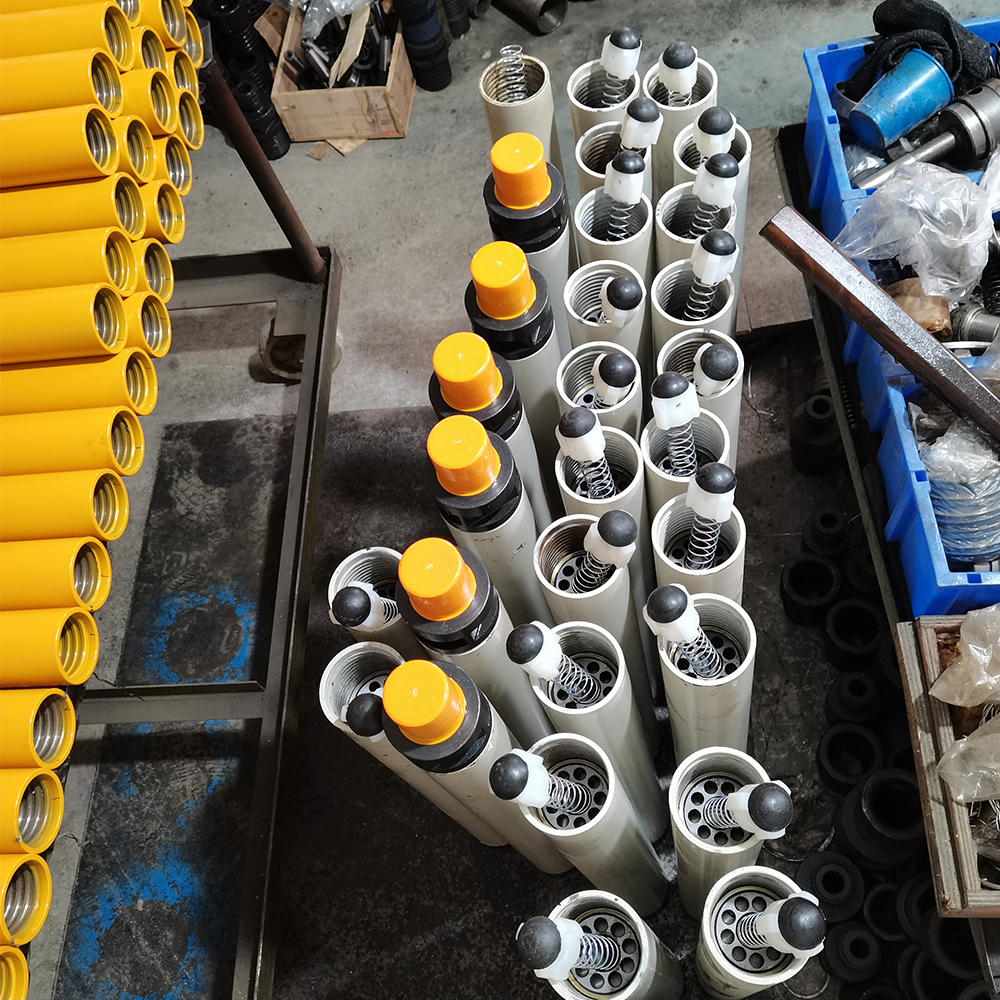

DTH Hammer Detail 7
DTH Hammer Detail 8
🏗️ Application

All our products, which passed ISO9001 quality management system, are widely used in:

Open pit mining, tunneling, quarrying, transportation construction, engineering, earth-rock excavation, water wells, pile foundation, and civil engineering projects.

We provide one of the most complete product lines and abundant species used in the drilling industry worldwide.

📦 Packing & Delivery

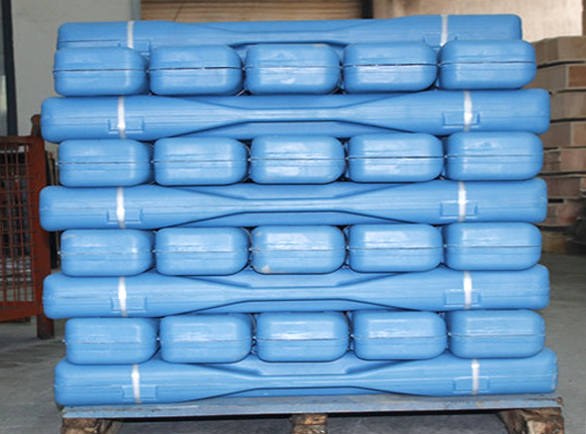

Packing 1

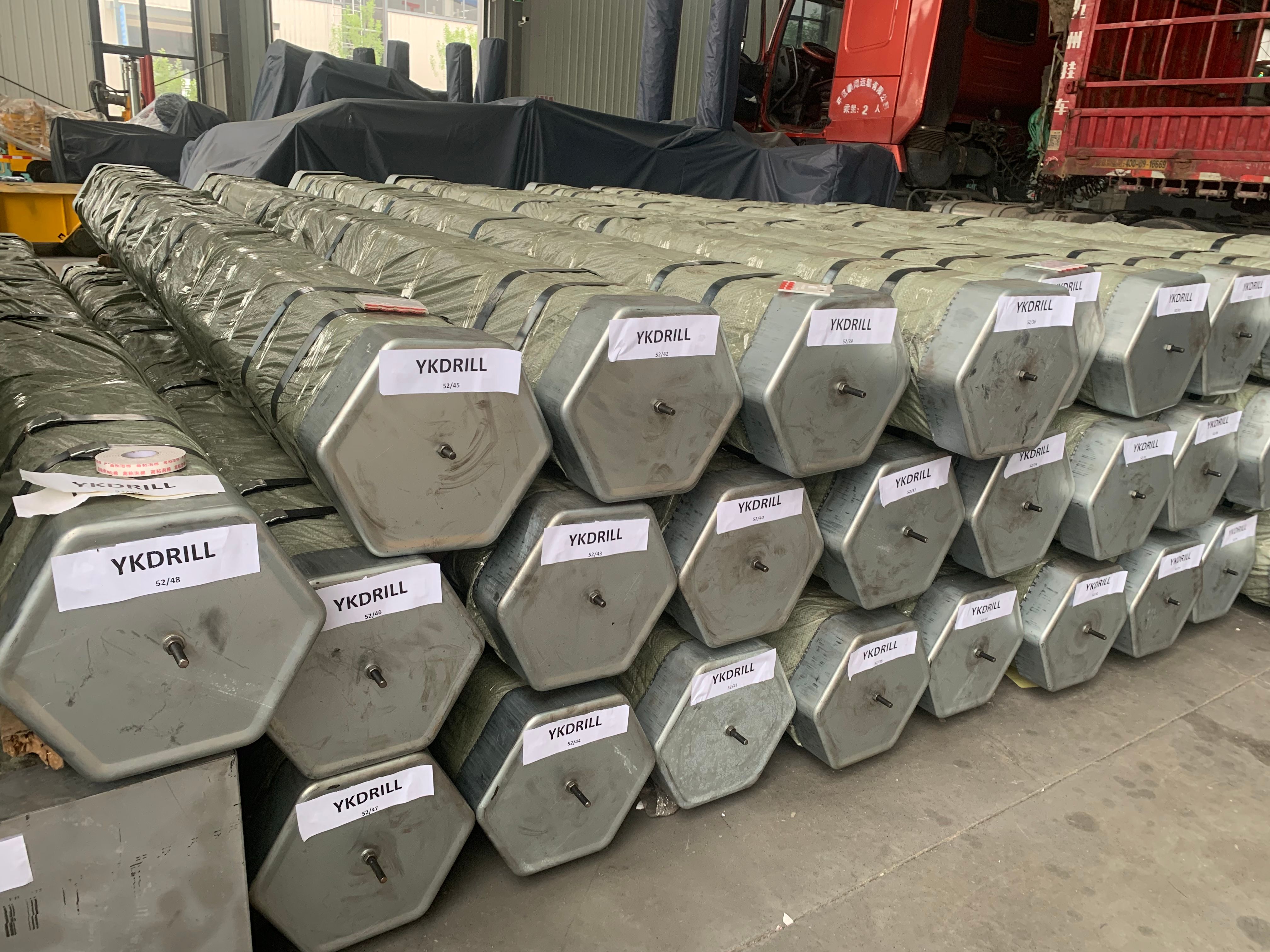

Packing 2

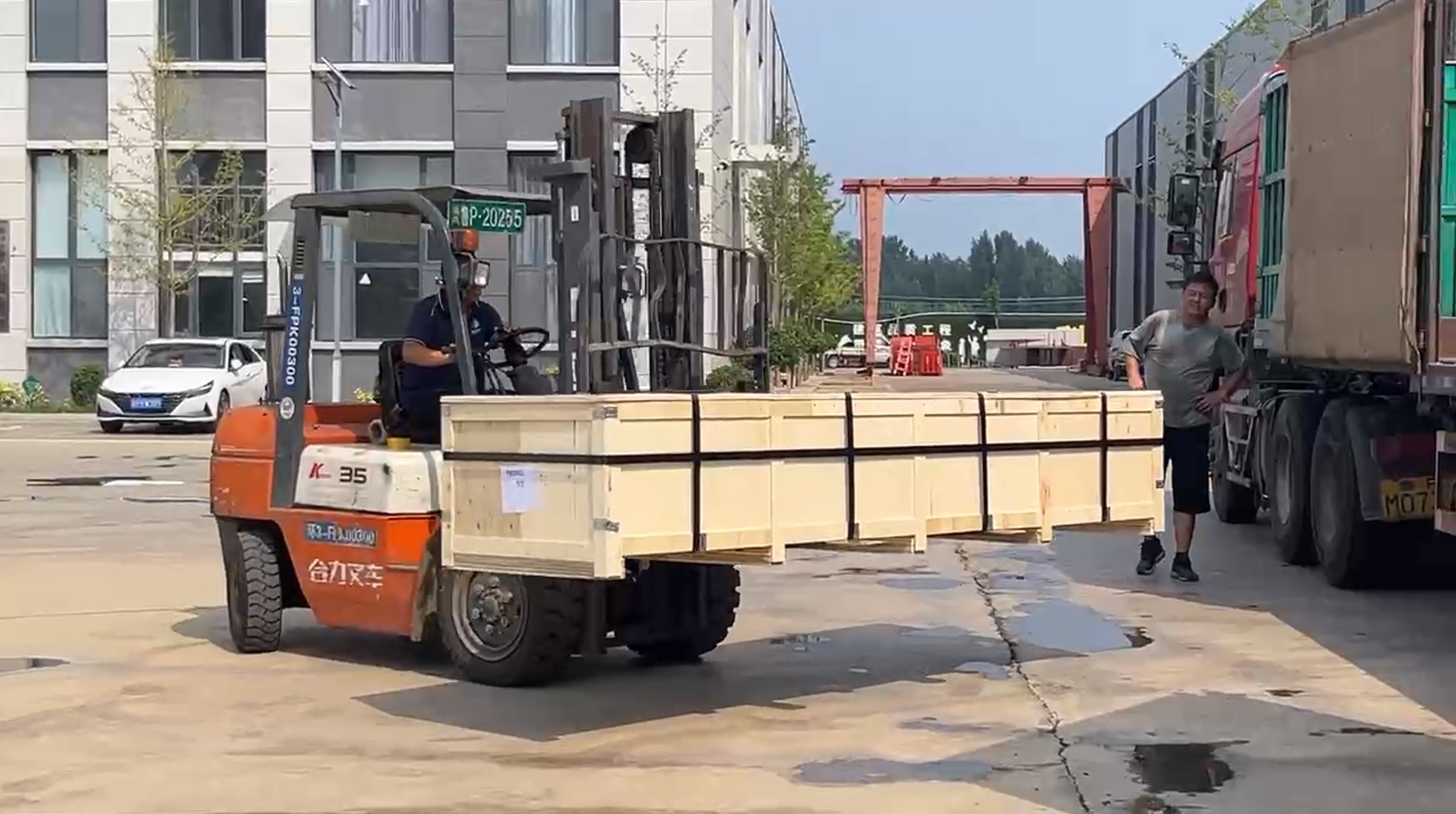

Delivery 1

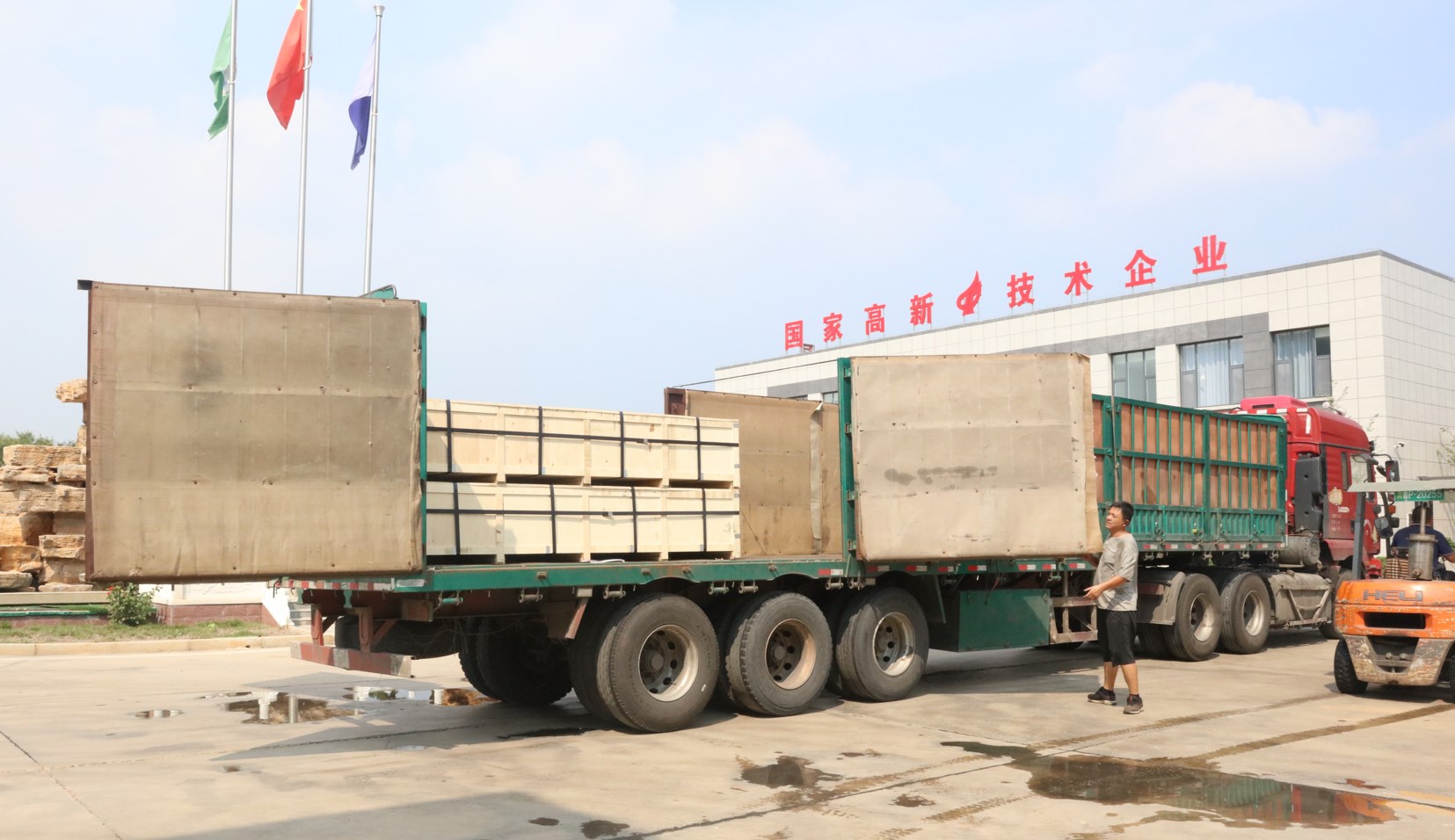

Delivery 2

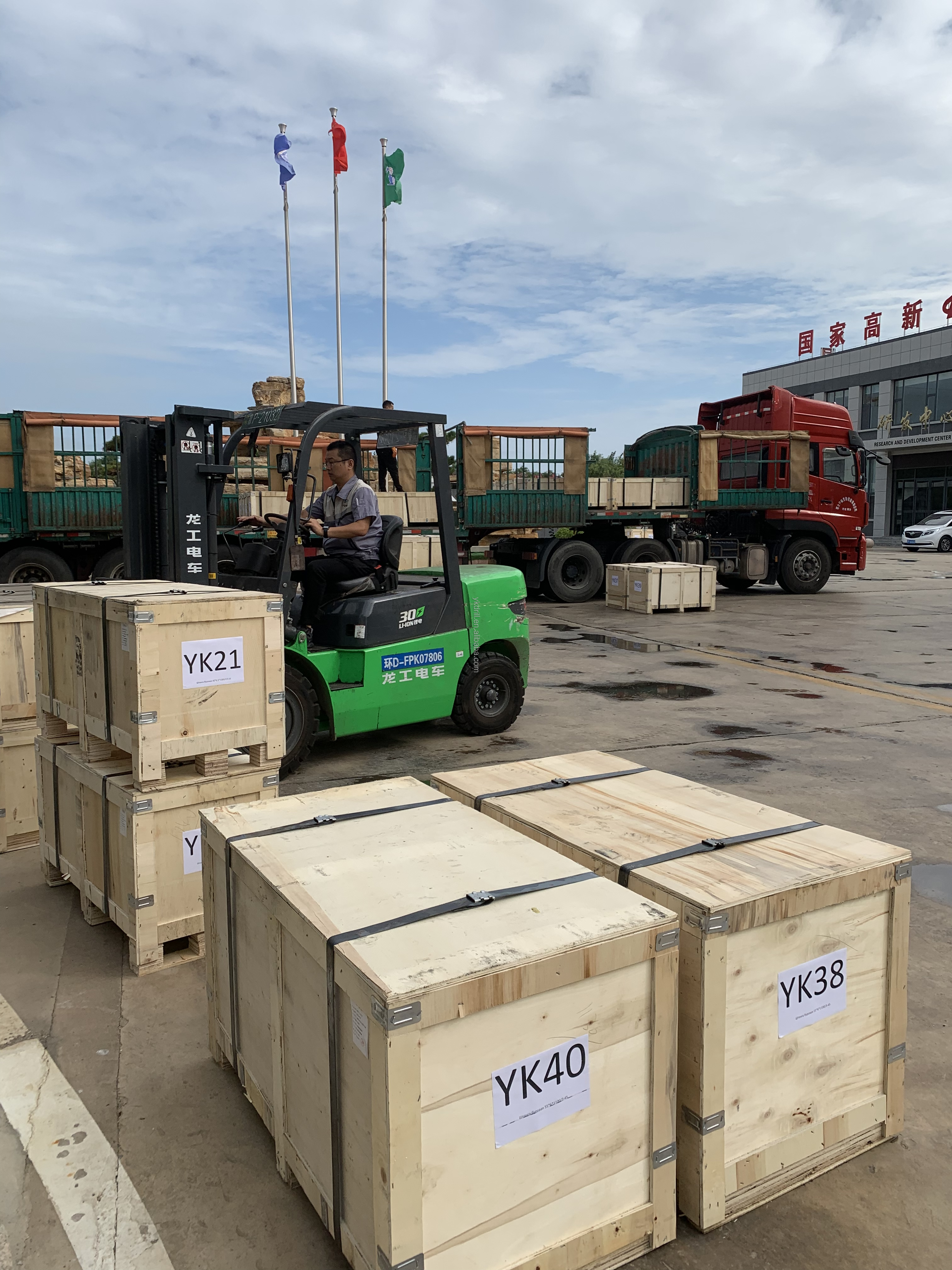

Delivery 3
🏢 Company Profile
Certification

Safe and reliable product quality, serving for mining, water well drilling, and pile foundation construction.

Factory 1
Factory 2
Workshop 1
Workshop 2
Workshop 3
Process 1

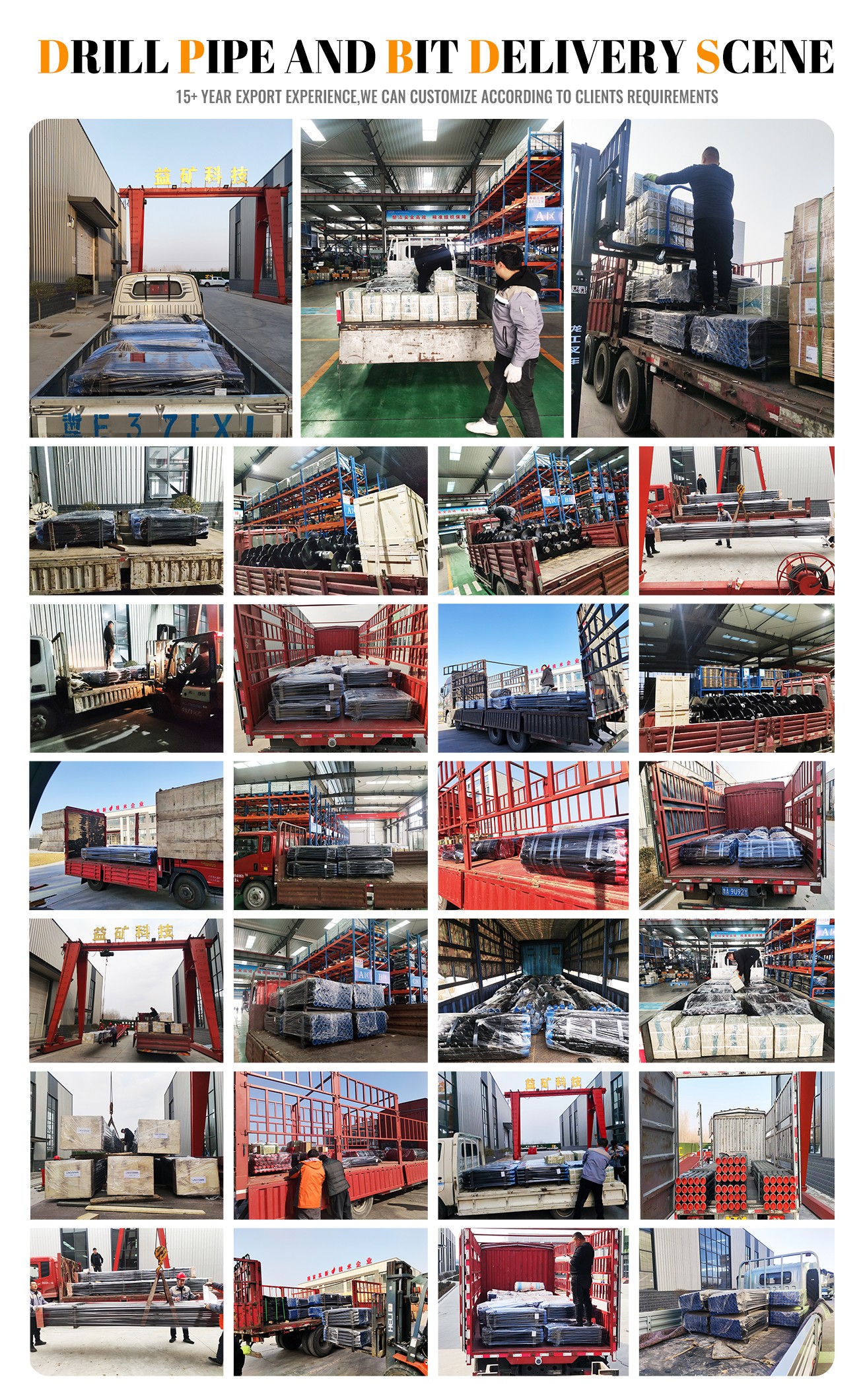

Process 2

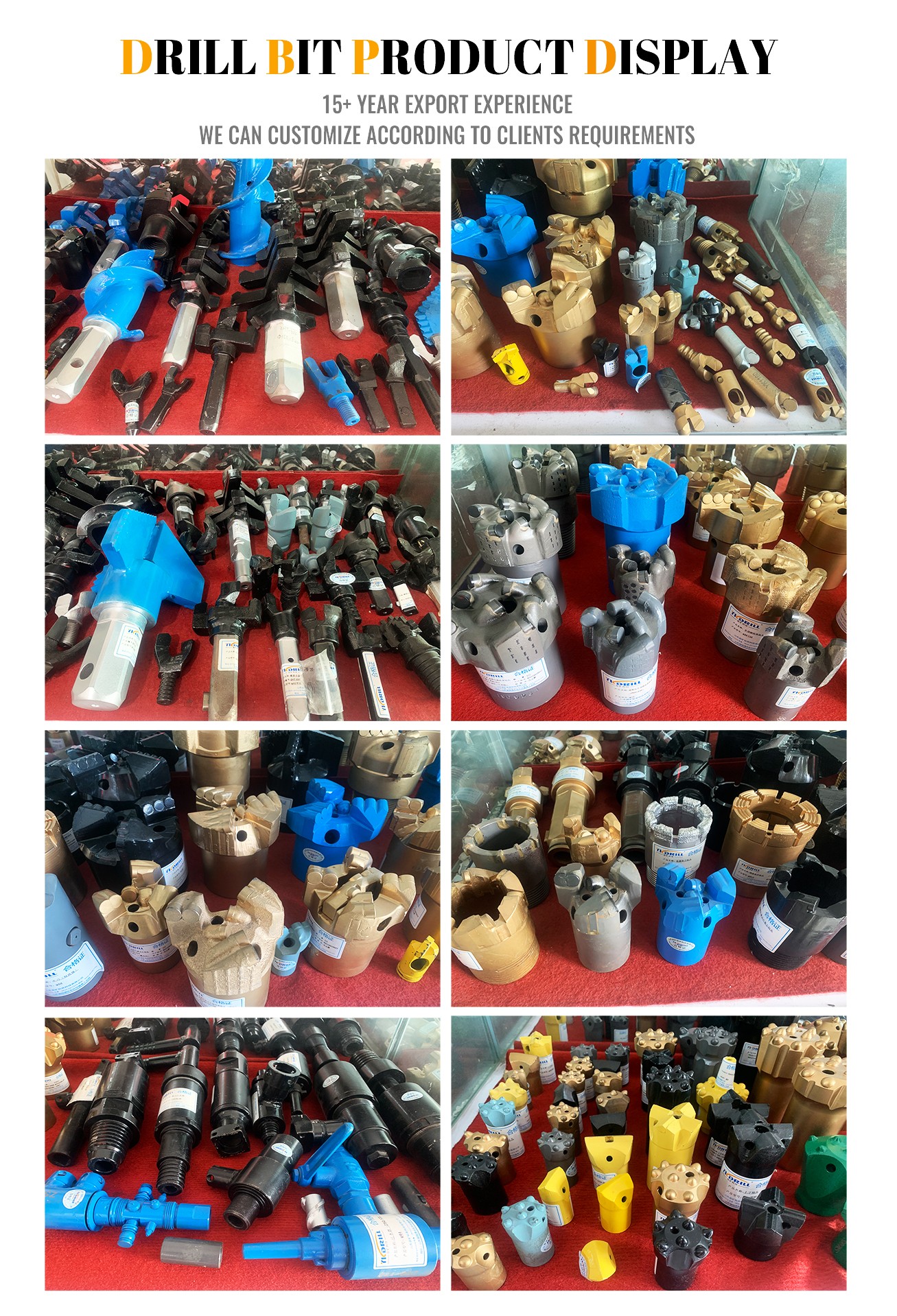

Process 3
❓ Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized manufacturer with a long history in the drilling industry.
What are your main products and their uses?
Our products include core barrels, casing, drill rods, drill rigs, and other drilling parts used for mineral exploration and geological drilling.
What are your delivery and payment terms?
Payment: T/T, L/C, Western Union, Paypal (30% deposit). Min order: 1 piece. Transportation: By sea or train.
How do you handle after-sales service and quality issues?
With over 32 years of history, we offer prompt technology support and accept goods return or replacement for verified quality problems.
How does your company control product quality?
Quality first. We conduct serious inspections for all products and raw materials following strict procedures to guarantee high quality.
Do you accept sample orders?
Yes, we welcome sample orders. Please contact our team for further details.
