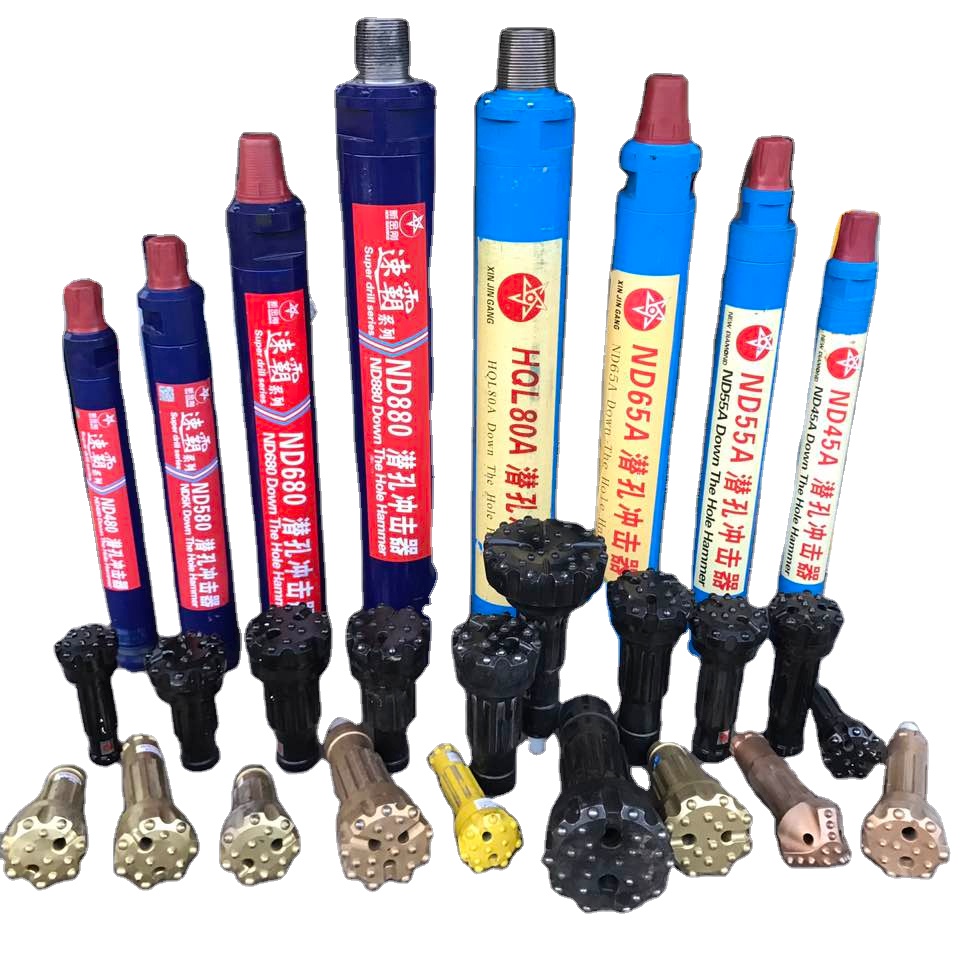

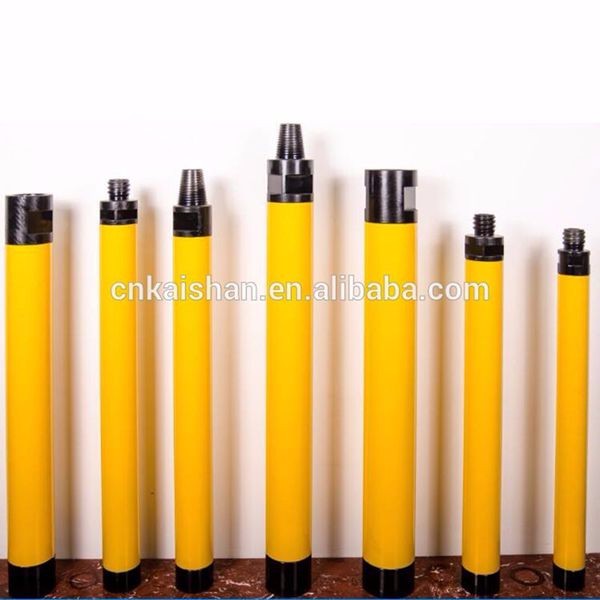

3" 4" 5" 6" 8" Down the Hole DTH Drill Hammers and Bits

Product Description

Products Description

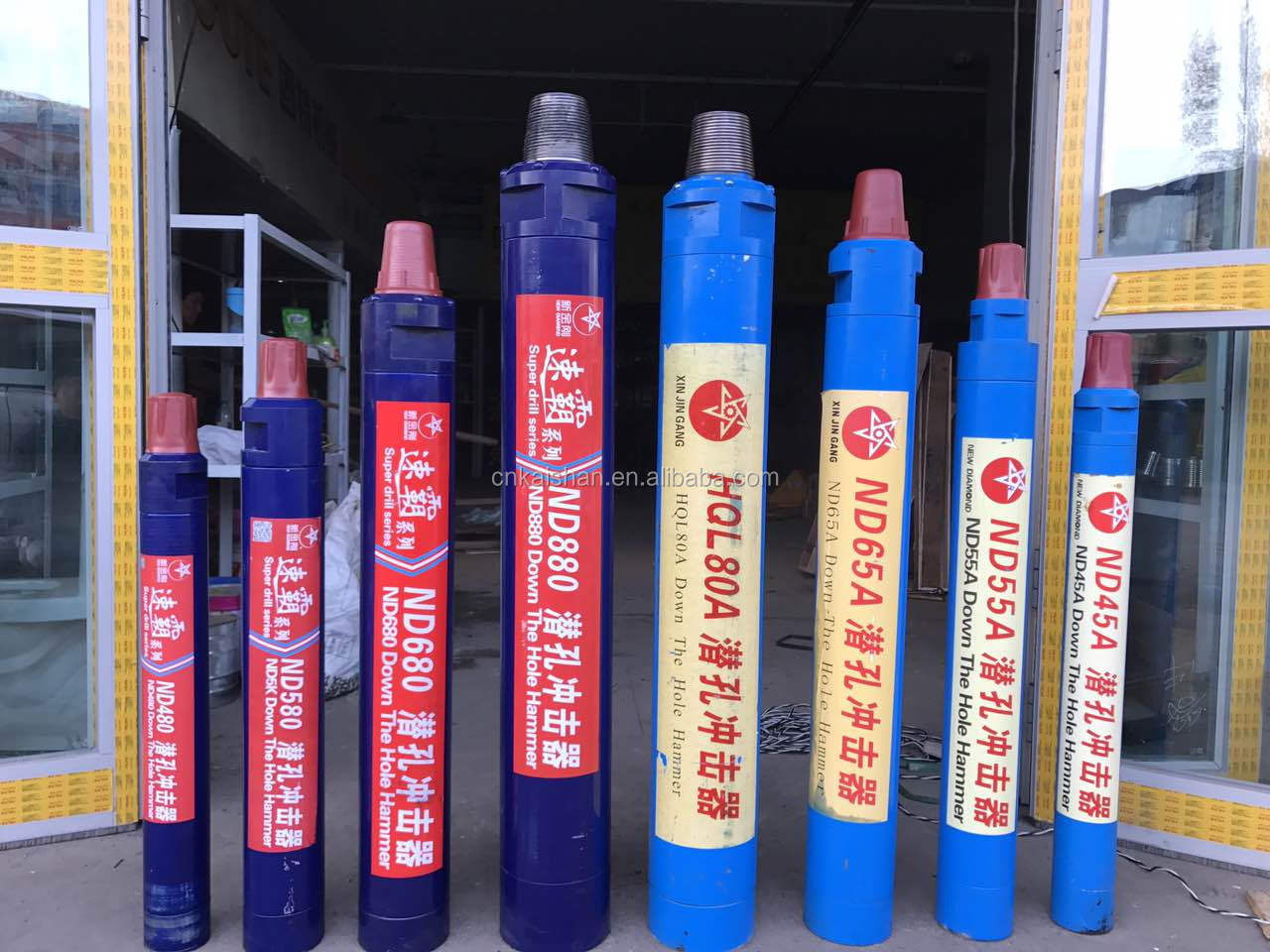

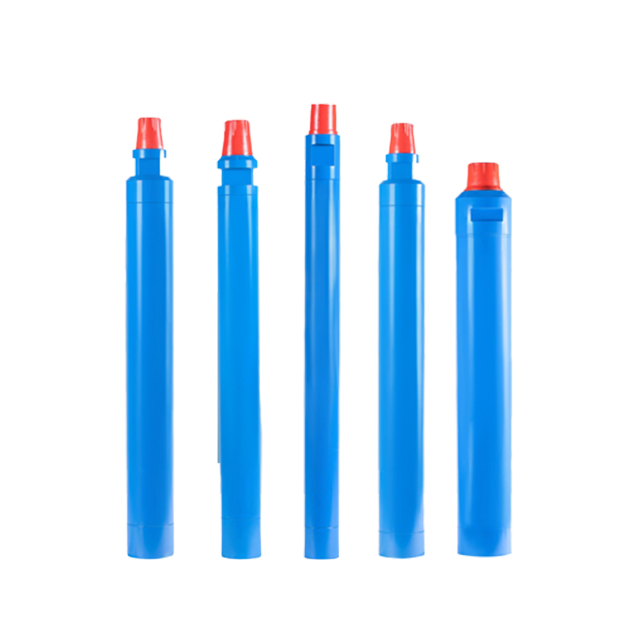

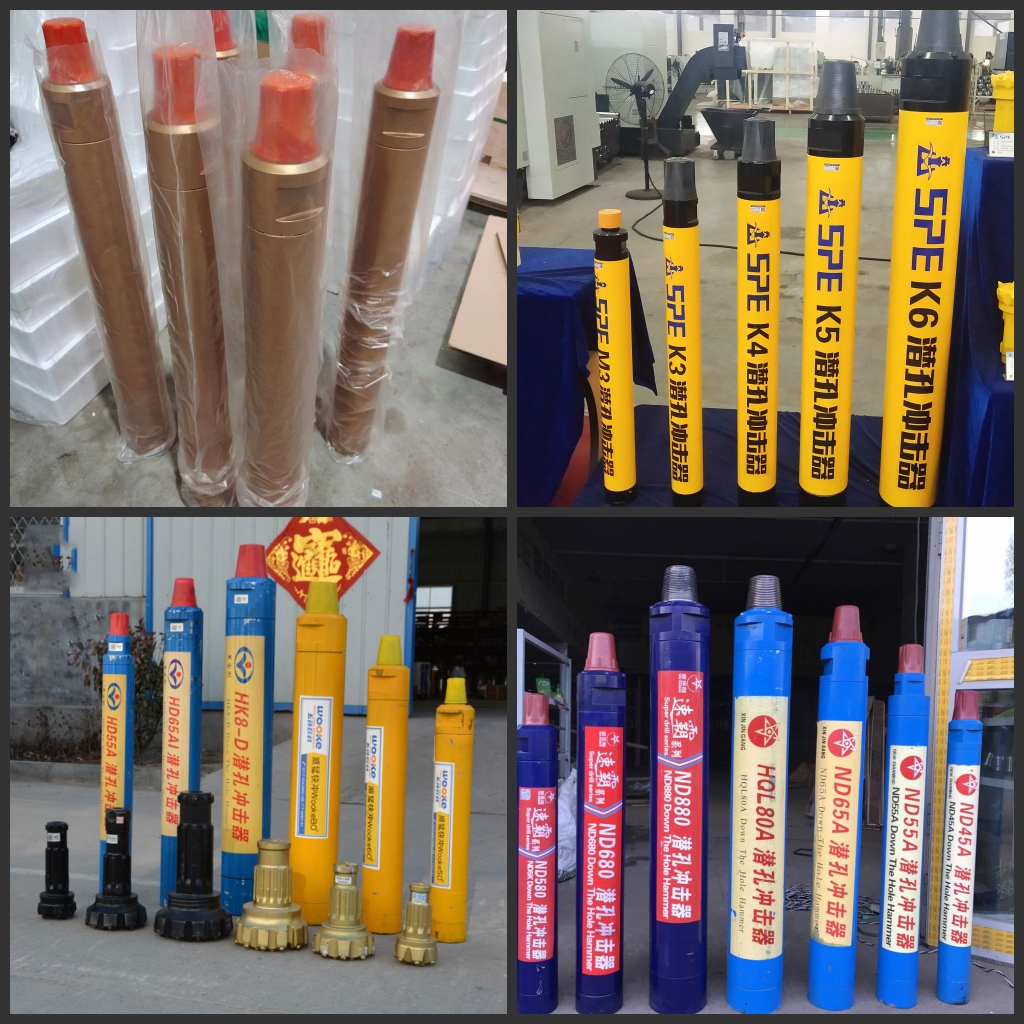

DTH Hammer Product

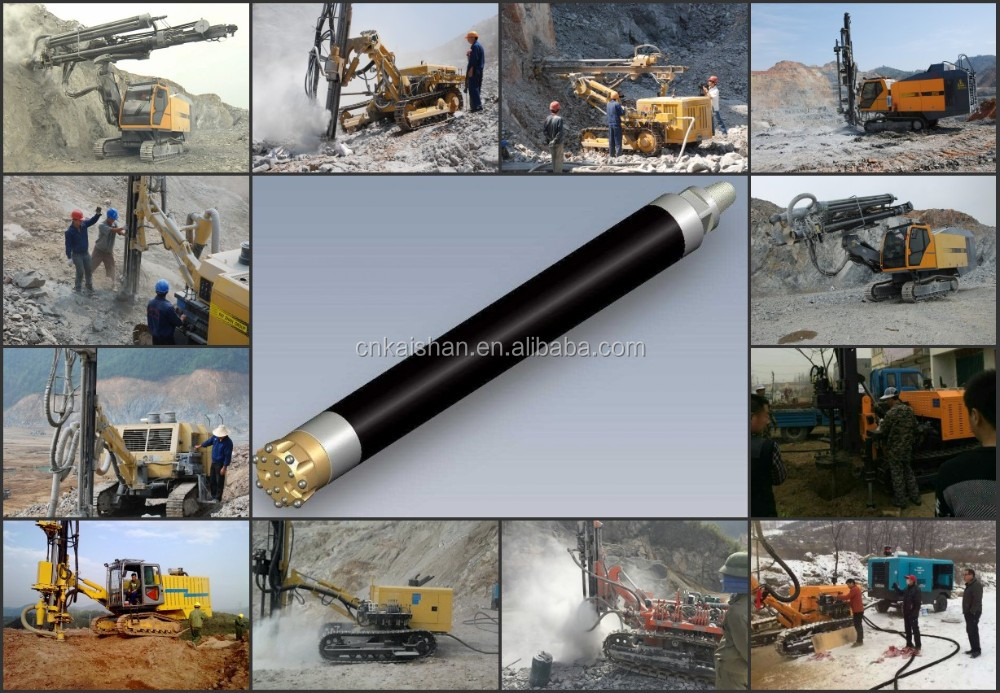

DTH Hammer are widely used in geotechnical engineering, with various hardness and high hardness. Hard rock with poor toughness has the following characteristics: reasonable material selection, advanced manufacturing technology and perfect quality assurance. The penetration rate is higher. It can provide hardening treatment, prolong service life and reduce use cost. The single impact force is large, and the power consumption is low when crushing. The piston and weight have excellent power transmission. The structural design adopts modern theory, which makes the stress wave last longer, the stress amplitude lower and the piston life longer.mainly used in mining, marble, quarry blasting, water well drilling and other engineering construction.

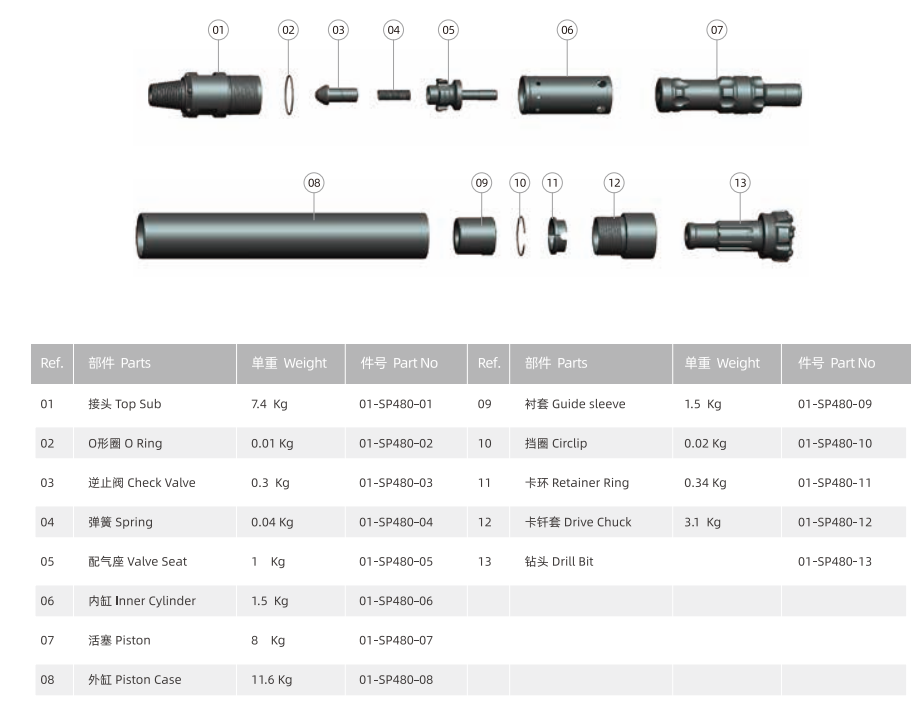

Speed Master Series
Speed Master Series
  • The drill bit does not need nylon tube, thus saving the trouble of "hard gas" caused by broken nylon tube, damage and thermal expansion and cold contraction.
  • The impactor has low energy consumption and high impact frequency, and the drilling speed is 15%-30% faster than that of the same type impactor with nylon tube.
  • Very simple structure, good reliability of components, long service life of impactor, simple maintenance and low cost.
  • With few parts, simple structure and hardening treatment of all parts, it has long service life, few faults and convenient maintenance.
Length Weight Outer diameter Connection Thread Bit Shank Hole Range Working Pressure Rotation Speed
863mm35kg¢100mmAPI2 3/8"REGSP480¢108-¢135mm1.0-1.9 Mpa30-60r/min
970mm64kg¢126mmAPI2 3/8"REGSP580¢136-¢155mm1.2-2.2 Mpa30-60r/min
1131mm100.5kg¢148mmAPI3 1/2"REGSP680¢158-¢203mm1.2-2.7 Mpa30-60r/min
1195mm140kg¢165mmAPI3 1/2"REGSP780¢178-¢216mm1.5-2.8 Mpa30-60r/min
1264mm181kg¢185mmAPI4 1/2"REGSP882¢198-¢254mm1.5-3.3 Mpa30-60r/min
1410mm289kg¢225mmAPI5 1/2"REGSP1080¢254-¢311mm1.5-3.3 Mpa25-50r/min
1630mm530kg¢275mmAPI6 5/8"REGSP1280¢295-¢400mm1.5-3.3 Mpa30-55r/min
1744mm796kg¢332mmAPI7 5/8"REGSP1480¢350-¢550mm1.5-3.3 Mpa30-55r/min
1957mm1582kg¢445mmAPI8 5/8"REGSP1880¢500-¢680mm1.5-3.3 Mpa20-40r/min

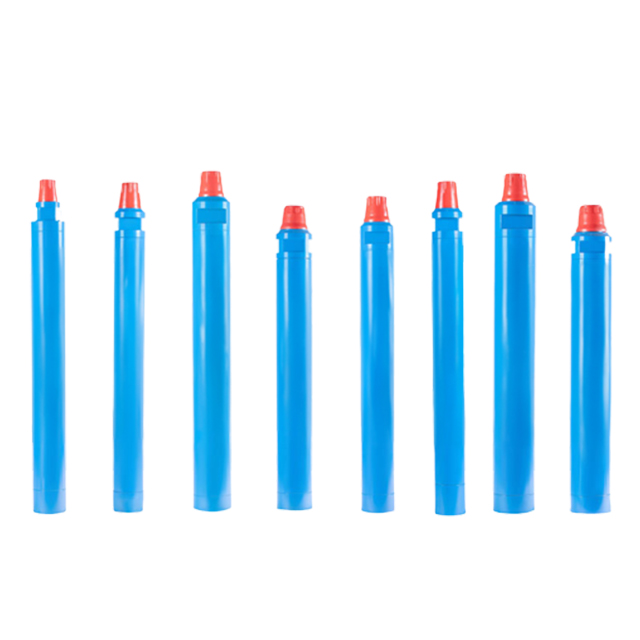

ND/QL Valveless Series DTH Hammer
  • The drill bit does not need nylon tube, saving trouble caused by fracture and thermal expansion.
  • Low energy consumption and 15%-30% faster drilling speed.
  • Few parts, simple structure, low maintenance cost.
  • All internal parts are hardened for long working life.
  • Easy disassembly with threaded connections.
Length Weight Outer diameter Thread Bit Shank Hole Range Pressure Rotation
872mm16kg¢71mmT48X10X1.5ND25A¢76-¢90mm1.0-1.7 Mpa30-50r/min
886mm24.2Kg¢82mmAPI2 3/8"REGND35A¢90-¢115mm1.0-1.7 Mpa30-50r/min
986mm40.5Kg¢99mmAPI2 3/8"REGND45A¢110-¢135mm1.0-2.2 Mpa30-60r/min
1122mm70Kg¢126mmAPI2 3/8"REGND55A¢136-¢155mm1.0-2.5 Mpa30-60r/min
1210mm106Kg¢148mmAPI3 1/2"REGND65A¢158-¢190mm1.2-2.5 Mpa30-60r/min
1354mm193Kg¢185mmAPI4 1/2"REGND85A¢198-¢254mm1.5-3.3 Mpa30-60r/min
1475mm299.5Kg¢225mmAPI51/2"REGNUMA100A¢254-¢311mm1.5-3.3 Mpa25-50r/min
1785mm698.5Kg¢305mmAPI6 5/8"REGNUMA125A¢330-¢400mm1.5-3.3 Mpa25-45r/min
1057mm42.7Kg¢99mmAPI2 3/8"REGQL40A¢110-¢135mm1.0-2.2 Mpa30-60r/min
1155mm102Kg¢148mmAPI3 1/2"REGQL60A¢158-¢203mm1.2-2.7 Mpa30-60r/min

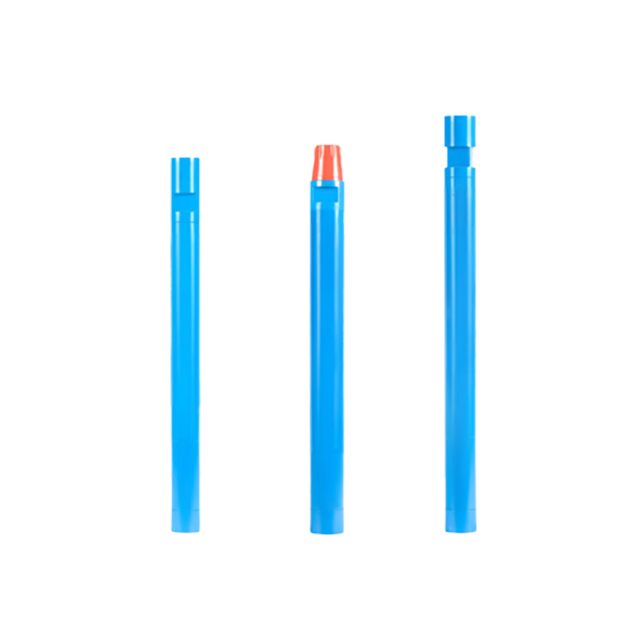

ND/QL Series DTH Hammer with foot valve
  • Reliable valveless gas distribution.
  • Simple piston structure, resistant to damage.
  • Fast drilling speed, small gas and low oil consumption.
  • Long service life and convenient maintenance.
  • Easy to disassemble threaded outer cylinder.
Length Weight Outer diameter Thread Bit Shank Hole Range Pressure Rotation
928mm25Kg¢82mmAPI2 3/8"REGDHD3.5¢90-¢110mm1.0-1.7 Mpa30-60r/min
1032mm43Kg¢99mmAPI2 3/8"REGDHD340¢110-¢135mm1.0-2.2 Mpa30-60r/min
1209mm78.5Kg¢125mmAPI2 3/8REGDHD350¢135-¢155mm1.0-2.5Mpa30-60r/min
1492mm190Kg¢180mmAPI41/2"REGDHD380¢195-¢254mm1.5-3.3 Mpa30-60r/min
1845mm589Kg¢275mmAPI6 5/8"REGDHD1120¢295-¢400mm1.5-3.3 Mpa25-50r/min

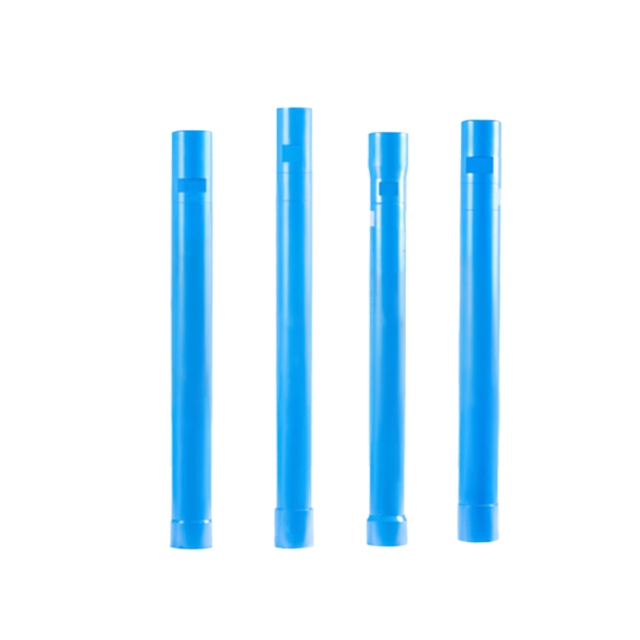

MISSION/SD Shank DTH Hammer
Length Weight Outer diameter Thread Bit Shank Hole Range Pressure Rotation
931mm23Kg¢82mmAPI2 3/8"REGM30¢90-¢115mm1.0-1.7 Mpa30-50r/min
1122mm70.5Kg¢126mmAPI23/8"REGM50¢136-¢155mm1.0-2.5 Mpa30-60r/min
1178mm73.6Kg¢125mmAPI2 3/8"REGSD5¢135-¢155mm1.0-2.5 Mpa30-60r/min
1463mm194Kg¢180mmAPI4 1/2"REGSD8¢15-¢254mm1.5-3.3 Mpa30-60r/min

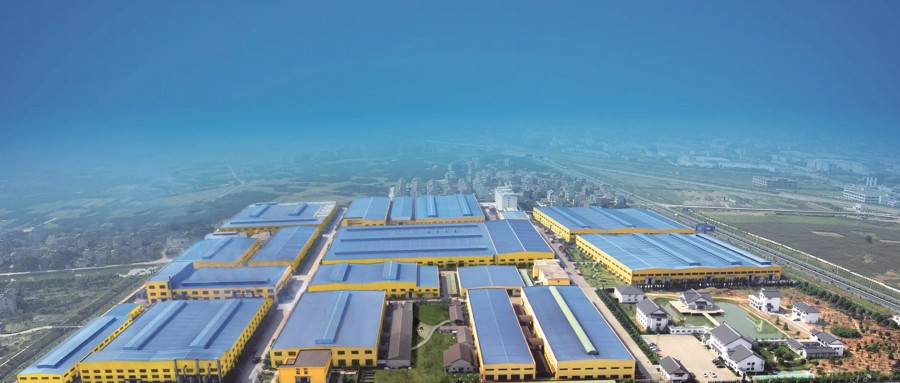

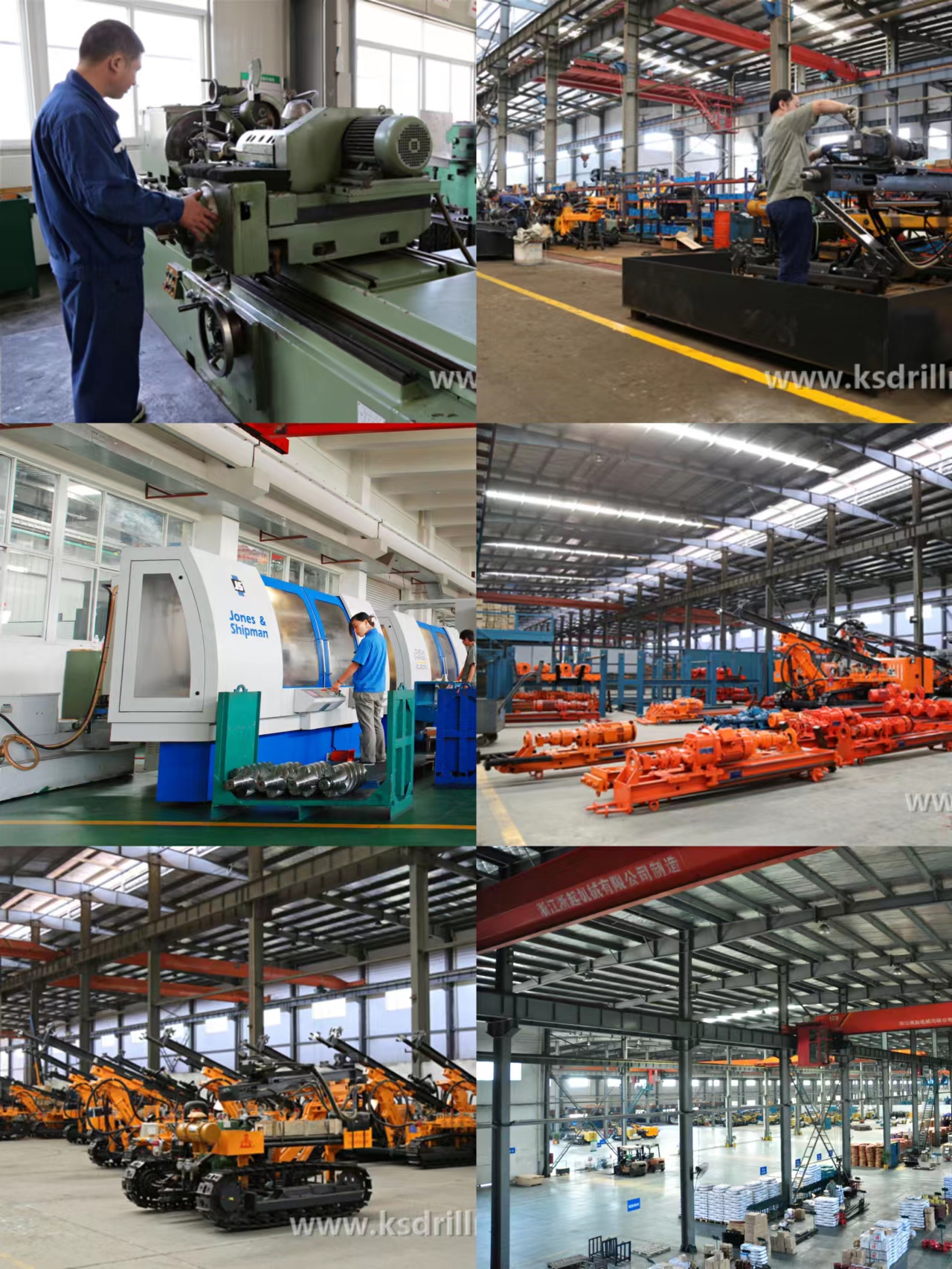

Company Profile
Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings. We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service. OEM and ODM services are also available.
Exhibition
?
FAQ
Q1: Are you a manufacturer?
Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
The main products include blasting drilling rig, water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, depending on different products.
Q4: What methods of payment do you accept?
We accept T/T and L/C.
Q5: Do you offer any deals or discounts?
Yes, price depends on the order quantity; different quantities will result in different pricing.
Q6: Do you provide OEM/ODM services?
Yes, in addition to our standard products, we can provide both OEM and ODM services based on client requirements.
