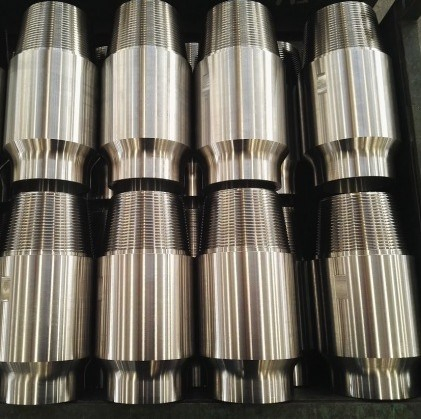

Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
1 / 5
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub
Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub

Drill Pipe Tool Joint API 5dp Drill Bits Crossover Sub

Customization: Available
After-sales Service: 24/7
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Manufacturing ProcessForging
Surface TreatmentWithout Processing
Operation PressureAtmospheric Pressure
MaterialPlastic
SpecificationJ55 P110
TrademarkGM
HS Code8431
Production Capacity80000/Year
Packaging & Delivery
Package Size900.00cm * 50.00cm * 50.00cm
Package Gross Weight50.000kg
Product Description

Drill pipe tool joint welding manufacturer drill pipe joint

Drill Pipe Tool Joint

API Drill Pipe Joint Overview:

  • Tool Joint Options: NC26, NC31, NC38, NC40, NC46, NC50
  • Types of Tool Joint: NC, IF, FH, XH, REG
  • Premium Materials: 40Cr, 35CrMo, 4137H

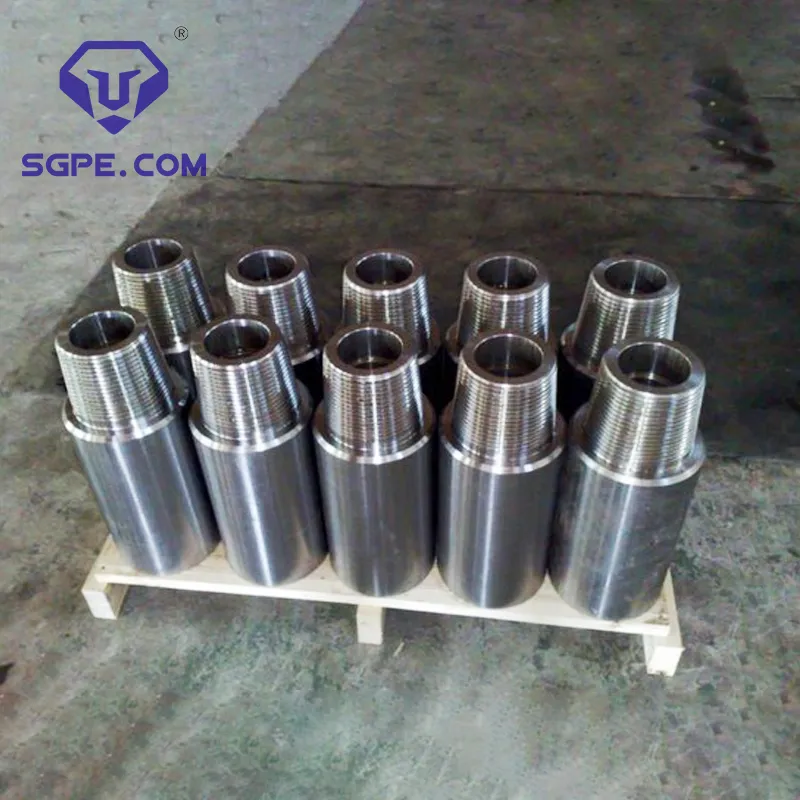

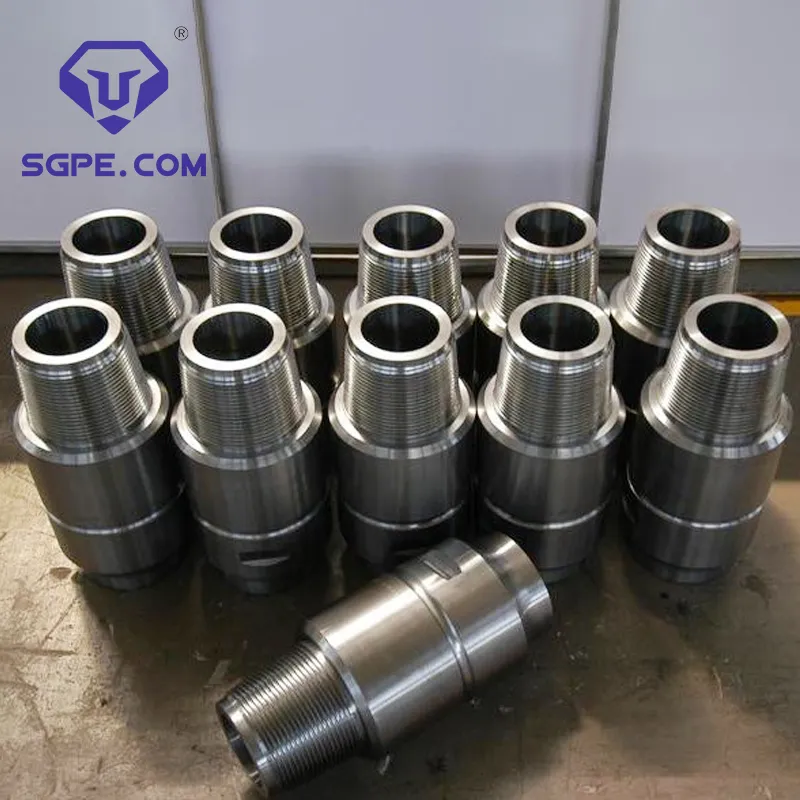

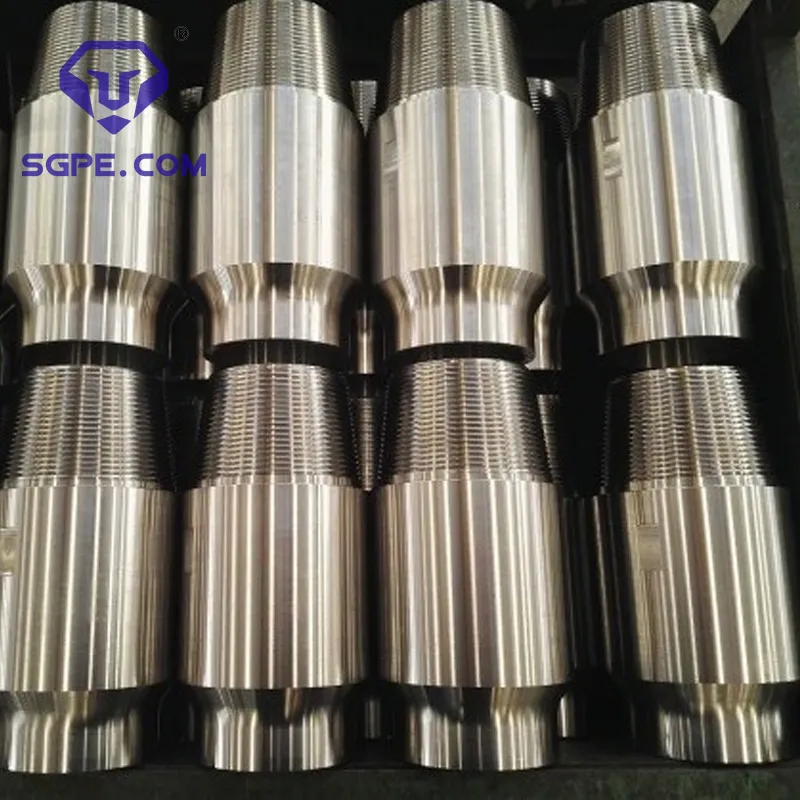

API Drill Pipe Joint 1 API Drill Pipe Joint 2 API Drill Pipe Joint 3

Drill pipe joint is an important connecting component of petroleum drilling pipe drill, which is widely used in oil drilling industry. The market demand is big, has broad prospects for development, with a focus on creating a modern international joint industry.

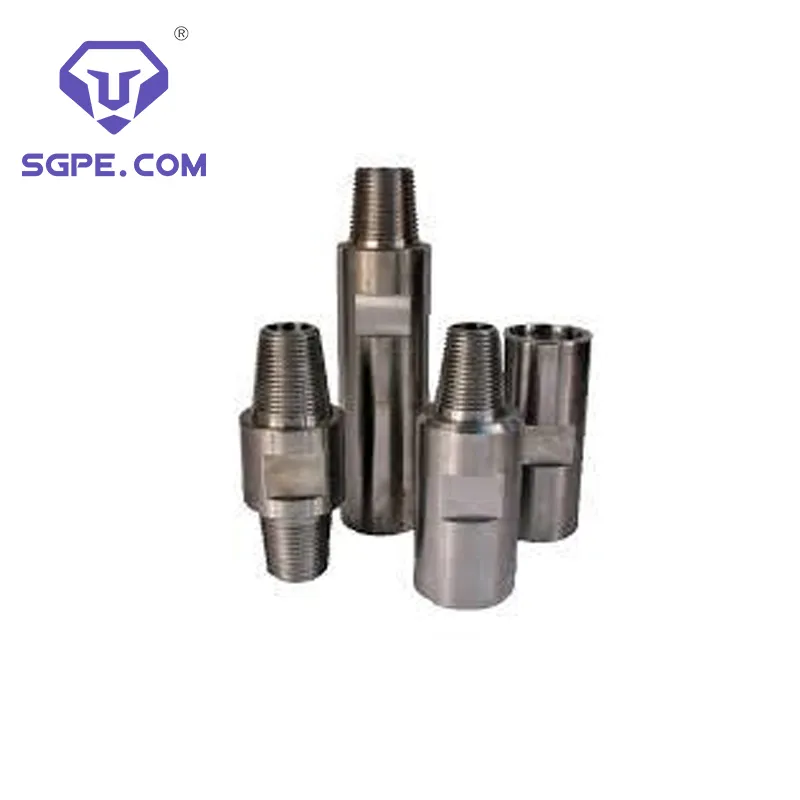

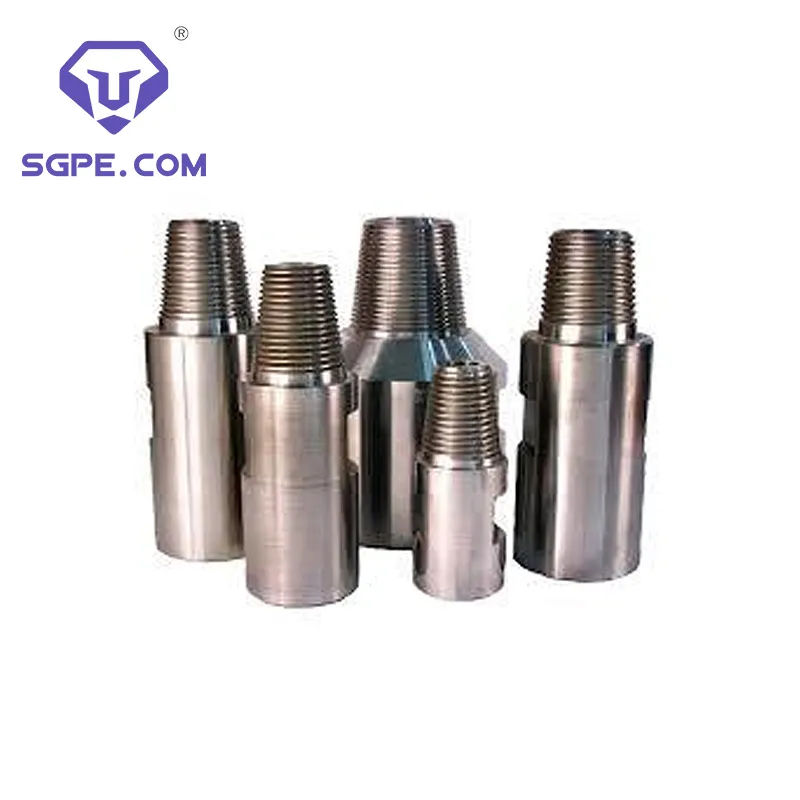

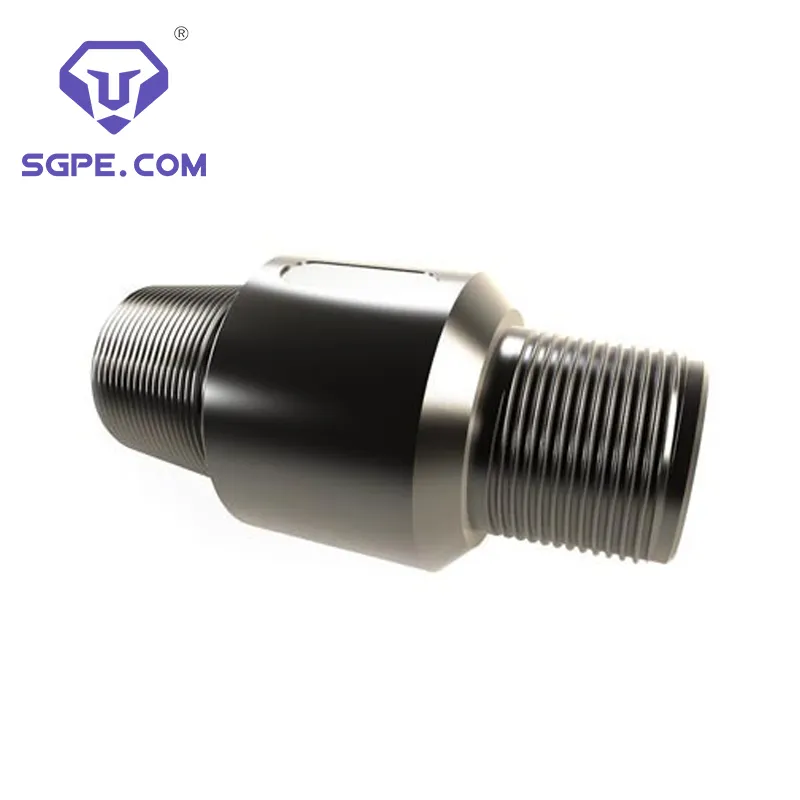

Tool Joint Production 1 Tool Joint Production 2 Tool Joint Production 3
Key Features
  • High-quality and unique materials for enhanced durability.
  • Special medium frequency heat treatment for superior strength.
  • Fully meets the requirements of API 5DP standards.
  • Advanced magnetic survey methods and mechanical property testing.
  • A strict quality management system ensuring consistency.

Welcome to consult, we will provide the most comprehensive technical support!

Specification a OD of pipe Wall thickness Dia. of welded neck Tool joint
Model Info (mm) (mm) (mm) OD ID of pin thread Length of pin Length of box Bevel dia. Approx quality
2 3/8Z09-010006.65EEUNC2660.327.1165.185.744.5177.8203.282.9510.45
2 3/8Z09-010006.65X,GEUNC2660.327.1165.185.744.5177.8203.282.9510.58
2 7/8Z09-0200010.4EEUNC3173.029.1981104.854177.8228.6100.4116.25
2 7/8Z09-0200010.4X,GEUNC3173.029.1981104.850.8177.8228.6100.4116.5
3 1/2Z09-030009.5EEUNC3888.96.4598.4120.768.3203.2266.7116.2815.77
3 1/2Z09-0300113.3EEUNC3888.99.3598.4120.768.3203.2266.7116.2820.77
3 1/2Z09-0300113.3XEUNC3888.99.3598.412765.1203.2266.7116.2821.76
4Z09-0400014EIUNC40101.68.38106.4133.471.4177.8254127.422.42

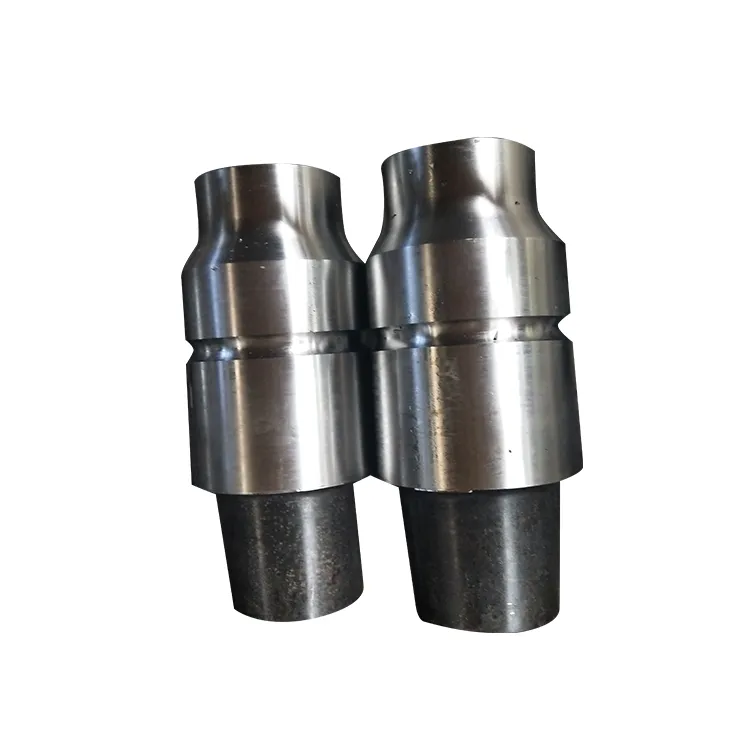

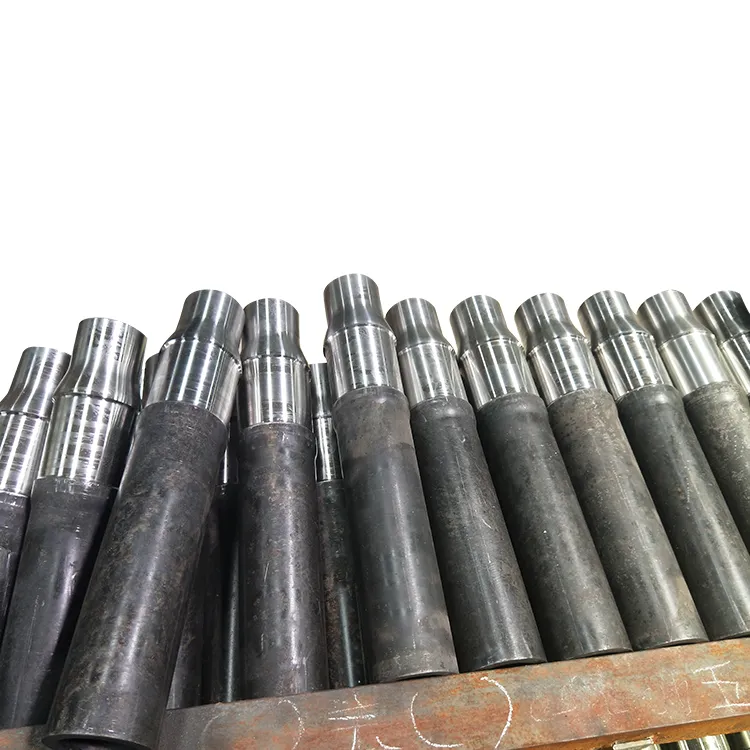

Drill Bit Sub 1 Drill Bit Sub 2 Drill Bit Sub 3
Technical Drawing Production Facility
Frequently Asked Questions
1. What standards do your drill pipe joints comply with?
Our drill pipe tool joints are manufactured strictly in accordance with API 5DP specifications to ensure global industry compatibility and safety.
2. Which materials are used for the manufacturing of tool joints?
We use high-grade materials such as 40Cr, 35CrMo, and 4137H to ensure high tensile strength and durability in harsh drilling conditions.
3. What types of connections are available?
We provide a wide range of connection types including NC (Numbered Connection), IF (Internal Flush), FH (Full Hole), XH (Extra Hole), and REG (Regular).
4. How do you ensure the quality of the welding and joints?
Quality is maintained through special medium frequency heat treatments and advanced magnetic survey methods to detect any potential defects.
5. Can you supply joints for different pipe specifications?
Yes, we support various specifications from 2 3/8" to 4" and beyond, with multiple grades like E, X, G, and S.
6. What is your annual production capacity?
Our facility has a production capacity of approximately 80,000 units per year, ensuring stable supply for large-scale operations.
