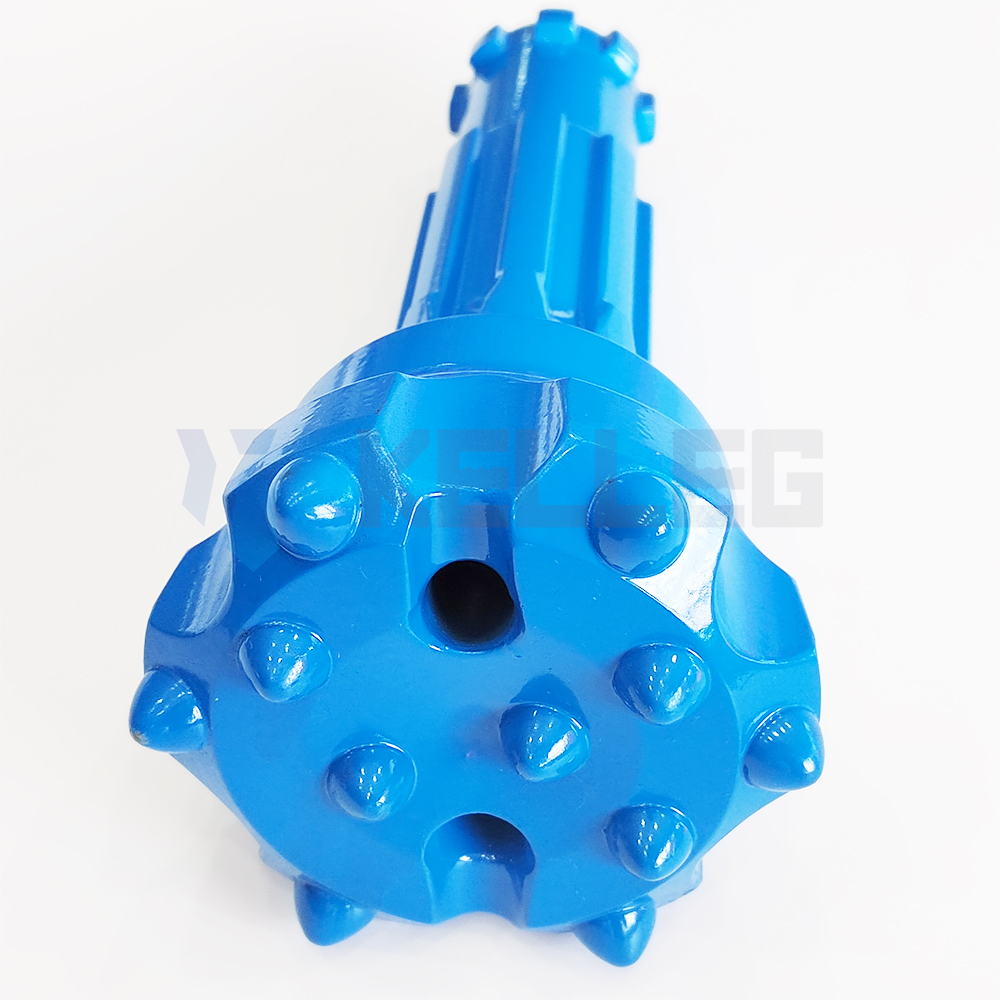

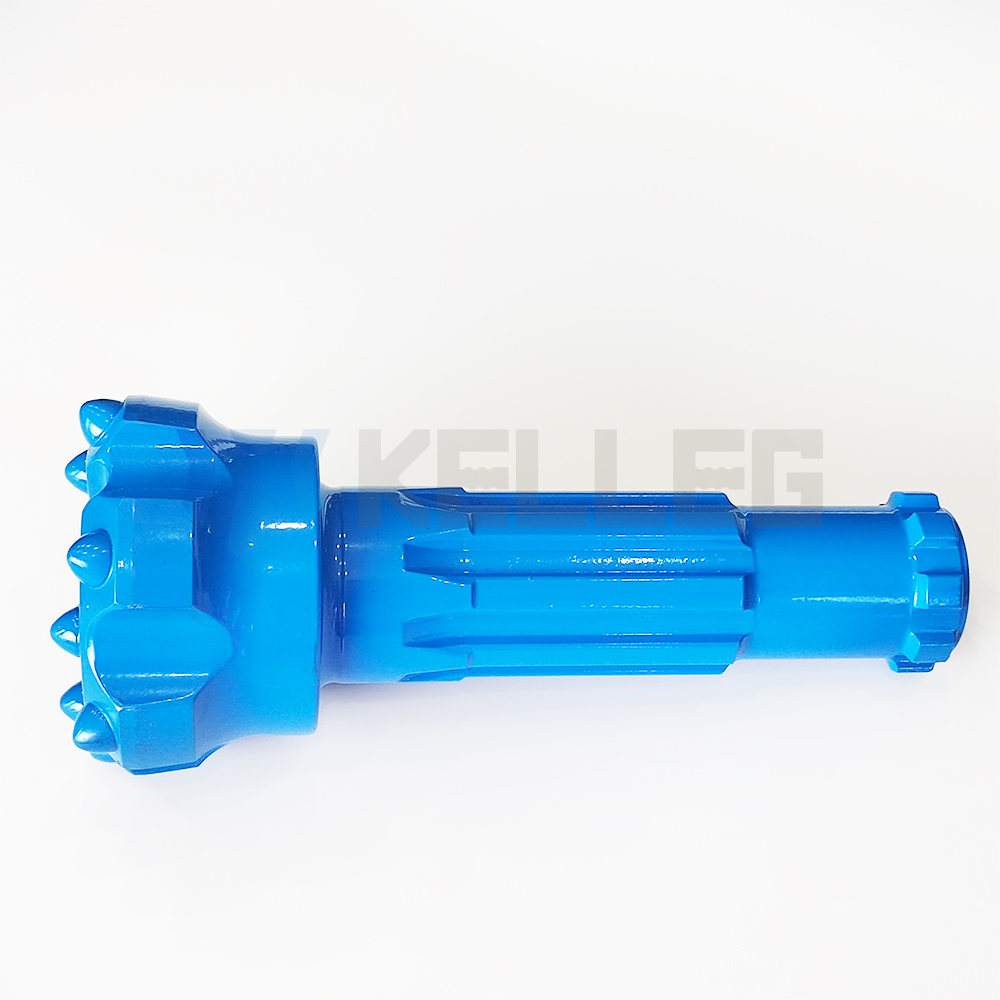

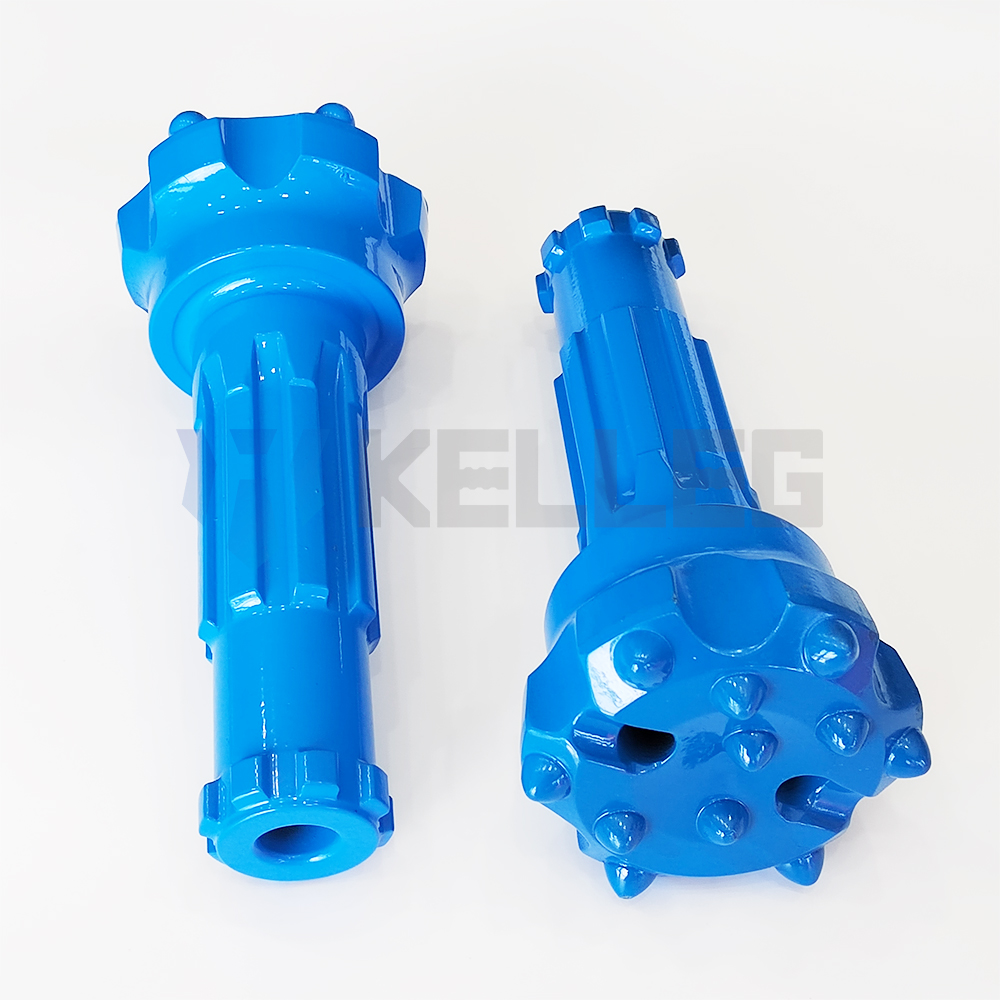

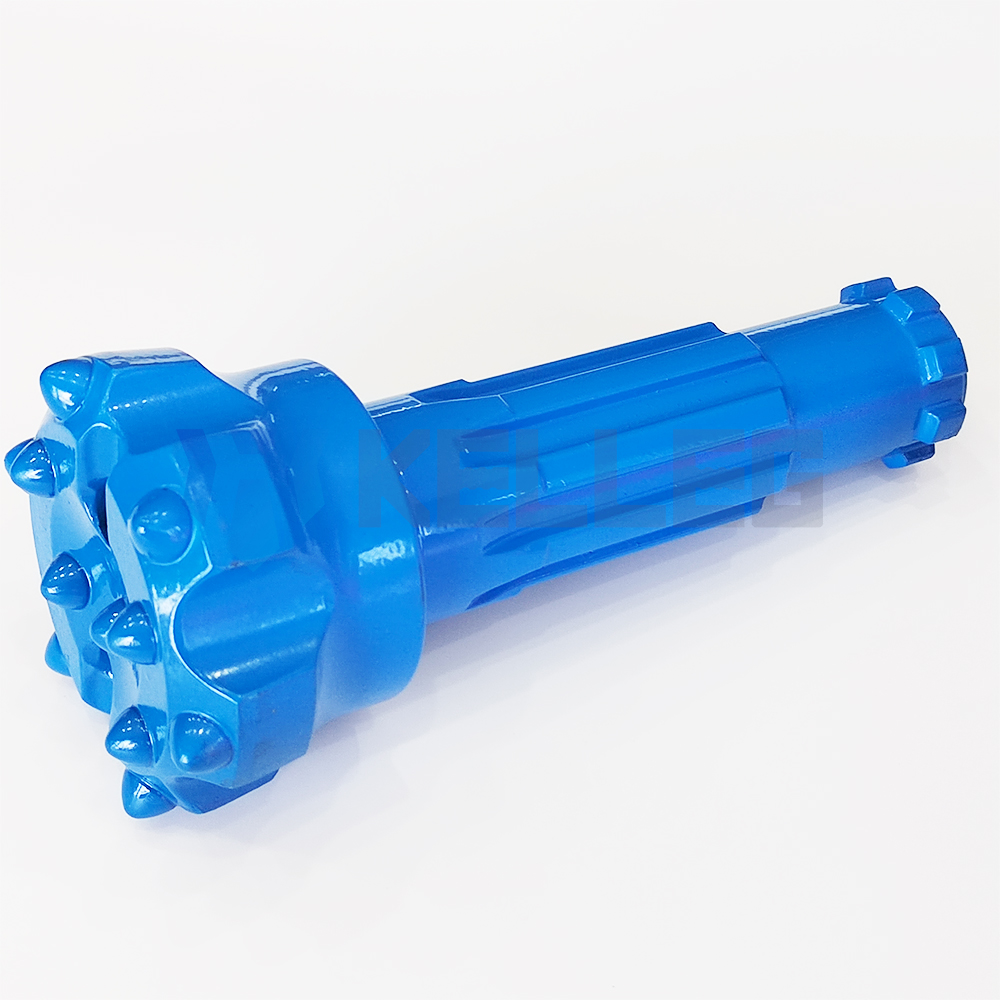

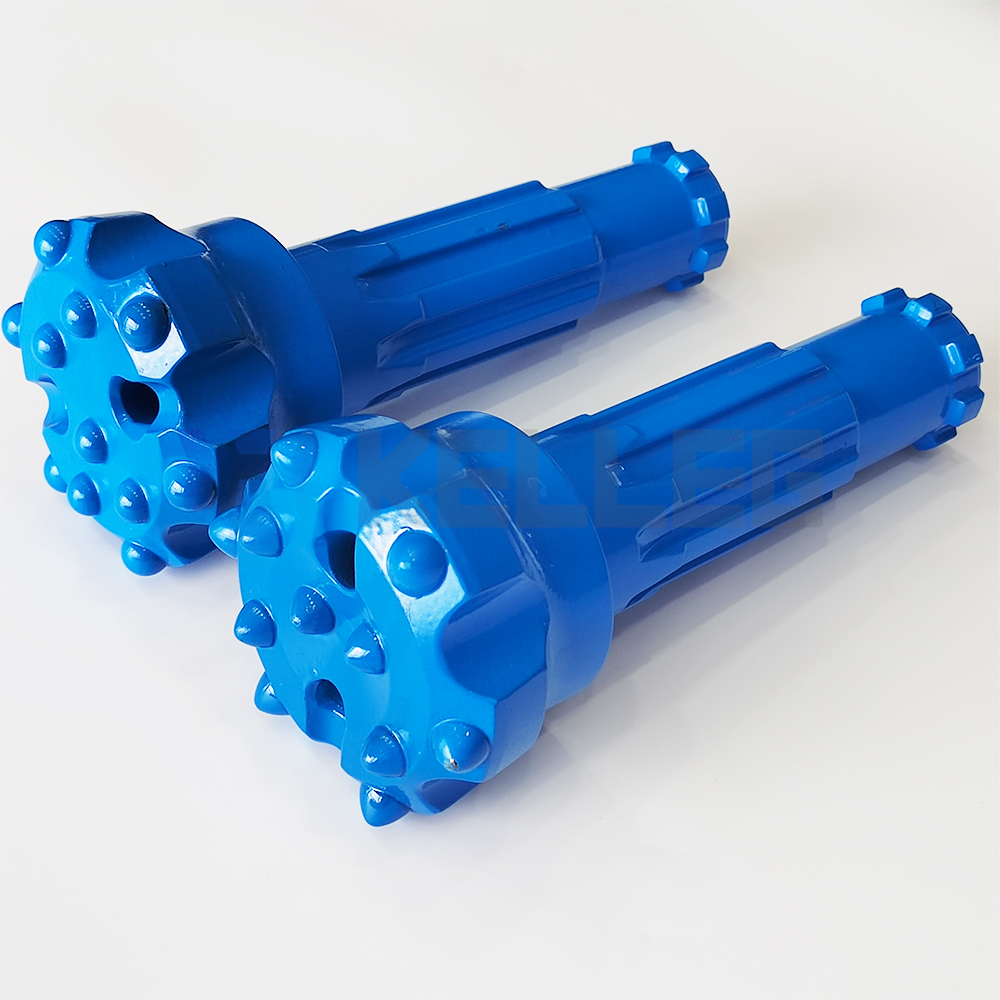

High Air Pressure Carbide Mining Drill Rock Drilling Bits DTH Hammer Bit for Blasting and Mining DTH Hammers

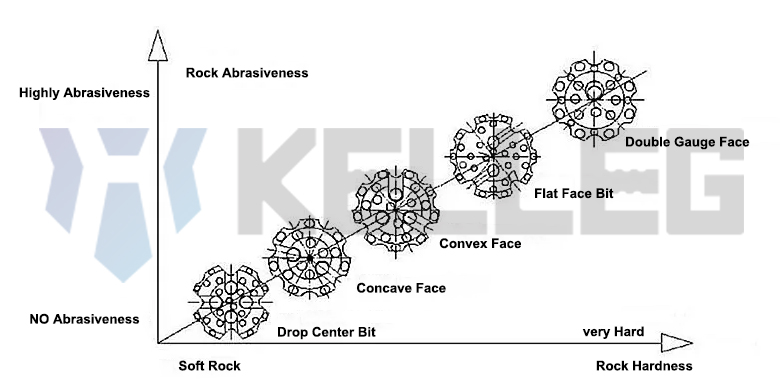

DTH Drill Bits Classification
DTH Drill Bits can be divided into the following three types according to their appearance:
1
Flat type: suitable for drilling hard rock layers and highly corrosive rock layers under high wind pressure.
2
Convex type: suitable for drilling soft to medium hard rocks with medium to low wind pressure, with fast drilling speed.
3
Concave type: suitable for all rock layers, especially in medium hard rocks, with good drilling straightness and slag removal effect.
Carbide Button Designs

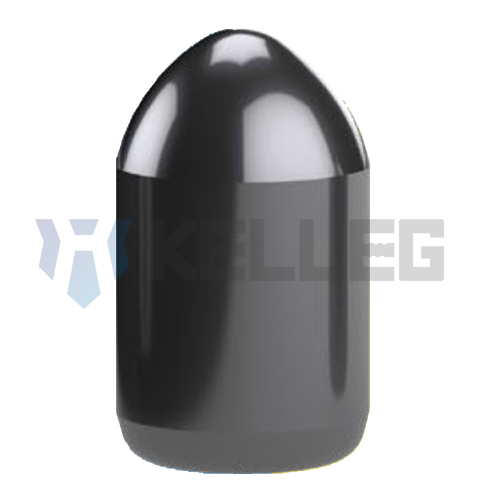

SEMI-BALLISTIC
A combination design that provides a speed increase over the conventional domed button and higher longevity than the more-aggressive ballistic carbide design.

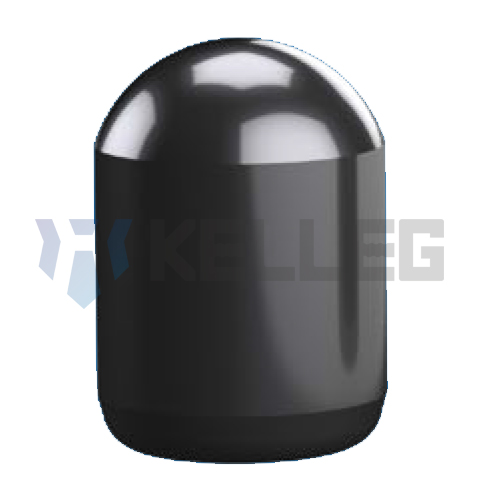

DOME
Tough shape for hard, abrasive rock and deep-hole drilling. Suitable for nearly all rock drilling applications.

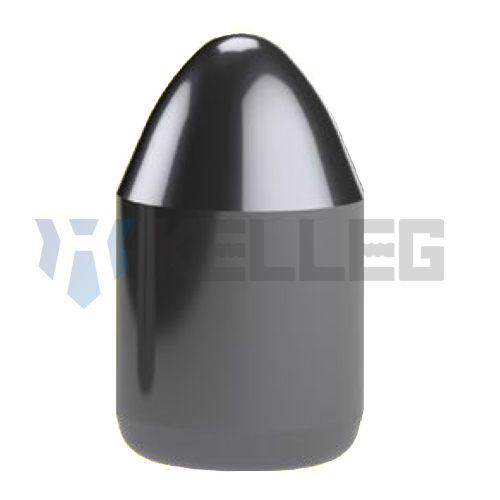

BALLISTIC
Ideal for less-abrasive sedimentary deposits where speed is vital. Not recommended for badly broken ground or extremely hard rock.
Medium and high pressure DTH drill bit Specifications
| Specifications |
Number of Vent Holes |
Nominal Dia. (mm) |
Side Teeth |
Middle Teeth |
Weight (kg) |
| KQZG-90P—KQZG-508P |
2-4 |
φ90-φ508 |
6-24xφ13-φ19 |
4-74xφ12-φ19 |
4-311 |
| KQZG-115P1—KQZG-254P1 |
2-3 |
φ115-φ254 |
7-16xφ14-φ18 |
7-11xφ12-φ16 |
8-58 |
| KQZG-130P2—KQZG-254P2 |
2-3 |
φ130-φ254 |
7-11xφ14-φ18 |
7-17xφ13-φ16 |
8-58 |
| KQZG-130P3—KQZG-216P3 |
2-3 |
φ130-φ216 |
7-10xφ16-φ18 |
7-12xφ14-φ16 |
15-50 |
Medium and high pressure DTH impactor Specifications
| Specifications |
Drilling Dia. (mm) |
Length (mm) |
Working Pressure (Mpa) |
Air Consumption (m³/min) |
Connection Thread |
| KQCZ90—KQCZ110 |
φ90—φ150 |
870—917 |
0.8—1.2 |
6—11 |
φ54—φ65—6 |
| KQCG80 |
φ80—φ85 |
867 |
0.8—2.1 |
3—12 |
φ47—6 |
| KQCG90—KQCG165 |
φ90—φ305 |
908—1372 |
0.8—2.1 |
3—26 |
φ53—φ99.5—8 |
| KQCG110A |
φ110—φ130 |
994 |
1.0—2.1 |
3.5—15 |
φ64—8 |
| KQCG130A |
φ130—φ152 |
1067 |
0.8—2.1 |
3—14 |
φ83—12 |
| KQCG140A |
φ140—φ152 |
1220 |
0.8—2.1 |
46.5—18 |
φ84—8 |
| KQCG165A |
φ165—φ203 |
1076 |
0.8—2.1 |
6.8—20 |
φ104.4—12 |
| KQCG200 |
φ203—φ350 |
1551 |
1.0—2.1 |
12—31 |
φ128—10 |
| KQCG200A |
φ203—φ350 |
1551 |
1.0—2.1 |
12—35 |
φ128—10 |
| KQCG200B |
φ203—φ254 |
1450 |
0.8—2.1 |
9.6—25 |
φ128—10 |
| KQCG200C |
φ203—φ350 |
1551 |
1.0—2.1 |
12—31 |
φ128—10 |
| KQCG310 |
φ311—φ508 |
2110 |
1.0—2.4 |
30—78 |
φ210—12 |

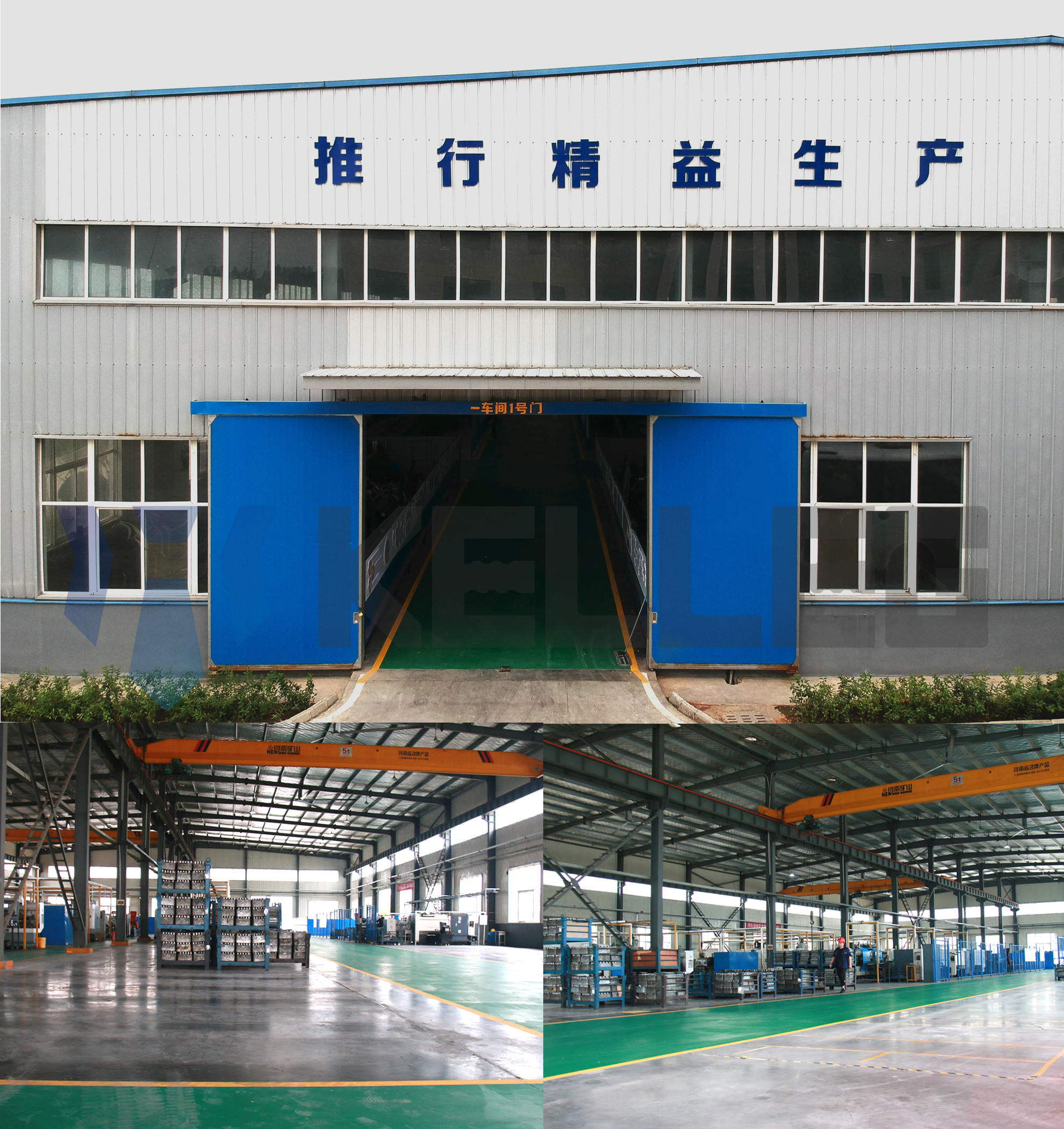

Production & Quality Control
Frequently Asked Questions
Is there a minimum order quantity?
We generally have no minimum order quantity.
Do you have the inspection procedures?
100% strict inspection and testing for every order before packing.
How long is your delivery time?
1-3 days for the products in stock; regular order delivery in 2-3 weeks.
What is the response time of your sales support team?
Our sales team will respond to your question within 24 hours (holidays excluded).
Is technical support available for your products?
Yes, technical support will be available at any time.
What is the replacement policy for confirmed product failures?
Free replacement will be provided once the failure is confirmed caused by our product quality.
