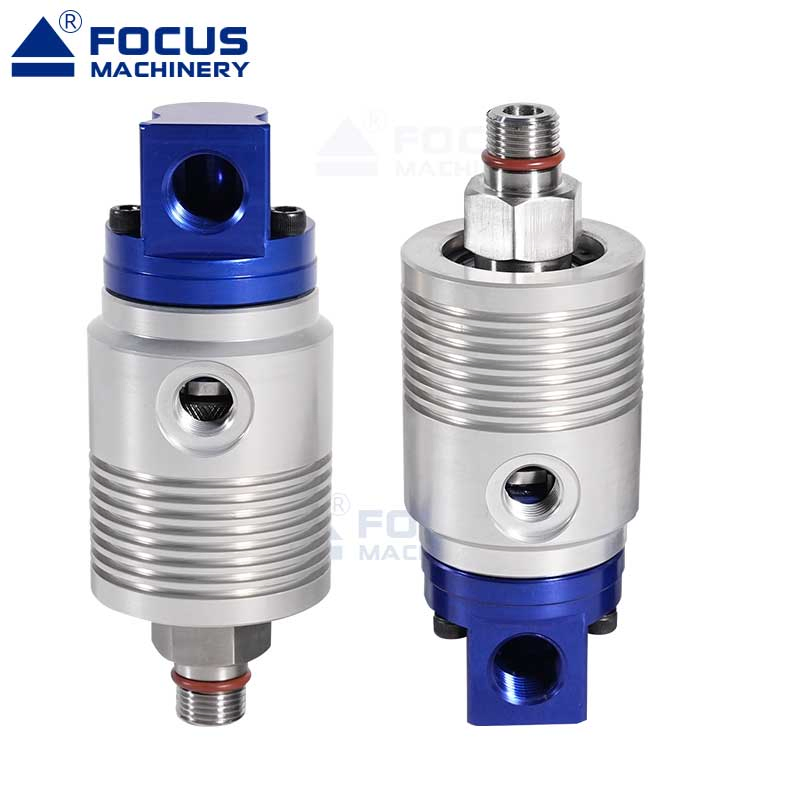

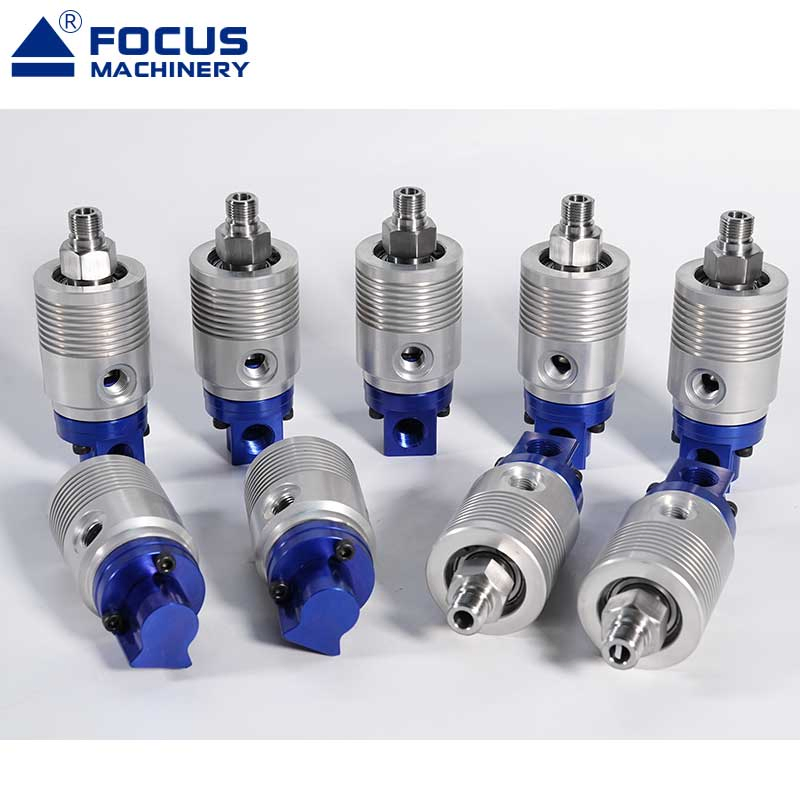

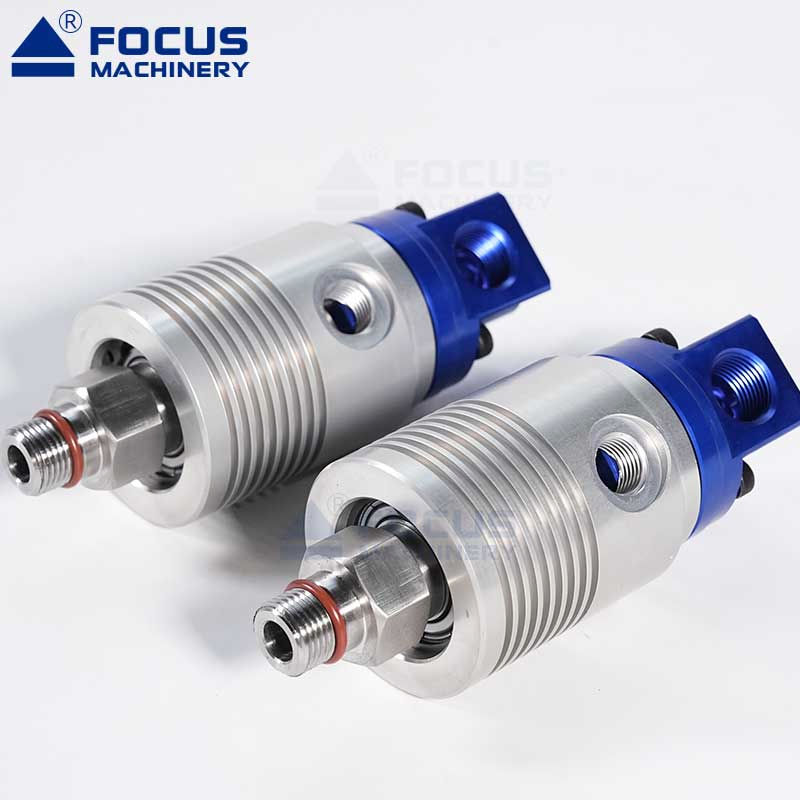

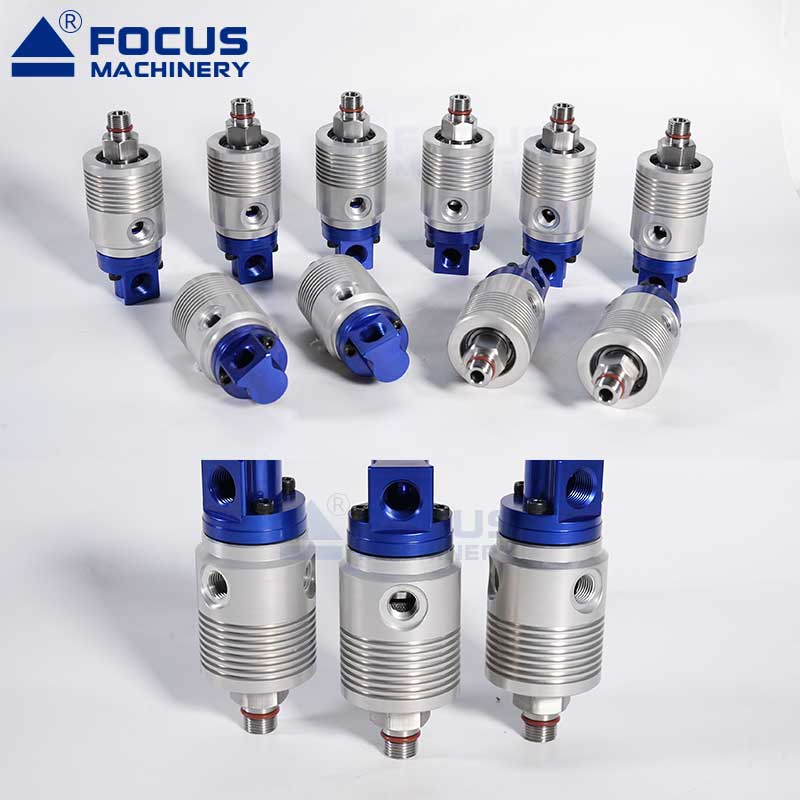

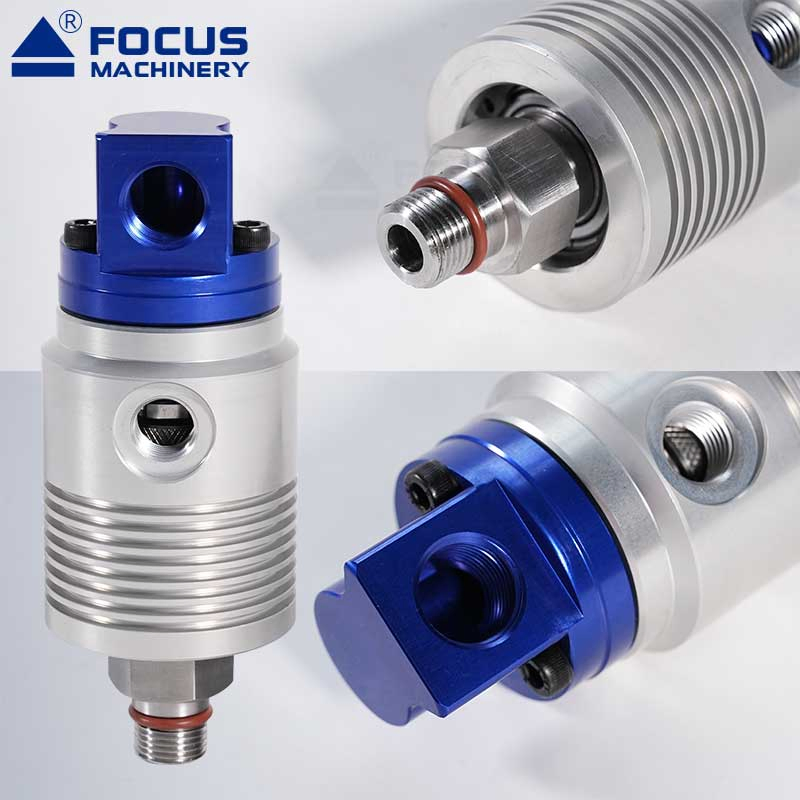

Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
1 / 5
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints
Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints

Replace 1109-021-188 M16X1.5lh Rotary Joint for Machine Tools Spindle Coolant Rotary Unions 1109-053-188 1109-071-480 1109-082-188 1109-402-403 Rotating Joints

Customization: Available
Certification: CE
Color: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
JD1109 Coolant Rotary Joint
Standard
International
Material
Alloy
Pressure
70~100bar
Temperature
-30~+85°C
Speed
6000~15000rpm
Product Overview

Replace 1109 Series High Speed Coolant Rotary Joint for Machine Tool Spindle

Compatible Models: 1109-011-165, 1109-021-188, 1109-041-188, 1109-010-165, 1109-020-188, 1109-040-188, etc.

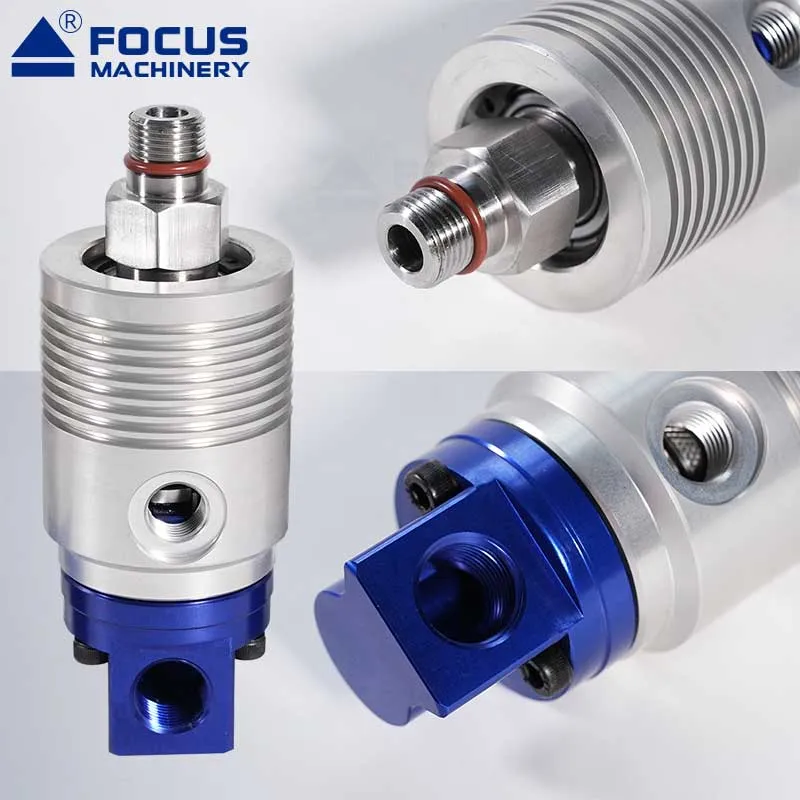

High Speed Coolant Rotary Joint

Key Features & Applications

  • Single channel coolant or MQL (Minimum Quantity Lubrication)
  • Closed seal design, perfect for automatic production lines
  • Deep groove ball bearings ensure smooth high-speed operation
  • Balanced mechanical seal made of premium silicon carbide material
  • Full flow design prevents debris or burr blockage
  • Anti-corrosion anodized aluminum shell for harsh environments
Product Details

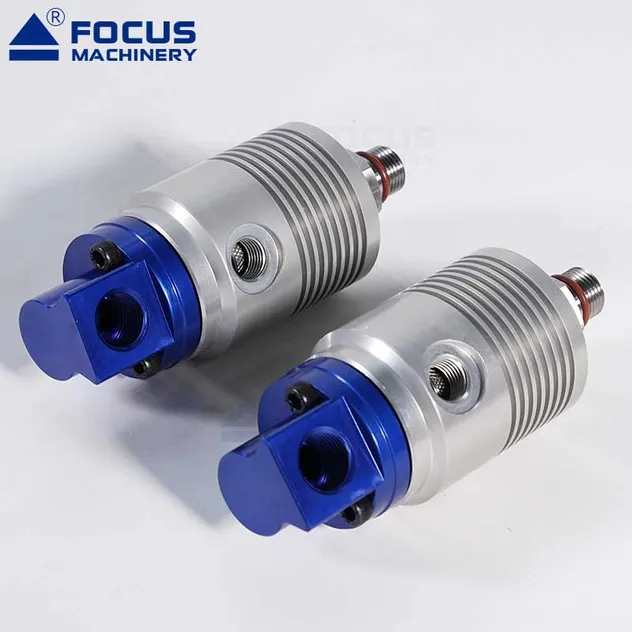

Coolant Union Detail 1

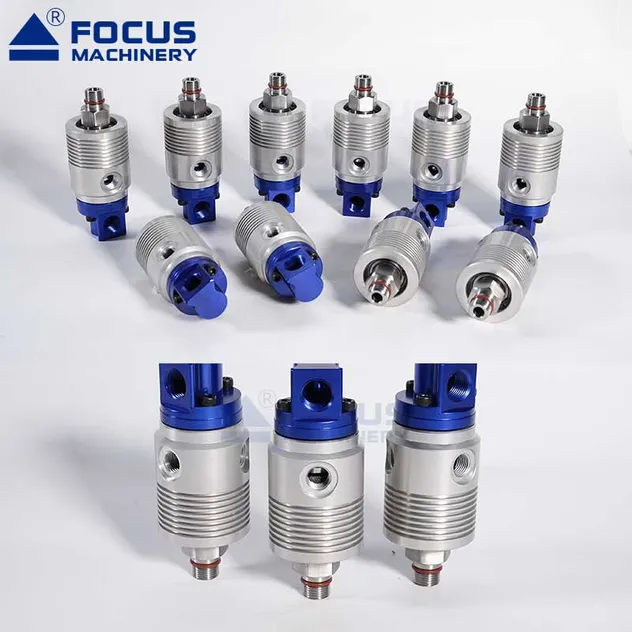

Coolant Union Detail 2

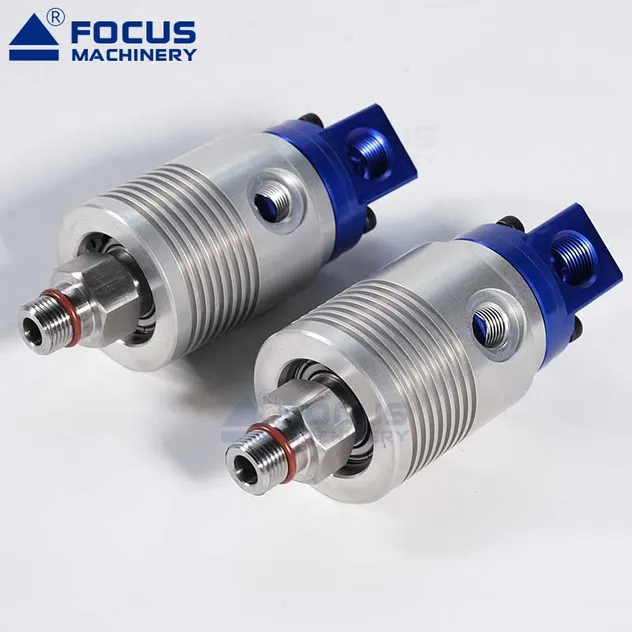

Coolant Union Detail 3
Technical Specifications
Parameter Specification Details
Speed Range 6000 ~ 15000 rpm
Pressure Rating 70 ~ 100 bar
Working Medium Hydraulic Oil, Water, Coolant
Channel Count Single Passage
Rotor Connection M16x1.5 LH
Supply Pipeline G3/8"
Drawings & Dimensions

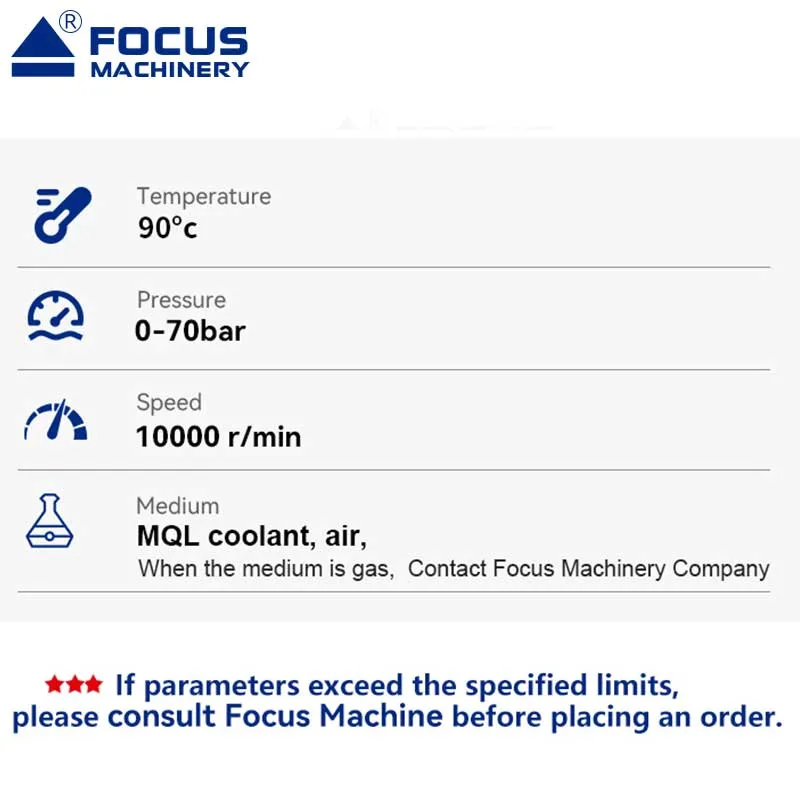

CAD Drawing 1

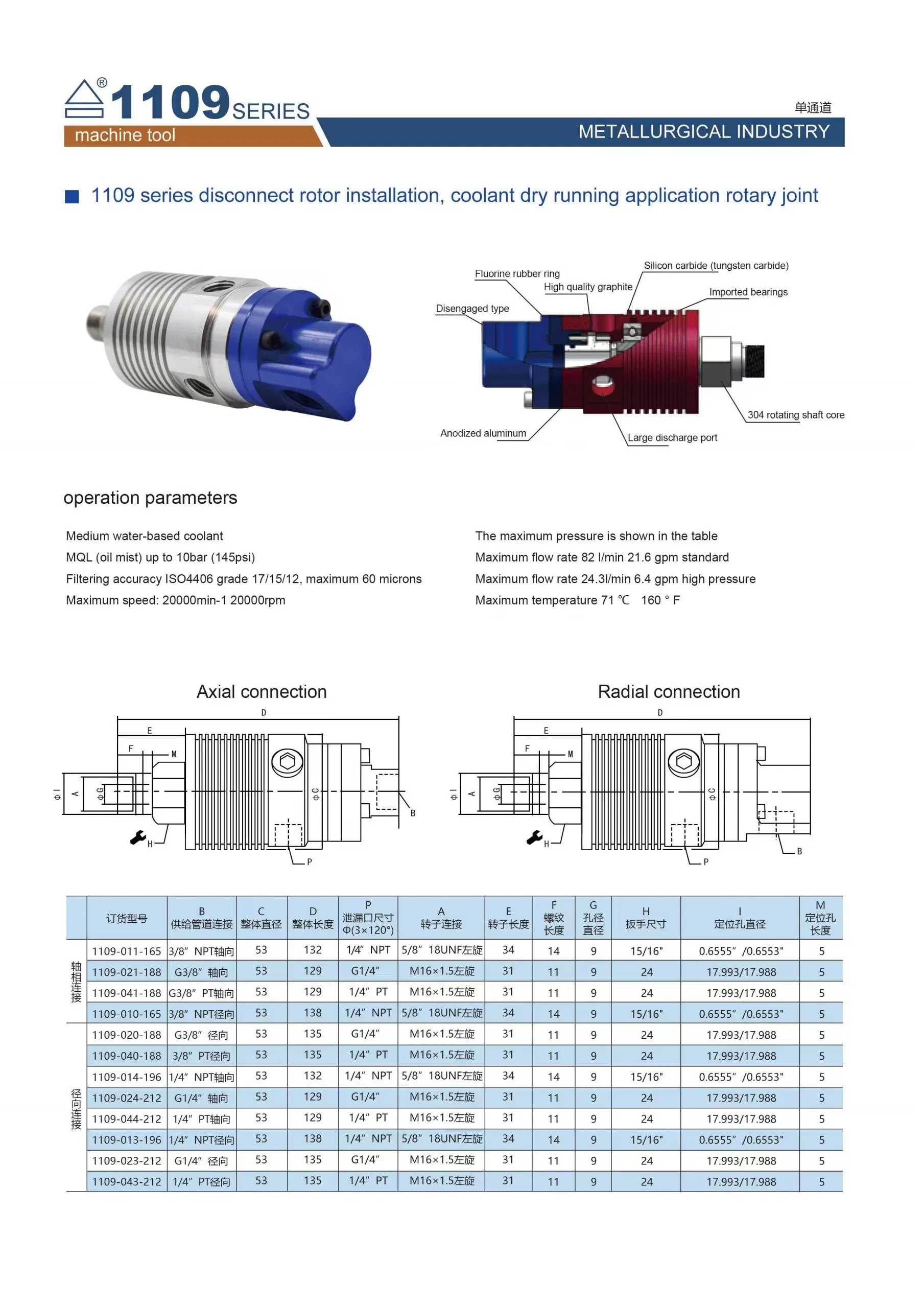

CAD Drawing 2

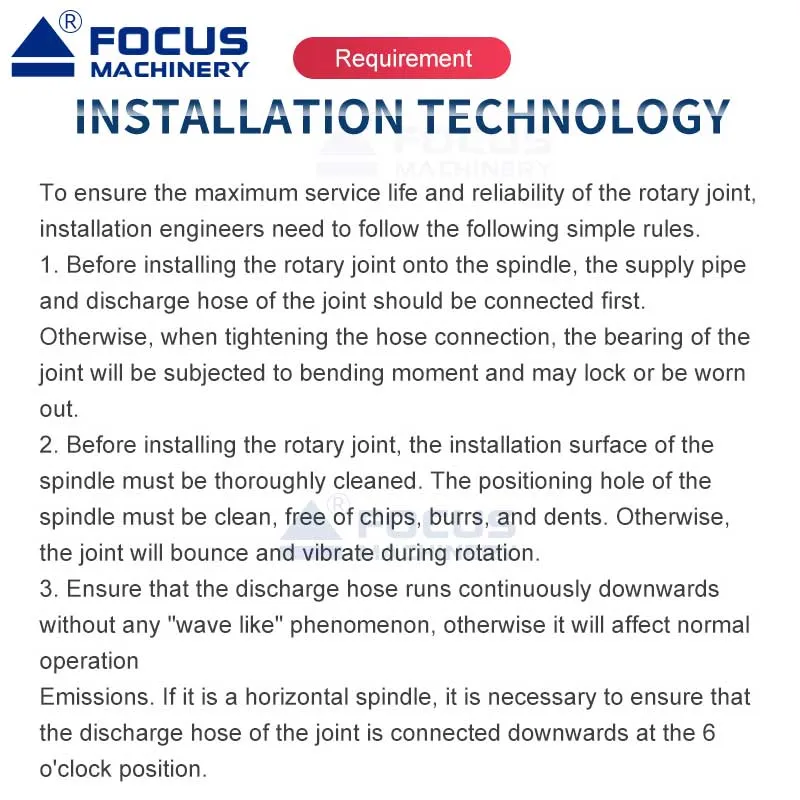

CAD Drawing 3

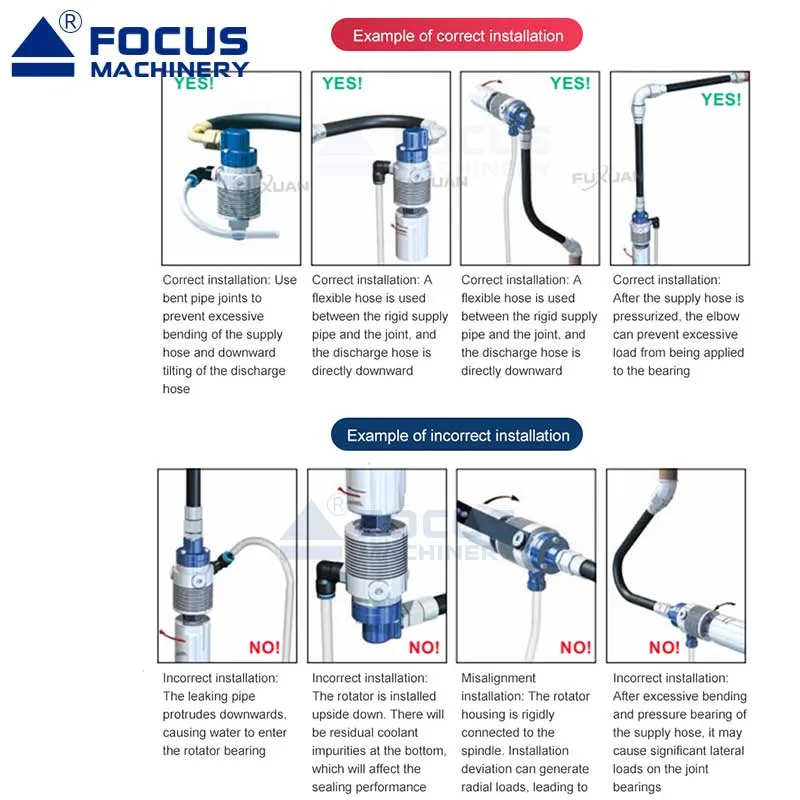

CAD Drawing 4

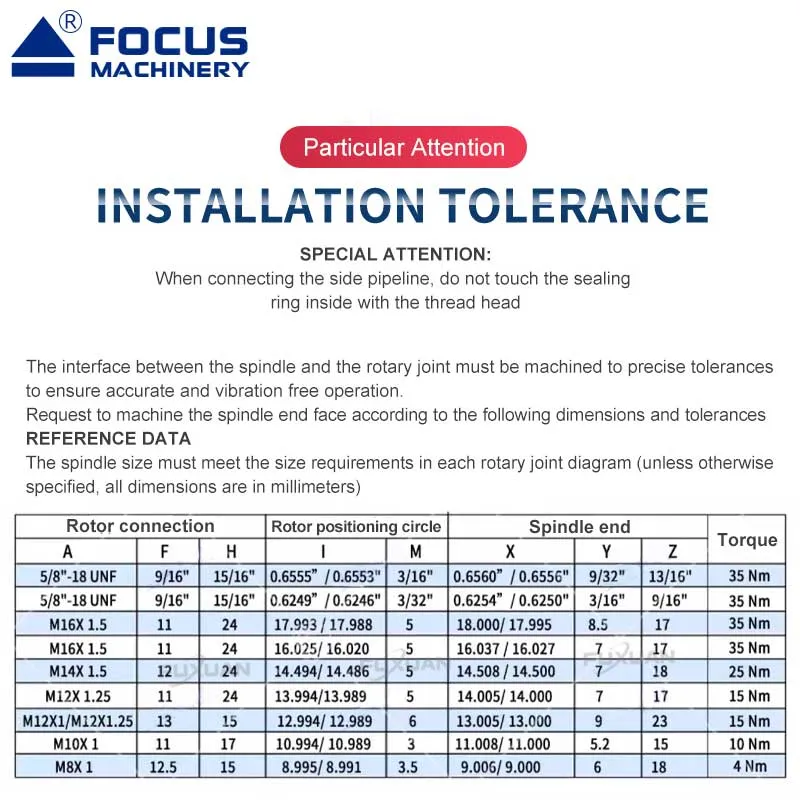

CAD Drawing 5
CAD Drawing 6
After Sales Service

Standard Warranty: 12 months from delivery.

Global Support: 24/7 technical assistance and prompt spare parts supply.

Training: Comprehensive on-site or remote operation and maintenance training available.

Manufacturing Excellence

Our facility is a well-known rotary joint manufacturing enterprise. We employ 12 dedicated R&D technicians and operate more than 60 high-precision CNC machine tools. With an annual production capacity exceeding 30,000 units, we provide high-quality solutions at competitive prices.

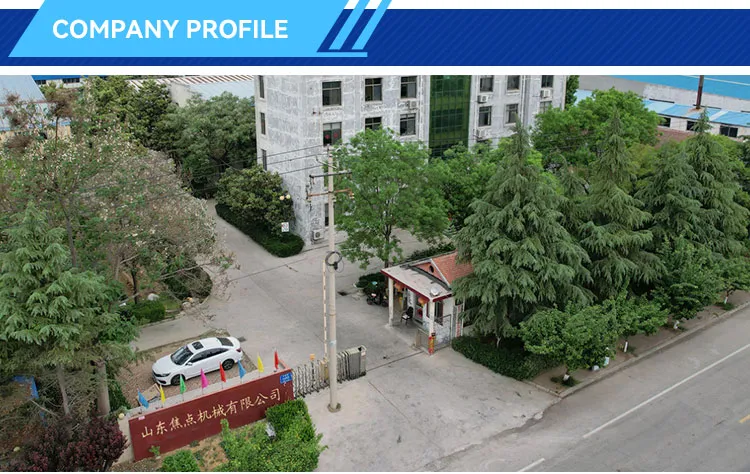

Factory Overview

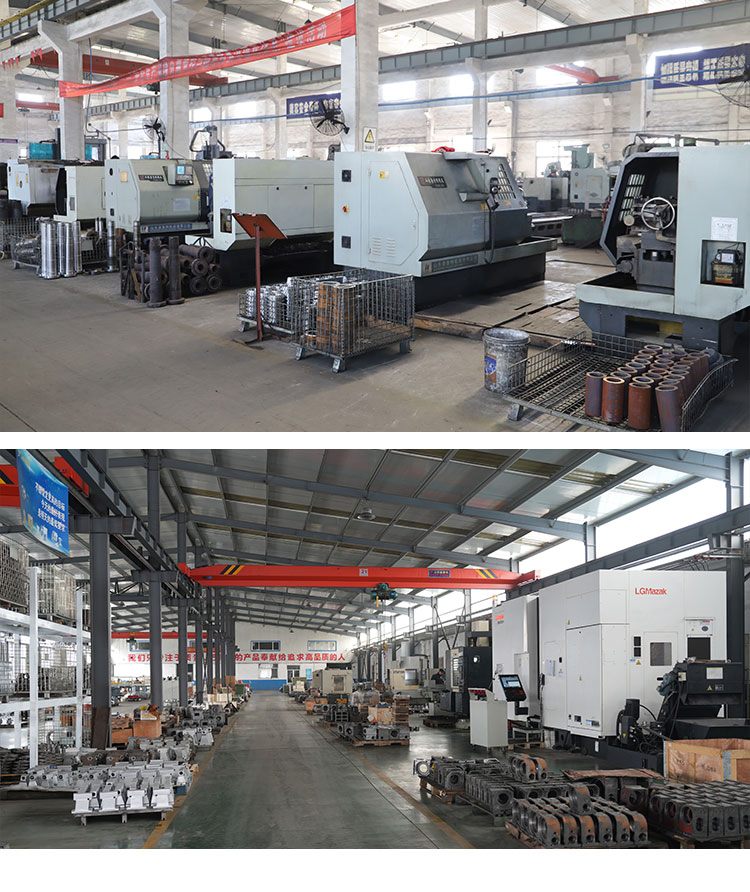

Manufacturing Process 1
Manufacturing Process 2
Frequently Asked Questions
What is the standard lead time for orders?
Standard models typically ship within 7–15 days, while customized units require 20–30 days depending on complexity.
Can these rotary joints handle different media?
Yes, our joints are designed to handle hydraulic oil, water, and various coolants effectively.
Do you support OEM or custom configurations?
Absolutely. We offer full OEM/ODM services and can produce units based on your specific drawings or samples.
What materials are used for the seals?
We use balanced mechanical seals made of high-grade silicon carbide for superior durability and heat resistance.
Is technical support available for installation?
Yes, we provide 24/7 technical assistance and can offer remote training for installation and maintenance.
What documents are provided for international shipping?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
