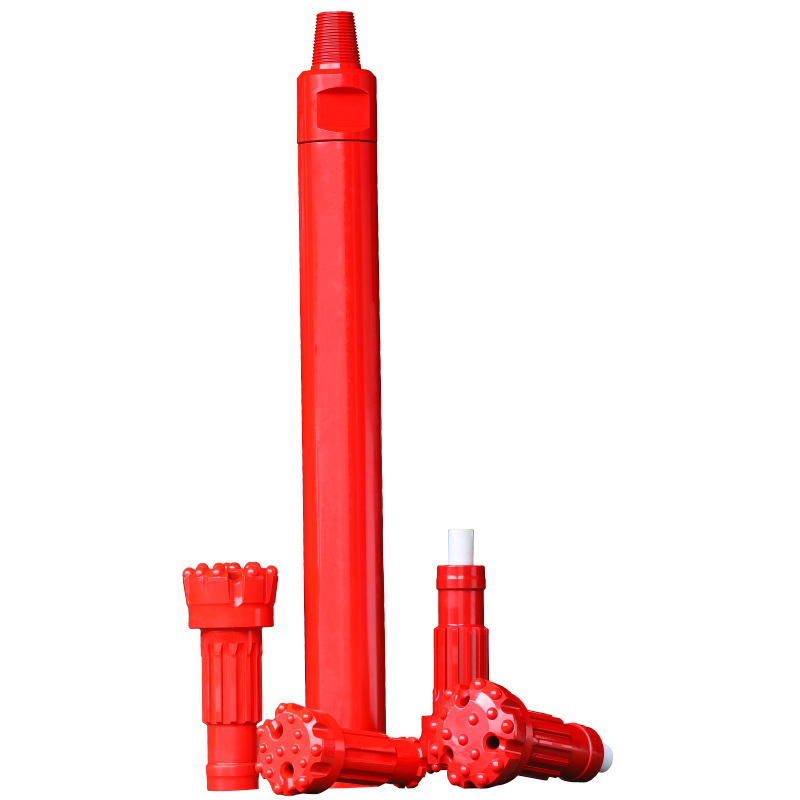

DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
1 / 5
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10
DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10

DTH Hammer 10 Inches by Maxdrill for Bit Shank SD10 Down the Hole Hammer for Surface Drilling, Water Well Drilling MSD10

Send Inquiry

Product Description

!

Products Description

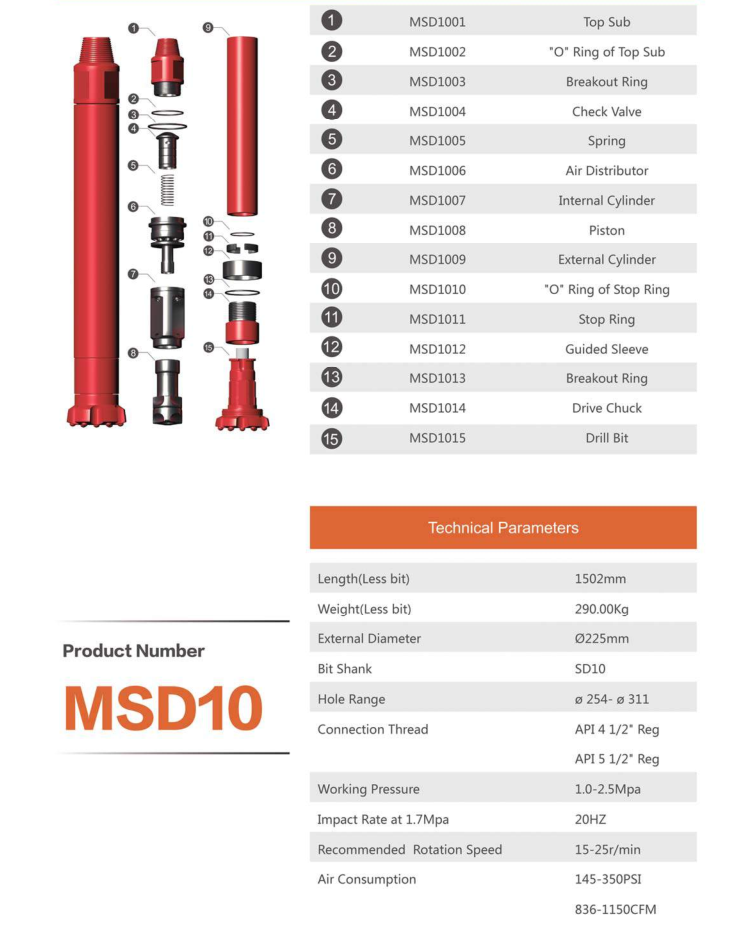

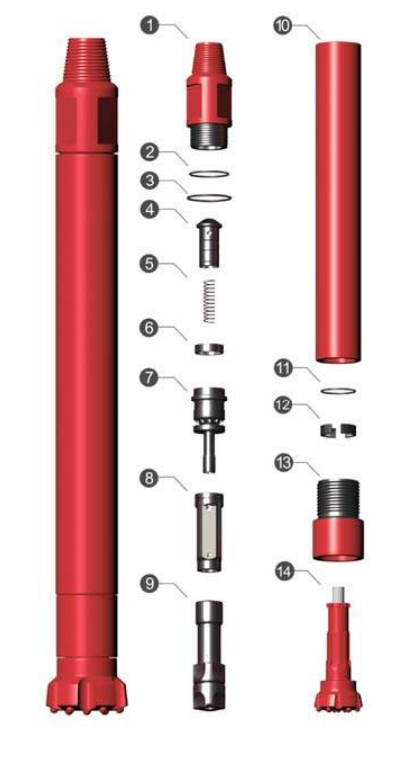

Product Structure
Item Part Number Description
1MSD1001Top Sub
2MSD1002"O" Ring of Top Sub
3MSD1003Breakout Ring
4MSD1004Check Valve
5MSD1005Spring
6MSD1006Compression Buffer
7MSD1007Air Distributor
8MSD1008Internal Cylinder
9MSD1009Piston
10MSD1010External Cylinder
11MSD1011"O" Ring of Stop Ring
12MSD1012Stop Ring
13MSD1013Drive Chuck
14MSD1014Drill Bit
T

Technical Parameters

Length (Less bit)1502mm
Weight (Less bit)290.00kg
External Diameterφ225mm
Bit ShankSD10
Hole Rangeφ254-φ311
Connection ThreadAPI 4 1/2'' Reg / API 5 1/2'' Reg
Working Pressure1.0-2.5Mpa
Impact Rate at 1.7Mpa20HZ
Recommanded Rotation Speed15-25r/min
Air Consumption145-350PSI/836-1150CFM
D

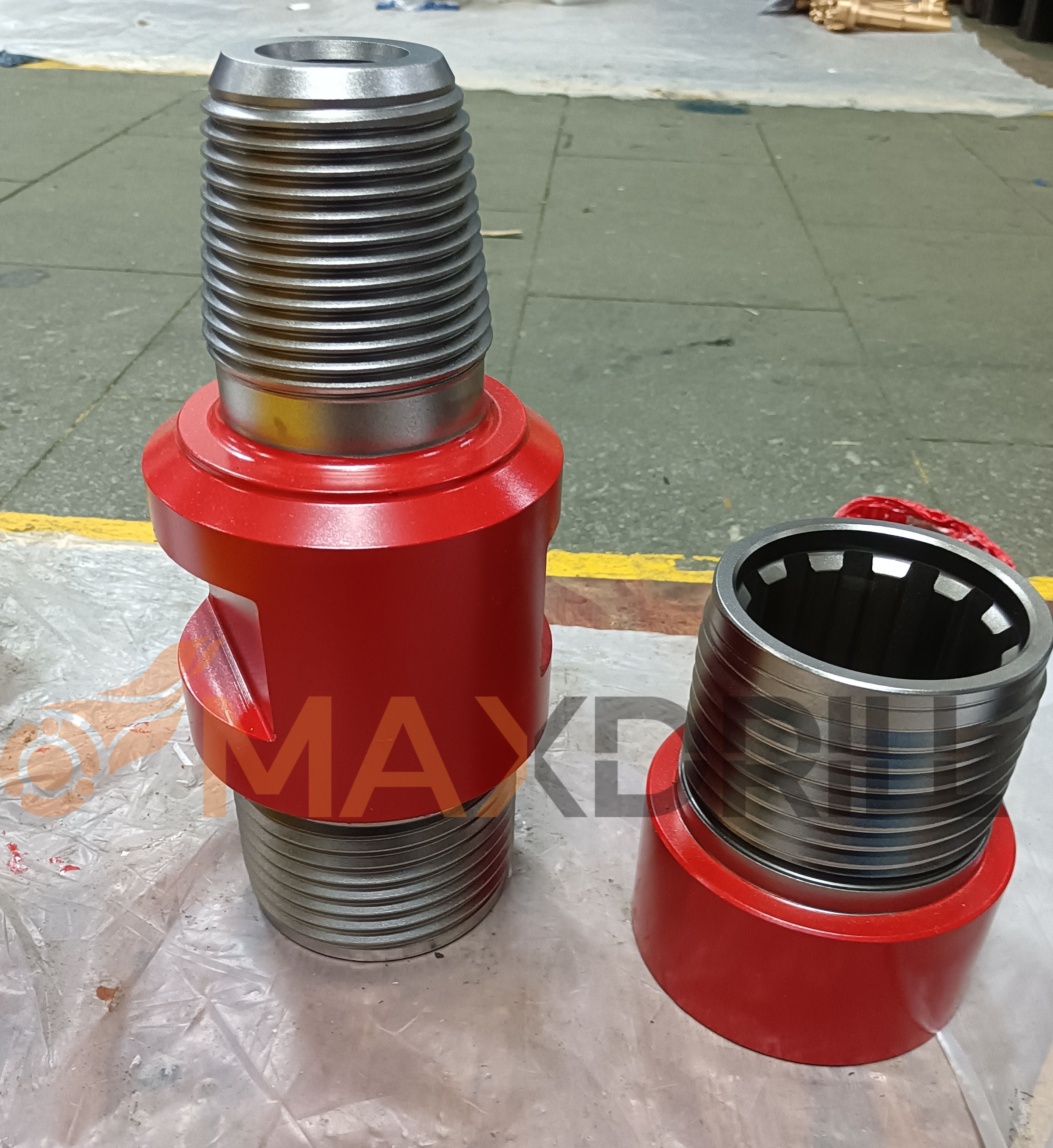

Details Images

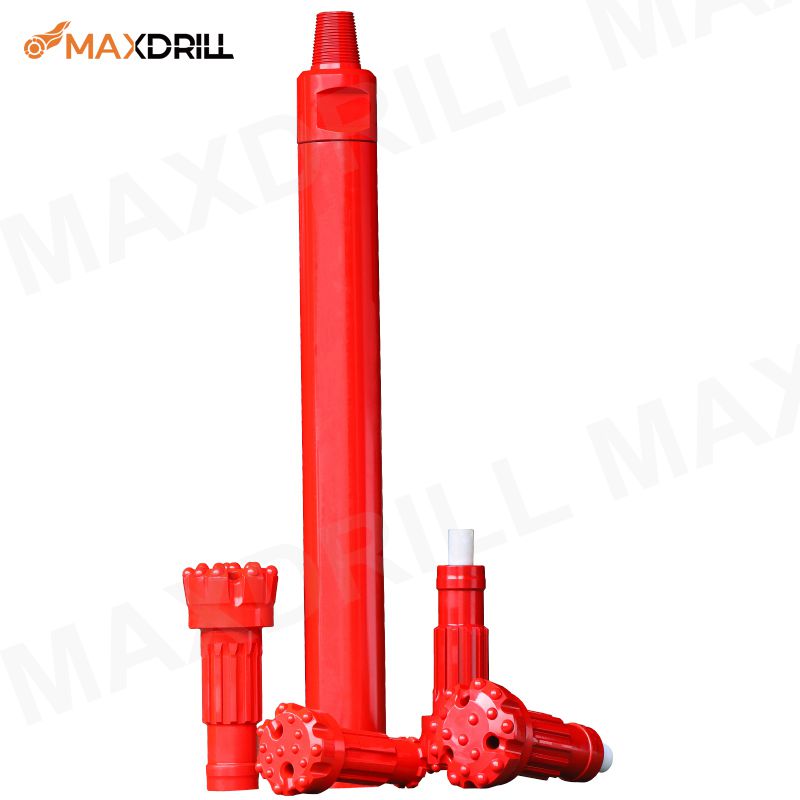

Detail Image 1

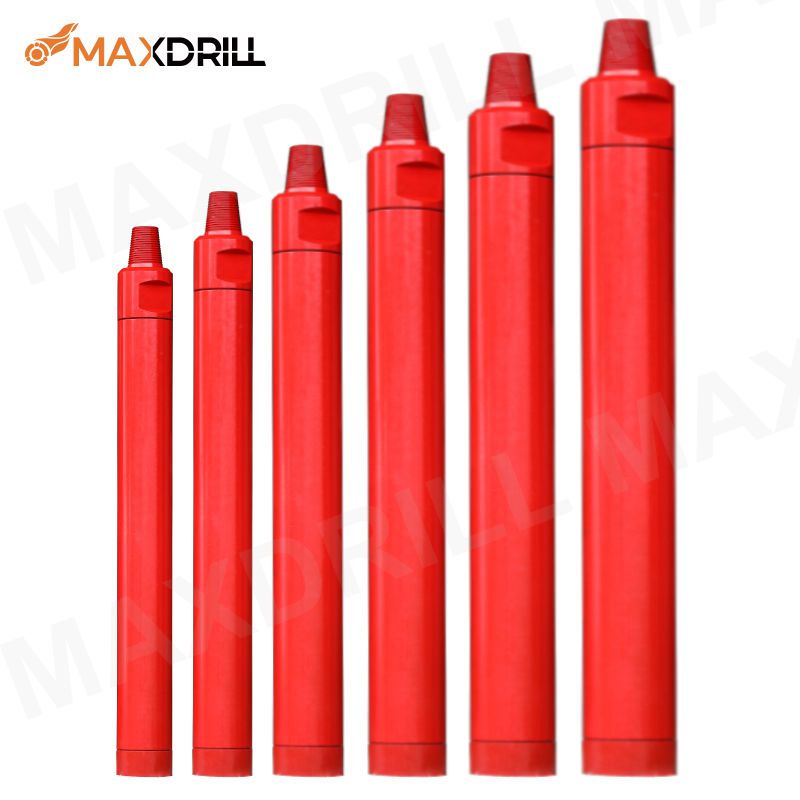

Detail Image 2
C

Certifications

Certifications
A

Applications & Packaging

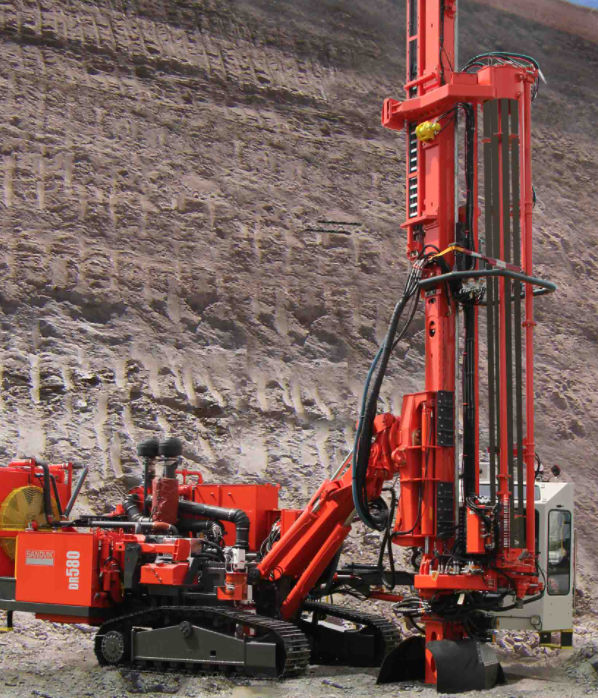

Applications
Product packaging
?

FAQ

What are the supported methods of payment?
We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.
How long is the handling time for an order?
Based on order quantity, it normally takes 25 days for production. If we have stock for your requested size, it only takes 2 to 3 days.
What shipping ways do you provide?
For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or air. For bulk orders, we recommend shipping by air or by sea.
How do you control product quality?
We have our own experienced QC team. There will be strict inspection and testing for every order before shipping out.
What kind of after-sales services do you offer?
Our team responds within 24 hours (excluding holidays). Technical support is available anytime, and free replacements are provided for confirmed quality failures.
Is technical support available for product application?
Yes, technical support is available at any time to assist with your specific requirements and operational needs.
