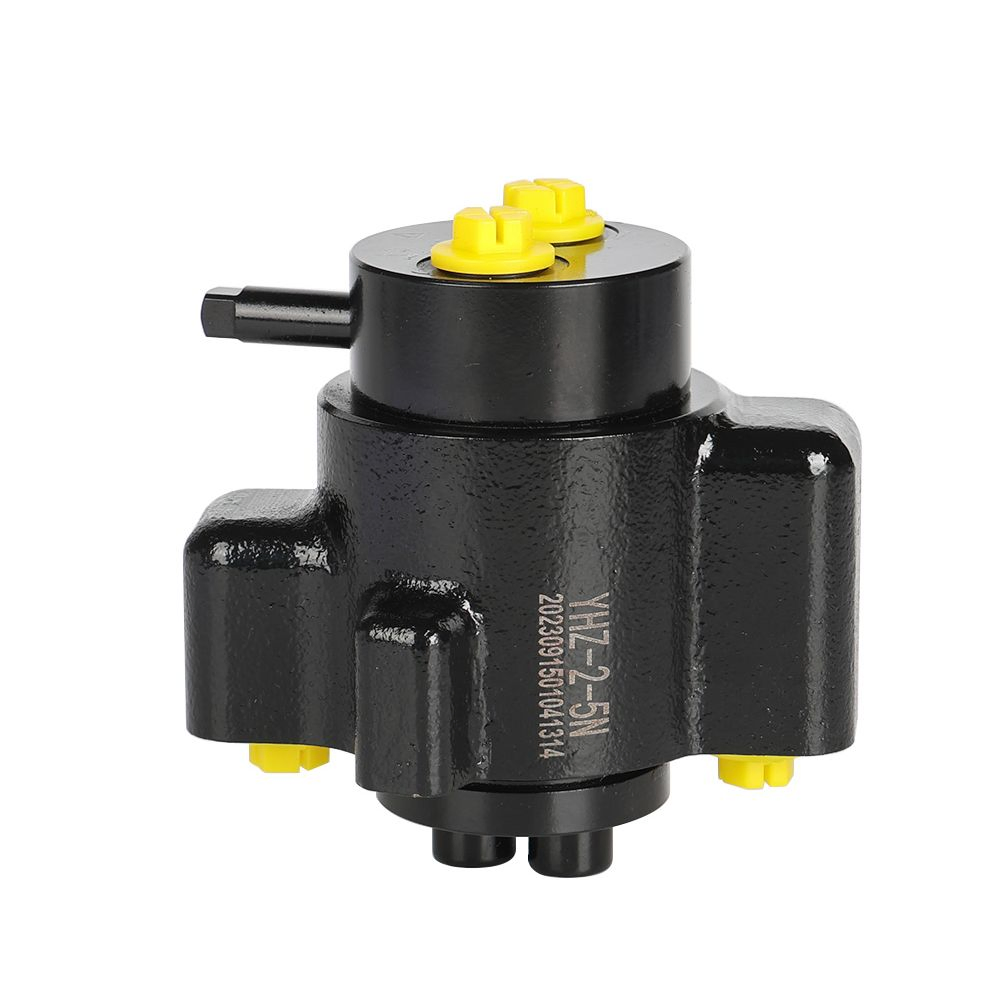

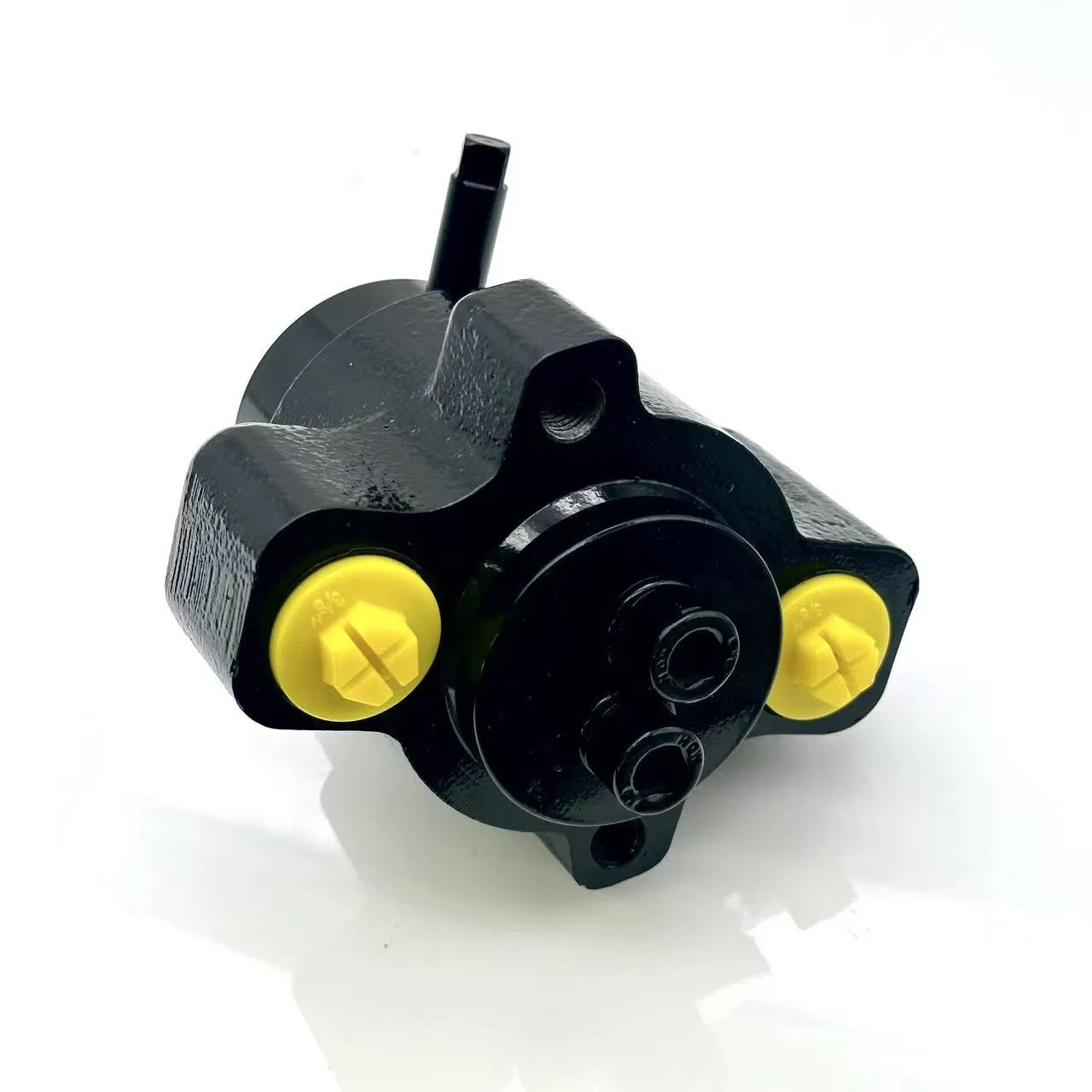

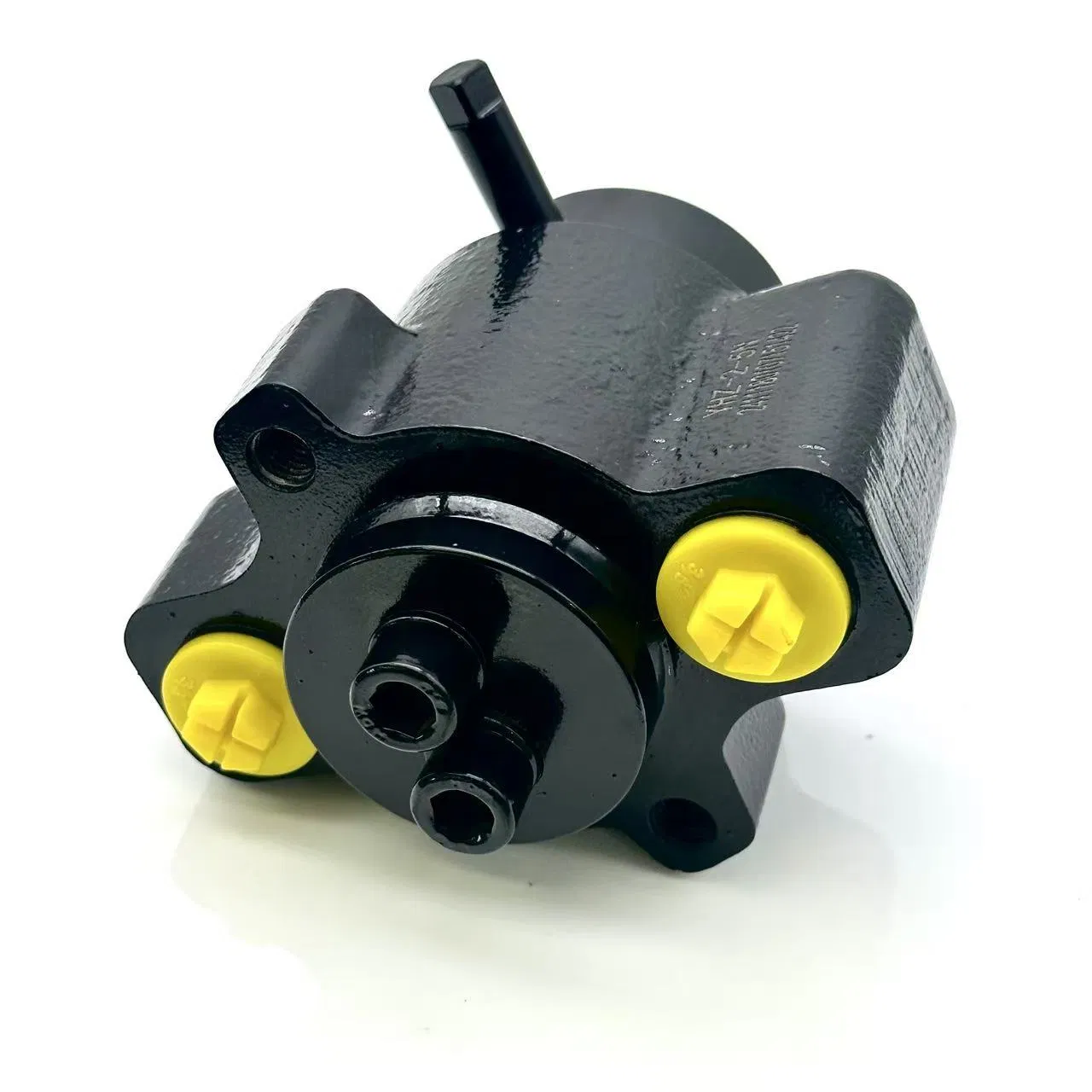

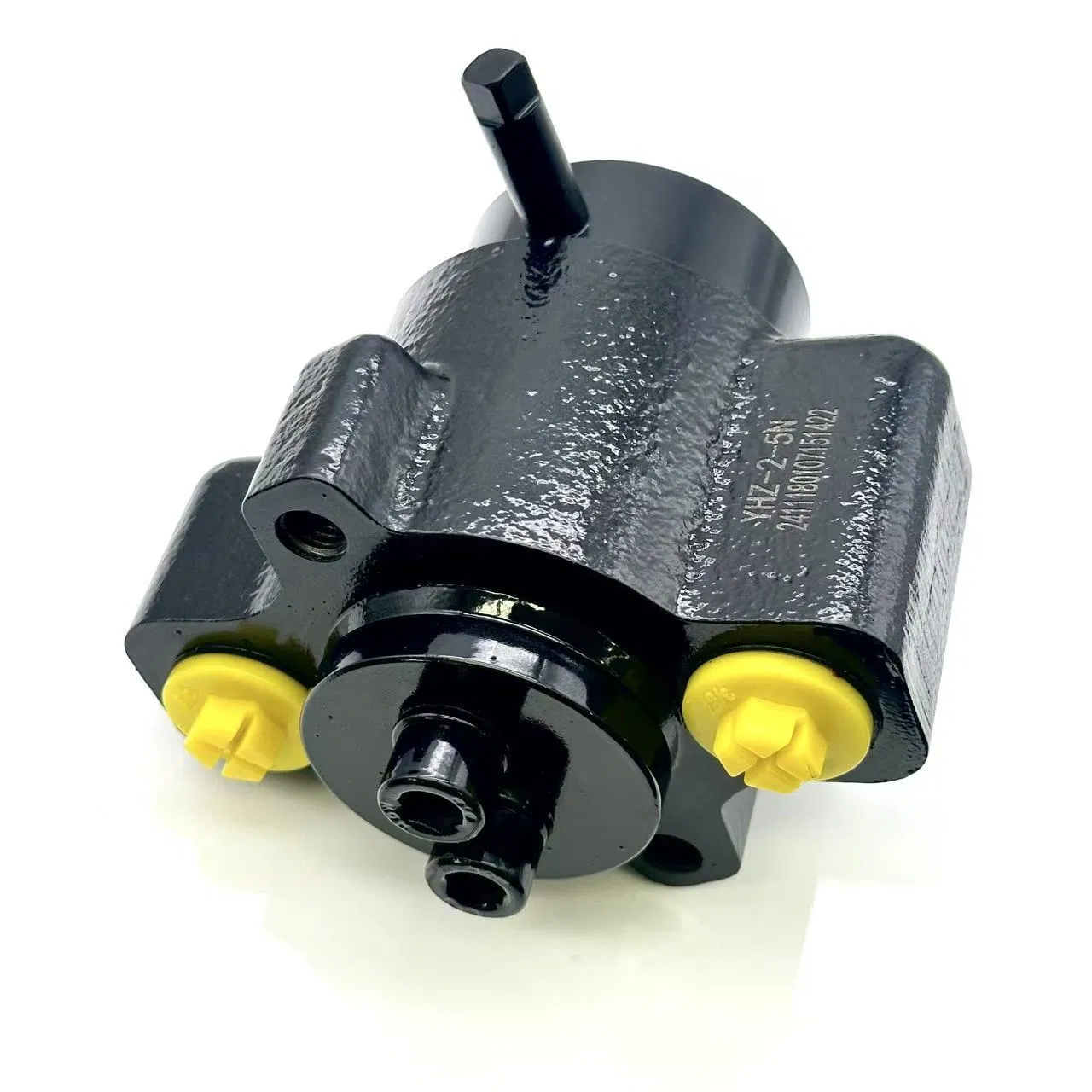

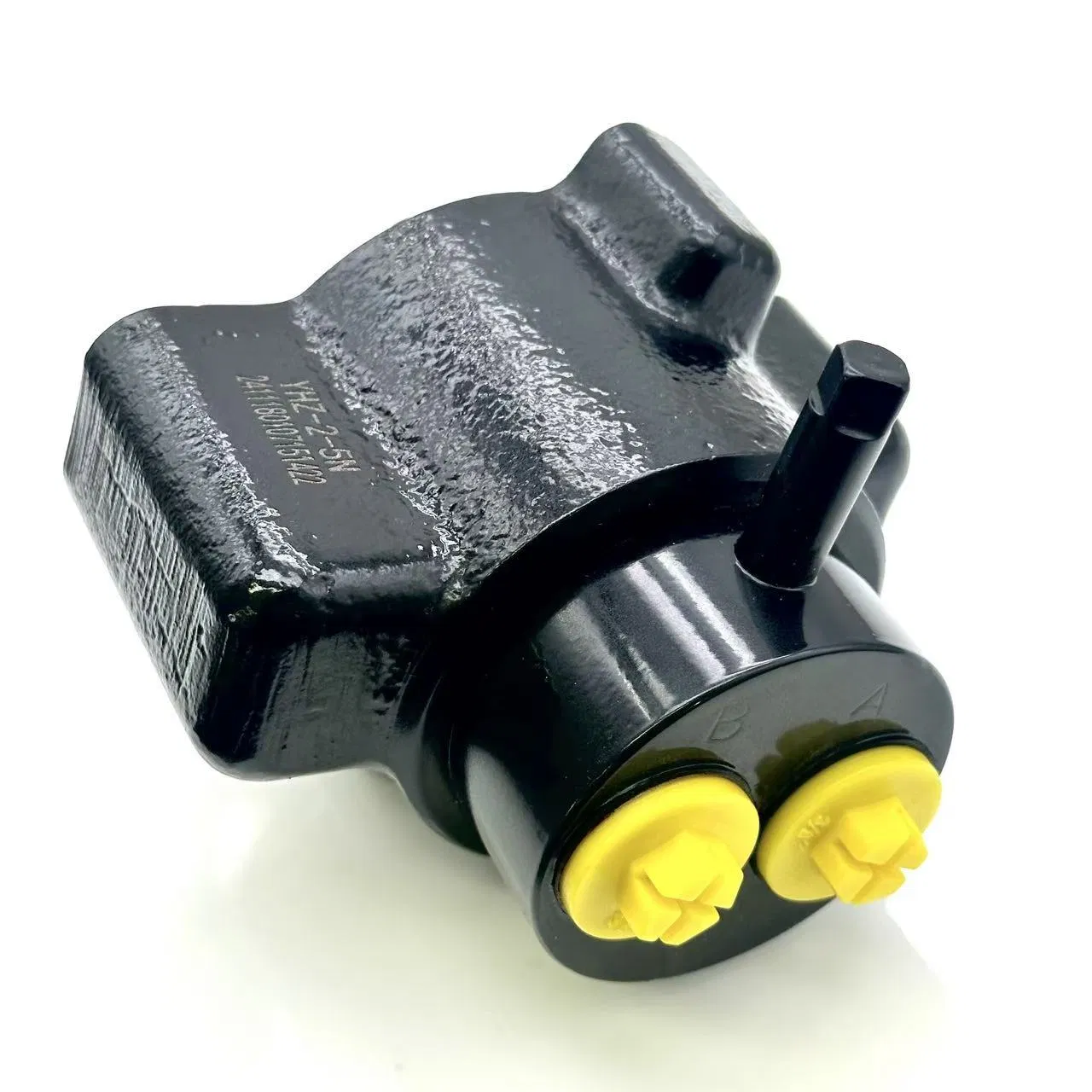

Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
1 / 5
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools
Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools

Reliable Hydraulic Joint for Tunnel Boring and Drilling Tools

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
YHZ-2-5N
Work Temperature
Normal Temperature
Thread Type
Internal Thread
Installation
Sleeve Type
Material
Cast Iron
Type
Right Angle
Max. Flow
40L/Min
Max. Pressure
32MPa
Port Dimensions
JIS B 2351
Channels
2
Weight
2.8kg
Origin
China
HS Code
8481201090
Production Capacity
20000 PCS Each Year
P

Packaging & Delivery

Package Size
26.00cm * 23.00cm * 10.00cm
Package Gross Weight
2.800kg
Transport Package
Wooden Box
D

Product Description

Hydraulic Joint 1
Hydraulic Joint 2
Feature Banner
TypeYHZ-2-5N
Oil Port ThreadG3/8 D=26 L=14
Port DimensionsJIS B 2351
Max. Flow40L/min
Max. Pressure32MPa
Operating Temperature-30~100ºC
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Technical Info
Dimension Chart
?

Frequently Asked Questions

What is the maximum operating pressure for this hydraulic joint?
The model YHZ-2-5N is designed to handle a maximum pressure of up to 32MPa, making it suitable for high-pressure hydraulic applications.
What materials are used in the construction of this joint?
This hydraulic joint is manufactured using high-quality Cast Iron, ensuring durability and long-term reliability in demanding environments.
What is the temperature range for safe operation?
The joint can operate effectively in a wide temperature range from -30ºC to 100ºC, covering most industrial and normal temperature requirements.
What type of installation does this model support?
The YHZ-2-5N features a Sleeve Type installation with Internal Threading, specifically following the JIS B 2351 port dimension standards.
What is the maximum flow capacity of this unit?
The maximum flow rate for this hydraulic joint is rated at 40L/Min, providing efficient fluid transmission for rotational channels.
Is the product suitable for tunnel boring tools?
Yes, its robust cast iron construction and high-pressure rating make it a reliable choice for tunnel boring, drilling tools, and other heavy-duty hydraulic machinery.
